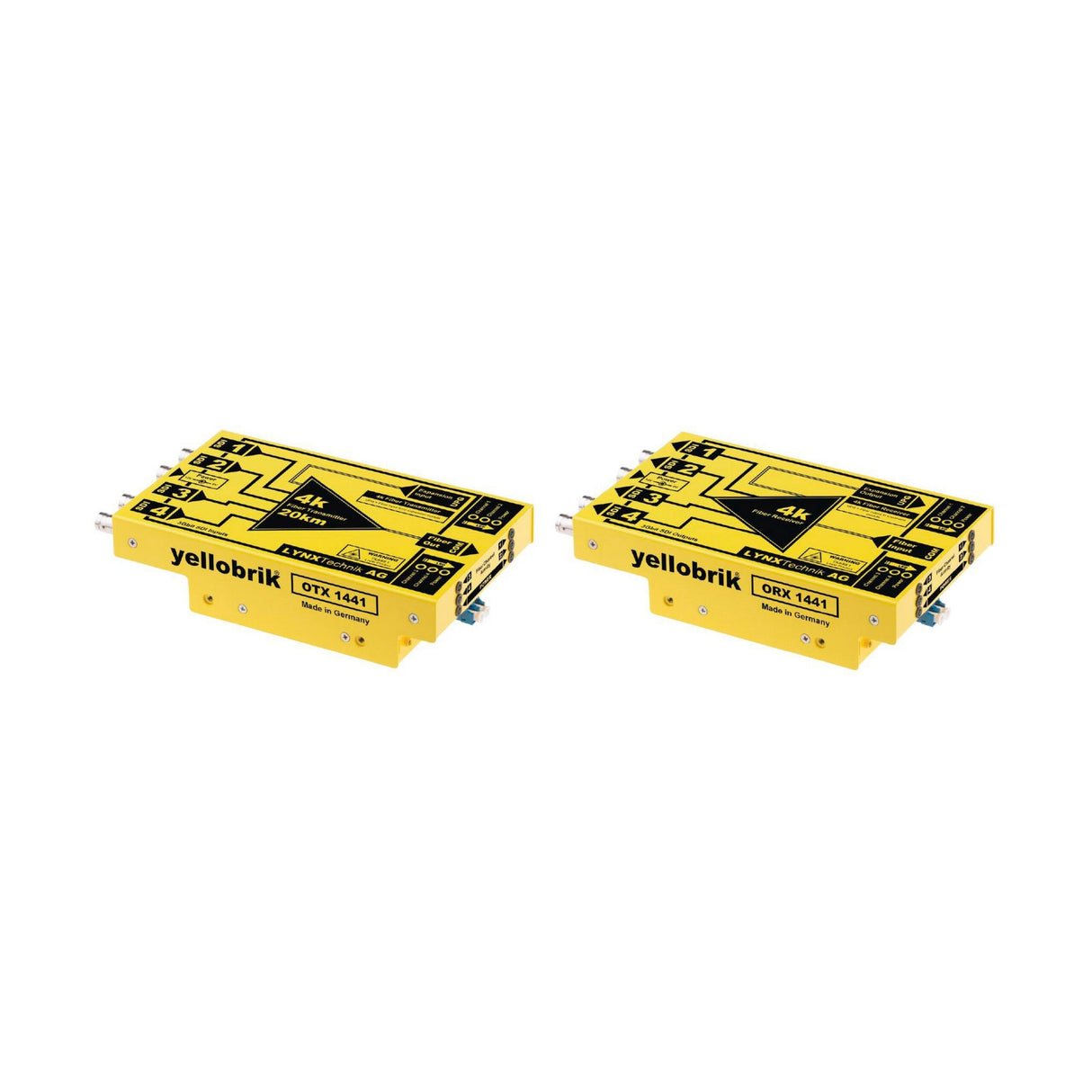

LYNX Technik OTR 1441 4K 12G Fiber Transmission System

The LYNX Technik OTR 1441 is a self-contained fiber transmission kit for the transport of 4 x SDI signals (12G uncompressed) over a single fiber link for distances up to 20km (12miles). The kit includes the fiber transmitter, fiber receiver and power supplies. This is an ideal solution for the transmission of multiple uncompressed SDI streams over long distances with zero losses.

Key Features

• Support for 4 independent 3G/HD/SD-SDI channels
• Transport 4K (uncompressed) up to 20km (12 miles)
• Each channel supports resolutions up to 1080p/60Hz
• Each channel individually reclocked
• Embedded audio / metadata support
• Integrated expansion port for future use
• LED indicators for channel activity and power
• Kit includes transmitter, receiver and power supplies
• Optional 19" Rack tray to mount (max) 4 modules

Technical Specifications

SDI I/O
4 x multi-format 3G/HD/SD-SDI inputs
4 x multi-format 3G/HD/SD-SDI outputs
75 U BNC connections
SMPTE 259M-2008
SMPTE 292-1:2012
SMPTE 292-2:2011
SMPTE 424M-2006
DVB ASI
Multi-standard / Multi-format operation auto-detect.
Multi-rate reclocking
270Mbit / 1.48Gbit / 2.97Gbit
Return Loss
> 15dB to 1.5Gbit and > 10dB to 2.97Gbit
Automatic Cable EQ (Belden 1694A cable)
250m@270Mbit, 140m@1.5BGbit, 80m@3Gbit
Fiber I/O
1 x Fiber optic I/O port (COM port)
1 x Fiber optic expansion port (UPG port) for future use
LC/PC connections - Single Mode.
SMPTE 297M - 2006
Internal CWDM Multiplexing
Wavelengths <1270nm, 1290nm, 1310nm, 1330nm>
Optical budget
10.6dB
Maximum distance
20km (12 miles)
Fiber activity LEDS for each channel
Power
+12VDC optimal (power supplies included)
Power consumption
5.8W (per module)
Supports external power input from 9 - 17 VDC
2 x Power LEDs provided
Physical
170 x 99.7 x 40.5mm (6.7" x 3.9" x 1.6) - (each Module)
Weight
600g (21.1oz) net - (each module)
Ambient
5 - 40C (41 - 104F)
90% Humidity (non condensing)
Item Includes
Fiber Transmitter OTX 1441
Fiber Receiver ORX 1441
Power Supplies
