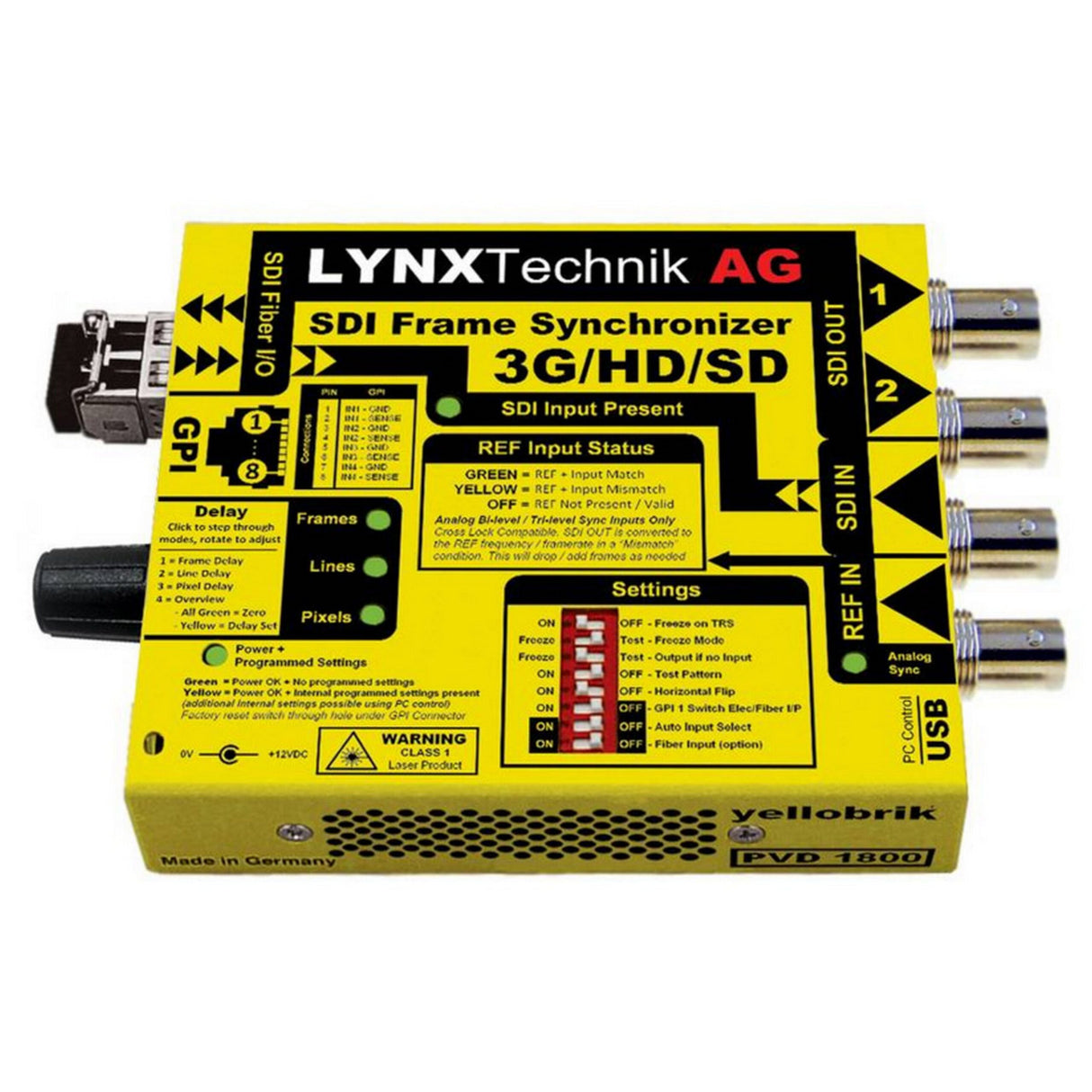

Lynx Technik PVD 1800 SD/HD/3G SDI Frame Synchronizer

The LYNX Technik PVD 1800 is a broadcast quality compact SDI frame synchronizer with high-quality Up/Down/Cross converter and scaler for professional applications in the Broadcast, Post Production and Pro A/V industry. The frame synchronizer utilizes robust "flywheel" algorithms that will accommodate a wide variety of low quality asynchronous SDI sources. All embedded audio is extracted and delayed automatically to match the video processing delay. The module also provides up to 30 frames of programmable output delay, adjustable in frames, lines and pixels.

Key Features

• Supports SDI 3G (level A+B)/HD/SD formats (auto-detect)
• Up/Down/Cross Converter with selectable fast scale mode
• Converter automated by AFD, WSS or VI mode
• Region of Interest scaler
• Converts between 3G Level A and B Dual Link or vice versa
• Optional fiber I/O
• Auto changeover or GPI switch between electrical and optical input
• Robust "flywheel" synchronization for problematic sources
• "Cross lock" compatible reference input
• All 16 channels of audio de-embedded from SDI input
• Audio delayed to match video processing delay and re-embedded
• Integrated test pattern generator
• Up to 30 frames of programmable delay (for timing)

Technical Specifications

SDI Input
1 x 75 Ohm BNC electrical SDI input + 1 x optional fiber SDI input
Serial digital video SMPTE, 292M, 424M, 259M with automatic video format and standard detection
SMPTE 424M, SMPTE 292M, SMPTE 259M
3G Level A & B-DL & B-DS according to SMPTE ST 425-1 with image formats
1280 x 720 and 1920 x 1080
Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
SDI Outputs
2 x 75 Ohm BNC electrical SDI outputs. SMPTE, 292M, 424M, 259M
1 x optional fiber SDI output
SDI output follows input format
Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
Timing Jitter: <0.2 UI @ 270Mbit/s, <1.0 UI @ 1.5Gbit/s, <2.0 UI @ 3Gbit/s
Alignment Jitter: <0.2 UI @ 270Mbit/s, <0.2 UI @ 1.5Gbit/s, <0.3 UI @ 3Gbit/s
Automatic cable EQ (Belden 1694A cable)
340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 110m @ 3Gbit/s
Fiber I/O
Optional plug in SFP for optical SDI I/O (see fiber options table)
SMPTE 297M - 2006
Reference Input
SDTV: Analog 525 or 625 bi-level sync
HDTV: All tri-level sync standards (exceptions 1080p 50/59.94/60Hz)
Cross lock compatible
SMPTE 274M, SMPTE 296M - 75 Ohm BNC connector
Video Delay
Timing Adjustment: Up to 30 frames.
Manually adjustable in frame / line / pixel increments
GPI
Connector: RJ45 with 4 x External GPI inputs:
GPI 1: used for Electrical / Optical SDI changeover
GPI 2: used to "freeze" the SDI output
GPI 3: (low) enable "latch" mode
GPI 4: (low) disables "latch" mode
USB Mini "Type B" connection used for yelloGUI PC control and firmware updates
Physical
Power: +12VDC @ 5.8W nominal (without SFP) (supports 7 - 24VDC input range)
Size: 138 x 90 x 22mm (5.43 x 3.54 x 0.86") including connectors
Weight: 230g (8.11oz)
Ambient: 41 - 104F 90% Humidity (non condensing)
Item Includes
Module
AC power supply
USB cable
