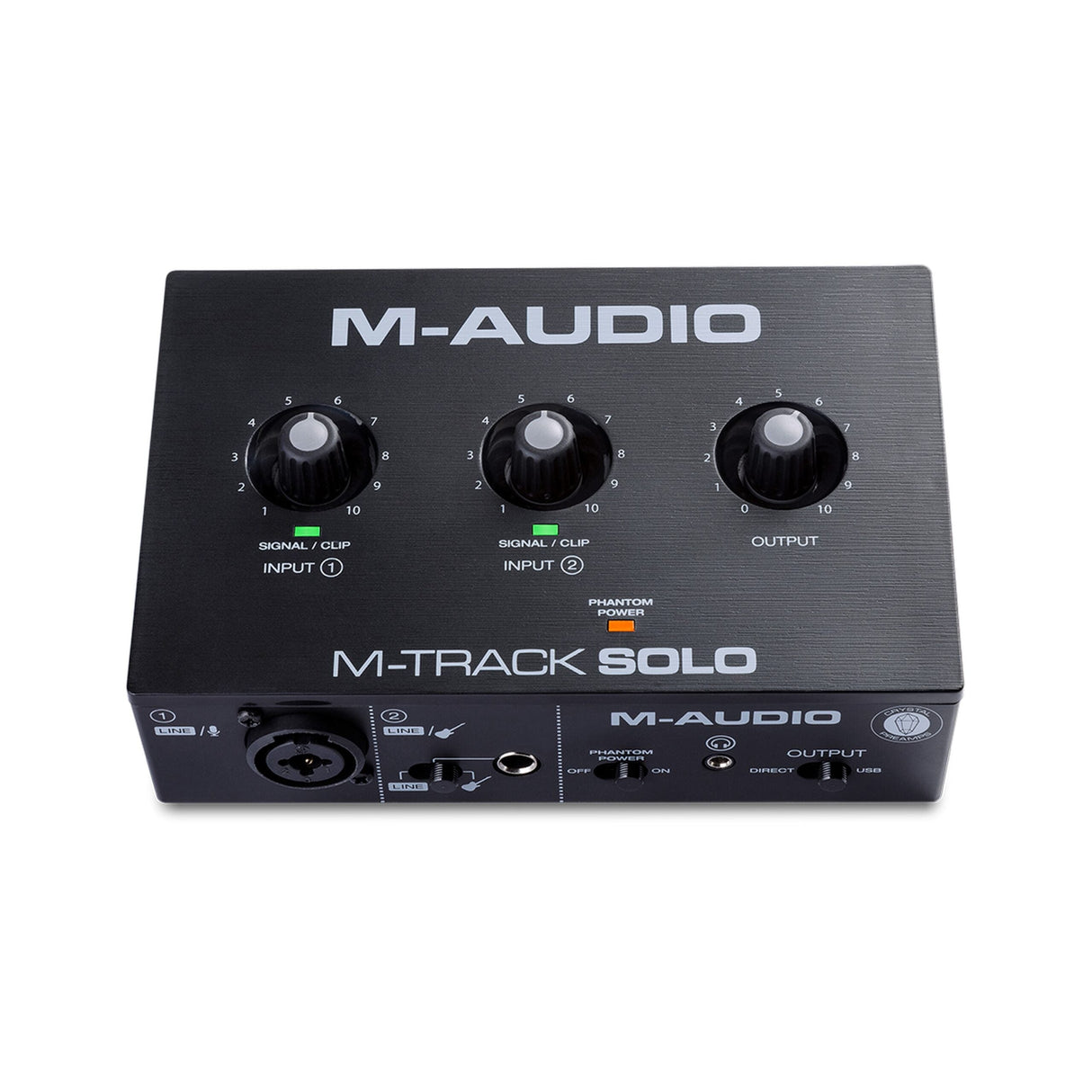

M-Audio M-Track Solo 48 KHz, 2-Channel USB Audio Interface

Crystal Clear Audio in a Compact Design
The M-Track Solo is the best, most portable recording interface in its class. It delivers 48 kHz audio resolution in a compact and easy to use format that is ideal for creating music on any Mac, PC or iOS device. This versatile interface works great for recording any type of sound source and features a single Combo Crystal Preamp with phantom power, plus a switchable Line / Instrument input making it compatible with any guitar or microphone. Plus, with M-Track Solo's 2-channel recording you can use both line inputs simultaneously to capture digital pianos, drum machines or any other stereo 1/4" device. M-track Solo is completely powered by USB, removing the need for an external power supply and making it perfectly portable for recording on-the-go. Throw it into your bag, grab a laptop, and create your next podcast, song, or mix anywhere you want!

Direct Monitoring & Headphone Connection
M-Track Solo offers zero-latency monitoring of the input signal through both the main RCA outputs and 1/8” headphone outputs. The USB/Direct switch adjusts the balance between the direct inputs and the playback from your computer software. This makes it easy to record new parts or add parts to an existing composition.

Start Recording Immediately
The M-Track Solo comes with a complete software package that has everything you need to get started right out of the box. Included is a great digital audio workstation (DAW)-MPC Beats. This DAW makes it easy and fun to create professional sounding podcasts, music, or beat productions on any Mac or PC.

80 Effect Plugins provided by AIR
But that’s not all. Included are some extra goodies to help out any podcaster, guitarist, or producer. First on the list are 80 effect plugins provided by AIR. This exclusive and diverse collection delivers everything you need for creative production, mixing and mastering, including reverbs, equalizers, delays, filters and so much more.

World-Class Virtual Instruments - TubeSynth, Electric, and Bassline
The AIR TubeSynth plugin emulates the sound of vintage analog polyphonic synthesizers. Dive into a collection of warm pads, brass synths, and so much more in this massive collection of synthesizer presets.

AIR Electric plugin is your total electric piano collection on MPC. Choose from a wide collection of keyboards like Rhodes, Wurlitzers, FM keyboards, and more. Dedicated control sections provide deep virtual control over keyboard pickups, envelope, bell and noise settings, and much more.

The AIR Bassline plugin emulates the sound of classic monophonic synthesizers. Create your own unique synth patches with the integrated AIR effects sections

A New Standard For Guitar Amplifier Modeling Software
ReValver includes ValveKing & Custom Lite Amp Modules, 3 x cabs, 3 x mics (with multiple selectable positions), and 3x effects.

Crystal™ Preamps, Pristine A/D Converters and Premium Components
Our engineers designed Crystal Preamps to provide you with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The M-Track Solo incorporates pristine A/D converters for digital audio with explosive dynamic range that captures every nuance and subtlety of the performance.

Key Features

• 2-Channel USB recording interface for Mac and PC
• (1) Combo input with Crystal Preamp for amazing audio quality
• +48V phantom power for connecting studio condenser microphones
• Dedicated instrument input for guitar or bass
• Stereo line input for connecting digital piano, keyboard and more!
• 1/8” headphone and RCA stereo outputs provide easy monitoring
• USB/Direct switch for listening to the input signal or the computer signal
• Software bundle, including: MPC Beats, AIR Music Tech Electric, Bassline, and TubeSynth, Revalver guitar amp plugin and 80 AIR plugin effects

Technical Specifications

Mic Input (balanced XLR)
Frequency Response
20 Hz - 20 kHz (+0.1 dB)
Signal-to-Noise Ratio
109 dB (A-weighted)
THD+N
0.003% (min. gain, 0 dBu out, A-weighted)
Preamp EIN
-128 dBu (max. gain, 40 OHM source, A-weighted)
Gain Range
0 dB to +54 dB

Line Input (balanced 1/4" <6.35 mm> TRS)
Frequency Response
20 Hz - 20 kHz (+0.1 dB)
Sensitivity
-43 dBu
THD+N
0.002% (min. gain, 0 dBu out, A-weighted)
Gain Range
-10 dB to +44 dB

Instrument Input (unbalanced 1/4" <6.35 mm> TS)
Frequency Response
20 Hz - 20 kHz (+0.1 dB)
THD+N
0.005% (min. gain, 0 dBu output, A-weighted)
Input Impedance
1 MOHM
Gain Range
-10 dB to +44 dB

RCA Outputs
Frequency Response
20 Hz - 20 kHz (+0.1 dB)
Signal-to-Noise Ratio
109 dB (A-weighted)
THD+N
0.002% ( 0 dBu output, A-weighted)
Max Output Level
+4 dBu

Headphone Output (1/8” <3.5 mm> TRS)
Power
60 mW/Ch, 32 OHM
Frequency Response
20 Hz - 20 kHz (+0.5 dB)
THD+N
0.02% (A-weighted)
Signal-to-Noise Ratio
100 dB (A-weighted)

What’s In The Box
M-Track Solo
USB-B-to-USB-A Cable
Software Download Cards
User Guide
Safety & Warranty Manual
