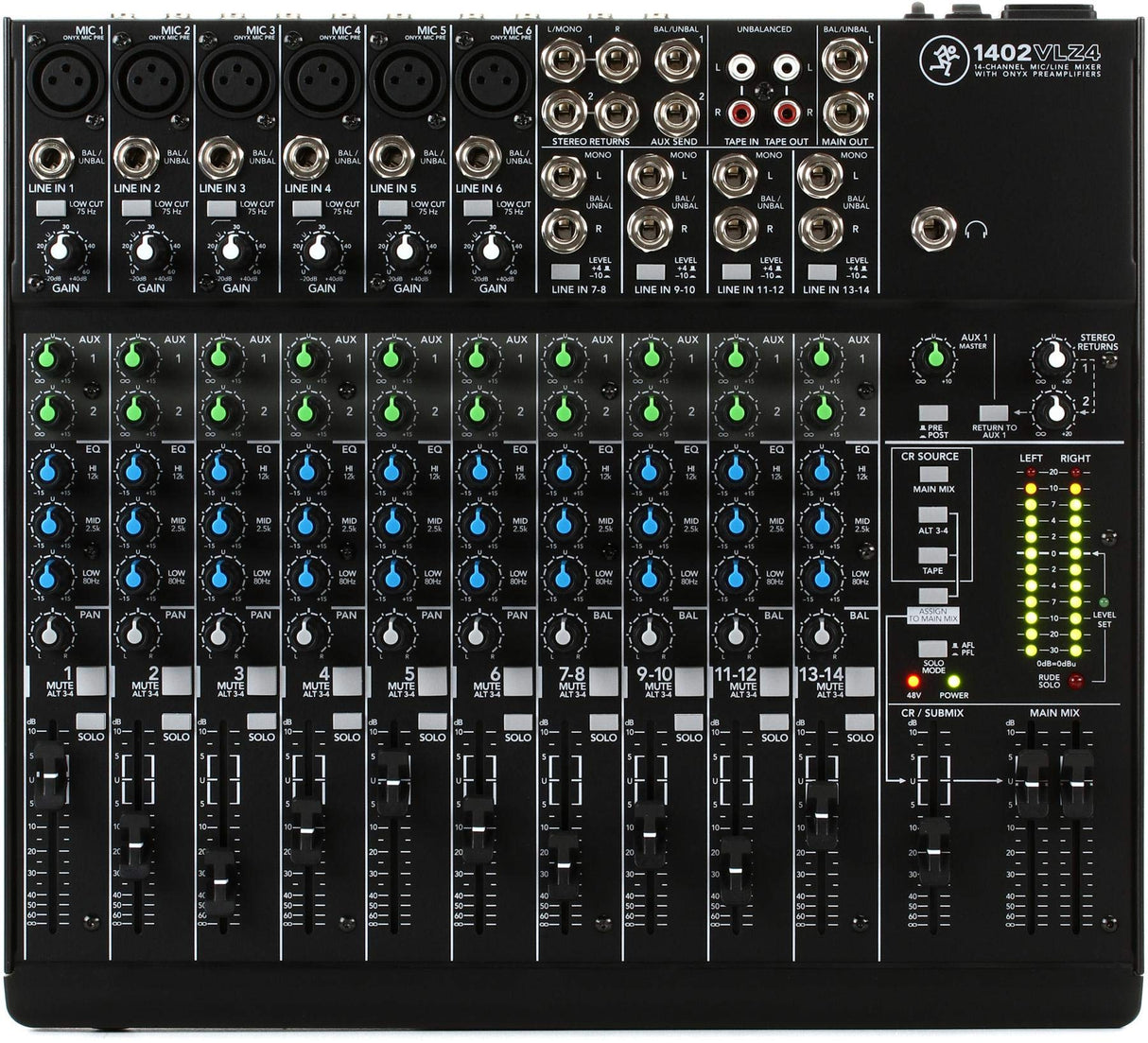

Mackie 1402VLZ4 14-Channel Compact Analog Mixer with 6 Onyx preamps

Mackie 1402VLZ4 14-Channel Compact Analog Mixer with 6 Onyx Preamps

The Mackie 1402VLZ4 14-Channel Compact Mixer is a powerhouse blend of reliability and advanced audio performance, ideal for a wide variety of applications including live sound mixing, studio recording, and multimedia broadcasting. Renowned for its pristine audio quality, this mixer features six exclusive Onyx microphone preamps, offering 128.5 dB dynamic range and extraordinarily low distortion for professional-grade sound. Built with a robust solid-steel chassis, the 1402VLZ4 is designed to withstand the rigors of frequent use while delivering high-headroom and low-noise operation from every input to every output.

The 1402VLZ4 equips you with a multitude of features including high-contrast, tactile controls for intuitive operation and a dedicated control room section. Whether you're managing live performances or conducting studio sessions, the log-taper faders offer smooth, precise control over your mix. The versatile functionality of this mixer makes it an excellent choice for clubs, houses of worship, gymnasiums, banquet halls, and conference rooms. Plus, with its multi-voltage power supply, the Mackie 1402VLZ4 is perfectly suited for global use.

Get ready to experience unmatched performance with the Mackie 1402VLZ4 14-Channel Compact Mixer. This rack-mountable device ensures you have professional-grade audio solutions at your fingertips, fitting seamlessly into varied environments where quality and reliability are paramount.

Key Features

• 14-channel mixer featuring signature high-headroom, low-noise design
• 6 boutique-quality Onyx microphone preamps with wide 60 dB gain range and +22 dBu line input handling
• Advanced RF rejection, ideal for broadcast applications
• Phantom power for condenser microphones
• 14 high-headroom line inputs with +4/-10 operation control
• 3-band EQ with 80 Hz, 2.5 kHz, and 12 kHz controls
• 18 dB/octave 75 Hz low-cut filter on mic input channels
• Two AUX sends and level, pan, and PFL solo on each channel
• Smooth 60mm long-wearing log-taper faders
• Two stereo returns for FX processor or other stereo sources
• ALT 3/4 stereo bus for flexible routing
• High-resolution 12-segment stereo meters
• Sealed rotary controls to resist dust and grime
• Rugged build with a powder-coat finish
• High-visibility, high-contrast controls for quick visual feedback
• Rack-mountable design compatible with a rack ear kit (sold separately)
• Multi-voltage power supply for worldwide usage

Specifications

• Noise: Main Mix Fader Down, Channel Faders Down: -101 dBu; Main Mix at Unity, Channel Faders Down: -91 dBu (95 dB SNR)
• Total Harmonic Distortion: Microphone Pre @ Insert: <0.0007%
• Crosstalk/Attenuation: Main Mix Fader Down: -100 dBu; Channel Alt/Mute Switch Engaged: -90 dBu; Channel Fader Down: -90 dBu
• Frequency Response: Mic Input to Main Output (Gain at Unity): +0 -1 dB (20 Hz to 50 kHz); +0 -3 dB (<10 Hz to >100 kHz)
• Equivalent Input Noise: 150 Ohm Termination: -128.5 dBu (20 Hz to 20 kHz, max gain)
• Common Mode Rejection Ratio: Better than -70 dB at 1 kHz
• Maximum Level: Mic In: +22 dBu; Tape In: +16 dBu; All Other Inputs: +22 dBu; Main Mix XLR Out: +28 dBu; All Other Outputs: +22 dBu
• Impedance: Mic In: 2.5k; Instrument Input: 2.5M; All Other Inputs: 10k or greater; Tape Out: 1.1k; All Other Outputs: 120
• Equalizer: High Shelving: ±15 dB at 12 kHz; Mid Peaking: ±15 dB at 2.5 kHz; Low Shelving: ±15 dB at 80 Hz
• Power Consumption: 25 W, 100 to 120 VAC, 50 to 60 Hz
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Fuse Rating: 100 to 120 V: 500 mA slo blo, 5 x 20 mm; 220 to 240 V: 250 mA slo blo, 5 x 20 mm
• Dimensions: 12.5 x 14.0 x 3.2 inches (317.0 x 356.0 x 81.0 mm)
• Weight: 9.5 lb (4.5 kg)

Package Contents

• Mackie 1402VLZ4 14-Channel Compact Mixer
• Power Cable
• User Manual
