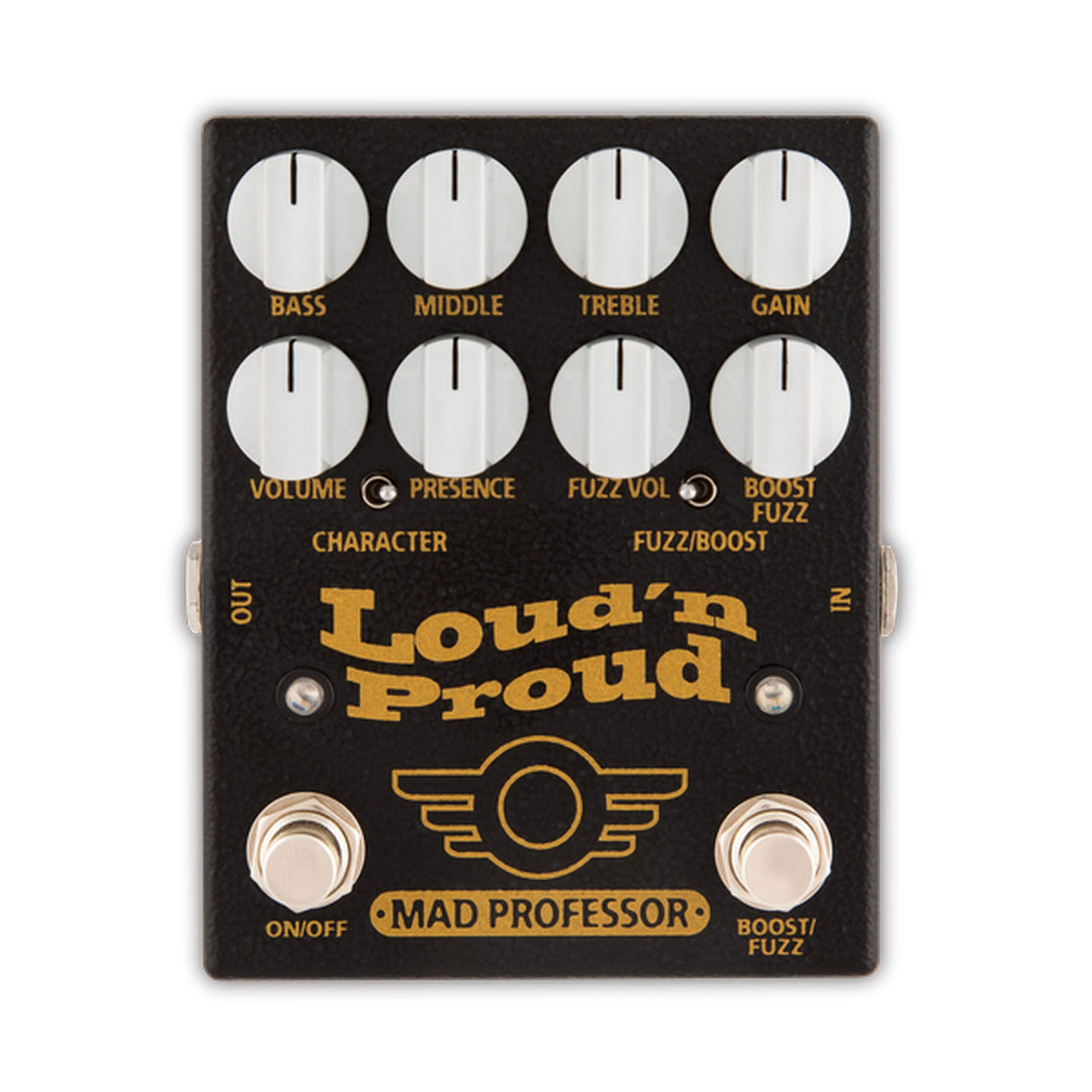

Mad Professor Loud and Proud Boost/Fuzz Effect Pedal

The vintage 4-input Marshall, just has that classic and rebellious rock tone we have all grown to love. It helped to define the classic hard rock tones of band and artists including AC/DC, Cream, Jimi Hendrix, Led Zeppelin, Free, Yngwie Malmsteen, and many more.

Mad Professor Loudn Proud is a vintage 4-input Marshall in a box. It’s a compact pedal with a complete amp signal path replicated inside. Not only the preamp but also the power amp containing phase inverter, push-pull stage, and output transformer simulation. This internal structure makes the pedal not only sound but also behave like a real amp.

And like a vintage Marshall amp, the pedal has a moderate amount of gain. This is what led us to adding a boost/fuzz to this medium gain overdrive circuit. The pre boost has the capability of pushing 13dB, which adds a nice amount of gain to the pedal. It also thickens the midrange a bit so feel free to experiment with the boost also for a different voicing for the overall tone of the pedal. The fuzz is designed to work like a vintage germanium fuzz. By engaging the fuzz you can find a great variety of tones from a clean tone to a thick and warm fuzzy tones just by rolling the guitar volume. The vintage germanium fuzz + Marshall plexi is a classic tone combination that we absolutely wanted to include to the Loud n Proud pedal!

You will also find a switch for two different character voicings in the Loudn Proud pedal: tighter bass and slightly compressed tone on the left with a looser bass including maximum dynamics on the right. If you love the vintage Marshall amp tone, you will also love this pedal. It’s the real deal for those who dare!

Best overdrive pedal for: Emulating vintage Plexi and JTM45 Marshall amplifier, AC/DC tone, Jimi Hendrix Tone, Yngwie Malmsteen tone, Paul Kossoff/Free tone, Led Zeppelin tone, Allman Brothers tone, Eric Clapton/Cream tone, Bluesbreakers tone, classic 60's and early 70's guitar tone, fat dynamic fuzz tone, classic rock tone, your tone

Technical Specifications

CONTROLS
BASS: Adjusts the amount of the low frequencies.
MIDDLE: Adjusts the amount of the mid frequencies.
TREBLE: Adjusts the high frequency amplification in the preamp section.
GAIN: Adjusts the amount of distortion.
VOLUME: Sets the output level.
PRESENCE: Adjusts the high frequency amplification in the power amp section by changing high frequency feedback.
FUZZ VOL: Sets the output level of the fuzz.
BOOST / FUZZ: Adjusts the amount of the boost or the fuzz.
CHARACTER SWITCH: Tighter bass and a bit compressed sound on the left and a looser bass with maximum dynamics on the right.
FUZZ / BOOST SWITCH: Chooses between the fuzz or the boost circuits.
MEASUREMENTS: 94mm x 120mm x 53mm
CAUTION!
Never operate the unit with its bottom removed or damage will most likely occur.
ELECTRICAL SPECIFICATIONS:
Current consumption 27mA at 9VDC
Supply voltage 9VDC
Input impedance 500 kOhm for Distortion/Boost and 8kOhm for Fuzz
Output impedance 1 kOhm
Complete bypass (true bypass)
Power requirements: 6f22 9V battery or DC eliminator 2.1 mm plug, center negative and positive sleeve.
NOTES:
Loudn Proud is protected against wrong eliminator polarity.
Use recommended voltage for best results
The manufacturer claims that the above-mentioned product fulfills the requirements as set by en 55013, en 55020, en 60555-2 and en 60555-3, RoHs and Wee
Mad Professor pedals carry a 2-year limited warranty
