Magewell Director Plus Portable 4K Production and Streaming System

Magewell Director Plus Portable 4K Production and Streaming System

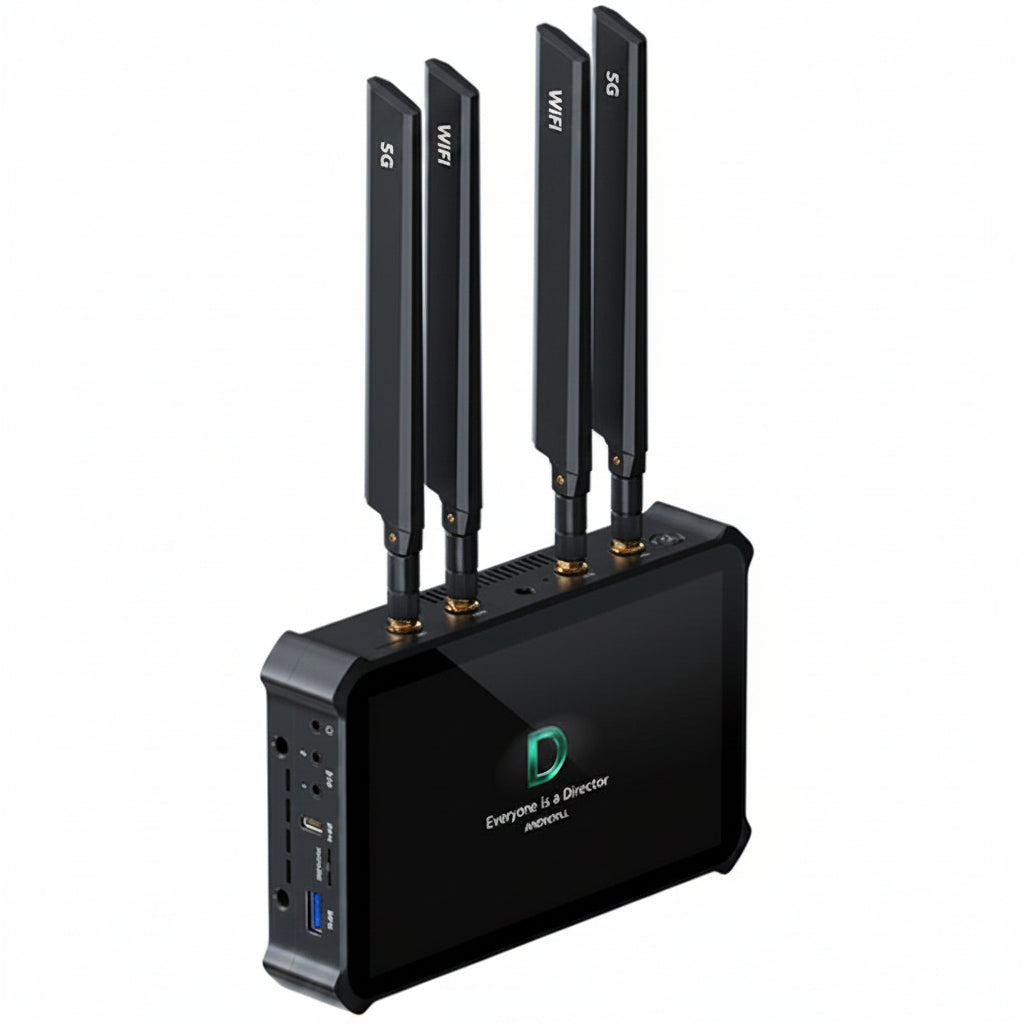

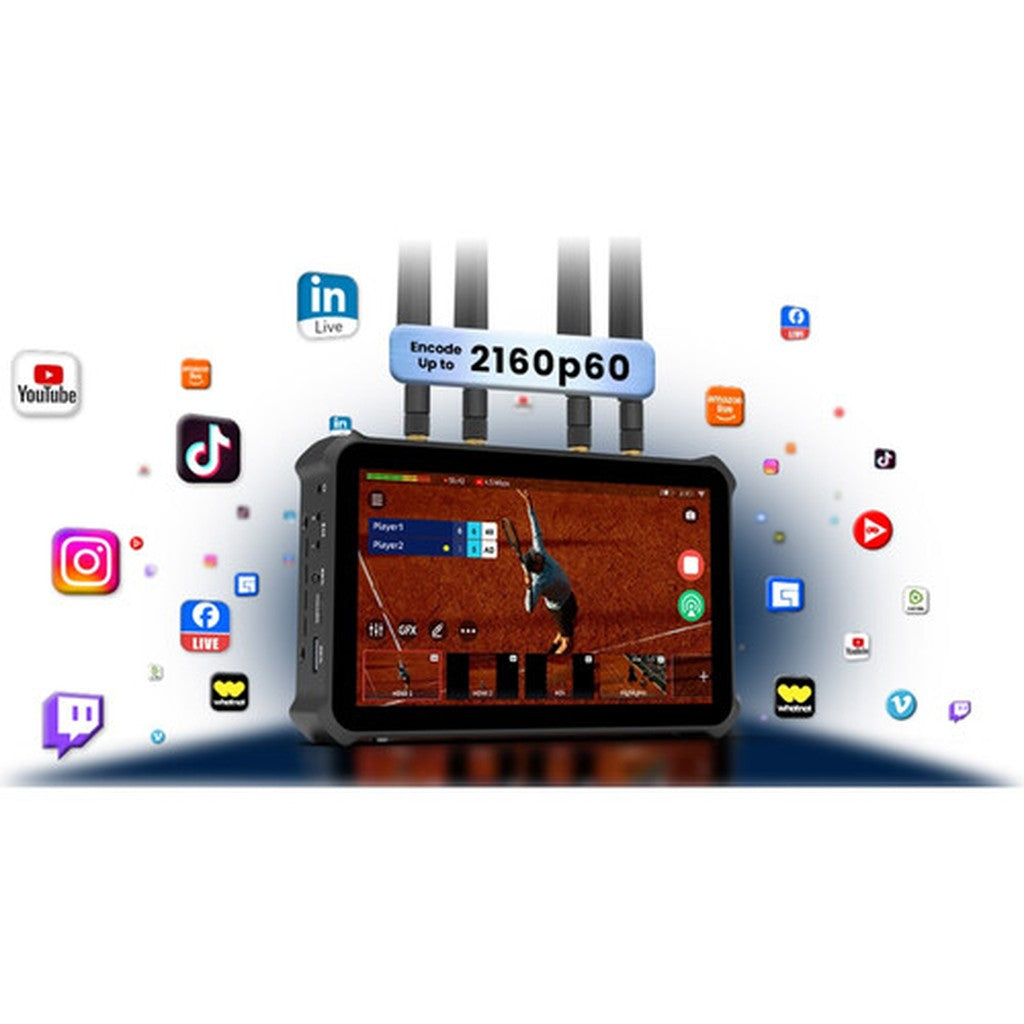

The Magewell Director Plus Portable 4K Production and Streaming System combines multi-camera switching, recording, encoding, graphics, monitoring, and quad-destination streaming in one compact device. It handles wired, wireless, and IP sources while producing landscape or vertical programs at resolutions up to 2160p60.

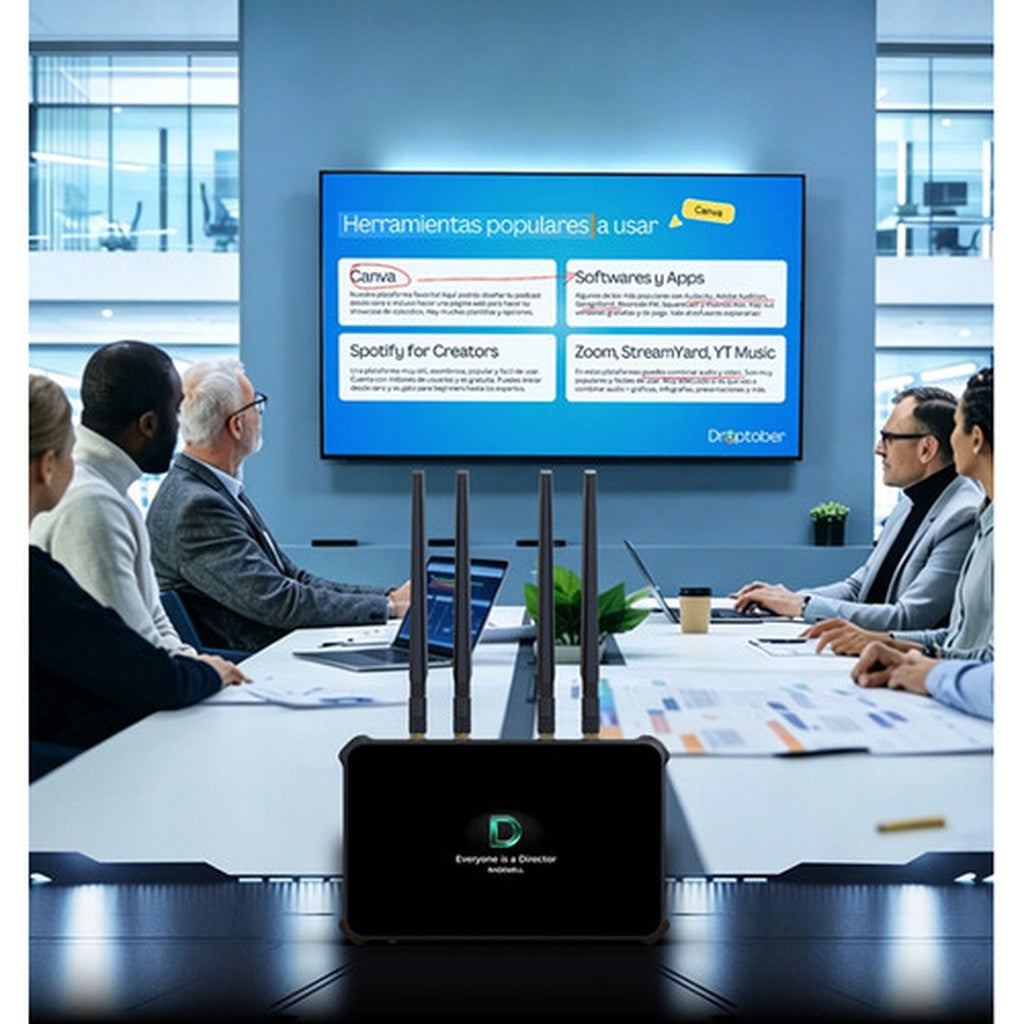

Built for live events, sports, worship, education, corporate presentations, and mobile production, Director Plus accepts four HDMI sources, two USB AV sources, and up to ten simultaneous IP feeds. Producers can create layered scenes, add lower thirds, use chroma keying, annotate video, control PTZ cameras, and capture instant replays directly from the integrated touchscreen.

A built-in 5G modem, Wi-Fi 6E, 2.5Gb Ethernet, and network bonding support reliable remote streaming from studios or field locations. Productions can stream to four destinations while recording four isolated sources for post-production. The 7-inch AMOLED touchscreen, dual hot-swappable NP-F battery support, internal storage, external media recording, and included stand kit create a flexible professional workflow.

Key Features

• Complete 4K Production System: Combines live switching, encoding, recording, graphics, monitoring, replay, and streaming in one portable unit.
• Extensive Source Support: Accepts four HDMI inputs, two USB AV inputs, mobile cameras, media files, webpages, apps, and ten simultaneous IP feeds.
• 2160p60 Streaming and Recording: Encodes H.264 or H.265 video at resolutions up to 4K 60 fps and bitrates up to 120 Mbps.
• Four-Destination Streaming: Sends a production to four simultaneous platforms through RTMP, RTMPS, SRT, RTSP, or NDI workflows.
• Four-Channel ISO Recording: Records independent sources for editing, replay creation, archiving, and content repurposing.
• 7-Inch AMOLED Touchscreen: Provides a bright, high-contrast interface for scene switching, audio mixing, graphics, monitoring, and system control.

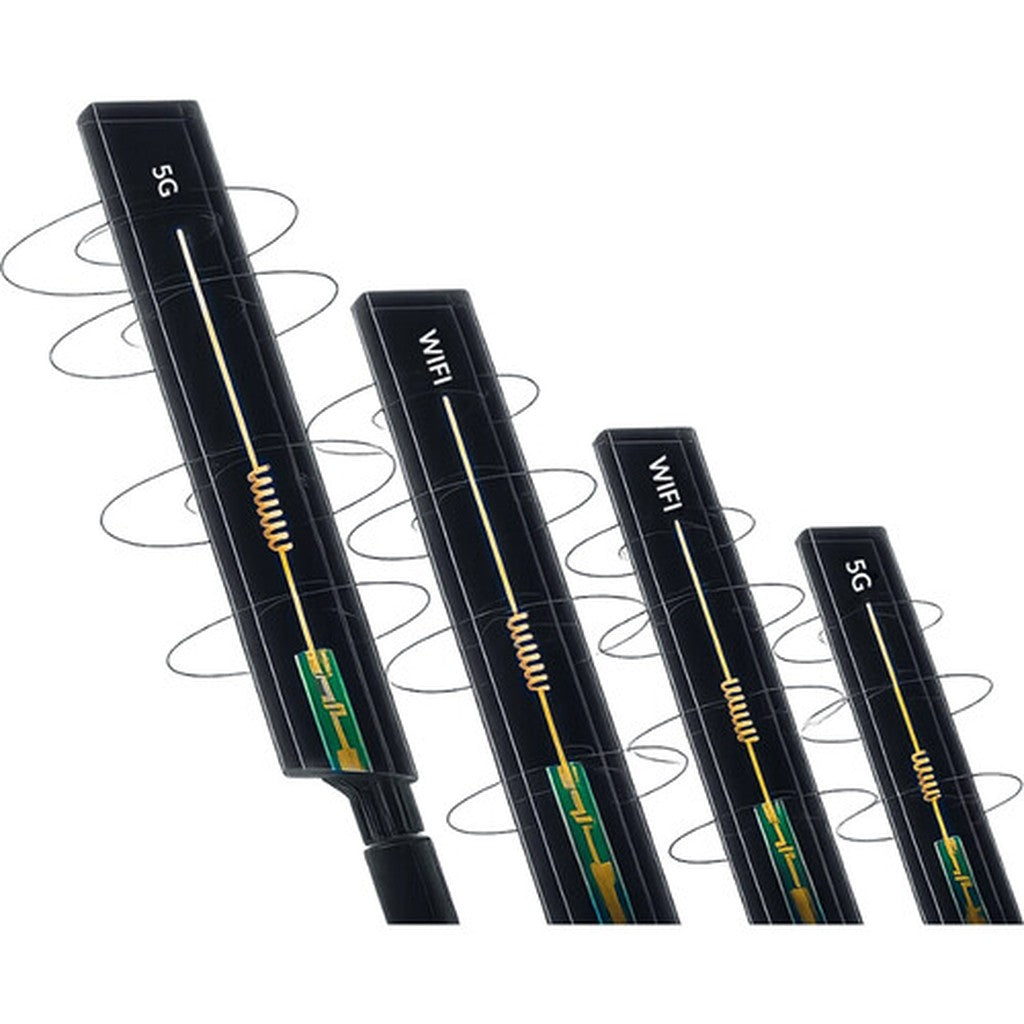

• Integrated Mobile Connectivity: Combines a built-in 5G modem, Wi-Fi 6E, 2.5Gb Ethernet, and network bonding for resilient streaming.
• Field-Ready Power Options: Runs from the included locking power adapter or two hot-swappable NP-F batteries.

Technical Specifications

• Product Type: Portable all-in-one 4K live production and streaming system
• Model: Director Plus
• SKU: 552900000
• Production Functions: Video switching, scene composition, graphics, encoding, streaming, recording, monitoring, telestration, PTZ control, and instant replay
• Show Orientations: Landscape 16:9 and portrait 9:16
• Show Resolutions: 2160p, 1440p, and 1080p
• Show Frame Rates: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps
• Maximum Simultaneous 4K60 Sources: 6
• Maximum Simultaneous 1080p60 Sources: 16

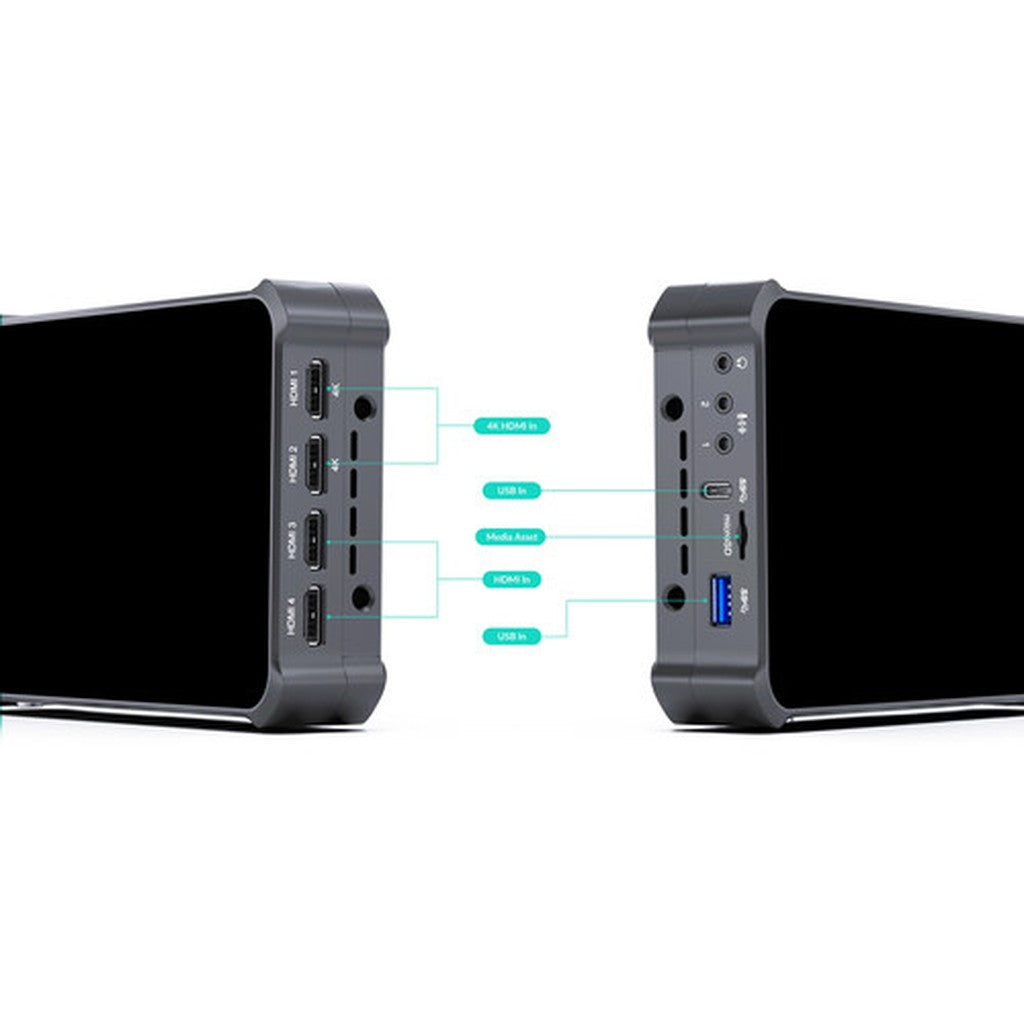

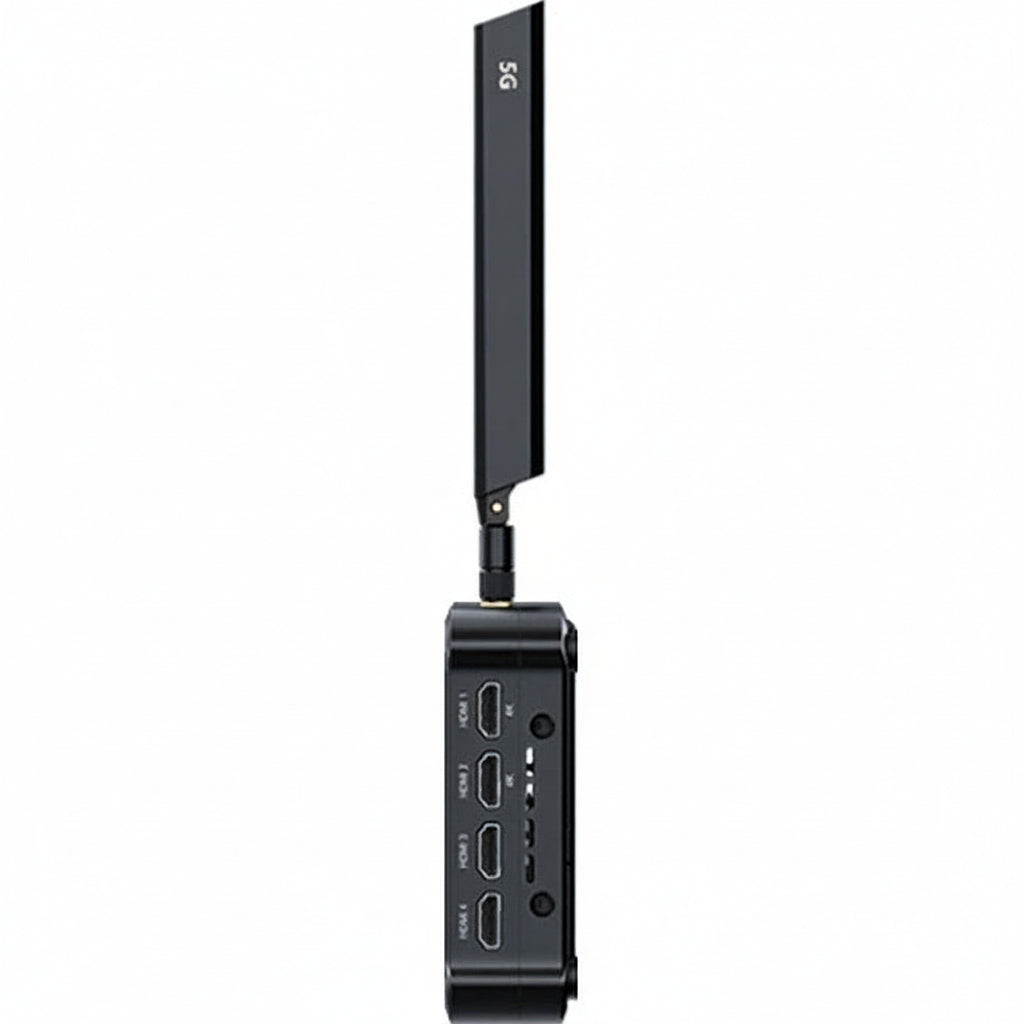

• HDMI Inputs: 4 x HDMI 2.0 Type-A
• HDMI Input Capability: HDMI 1 and HDMI 2 support up to 4096 x 2160p60; Full HD inputs support up to 1920 x 1080p120
• HDMI Input Color Depth: 8-bit, 10-bit, and 12-bit
• HDMI Input Color Sampling: RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2
• HDMI Color Formats: Auto, RGB, YUV BT.601, YUV BT.709, and YUV BT.2020
• EDID: Custom EDID support

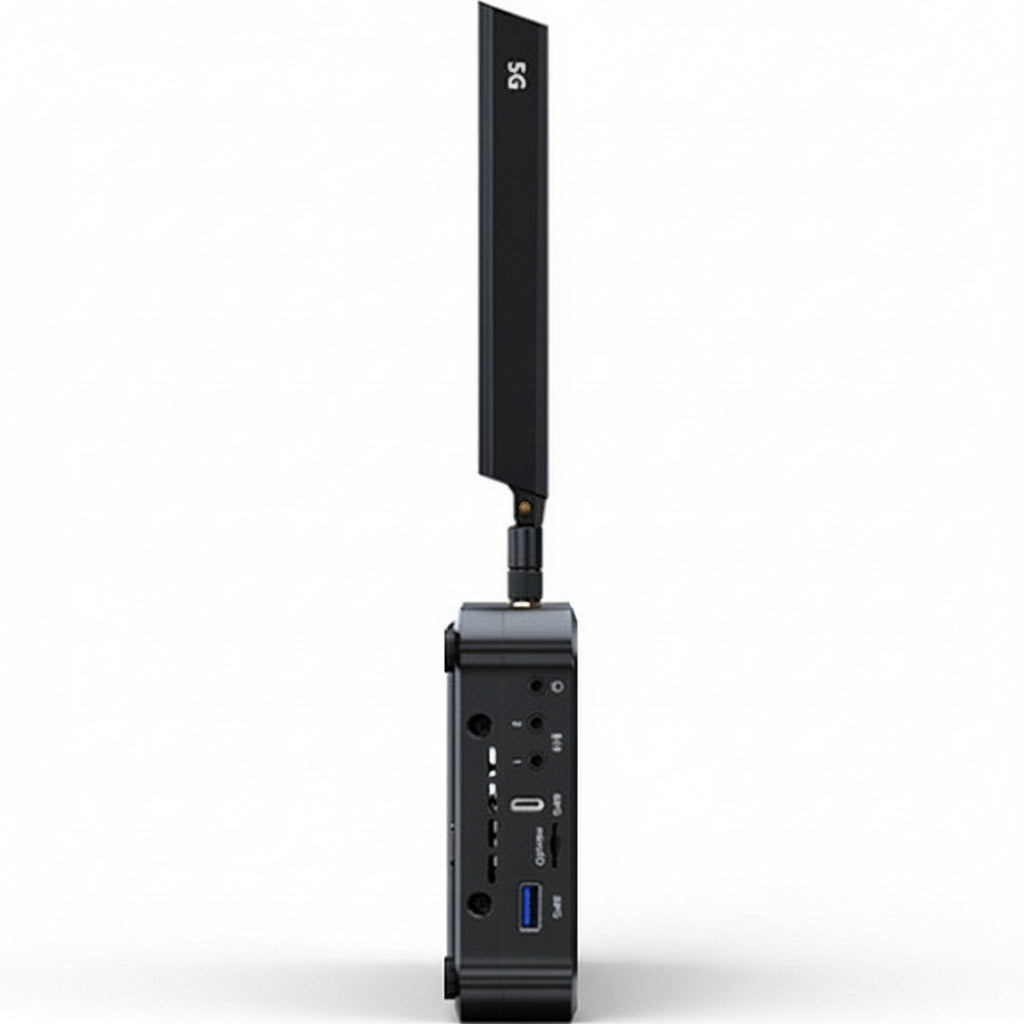

• USB AV Inputs: 1 x USB 3.0 Type-A and 2 x USB 3.0 Type-C
• USB Input Formats: YUYV, MJPEG, NV12, UYVY, RGB24, H.264, and H.265
• Maximum USB Input: Up to 4K 60 fps
• IP Inputs: Up to 10 simultaneous SRT, RTMP, RTSP, NDI High Bandwidth, NDI HX2, NDI HX3, or mobile-camera sources
• Maximum IP Input: Up to 4K 60 fps or 2K 120 fps, depending on protocol
• Media Sources: Video, still images, background music, webpages, documents, text, colors, and approved third-party apps
• Video File Formats: MOV, MP4, WebM, and MKV
• Video File Codecs: H.264 and H.265
• Image File Formats: JPEG, PNG, and BMP
• Background Music Formats: MP3, M4A, and WAV
• Third-Party Apps: Up to 3 simultaneously
• Webpage Sources: Up to 3 scene webpages and 7 webpage graphics
• Document Sources: Up to 3 documents
• Mic/Line Inputs: 2 x 3.5 mm jacks, 2-channel, 48 kHz, 16-bit
• HDMI Embedded Audio Input: Up to 8-channel, 192 kHz, 24-bit
• USB Audio Input: Up to 8-channel, 192 kHz, 24-bit
• Bluetooth Audio Input: 2-channel, 48 kHz, 16-bit
• Headphone Output: 1 x 3.5 mm, 2-channel, 48 kHz, 16-bit
• Streaming Codecs: H.264 and H.265
• Streaming Resolutions: 2160p, 1440p, 1080p, 720p, 540p, and 360p for supported NDI output
• Maximum Streaming Bitrate: 120 Mbps
• NDI HX3 Bitrate: 3 to 110 Mbps
• Streaming Bitrate Modes: CBR and VBR
• Streaming Protocols: SRT, RTMP, RTMPS, RTSP, HLS, and NDI HX3
• Native Streaming Services: YouTube Live, Facebook Live, and Twitch
• Simultaneous Streaming Destinations: 4
• Recording Codecs: H.264 and H.265
• Recording Resolutions: 2160p, 1440p, 1080p, 720p, and 540p
• Recording File Formats: MOV and MP4
• Maximum Recording Bitrate: 120 Mbps
• ISO Recording: Up to 4 independent sources
• Simultaneous Replay Channels: 4
• Recording Destinations: Internal storage, microSD card, or USB SSD
• Internal Storage: 128GB
• Memory Card Slot: 1 x microSD
• Supported Storage File Systems: FAT32, exFAT, and NTFS

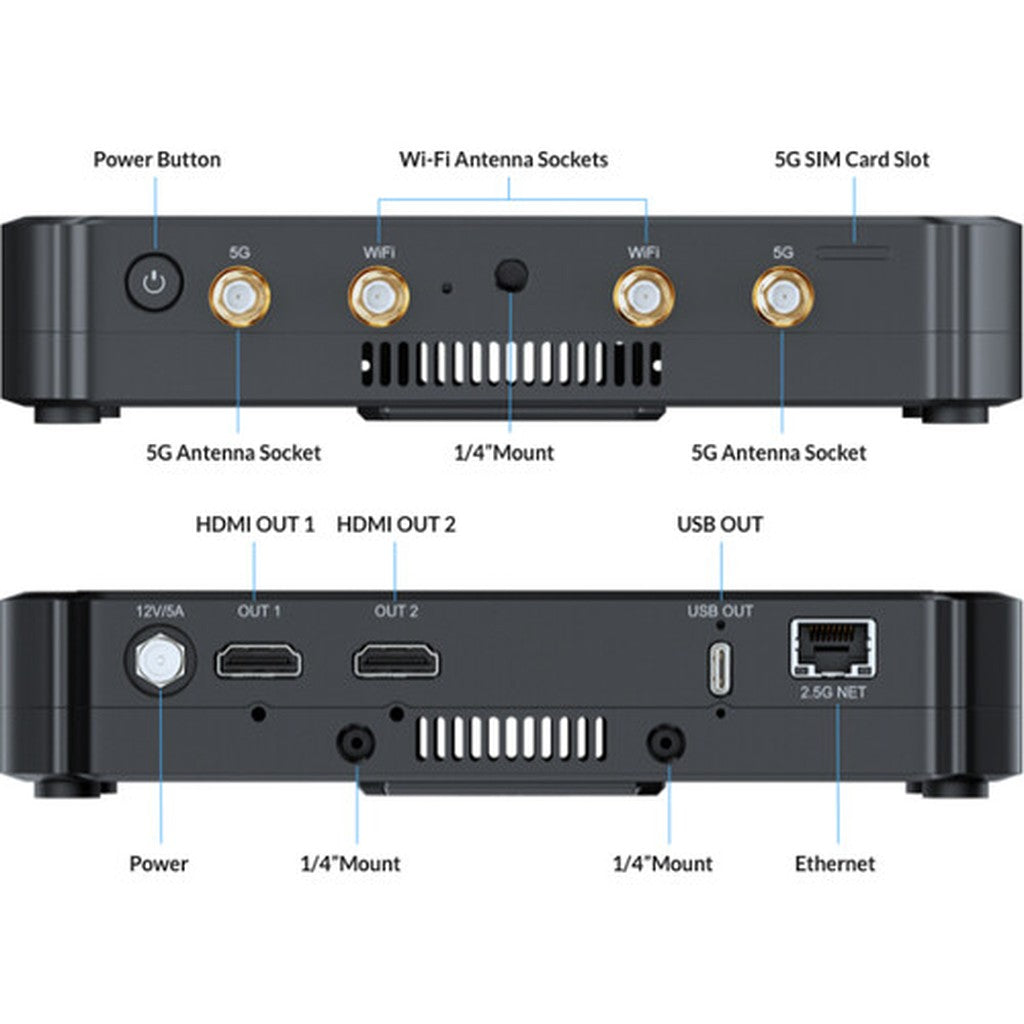

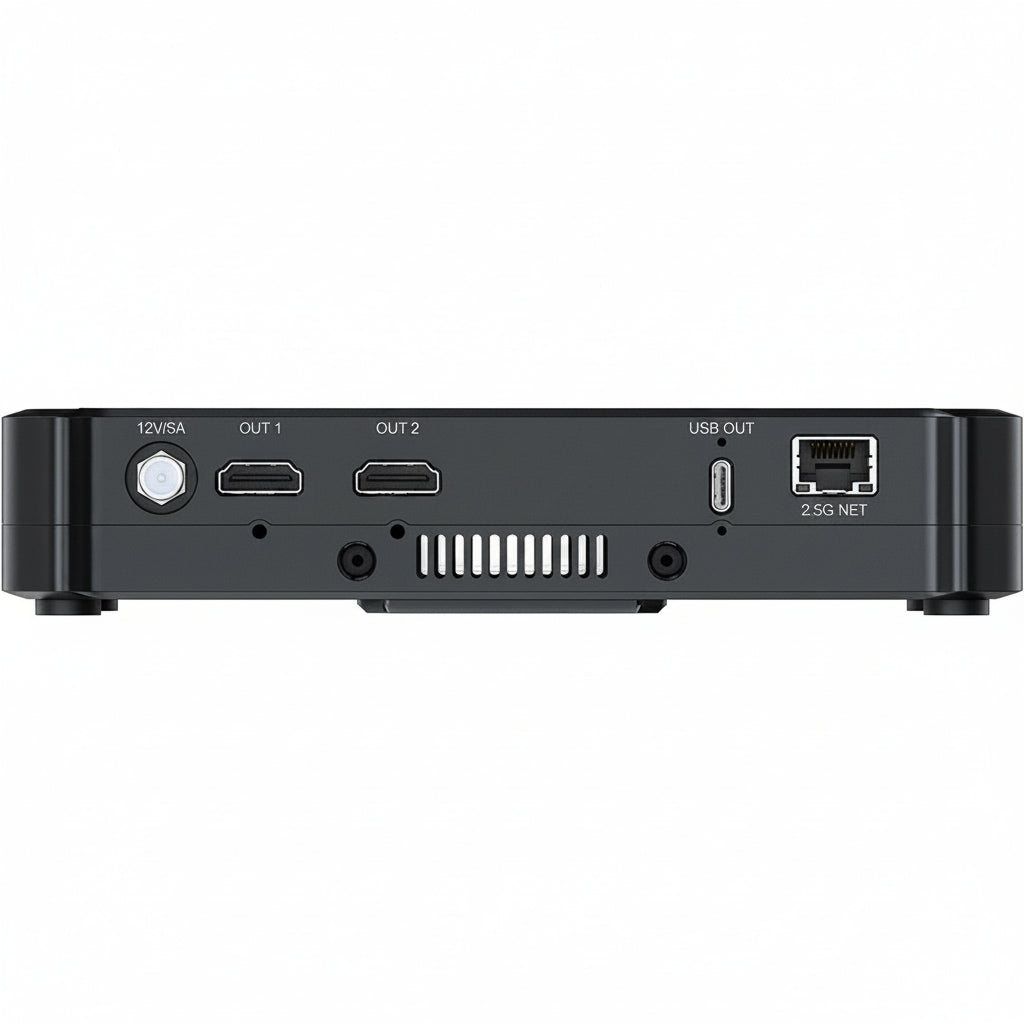

• HDMI Outputs: 2 x HDMI 2.0 Type-A
• HDMI Output Resolutions: 3840 x 2160, 2560 x 1440, 1920 x 1080, and 1280 x 720
• USB-C Output: 1 x USB 3.0 Type-C with UVC 1.1, UAC 1.0, and DisplayPort output modes
• USB-C Output Resolutions: Up to 3840 x 2160, including landscape and portrait formats
• Output Sources: Program, Preview, Multiview, mirrored interface, HDMI inputs, USB cameras, network streams, mobile cameras, and apps
• Ethernet: 1 x RJ45, 10/100/1000/2500 Mbps Base-T
• Wireless LAN: Wi-Fi 6E with station and hotspot modes
• Cellular: Built-in 5G modem with 1 x SIM card slot
• Bluetooth: Bluetooth 5.3
• Network Bonding: Supported
• USB Tethering: Supported through a connected mobile device
• Display: 7" AMOLED capacitive touchscreen
• Display Resolution: 1920 x 1080
• Display Aspect Ratio: 16:9
• Display Brightness: 800 nits
• Display Contrast Ratio: 100,000:1
• Display Color Depth: 10-bit
• Display Refresh Rate: 50 or 60 Hz
• Display Pixel Density: 315 ppi
• Display Color Coverage: 100% NTSC, 145% sRGB, and 105% DCI-P3
• Display Coating: Anti-fingerprint

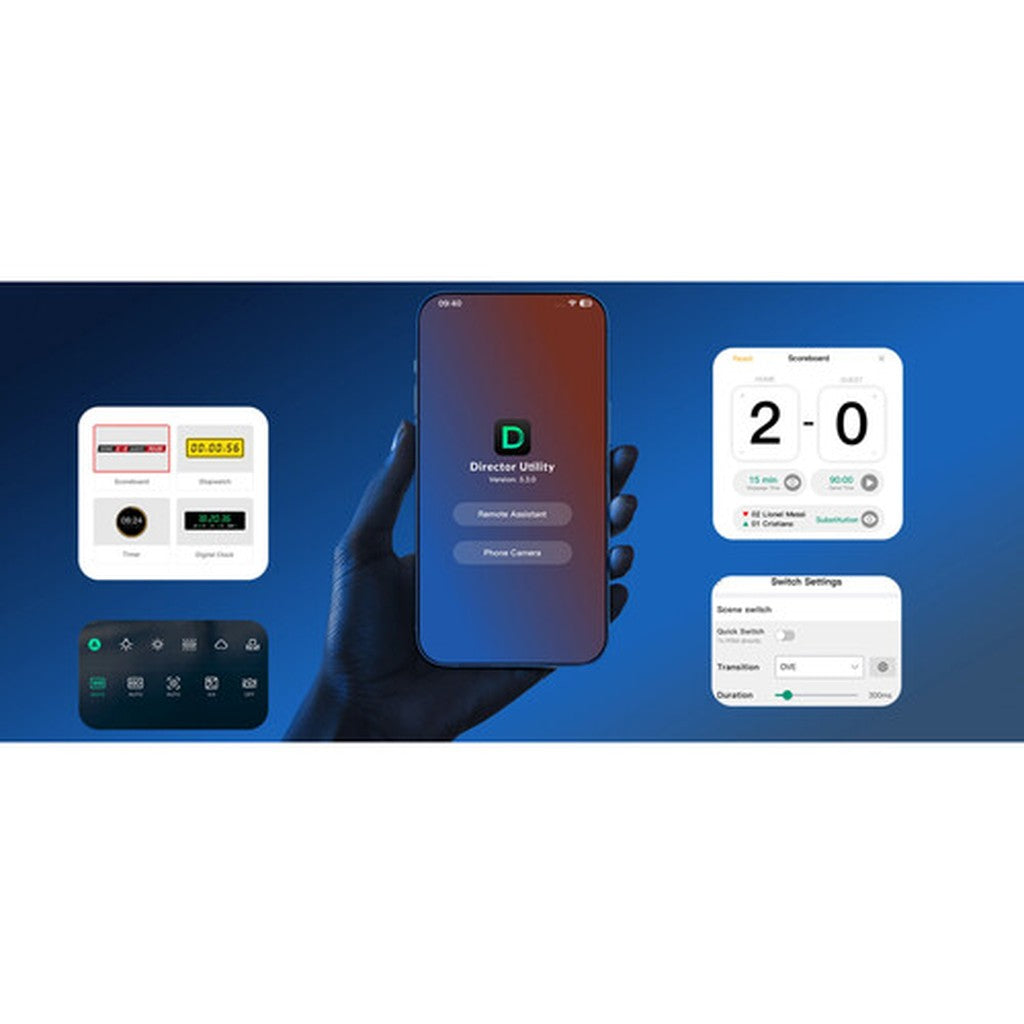

• Control Methods: Integrated touchscreen, Director Utility app, browser interface, Stream Deck plugin, APIs, OSC, USB keyboard, and Bluetooth keyboard
• Mobile App Compatibility: iOS 13 or later and Android 7.0 or later
• PTZ Control: Network PTZ control through VISCA UDP
• Mounting: 7 x 1/4"-20 threaded mounting points
• Power Input: 12V DC, 5A
• DC Connector: 5.5 x 2.1 mm locking barrel connector
• No-Load Power Consumption: Approximately 14W
• Full-Load Power Consumption: Approximately 29W

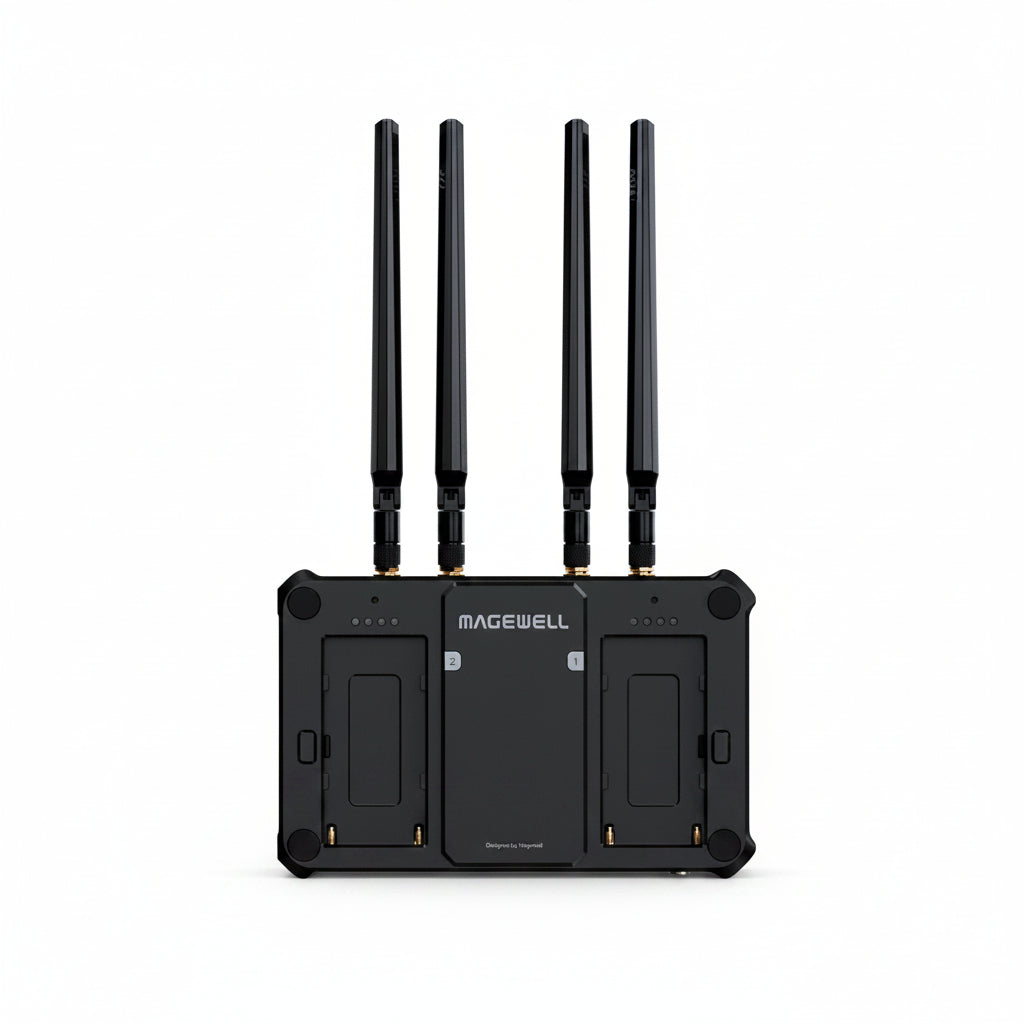

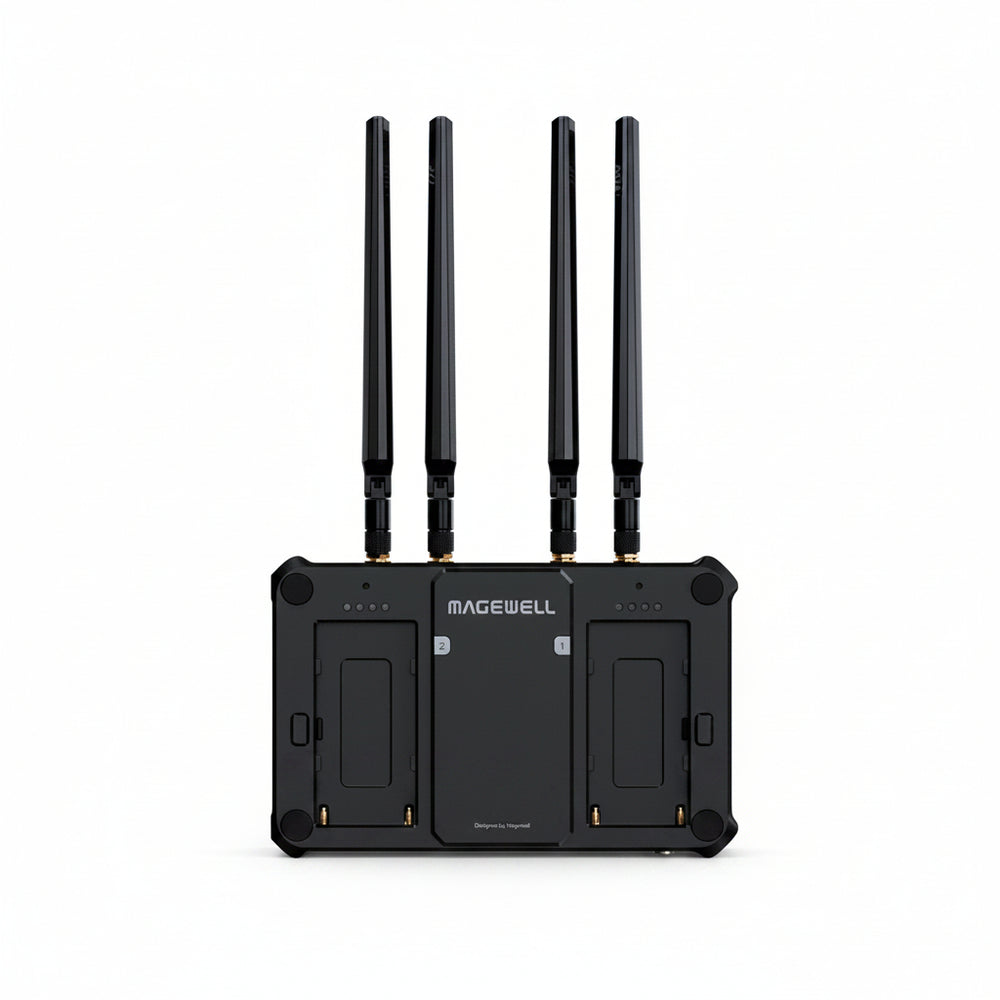

• Battery Compatibility: 2 x 7.4V NP-F batteries
• Battery Operation: Dual hot-swappable battery support
• Operating Temperature: 14°F to 122°F with AC power
• Storage Temperature: -4°F to 158°F
• Operating Humidity: 5% to 90%, non-condensing
• Dimensions: 7.29" L x 4.61" W x 1.52" H
• Weight: Approximately 1.94 lbs without antennas
• Package Dimensions: 15" L x 10.1" W x 6.2" H
• Package Weight: 6.865 lbs

What's In the Box

• 1 x Magewell Director Plus
• 1 x Screw-locking power adapter
• 1 x International power plug set
• 2 x 5G antennas
• 2 x Wi-Fi antennas
• 1 x Sunhood
• 2 x Sunhood thumbscrews
• 1 x Screen cover
• 1 x USB-C to USB-A cable
• 1 x USB-A to USB-C adapter
• 1 x SIM card ejector

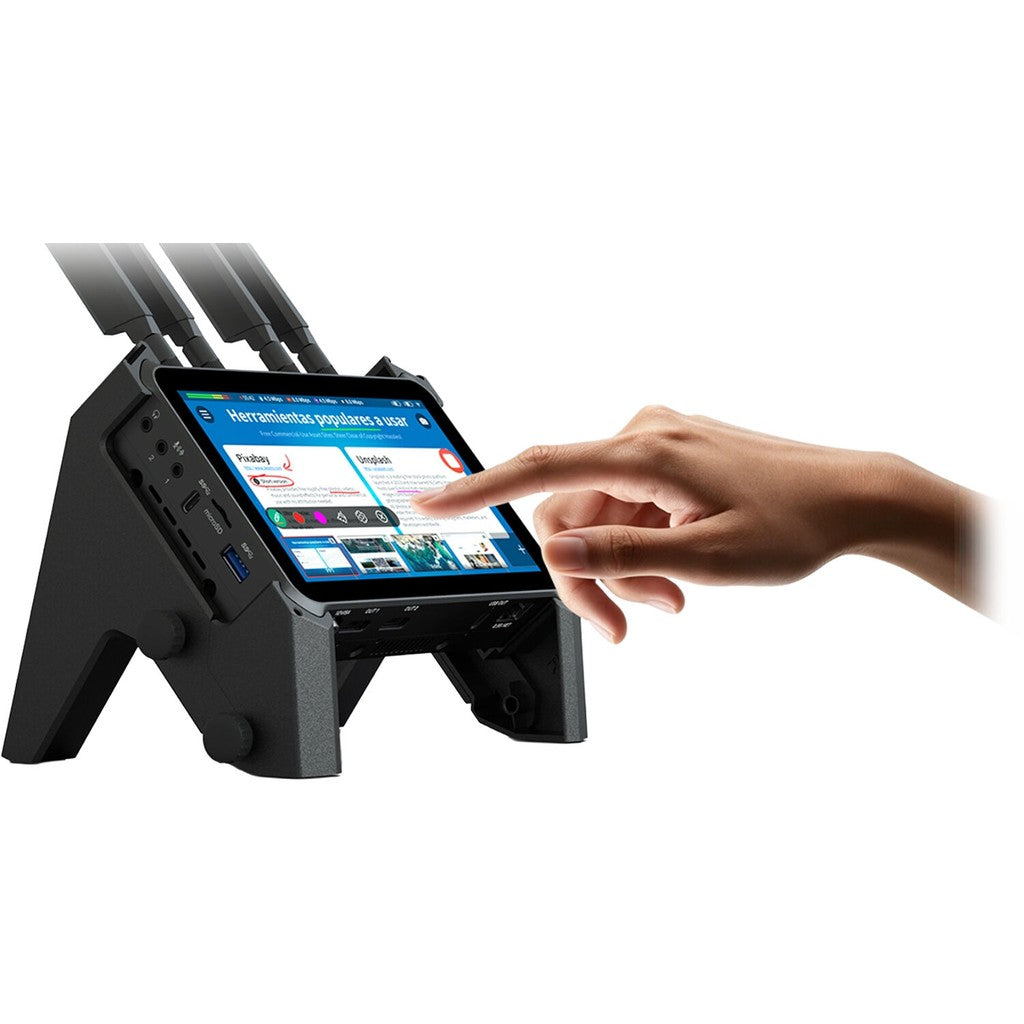

• 1 x Assembly stand kit
• Limited 2-year manufacturer warranty
