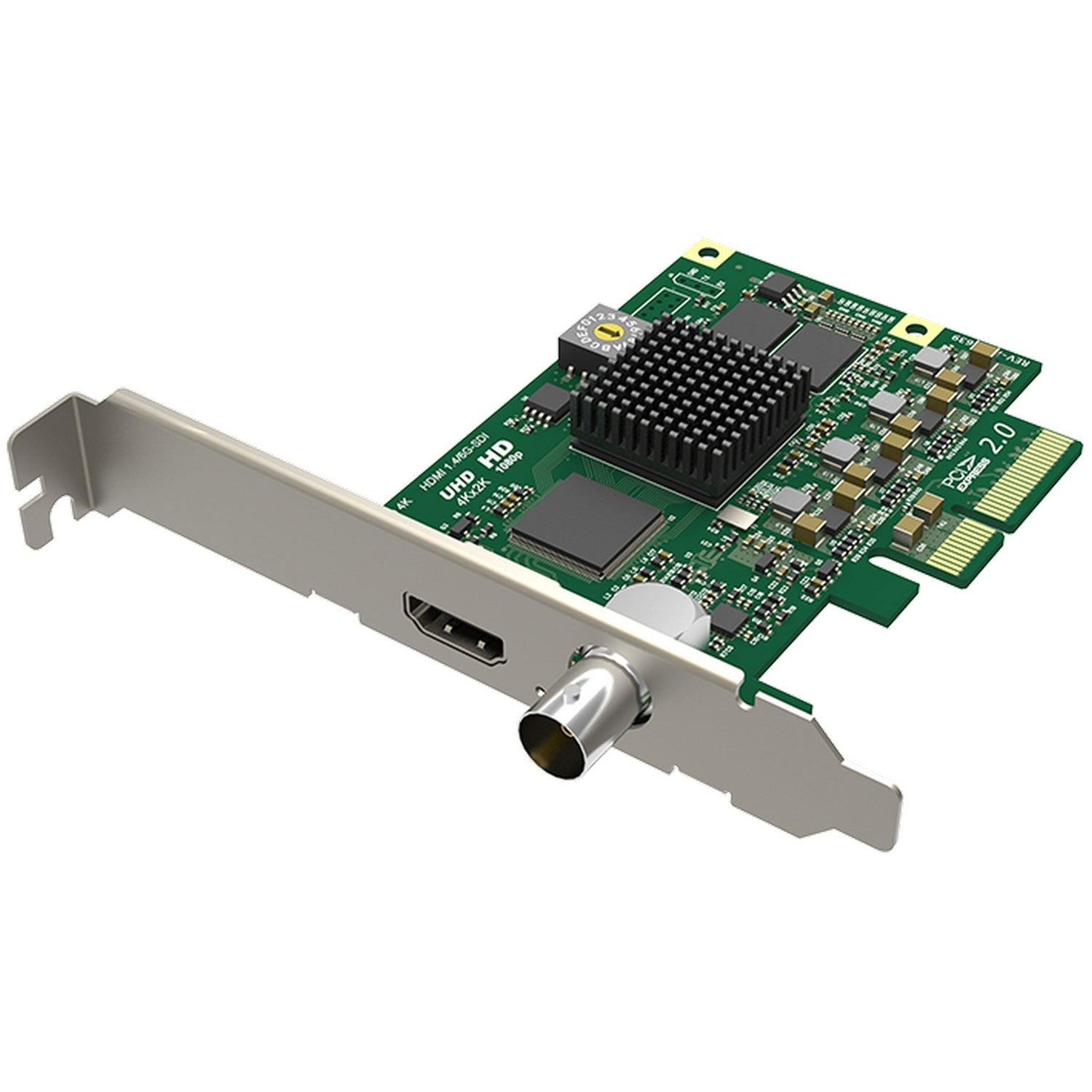

Magewell Pro Capture AIO 4K 1-Channel Capture Card
The Magewell Pro Capture AIO 4K 1-Channel Capture Card is an exceptional solution for video capture and streaming, designed to meet the demands of professional broadcasters, content creators, and live event producers. This versatile capture card supports a wide range of video formats, enabling users to capture high-quality 4K video at resolutions up to 4096x2160. With its plug-and-play functionality, it seamlessly integrates into existing setups, providing an intuitive user experience for both beginners and seasoned professionals.
Equipped with advanced technology, the Pro Capture AIO 4K card offers low-latency performance and high-quality image processing. Whether you are capturing from HDMI, SDI, or analog sources, this card ensures that your video output remains sharp and vibrant. It also features robust compatibility with major software applications, making it an ideal choice for streaming, recording, and real-time video processing.
With a sleek design and efficient cooling system, the Magewell Pro Capture AIO 4K is built to handle intensive workloads without overheating. Its reliable performance and superior video quality make it a top choice for professionals looking to enhance their video production capabilities. The Pro Capture AIO 4K also includes multiple output formats, allowing for flexibility in production environments and ensuring your content reaches your audience in the best possible quality.
Key Features
- Supports 4K video capture up to 4096x2160 resolution
- Multiple input formats: HDMI, SDI, and analog
- Low-latency performance for real-time processing
- Compatible with popular streaming and recording software
- Plug-and-play functionality for easy setup
- Efficient cooling system to maintain optimal performance
Technical Specifications
Input Video Formats
HDMI, SDI, Analog
Maximum Capture Resolution
4096 x 2160
Video Output Formats
HDMI, SDI
Dimensions
9.05" x 6.69" x 1.97"
Weight
0.88 lbs
Power Supply
Powered by PCIe
Operating Temperature
32°F to 140°F
Storage Temperature
-4°F to 185°F
Operating Humidity
10% to 90% (non-condensing)
Supported OS
Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above, Linux (support x86, x64 & ARM architecture), Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) and above, CentOS 6.5/7 (x86 & x64) and above, Fedora 25/26/27 (x86 & x64) and above, Red hat 6.5 (x86 & x64) and above, macOS 10.9/10.10/10.11 and above.
Recommended OS (tested)
Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64), Linux (Ubuntu 12.04/14.04/16.04 (x86 & x64), Ubuntu 17.04/17.10/18.04 (x64), CentOS 6.5/7.2 (x86 & x64), Fedora 25/26 (x64), Red hat 6.5 (x86 & x64)), Mac (OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4, macOS 10.12/10.13.2/10.13.3/10.14.3/10.15/11/12/13).
Supported APIs
Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI; Linux: V4L2, ALSA; macOS: AVCaptureSession, AudioUnit.
Supported Software
VLC, VirtualDub, OBS, XSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, any other DirectShow/V4L2/AVCaptureSession encoding/streaming software.
Input Interfaces
HDMI, DVI-D 1.0, HDMI 1.4, BNC, SD/HD/3G/6G SDI.
Host Interfaces
PCIe Gen2 x4.
Input Features
Support for input video resolutions up to 4096x2160 pixels.
HDMI Specific Features
297MHz HDMI receiver, Adaptive HDMI equalizer, Support for customized EDID, Full colorimetry support, Support for 8-bit and 12-bit signals using RGB/YUV 4:4:4 color sampling, Support for extraction of audio formation information & channel status data.
SDI Specific Features
Integrated cable equalizer extending the cable length up to 330m for SD-SDI, up to 190m for HD-SDI, up to 150m for 3G-SDI, and up to 75m for 6G-SDI signals; Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/6G standards; Support for 2K (2048x1080) & 4K (4096x2160) mode.
Video Capture Formats
Support for capture image resolutions up to 4096x2160 pixels, frame rates up to 144fps, and various formats including 4:2:0, 4:2:2, and 4:4:4.
Video Processing Features
Two video processing pipelines with ~360Mpixels/s processing bandwidth for each, Full 10-bit video processing, Video cropping, scaling, and de-interlacing features.
Multiple Cards per System
Support for multiple cards in one system with a rotary switch to set card number.
Ultra Low Latency Support
Latency of 64 video lines, hardware-based high-resolution clock for A/V synchronization.
SDK
Magewell Capture SDK for easy integration, maximum flexibility and performance.
Firmware Upgrade
Multiple cards can be upgraded simultaneously without a system power shutdown.
LED Indicator
Status LEDs indicate the working state of each channel.
Form Factor
Low profile PCIe x4 Add-on Card, 3.65" x 2.69" (without PCI bracket).
Power Consumption
Max current at 12V: ~ 0.39 A, Max current at 3.3V: ~ 0.2 A, Max power consumption: ~ 5.29 W.
Working Environment
Operating temperature: 32°F to 140°F, Storage temperature: –4°F to 158°F, Relative Humidity: 5% to 90% non-condensing.
