Manfrotto 509HD,545GBK 509 Fluid Video Head and 545GB Aluminum Twin Leg Tripod
Manfrotto 509HD,545GBK 509 Fluid Video Head and 545GB Aluminum Twin...
Free Shipping
Manfrotto 509HD,545GBK 509 Fluid Video Head and 545GB Aluminum Twin Leg Tripod

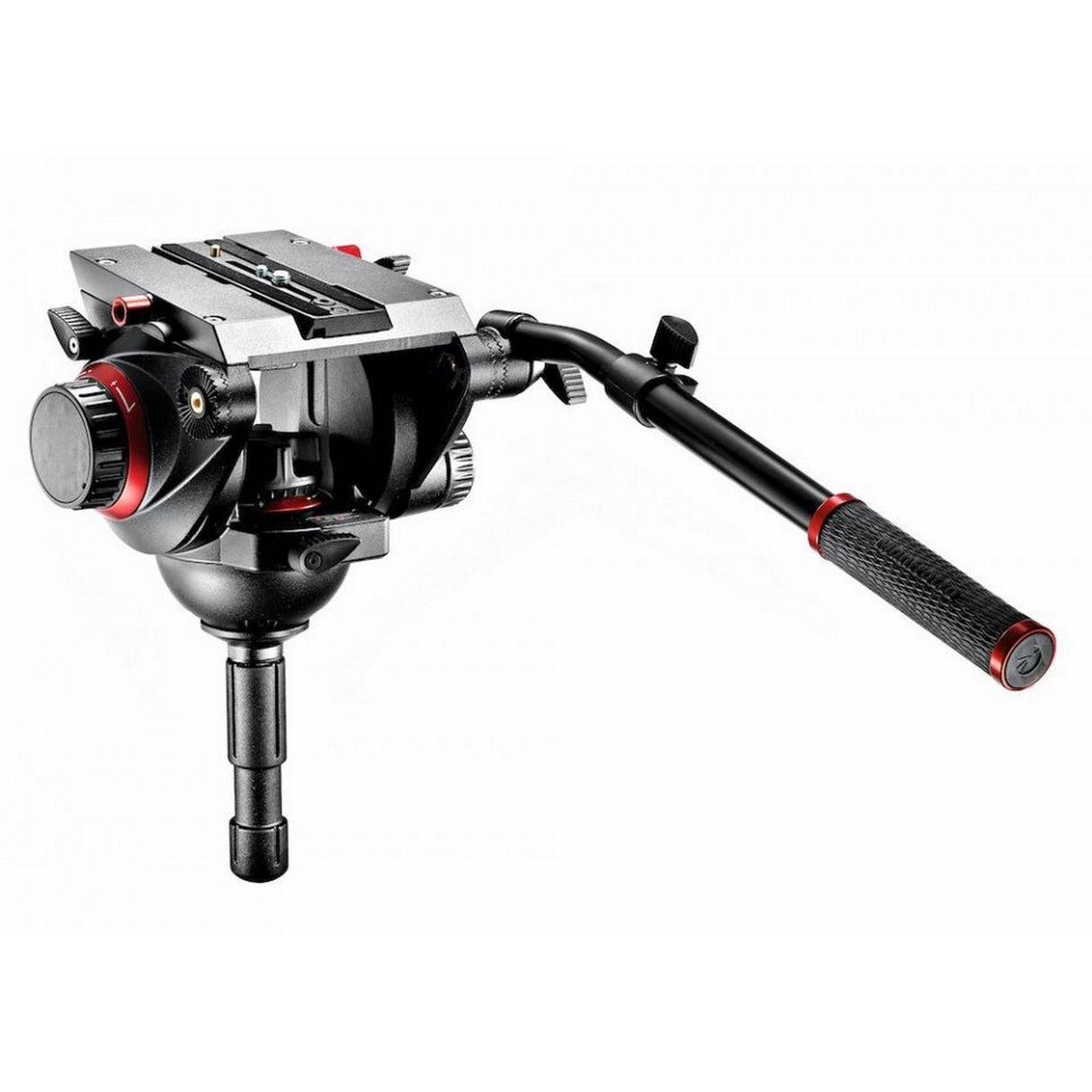

The 509HD,545GBK Manfrotto video system includes the 509 Fluid Video Head with incorporated 100mm half ball, the 545GB professional aluminium twin leg tripod with ground spreader, and the handy MB MBAG100PNHD tripod bag. The Manfrotto 509 fluid video head features variable fluid drag system in both pan and tilt which allow smooth movements, a 4-step counterbalance system up to 12,8Kg at 55mm C.O.G or 8,5 kg at 125mm C.O.G. And a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G.. Easy link 3/8'' thread connections allows an external monitor or other accessory equipment to be fitted. It also features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast. The 545GB aluminium twin leg tripod comes with a 100mm bowl for easy, effortless mounting, and the tripod can be used with various dollies so you can enjoy more shooting freedom. With the telescopic ground spreader, you can set your leg angles with even greater precision.
Key Features
- Variable fluid drag system on pan and tilt for smooth
- 4 step counterbalance system
- Set up fast with a clever sliding camera plate
- Inbuilt 100mm levelling half ball
- Aluminium twin leg tripod with ground spreader
Technical Specifications
Weight
21.62 lbs
Top Attachment
1/4ā screw, 3/8ā screw
Ball Flat
100 Ball
Safety Payload Weight
29.76 lbs
Powered By (Batteries)
Lithium
Bubble Spirit Level (No.)
1
Counterbalance Weight
18.74 lbs
Center Of Gravity
4.92 in
Carrying Bag Included
MB MBAG100PNHD
Center Column
no center column
Certifications
WEEE; RoHS
Closed Length
33.07 in
Color
Black
Easy Link
Yes
Front Tilt
-60 / +90
Head Type
Video/Fluid Head
Leg Type
Twin
Leg Angles
from 29 to 63
Leg Lock Type
Flip Lock
Leg Sections
3
Legs Tube Diameter
0.63- 0.98 in
Material
Aluminum
Maximum Height
67.72 in
Maximum Working Temperature
140 F
Min Height
18.9 in
Minimum Working Temperature
-4 F
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360
Plate Type
509PLONG
Quick Release
Yes
Spreader
low level - variable arm length
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
502HLV; 509HLV; 114MV; 181B; 537SPRB; 565
