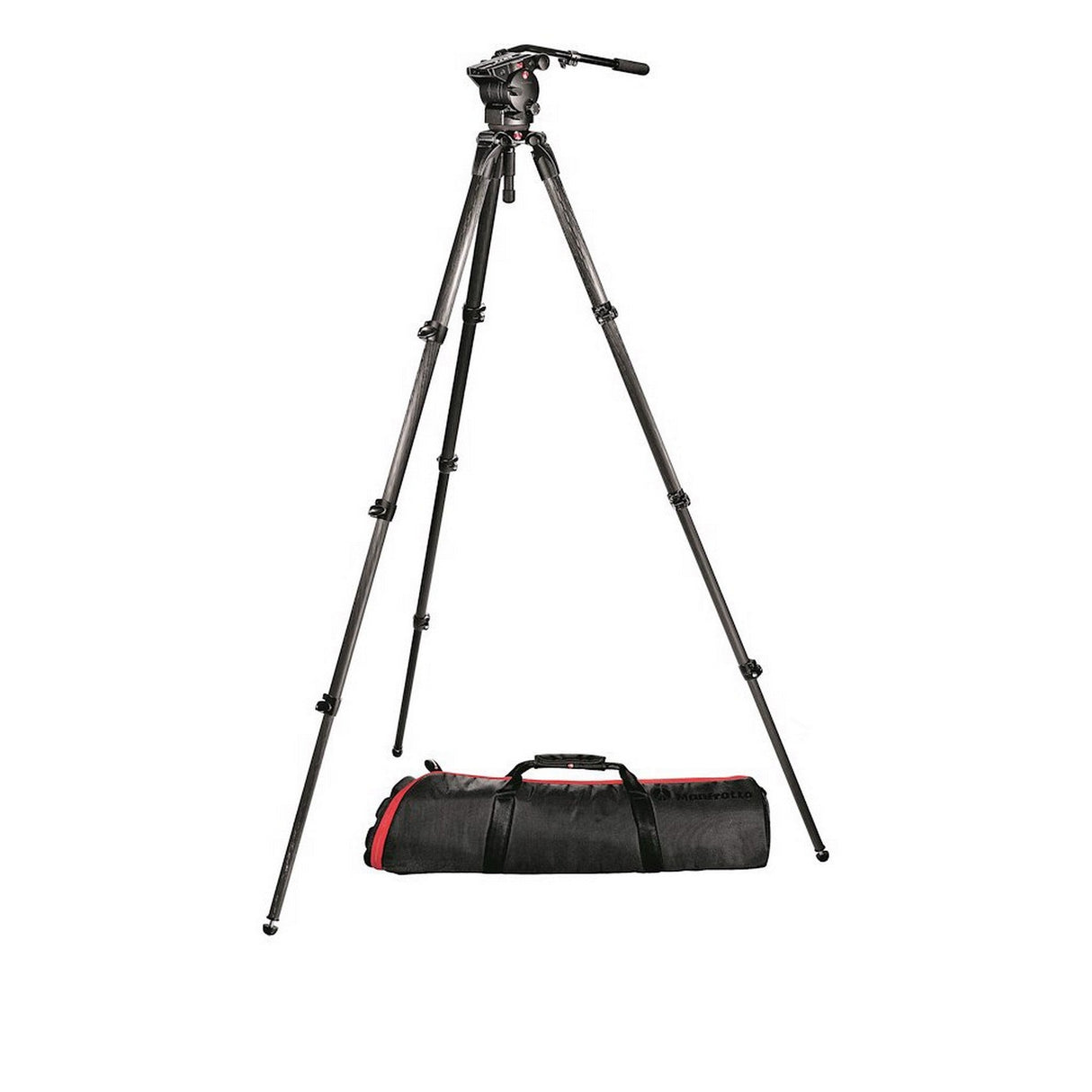

Manfrotto 526,536K-1 526 Pro Video Head and 536 Carbon Fiber Tripod with MBAG100PN

This kit contains the Manfrotto 526 Professional Fluid Video Head and the Manfrotto MPRO 536 Carbon Fiber 3-Stage Video Tripod. The 526 Professional Fluid Video Head directly addresses the heavy-duty, high-end ENG and EFP video market by offering a feature-packed fluid video head that borrows all the combined benefits of our 500 series heads with the ability to support top weight loads over 15lbs. The 526 features a replaceable and removable pan arm rosette so if any damage occurs to the side castings, only a small part needs to be replaced; large rubber padded knobs for better grip and all the controls (tilt and pan lock, tilt drag) are located on the left side so they can be easily found. The 526 offers our most precise fluid drag system comprised of three step settings for low, medium and high drag levels (numbered 1, 2 and 3), plus the additional no-drag setting (number 0) for such occasions as snap-pans/tilts. Counterbalance is achieved through an adjustable spring for camera weights between 17.5 and 33 lbs. The built-in 4-inch half-ball adapts to a number of our tripods with a 4-inch receiver, allowing the quick leveling of the camera with the aid of the bright leveling bubble. The 526 comes with one pan arm and the long 357PLV plate. 4-Sections. The new 536 video tripod is incredibly high and stable, has a great load capability and great max height with an ergonomic, easy-to-use and compact design. This lightweight tripod features a new leg angle selector, developed for adjusting the leg angle in a quick, easy and precise way. In addition, a screw-in 75/100mm adaptor to hold the different industry standard half-ball heads.

Key Features

• Variable Fluid Drag System on PAN and TILT movements
• Variable Counterbalance system on TILT movement
• Sliding plate for the fastest camera connection and set up
• 100mm ball for levelling
• Leveling bubble for easy setup

Technical Specifications

Weight
20.94 lbs
Top Attachment
1/4” screw, 3/8” screw
Ball Flat
100 Ball
Safety Payload Weight
35.27 lbs
Counterbalance System
Variable Continuous
Powered By (Batteries)
0
Counterbalance Weight
17.64 -> 33.07 lbs
Bubble Spirit Level (No.)
1
Center Of Gravity
4.92 in
Carrying Bag Included
MB MBAG100PN
Center Column
no center column
Closed Length
33.86 in
Color
Black
Easy Link
No
Front Tilt
-70 / +75
Head Type
Video/Fluid Head
Leg Type
Single
Leg Angles
23, 50, 70
Leg Lock Type
Flip Lock
Leg Sections
4
Legs Tube Diameter
0.98- 1.15- 1.35- 1.54 in
Material
Carbon Fiber, Aluminum
Maximum Height
85.83 in
Maximum Working Temperature
140 F
Min Height
16.93 in
Minimum Working Temperature
-4 F
Pan Bar Included
Yes
Pan Drag
0 plus 3 step
Panoramic Rotation
360
Plate Type
357PLV
Quick Release
Yes
Tilt Drag
0 plus 3 step
Accessory Compatibility
MVAPANBARM; MVAPANBARL; 519LV; 114; 127V; 127VS
