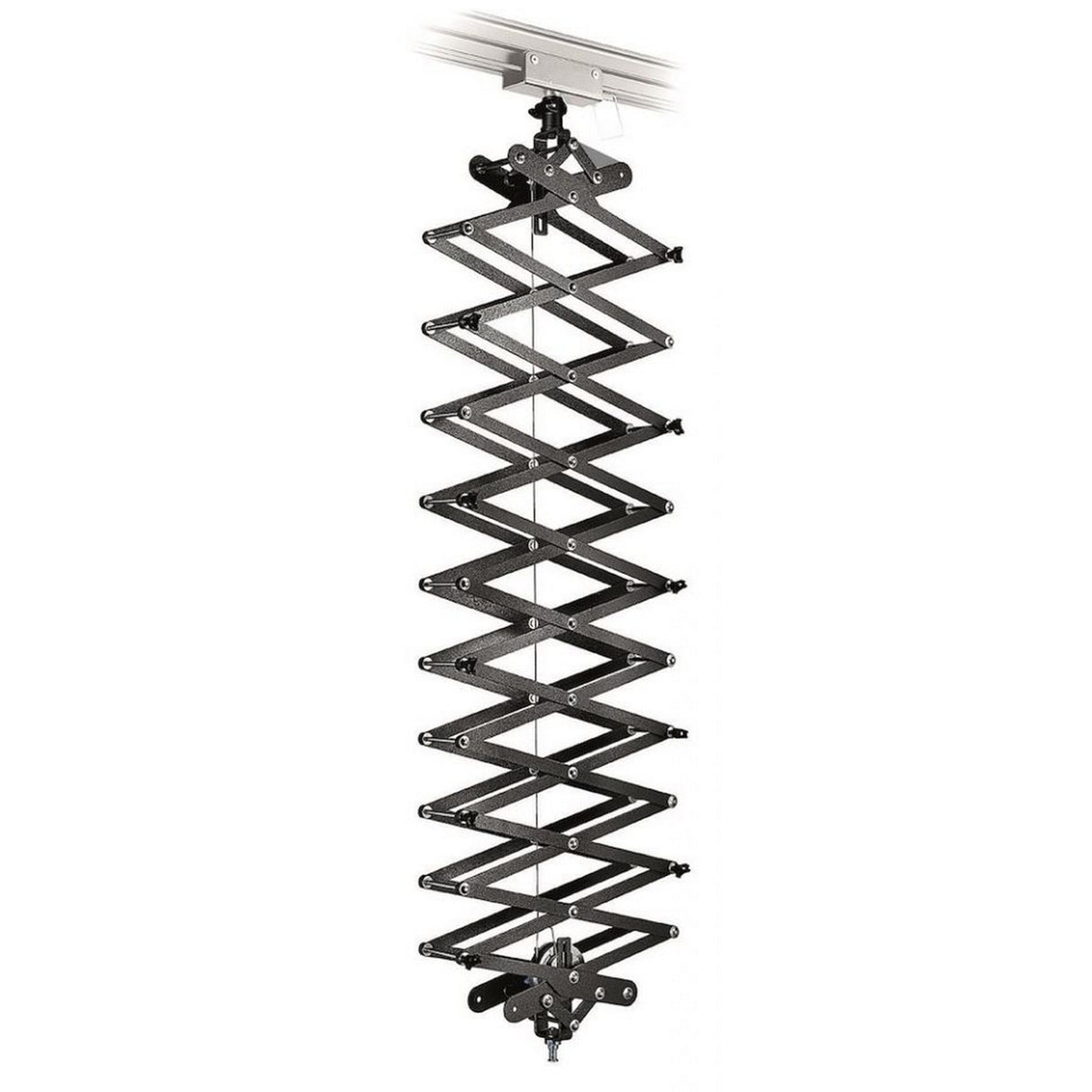

Manfrotto FF3514N86 Aluminum Pantograph
Manfrotto FF3514N86 Aluminum Pantograph
Free Shipping
Manfrotto FF3514N86 Aluminum Pantograph
The pantograph is made of aluminium (P-Al MgSi UNI 3569) and manufactured according to DIN 15560-46. The attachments at both ends of the pantograph are 16mm, male on the bottom and female on the top. The load is supported by a steel cable of 2mm, diameter (safety factor 12). Loads up to 12kg can be suspended using only the patented friction device, while loads up to a maximum of 18kg require the use of the optional springs. The pantograph can be regulated to keep suspended loads from 1 to 18kg perfectly balanced.
Key Features
- Sky track accessories
- Studio accessories
- Professional and reliable accessories
Technical Specifications
Weight
18.74 lbs
Clamps Accessories
No
Sky Track Accessories
Yes
Still Life Accessories
No
Top Attachment
5/8 (16mm) socket
Payload
39.68 lbs
Attachment (Bottom)
5/8 (16mm) stud
Color
Black
Maximum Extension
380 cm
Minimum Extension
14.96 in
Width
5.91 in
Weight
16.09 lbs
Adjustable Tilting Back
No
