Manfrotto MVK504XSNGFC 504X Fluid Video Head with 635 Fast Single Carbon Leg

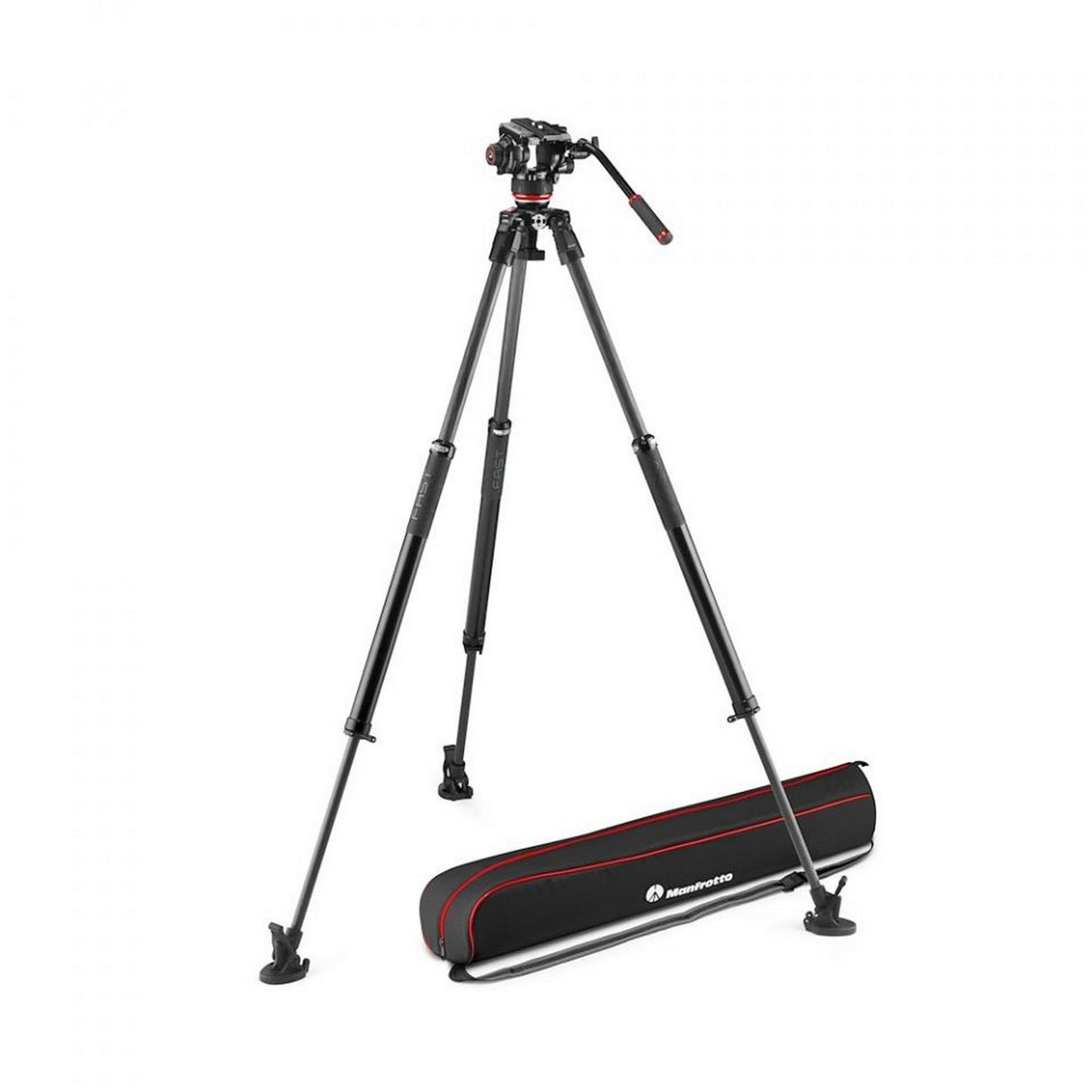

This video system includes the Manfrotto 504X Fluid Video Head and the 635 Fast Single Leg Carbon Tripod.
The 504X head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system loads up to 14.3 lbs at 55 mm C.O.G.
The head is made from a brand-new catching aluminium design and has a maximum payload of 26.4 lbs.
It is a compact, light head with a flat base (base diam. 75 mm), that lets you choose from a wide variety of different shooting options. It features two 3/8ā Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.
The 635 Fast Single Tripod was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The FAST Twisting Lock technology enables videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.
It is compatible with the 2-in-1 ground and middle telescopic spreader (as an optional accessory) and features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.
Supplied with its own padded carrying bag.
Key Features
- Fluid video head with 4-step counterbalance system up to 14.3 lbs.
- Maximum versatility thanks to flat base
- FAST Twisting Lock: secure locking with a single gesture
- Carbon Fiber single leg tripod for greater rigidity
- Side lock plate attachment and two 3/8'' easy link connectors.
Technical Specifications
Weight
12.79 lbs
Top Attachment
1/4ā screw, 3/8ā screw
Ball Flat
Flat
Safety Payload Weight
26.46 lbs
Counterbalance System
Variable Steps
Powered By (Batteries)
Lithium
Base Diameter
2.95 in
Counterbalance Weight
4.85- 9.7- 14.33 lbs
Bubble Spirit Level (No.)
1
Center Of Gravity
2.17 in
Carrying Bag Included
yes
Center Column
no center column
Certifications
WEEE; RoHS
Closed Length
35.24 in
Color
Black
Easy Link
Yes (with antirotation)
Front Tilt
-70 / +90
Head Type
Video/Fluid Head
Leg Type
Single
Leg Angles
20, 50, 70
Leg Lock Type
Twist Lock
Leg Sections
3
Legs Tube Diameter
1.15- 0.98- 0.8 in
Material
Aluminum, Carbon Fiber
Maximum Height
67.32 in
Maximum Working Temperature
140 F
Min Height
17.52 in
Minimum Working Temperature
-22 F
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360
Plate Type
504PLONGR-1
Quick Release
Yes
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
165, 165MV, MVASPR2N1, 114, 114MV, 181B, 127, 127VS
