Manfrotto MVK504XTWINMC 504X Fluid Video Head with CF Twin Leg Tripod

This video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINMC carbon fiber twin leg with middle spreader tripod.

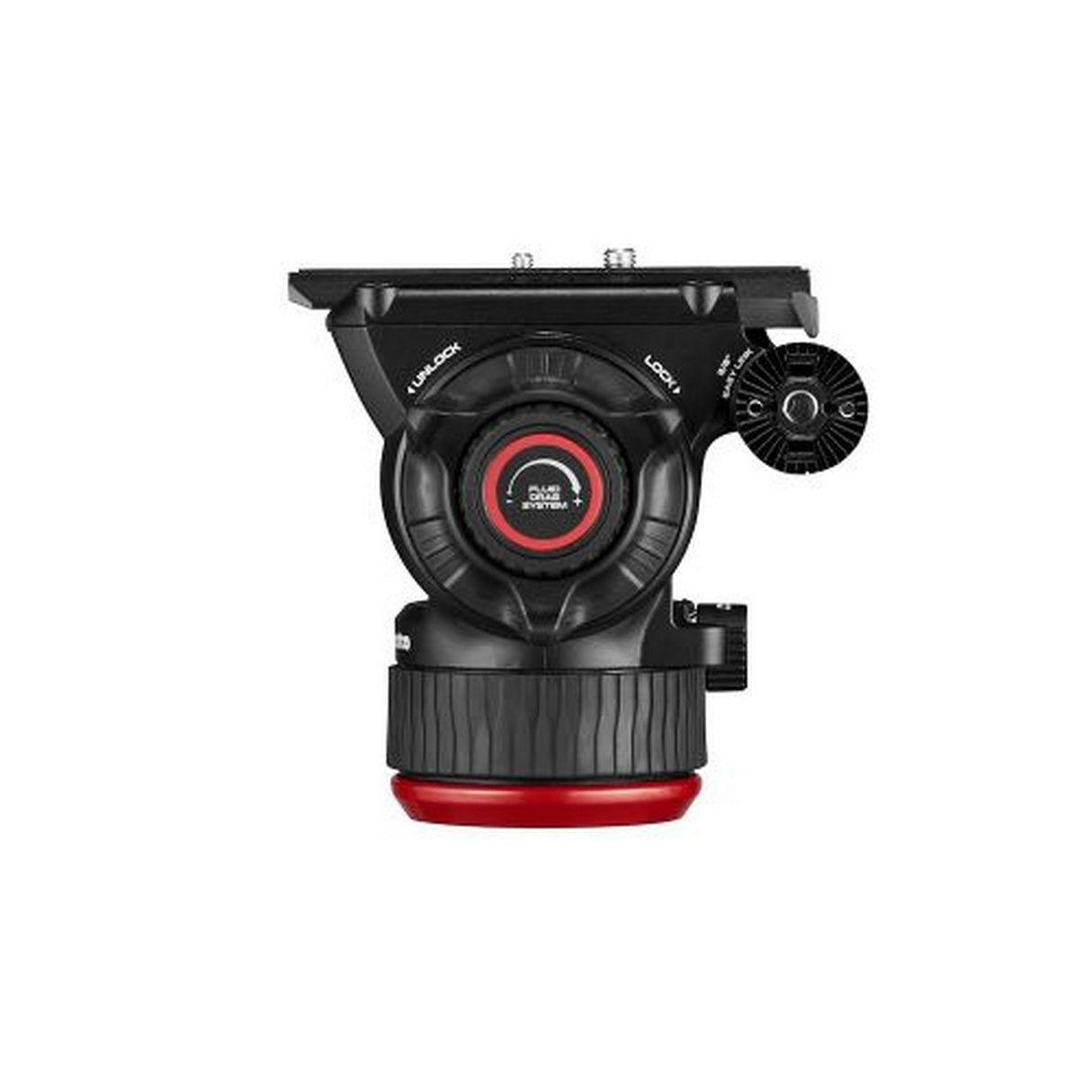

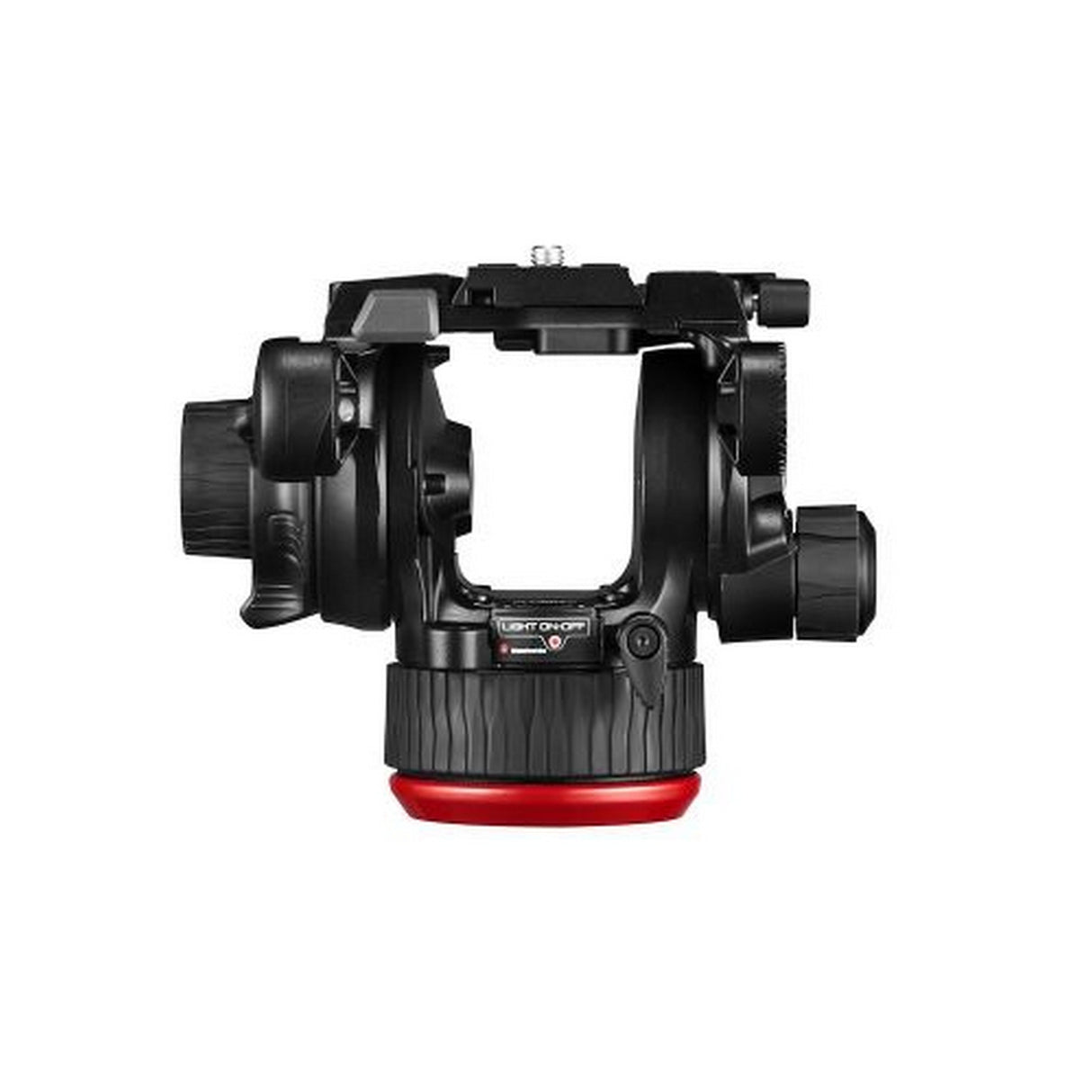

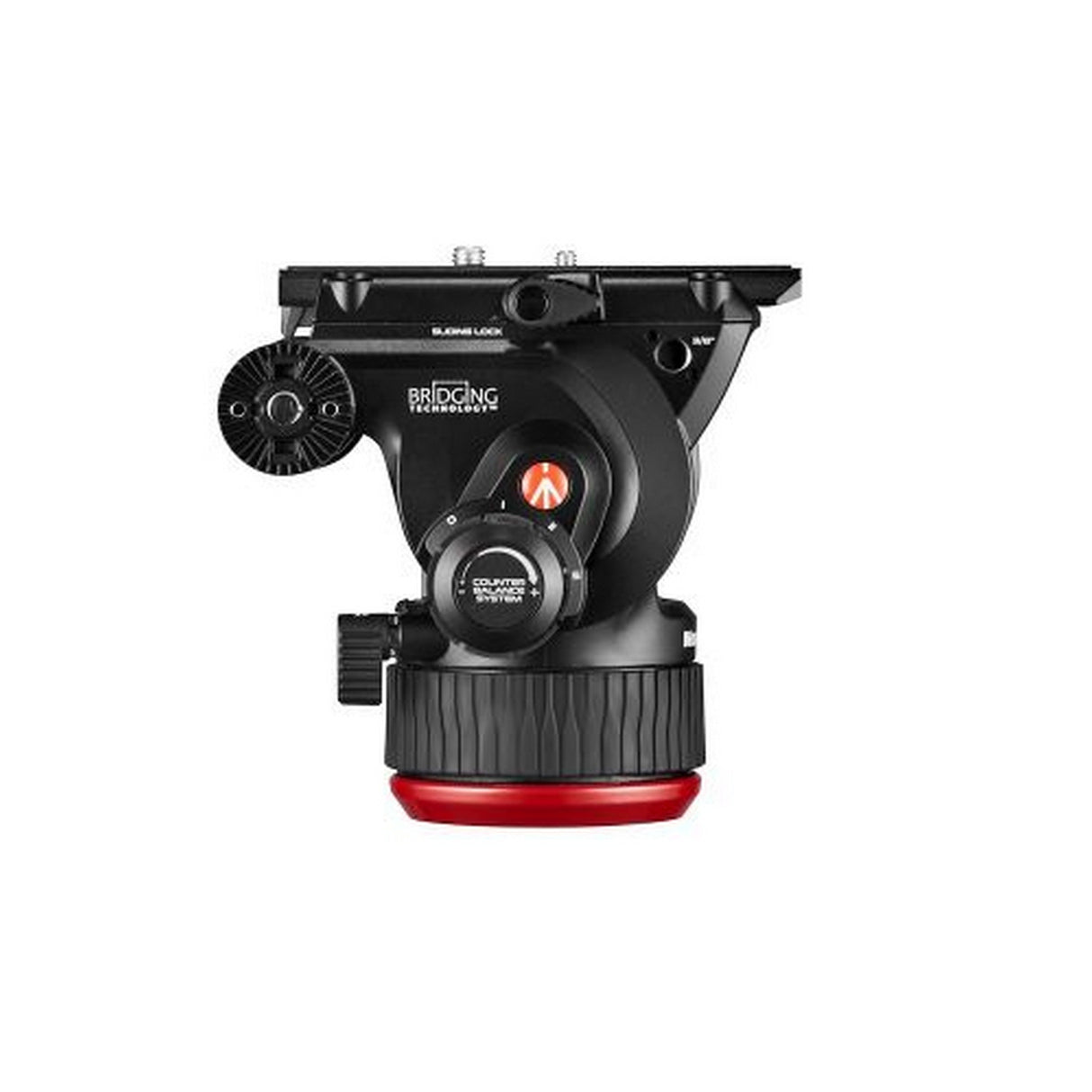

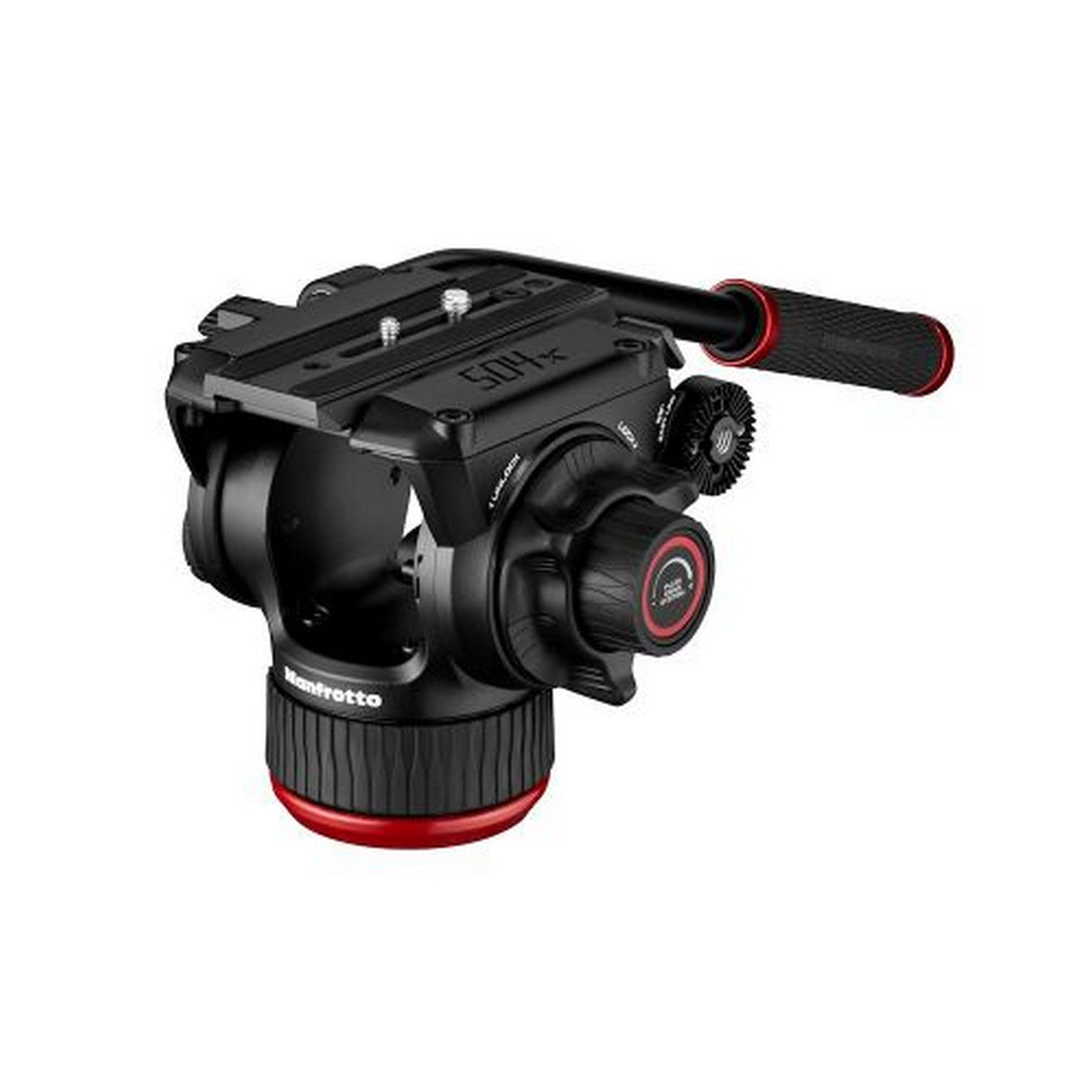

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 14.3 lbs at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 26.4 lbs.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The head attaches to the tripod via a dedicated 75mm half ball.

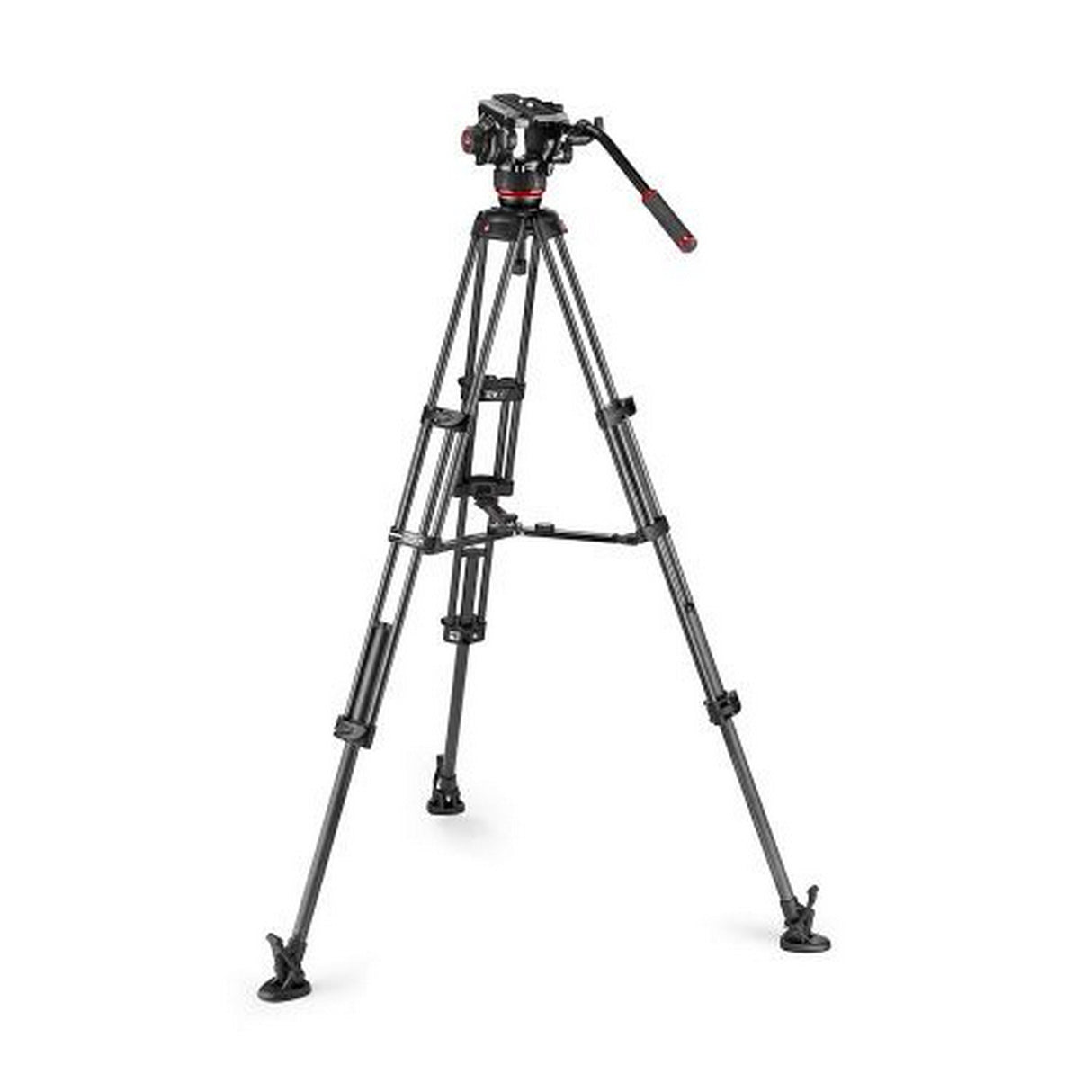

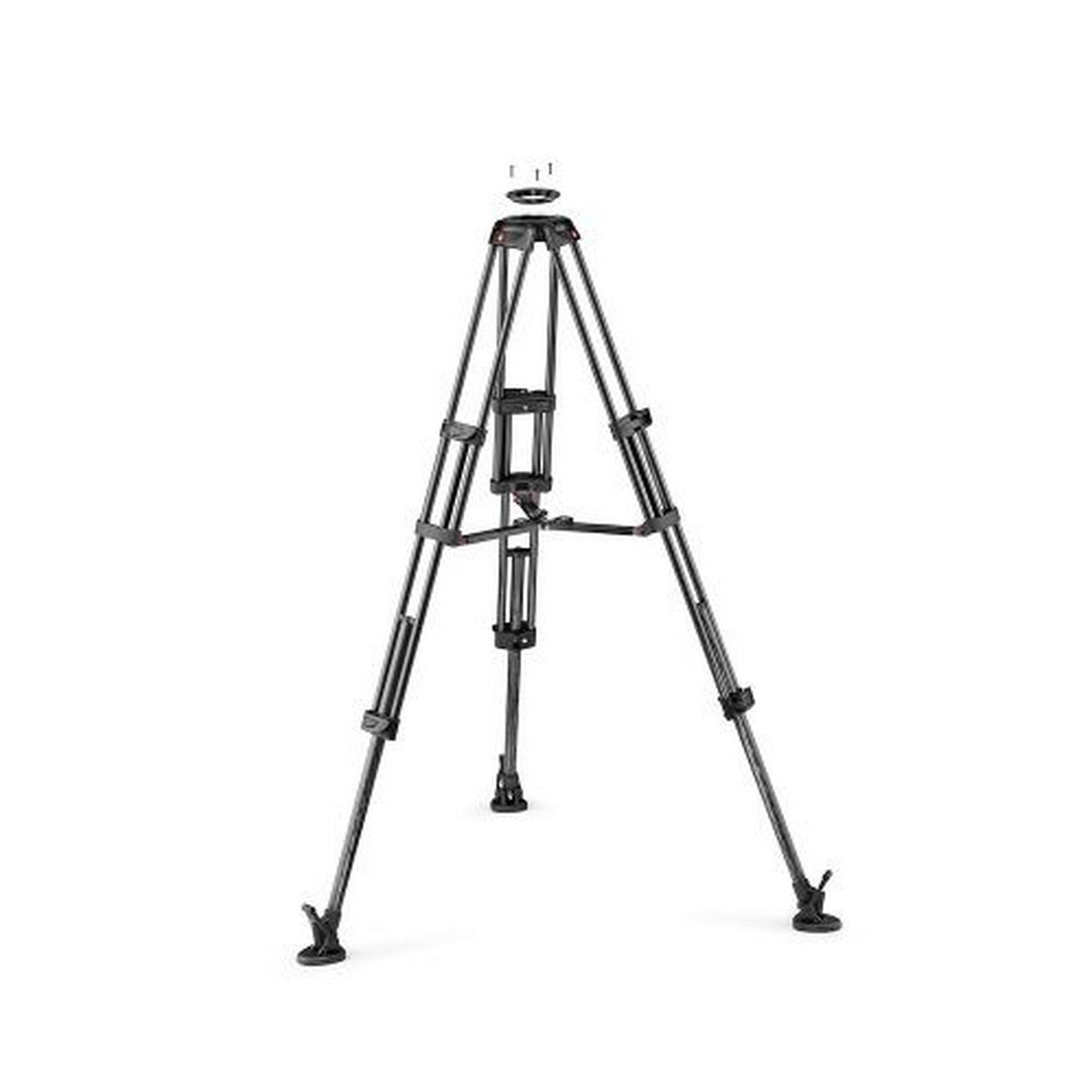

The MVTTWINMC carbon fiber twin leg with middle spreader video tripod is a professional-quality tripod with a two-stage, extremely rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level video or films, then this is the must-have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm.

The tripod has ,mid-level spreader with telescopic arms, that helps you to set leg angles accurately. It is also detachable , allowing you to use the tripod in combination with the ground spreader Manfrotto 165MV, which is sold separately.

Leg locks are secure and reliable and twin spiked feet with rubber overshoes are provided for solid grounding.

For maximum versatility, the tripod can be used with various dollies (114MV and 181B).

With its combination of robust construction and compatibility options, this tripod definitely has it all.

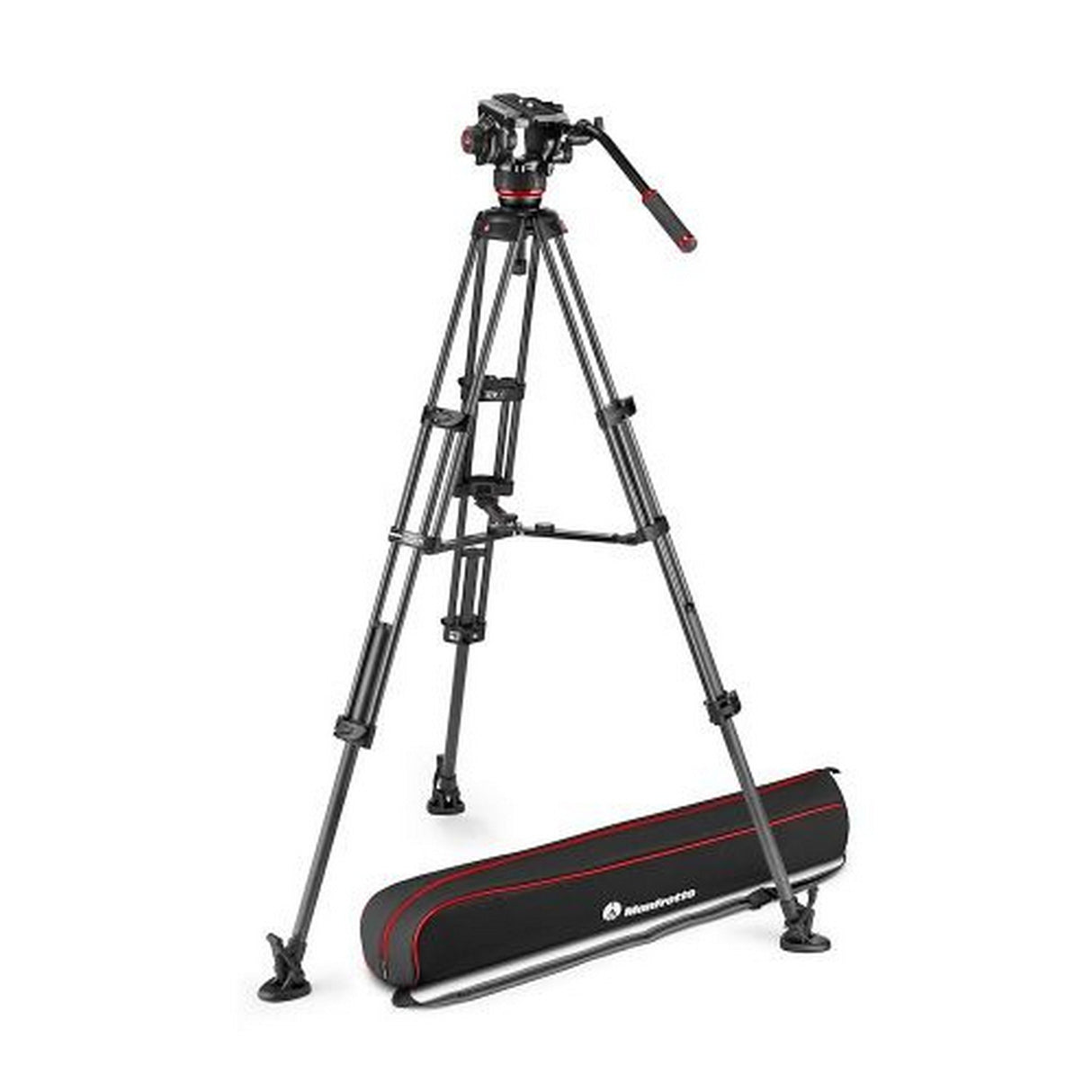

Supplied with its own padded carrying bag.

Key Features

• Fluid video head with 4step counterbalance system up to 14.3 lbs
• Maximum versatility thanks to flat base
• Carbon Fiber twin leg tripod for greater rigidity
• Side lock plate & two 3/8''easy link connectors for accessories
• Adjustable middle spreader for extra stability and versatility

Technical Specifications

Weight
11.68 lbs
Top Attachment
1/4” screw, 3/8” screw
Ball Flat
Flat
Safety Payload Weight
26.46 lbs
Counterbalance System
Variable Steps
Powered By (Batteries)
Lithium
Base Diameter
2.95 in
Counterbalance Weight
4.85- 9.7- 14.33 lbs
Bubble Spirit Level (No.)
1
Center Of Gravity
2.17 in
Carrying Bag Included
yes
Center Column
no center column
Closed Length
33.86 in
Color
Black
Easy Link
Yes (with antirotation)
Front Tilt
-70 / +90
Head Type
Video/Fluid Head
Leg Type
Twin
Leg Lock Type
Flip Lock
Leg Sections
3
Material
Carbon Fiber
Maximum Height
66.54 in
Maximum Working Temperature
140 F
Min Height
29.53 in
Minimum Working Temperature
-22 F
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360
Plate Type
504PLONGR-1
Quick Release
Yes
Spreader
mid level - variable arm length
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL
