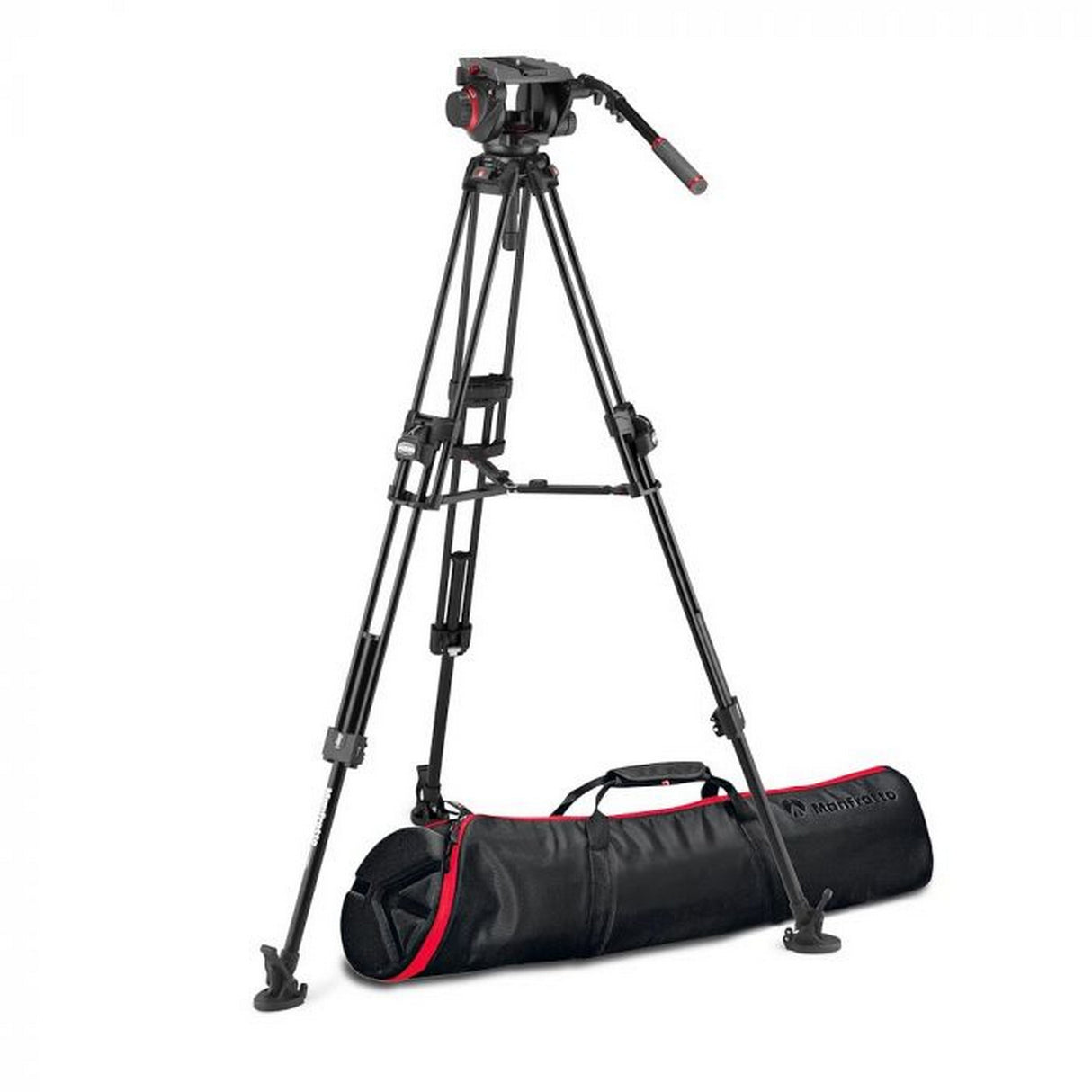

Manfrotto MVK509TWINFAUS 509 Pro Video Head with 645 Fast Twin Aluminum Tripod

The video system includes the Manfrotto 509 Professional Fluid Video Head and the 645 Fast Twin Tripod in aluminium.

The 509HD fluid head combines ergonomic design features with professional performance. To help you obtain incredibly smooth camera movements and great footage, the 509HD has variable fluid drag and a fast, precise, 4-step counterbalance system that makes it suitable for a wide range of semi-professional and professional camera setups. The 509HD’s patented Advanced Balancing Recorder (ABR) allows you to quickly find, memorise and regain the correctly balanced plate position when using a particular combination of equipment. The 509HD also features Easy Link connectors for easy accessory attachment, an illuminated levelling bubble and replaceable rosettes for pan bar attachment on both sides of the head. The 509HD has a 100mm half ball video tripod mount.

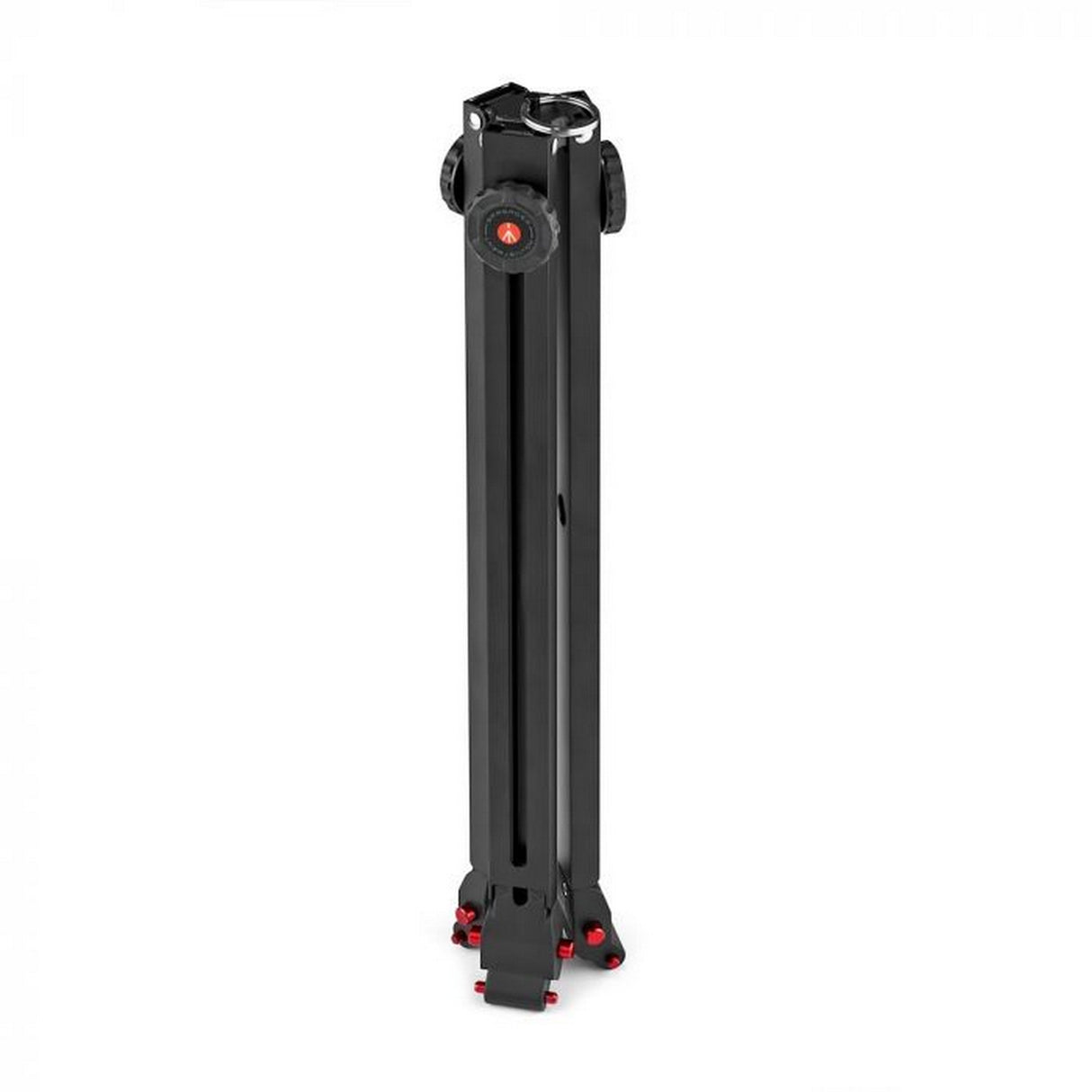

The 645 FTT Fast Twin Alu Tripod features a double tubing and Lever-Lock lever technology for the most robust support ever. The tripod is provided with a 2 in 1 half ball: a standard 100mm bowl compatible with a 75mm adapter (available as accessory) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.

This range was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

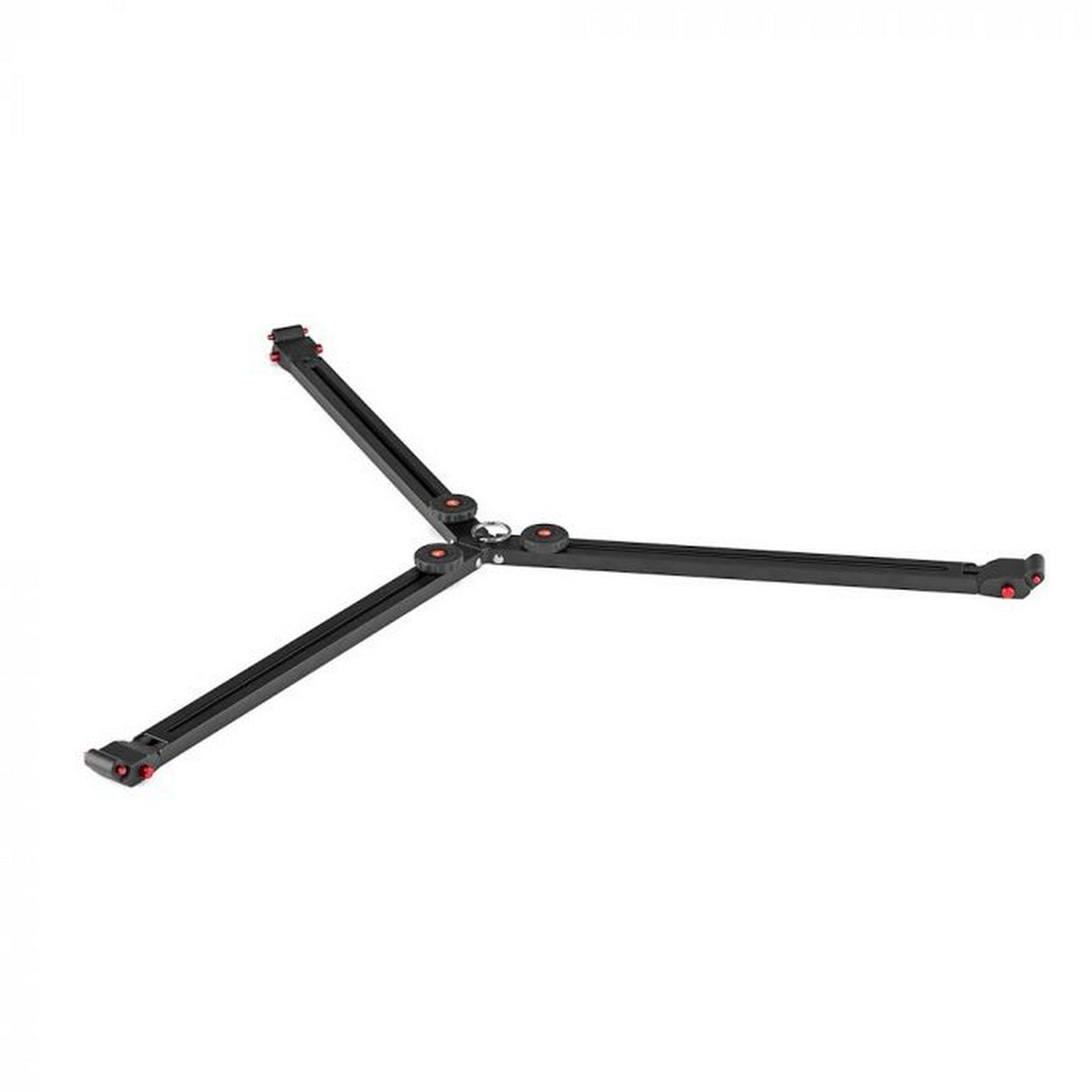

Moreover, it comes with the 2 in 1 ground and middle telescopic spreader and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

Key Features

• Variable fluid drag and 4-step counterbalance system
• Tripod with 100mm bowl, compatible with 75mm adapter
• Lever-Lock & 3-angle selection mechanism for easy set up
• Equipped with spiked feet with rubber overshoes for a firm grip
• 2 in 1 spreader for enhanced tripod stability

Technical Specifications

Weight
17.2 lbs
Top Attachment
1/4” screw, 3/8” screw
Ball Flat
100 Ball
Safety Payload Weight
29.76 lbs
Counterbalance System
Variable Steps
Powered By (Batteries)
Lithium
Bubble Spirit Level (No.)
1
Counterbalance Weight
18.74 lbs
Center Of Gravity
4.92 in
Carrying Bag Included
MB MBAG100PN
Center Column
no center column
Certifications
WEEE; RoHS
Closed Length
35.24 in
Color
Black
Easy Link
Yes
Front Tilt
-60 / +90
Head Type
Video/Fluid Head
Leg Type
Twin
Leg Angles
20, 50, 70
Leg Lock Type
Flip Lock
Leg Sections
3
Material
Aluminum
Maximum Height
68.11 in
Maximum Working Temperature
140 F
Min Height
17.13 in
Minimum Working Temperature
-4 F
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360
Plate Type
509PLONG
Quick Release
Yes
Spreader
Low & Mid level - Variable arm leg
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
502HLV; 509HLV; 114MV; 181B; 565
