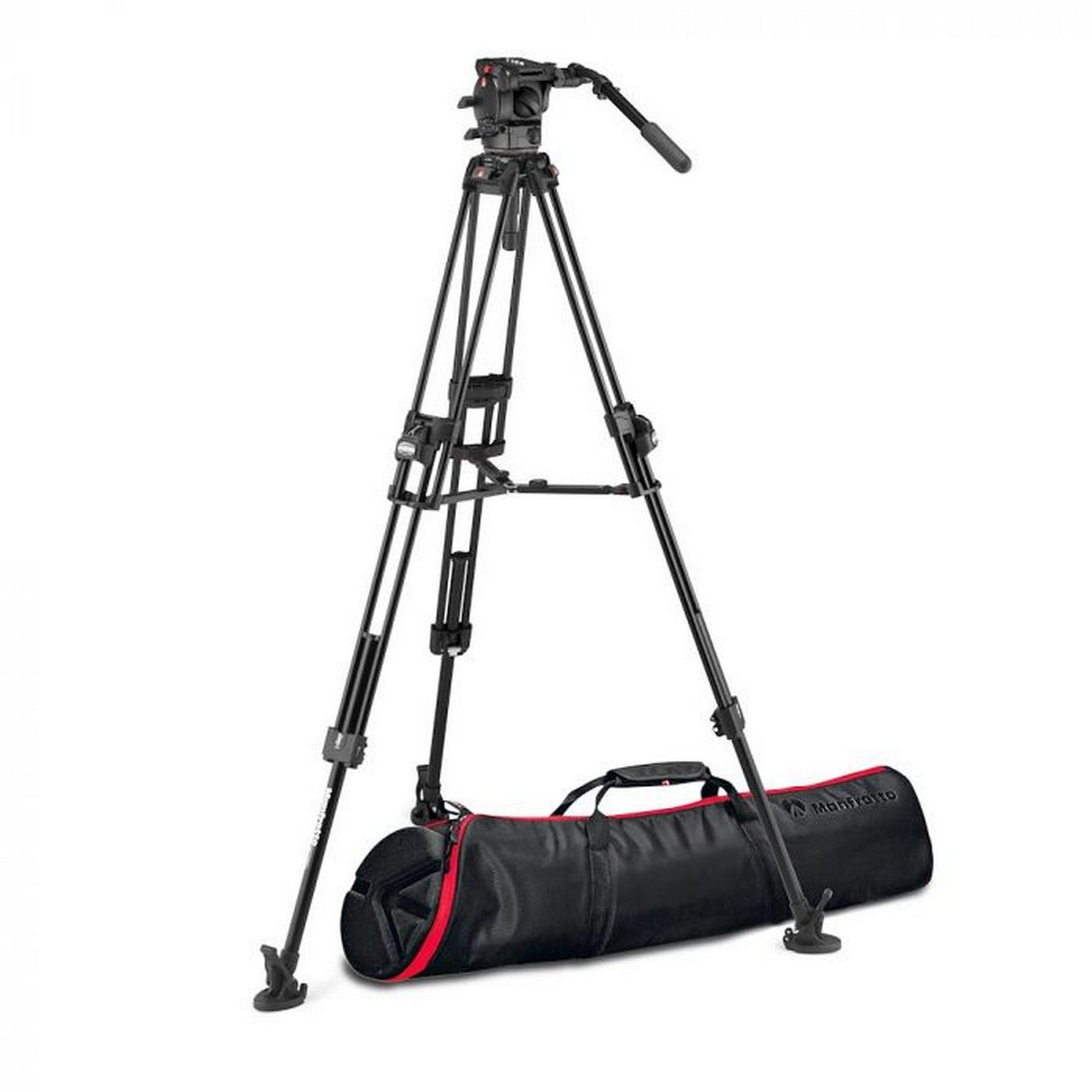

Manfrotto MVK526TWINFAUS 526 Pro Video Head with 645 Fast Twin Aluminum Tripod

The video system includes the Manfrotto 526 Professional Fluid Video Head and the 645 Fast Twin Tripod in aluminium.

The 526 Professional Fluid Video Head directly addresses the high-end, heavy-duty video market by offering a feature-packed fluid video head with the ability to support up to 16 kg and counterbalance weight from 8 to 15 kg. It provides a fluid drag system comprised of three step settings for low, medium and high drag levels (numbered 1, 2 and 3), plus an additional no-drag setting (number 0) for occasions such as snap-pans/tilts. It features a continuous counterbalance system for weights between 8 to 15 kg @ 125 mm C.O.G. The built-in 100mm half-ball adapts to a number of our tripods, allowing quick camera levelling with the aid of the levelling bubble.

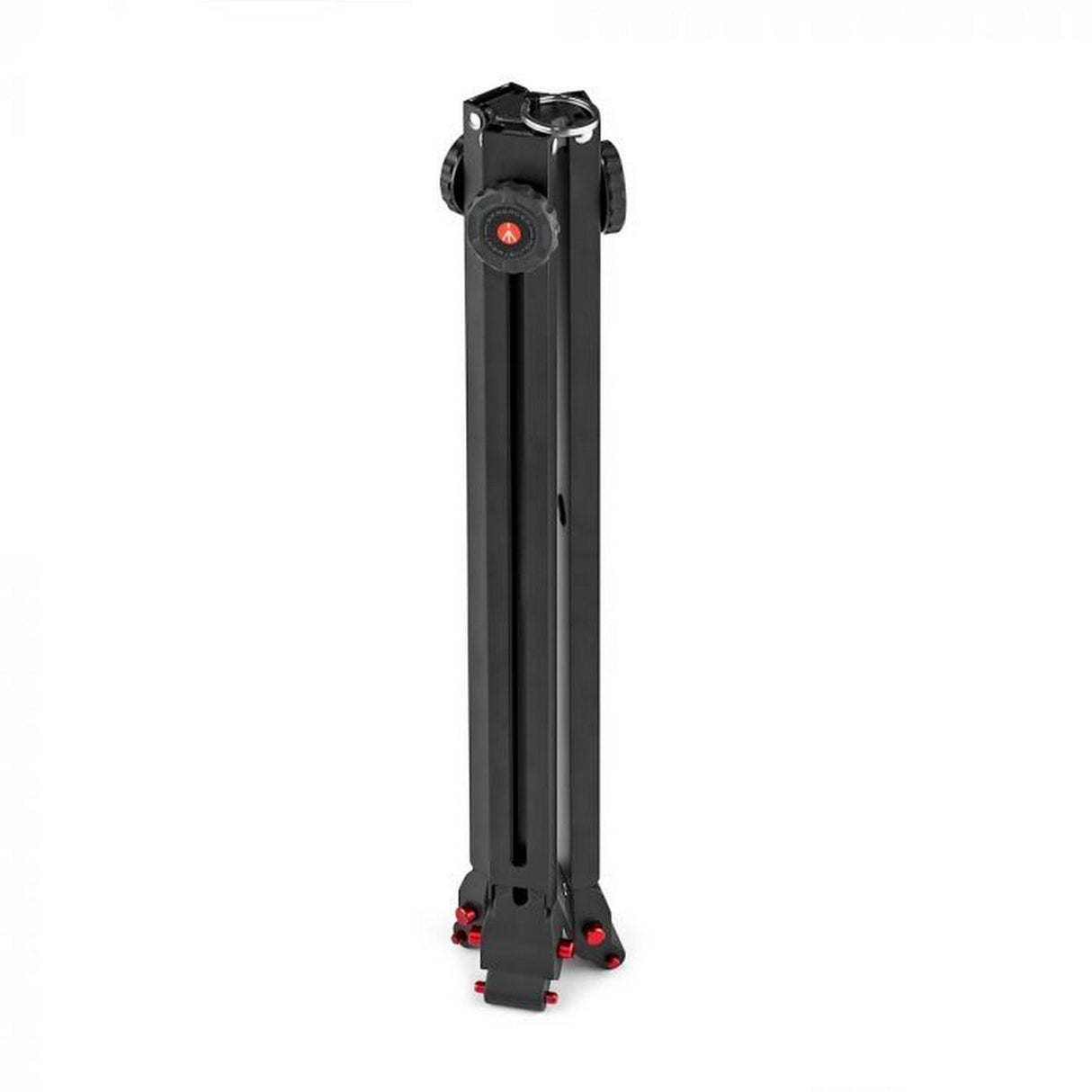

The 645 FTT Fast Twin Alu Tripod features a double tubing and Lever-Lock lever technology for the most robust support ever. The tripod is provided with a 2 in 1 half ball: a standard 100mm bowl compatible with a 75mm adapter (available as accessory) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.

This range was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

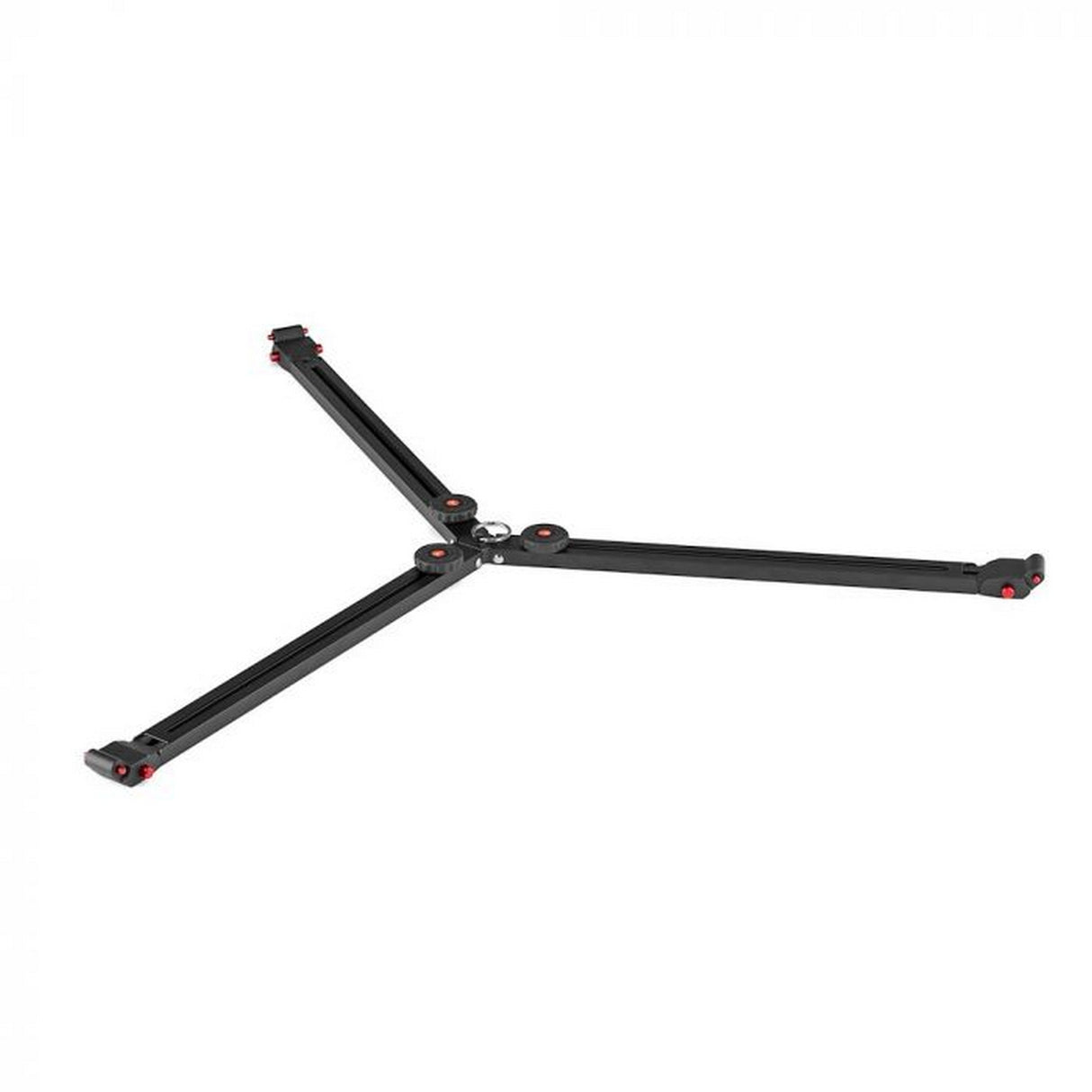

Moreover, it comes with the 2 in 1 ground and middle telescopic spreader and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

Key Features

• 526 Pro Fluid Video Head securely supports up to 16kg
• Tripod with 100mm bowl and compatible with 75mm adapter
• ULTRA L-LOCK & 3-angle selection mechanism for easy set up
• Equipped with spiked feet and rubber overshoes for a firm grip
• 2 in 1 spreader boosts tripod stability

Technical Specifications

Weight
16.53 lbs
Top Attachment
1/4” screw, 3/8” screw
Ball Flat
100 Ball
Safety Payload Weight
35.27 lbs
Counterbalance System
Variable Continuous
Powered By (Batteries)
0
Counterbalance Weight
17.64 -> 33.07 lbs
Bubble Spirit Level (No.)
1
Center Of Gravity
4.92 in
Carrying Bag Included
MB MBAG100PN
Center Column
no center column
Closed Length
34.84 in
Color
Black
Easy Link
No
Front Tilt
-70 / +75
Head Type
Video/Fluid Head
Leg Type
Twin
Leg Angles
20, 50, 70
Leg Lock Type
Flip Lock
Leg Sections
3
Material
Aluminum
Maximum Height
67.52 in
Maximum Working Temperature
140 F
Min Height
16.73 in
Minimum Working Temperature
-4 F
Pan Bar Included
Yes
Pan Drag
0 plus 3 step
Panoramic Rotation
360
Plate Type
357PLV-1
Quick Release
Yes
Spreader
Low & Mid level - Variable arm leg
Tilt Drag
0 plus 3 step
Accessory Compatibility
MVAPANBARM; MVAPANBARL; 502HLV; 509HLV; 114MV; 181B;
