Marian Clara D AES EBU PCIe Audio Interface Card for Digital Audio Processing
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

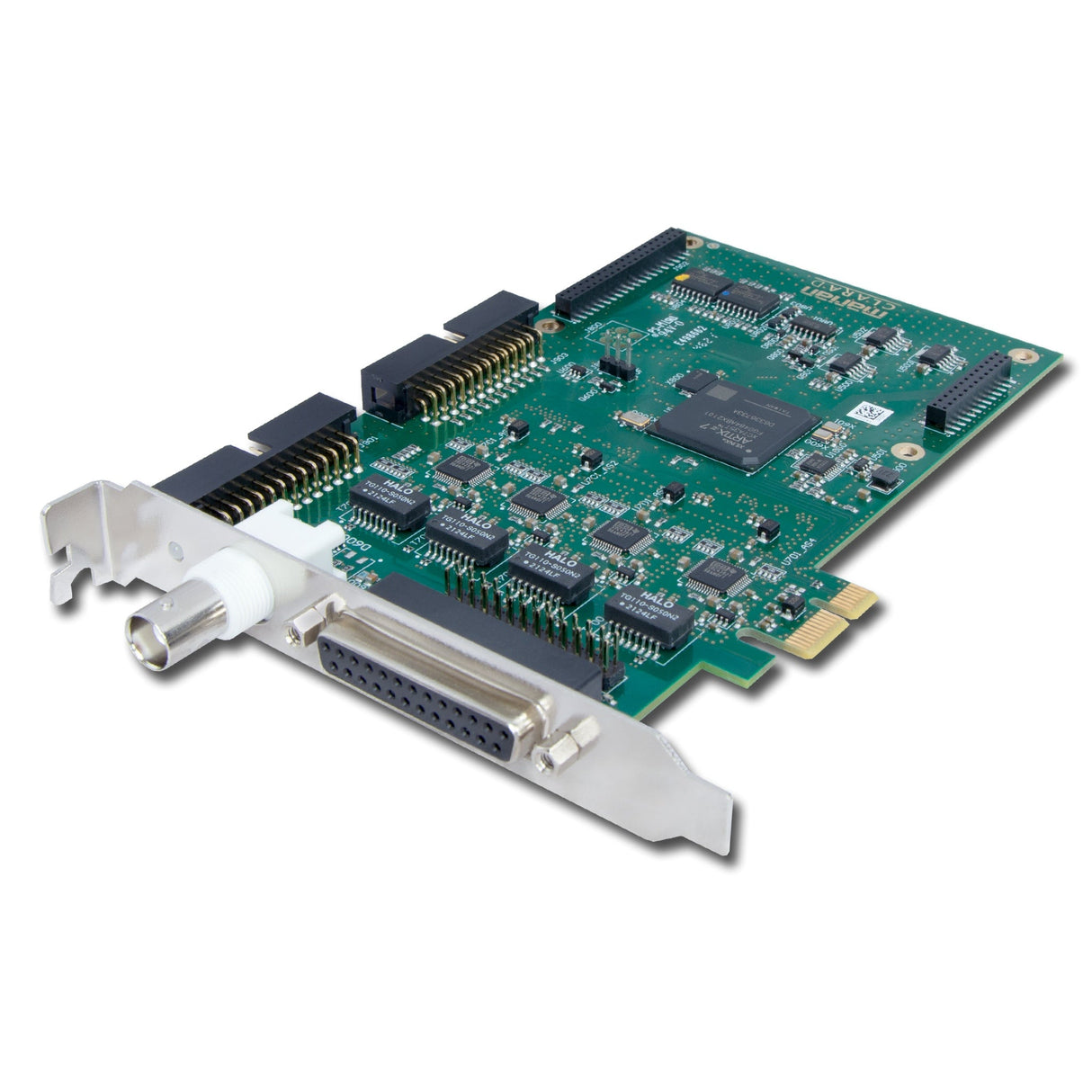

Marian Clara D AES EBU PCIe Audio Interface Card
The Marian Clara D is a professional PCIe audio interface card providing high quality AES EBU digital audio connectivity for demanding production, broadcast, and recording environments. With support for 16 digital channels at 24 bit and up to 192 kHz resolution, it delivers accurate signal conversion and pristine sound quality. It is ideal for systems requiring robust digital audio input and output performance.
The Clara D offers real time routing, mixing, and DSP processing via an integrated Beast DSP engine. Each channel can be adjusted for volume and routed latency free to any output. The DSP mixer also supports EQ and multiple bus configurations for flexible processing. Hardware sample rate conversion allows seamless integration with varying digital sources.
Designed for low jitter clock performance and optional expansion, the Clara D interface card supports synchronization via TDM SyncBus when multiple cards are installed. An optional expansion version adds word clock and MIDI support. This interface card is suitable for professional studios, broadcast facilities, and high performance audio systems that require reliable AES EBU connectivity and advanced DSP features.
Key Features
- 16 Channel AES EBU Digital I O: Provides high resolution digital audio via four AES EBU connectors.
- Beast DSP Mixer: Integrated DSP mixer for real time routing and EQ processing.
- Switchable Sample Rate Converter: SRC with up to 144 dB dynamic range.
- Precision Clock: Ultra low jitter internal clock for improved audio stability.
- Multi Card Support: Cascade multiple cards via TDM SyncBus for expanded channel operation.
Technical Specifications
- Audio Resolution: 24 Bit
- Maximum Sample Rate: 192 kHz
- Channels: 16 digital channels via AES EBU
- Interface: PCIe 1x
- Beast DSP: Supports up to 64 configurable channels
- Sample Rate Conversion: Switchable input SRC
- Synchronization: TDM SyncBus multi card support
- Expansion: Optional word clock and MIDI I O on expansion version
What's in the Box
- Clara D PCIe Card: Included
