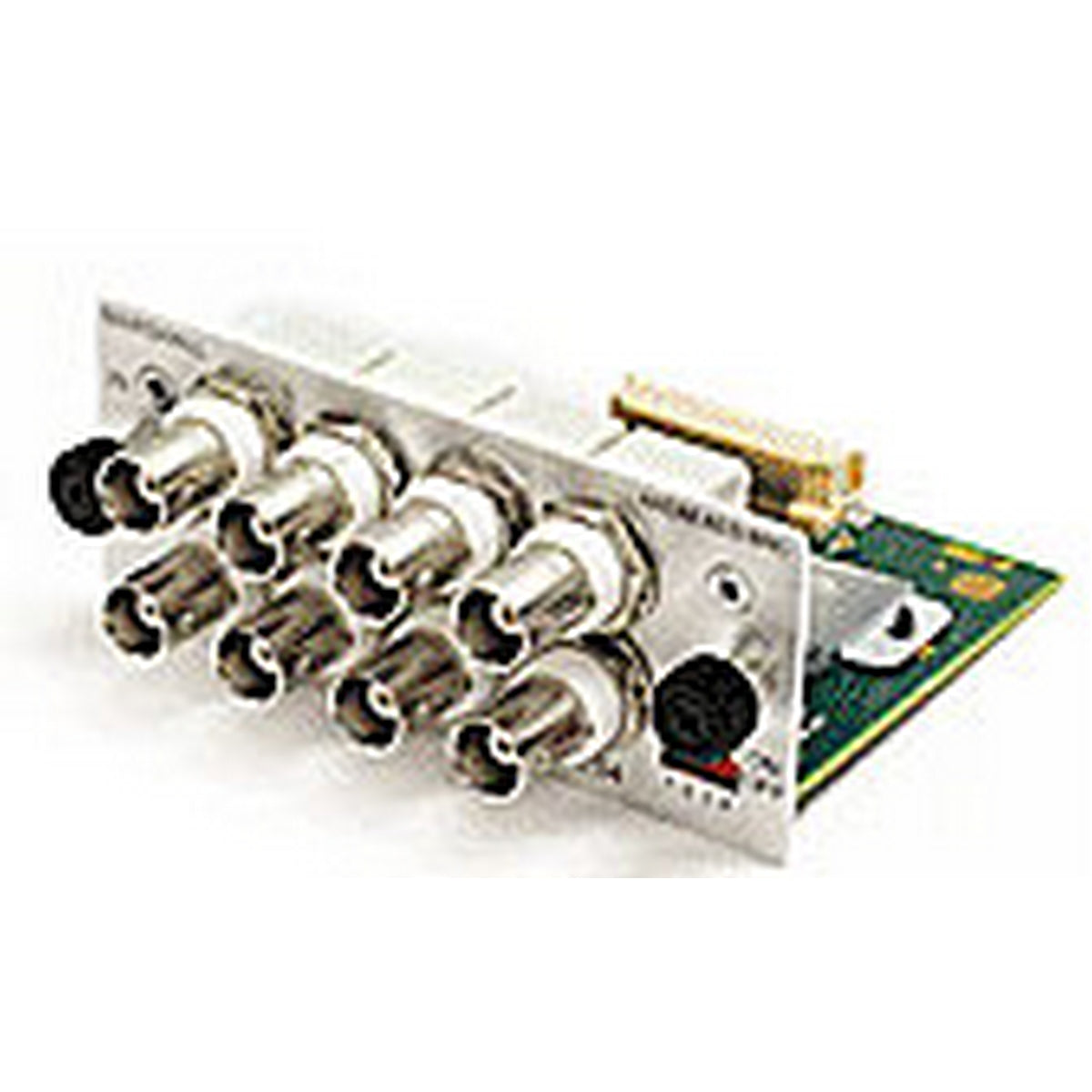

Marshall Electronics ARDM-AES-BNC 4 Unbalanced AES EBU Input Module for Audio Monitor
When using passive the loop-through outputs, unterminate the corresponding inputs using the DIP switch (switches in DOWN position). If the loop-through outputs are not used, terminate the corresponding inputs (switches in UP position).
Key Features
- 4 Unbalanced AES/EBU Inputs (8 Audio Channel Inputs)
- 4 Passive Loop-Through Outputs (8 Audio Channel Outputs)
- Accepts Professional (AES/EBU) and Consumer (SPDIF)
- Supports DOLBY Multi-Channel Decoding with Optional Module
- Embedded Metadata Display with AR-DM2-L Audio Monitor
Technical Specifications
Inputs: 4 x AES/EBU (Unbalanced 75Ī© BNC)
Outputs: 4 x AES/EBU (Unbalanced 75Ī© BNC) Passive Loop-Through
Formats: Professional and Consumer (SPDIF)
Audio Coding: PCM, DOLBY E, DOLBY DIGITAL (AC-3)
Sample Rates: 44.1kHz, 48kHz
