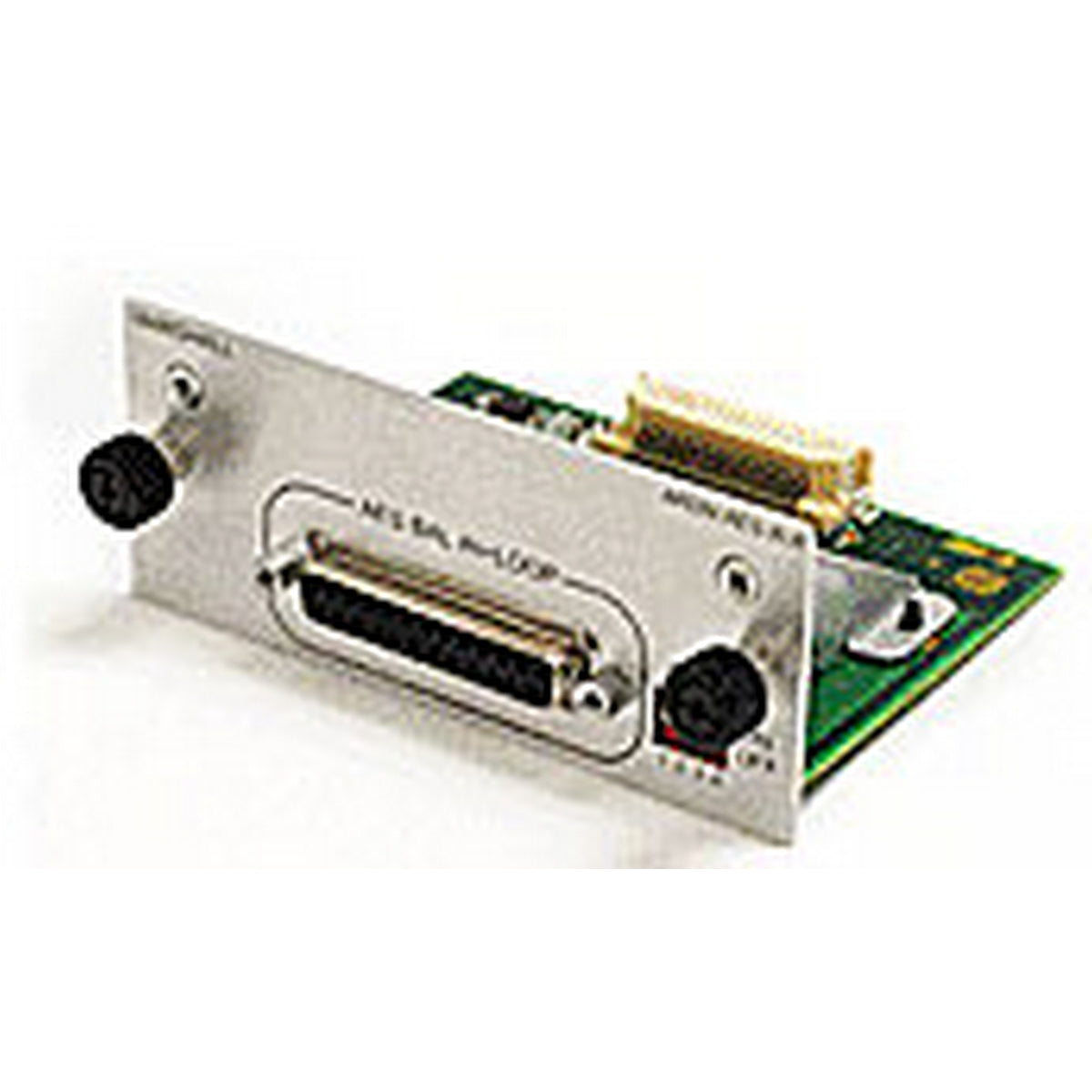

Marshall Electronics ARDM-AES-XLR 4 Balanced AES EBU Input Module for Audio Monitor
4 Balanced AES/EBU Inputs
Key Features
- 4 Balanced AES/EBU Inputs (8 Audio Channel Inputs)
- 4 Passive Loop-Through Outputs (8 Audio Channel Outputs)
- XLR Inputs and Outputs via included DB25-XLR Breakout Cable
- Supports DOLBY Multi-Channel Decoding with Optional Module
- Embedded Metadata Display with AR-DM2-L Audio Monitor
Technical Specifications
Inputs: 4 x AES/EBU (Balanced 110Ī© XLR-F, via DB-25 Connector)
Outputs: 4 x AES/EBU (Balanced 110Ī© XLR-M via DB-25 Connector) Passive Loop-Through
Formats: Professional and Consumer (SPDIF)
Audio Coding: PCM, DOLBY E, DOLBY DIGITAL (AC-3)
Sample Rates: 44.1kHz, 48kHz
DB-25 Pinout: āTascamā Standard Pinout (Mogami GOLD-AES-TD-DB25-XLR-05 Break-Out Cable Included)
