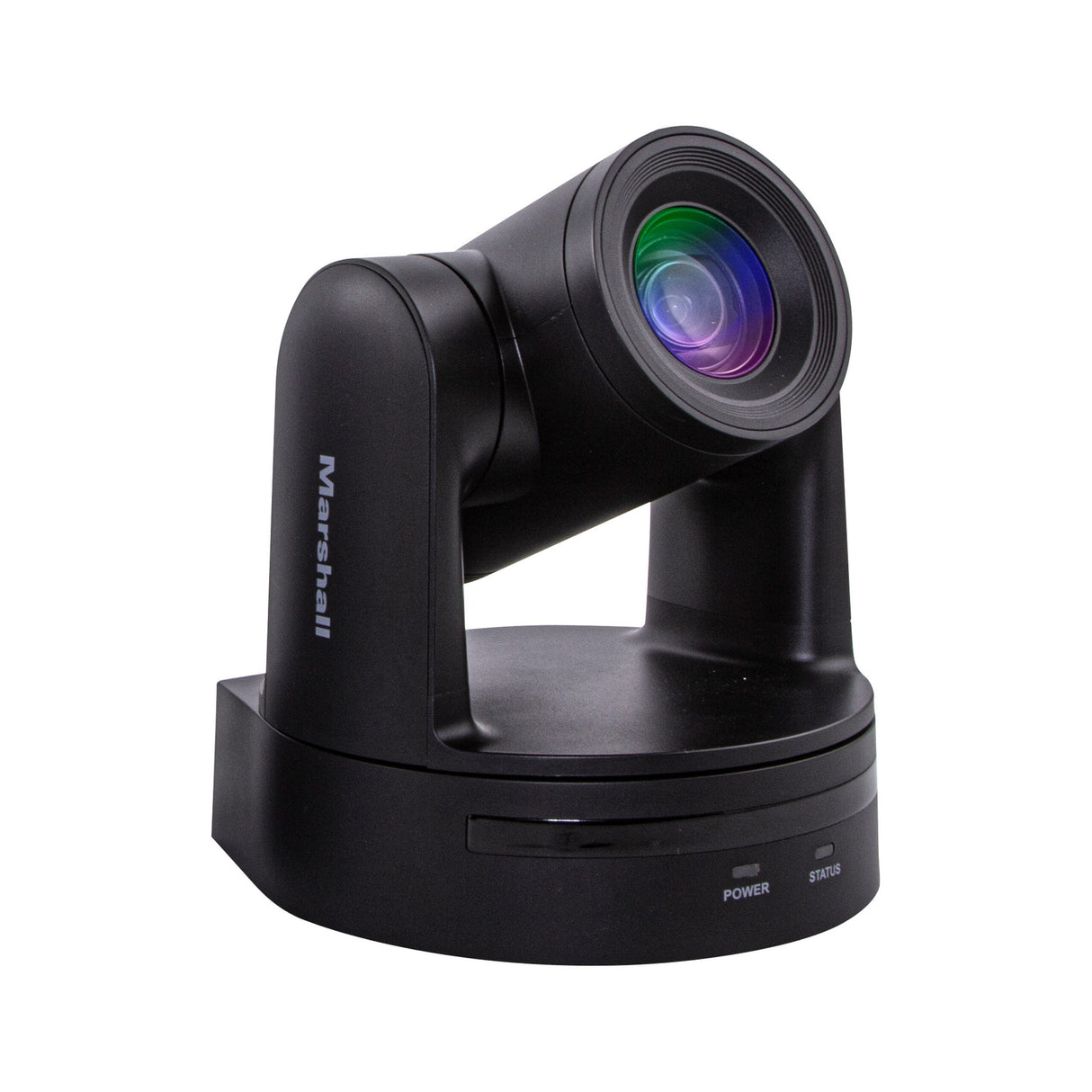

Marshall Electronics CV605-U3 5X PTZ HD Camera with USB-C, HDMI and IP, Black

The CV605 5X optical zoom USB-C, HDMI and IP camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85 Degrees and up to 1920x1080p resolution at 60fps. Multiple outputs include HDMI, USB.C and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of video conference, video streaming and professional A/V applications. CV605-U3 can be setup through one Ethernet (CAT) cable carrying video, audio, power (PoE), and control over IP. Also is easily dockable via OBS Studio, Zoom (certified) and as well as useful in other soft codecs. The wide-angle optical zoom lens offers an impressive 85-degree horizontal angle-of-view (wide open) with minimal distortion. Optical zoom from 3 ~ 15mm (F1.8~F2.8) and an additional 10x digital zoom. The CV605-U3 offers a USB-C connection for video conference, collaboration, and streaming. HDMI opens a wide range of options with HDMI workflows and IP provides an easy one-cable to camera setup and operation. The CV605-U3 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast and other applications with challenging light sources.

Key Features

• 2 Megapixel (1/2.8") Full-HD sensor
• 5X Optical Zoom (3~15mm) - starting at 85 Degrees AOV
• Full-HD Resolution: 1920x1080p up to 60fps, 1920x1080i & 1280x720p
• Low Illumination capability at 0.5Lux (F1.8) for challenging environments
• USB-C (USB3.0/2.0) HDMI and IP (H.265/H.264) or RS232 via RJ45
• Ethernet IP supports video, audio, control, and PoE over one Cat cable
• Control Options: Zoom (certified), software GUI via web, UVC1.5, OBS Studio plugins & docs, IR remote, Marshall VS-PTC-200
• (RS232) & VS-PTC-IP (IP/RS232)
• 3.5mm audio linear input (AAC, MP3, G.711A compression)

Technical Specifications

Camera Parameter
Optical Zoom
5X, f=3.1~15.5mm
Sensor
1/2.8-inch-high quality HD CMOS sensor
Effective Pixels Video Format
16:9, 2.07 megapixel
USB
YUY2, NV12
640x480/320x180/480x270/640x360/800x448/800x600/1024x576/
1280x720/1920x1080
MJPEG, H.264
640x480/320x240/352x288/480x270/640x360/720x480/720x576/
800x448/800x600/960x540/1024x576/1280x720/1600x896/1920x1080
HDMI
1080P 60/59.94/50/30/29.97/25;
720P 60/59.94/50;
Viewing Angle
16.43 Degrees (tele)--83.7 Degrees (wide)
Digital Zoom
10X additional
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ VAR
Focus
Auto/Manual/One Push
Iris
Close/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8
Electronic Shutter
Auto/Manual
BLC
ON/OFF
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness,
B/W mode, Gamma curve
SNR
>55dB
Input/ Output Interface
Video Interfaces
USB3.0 Type-C, HDMI, LAN
Video Compression Format
H.264, YUV2, NV12, MJPEG
Audio Input Interface
Two-channel 3.5mm (Line and Mic level)
Audio Output
USB3.0, HDMI, LAN output together with video
Audio Compression Format
AAC/MP3/G.711A
IP Interface
100M IP port (100BASE-TX)
Network Protocol
RTSP/RTMP, ONVIF; Support IP Visca control protoco
Control Interface
RS232
Control Protocol
VISCA/Pelco-D/Pelco-P;
Baud Rate
115200/38400/9600/4800/2400
Power Interface
HEC3800 outlet (DC12V)
Supply Adapter
AC110V-AC220V to DC12V/1.5A
Input Voltage
DC12V 10%
Input Current
1A(Max)
Consumption
12W (Max)
PTZ Parameter
Pan Rotation
135
Tilt Rotation
-30~+30
Pan Control Speed
0.1 -60/sec
Tilt Control Speed
0.1-30/sec
Preset Speed Pan
60/sec, Tilt: 30/sec
Preset Number
255 presets (10 presets by remote controller)
Other Parameter
Store Temperature
-10 Degrees C~+60 Degrees C
Store Humidity
20% - 95%
Working Temperature
-10 Degrees C~+50 Degrees C
Working Humidity
20% - 80%
Dimension
145.4mmX147mmX154mm
Weight
1.29KG
Using Environment
Indoor
