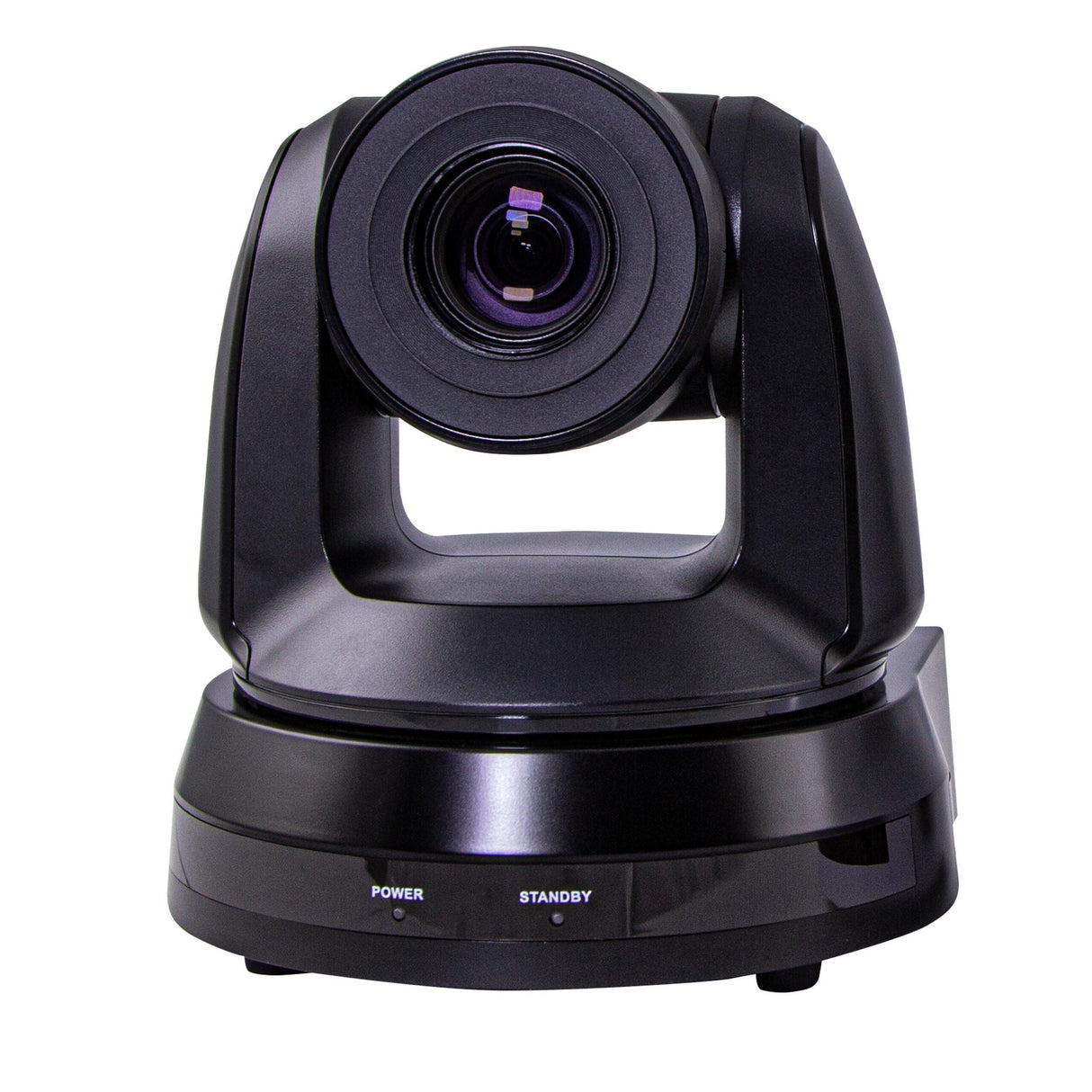

Marshall Electronics CV620-TBI 20x AI Track and Follow PTZ Camera, Black

Marshall Electronics CV620-TBI 20x AI Track and Follow PTZ Camera, Black

Marshall CV620-TBI/TWI PTZ camera features an ability to automatically track, follow and frame presenters using AI facial learning process for more accurate and smoother self-adjusting maneuvers. Equipped with a more than capable 20x optical zoom range from 60-degrees wide open to roughly 3-degrees telephoto. Flexible networkable IP interface with simultaneous 3GSDI and HDMI outputs. One ethernet (Cat) cable installation with PoE+ simplifies setup and operation.

AI Track, Follow and Frame
Designed to auto-track, follow and frame presenters using more natural and smooth maneuvers. Utilizing new AI technology to recognize faces and learn movement dynamics of the subject to anticipate motion, accurately follow and frame subjects with smooth transitions, therefore reducing viewer irritation and fatigue.

Crisp Full-HD Video Output
The CV620 is built around a professional-grade 2-Megapixel 1/2.8-inch Sony sensor with smooth 20x Optical Zoom (5.3~110mm) producing clear HD video up to 1920x1080p60fps, 1920x1080i and 1280x720p. Smart AI auto-focus identifies faces and maintains accurate and sharp focus of subjects.

Versatile Camera Position
The CV620 is equipped with synchronous pan, tilt, and zoom motors with various speed adjustment for smooth and silent camera movements during operation. Ultra-wide 340 Degrees pan range and 120 Degrees tilt provides a wide range of movement. 20X optical zoom provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.

Easy I/O and Control
Simultaneous IP, 3GSDI and HDMI outputs with a wide range of remote command and control options. Locally with IR remote, Video Management Software (VMS), Software GUI over web, VS-PTC-IP controllers, OBS plugins and many 3rd party control decks and codecs using Visca over IP/RS232/RS422. Also, easy one-cable to camera setup via IP ethernet cable for control, video, audio, tally and PoE+ (power).

Key Features

• Accurate auto-track, follow and frame subjects using AI facial learning technology
• 2 Megapixel HD Sensor (1/2.8”) - 1080p & 720p (progressive), 1080i (interlaced)
• 60, 59.94, 50, 29.97, 25 frames per second in all resolutions
• 3GSDI, HDMI and IP (H.264) simultaneous outputs
• 20x optical zoom (5.3mm~110mm) starting at 60 Degrees H.AOV
• 340 Degrees pan and 120 Degrees tilt range with selectable PTZ maneuver speeds
• IP formats: DHCP, DNS, HTTP, HTTPS, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, RTMPS
• 3.5mm TRS Stereo Audio Input (Mic/Line) embedding on all available outputs
• PoE+ (IEEE802.3at), DC: 20W (max), PoE: 23W (max)
• Weight: 2kg, Dims: 185x186x174mm, Operating Temp: 0 Degrees C to 40 Degrees C

Technical Specifications

Sensor
SONY IMX327
Video Format
1080p/60,1080p/30
1080p/59.94,1080i/59.94
1080p/50,1080p/25
1080p/29.97
1080i/60,1080i/50
720p/60
720p/59.94
720p/50
Video Output (HD) Interface
3G-SDI / HDMI / Ethernet (IP)
Optical Zoom
20X
Horizontal Viewing Angle
60 Degrees (Wide) to 3 Degrees (Tele)
Pan/Tilt Angle
340 Degrees pan and 120 Degrees tilt
Panning Speed
Variable
Aperture
F1.6~F3.6
Focal Length (lens spec)
5.33~110 mm
Shutter Speed
1/1 to 1/10,000
Minimum Object Distance
∞~1.5m
Minimum Illumination
1.0Lux (F1.6, 50IRE, 30fps)
Focus System
Auto, One-push AF, Manual
Gain Control
Auto/ Manual
White Balance
Auto/ Manual
Exposure Control
Auto/Manual
3D NR
Yes
Aperture
F1.6~F3.6
Focal Length (lens spec)
5.33~110 mm
Image Flip
Mirror/ flip/ mirror + flip
Preset Positions
128 savable with optional transition speeeds
Control Interface
VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote
Control Protocol
ONVIF, VISCA, PELCO D
Tally Light
Yes, Front Tally Light
PoE
IEEE 802.3at (PoE+)
Video Stream
RTSP, RTMP, RTMPS, SRT, MPEG-TS
Video Compression
H264: 25/30/50/60 fps 1080p/720p
MJPEG 1080p 30/15 fps
Audio Input
Line in/ Mic in
Audio Output
Ethernet / SDI / HDMI
IR Pass-through
Yes
IR Receiver
Yes
IR Remote Control
Yes
Power Consumption
DC: 16W max
PoE+:18W max
Weight
1.9 Kg
Dimensions
185 x 186 x 174 (mm)
Storage Temps
-20 to 60 Degrees C
Operating Temps
0 Degrees C to 40 Degrees C
