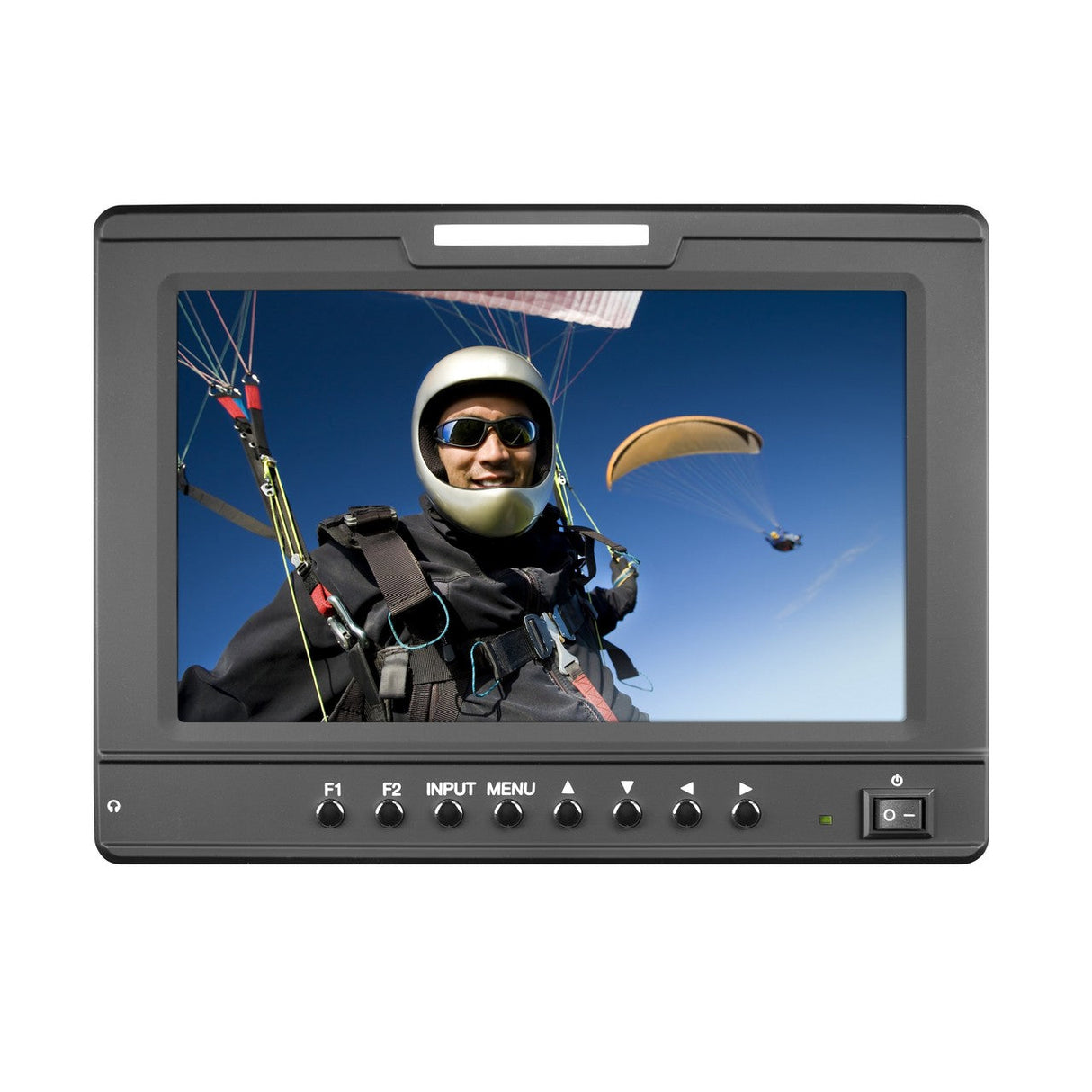

Marshall Electronics V-LCD70-AFHD-SL 7 Inch High Resolution Lightweight Camera-Top Monitor with Sony SL Mount

Marshall Electronics V-LCD70-AFHD-SL 7 Inch High Resolution Lightweight Camera-Top Monitor with Sony SL Mount

The V-LCD70-AFHD includes a wide range of professional features including multiple inputs, Picture-in-Picture, Image Flip, Screen Markers, Peaking Filter, False Color and Zebra filters. The screen is a bright 500 cd/m² ith a 700:1 contrast ratio. The menu is fully accessible from the front of the monitor, where adjustments can be made to color, exposure, picture orientation, or the aspect ratio of the image can be adjusted from full screen to 4:3, 14:9 and 16:9.

Key Features

• Multiple inputs including HDMI, 3GSDI, Component and Composite
• Three color tally (Red, Yellow, Green)
• 1/4-inch mounting on 4 sides plus VESA mount
• Light weight for comfortable camera top use
• Audio level display from HDMI or SDI inputs
• On-screen framing marks
• 4-pin XLR for ENG power supplies
• Power adapter included
• Sony L Series Mount

Technical Specifications

Panel
Number of Panels
1
Panel Size
7.0” Diagonal
Resolution
1024 x 600
Aspect Ratio
16:9
Active Area
153.6 x 90 mm
Brightness
500 cd/m²
Contrast
700:1
Color Gamut
YUV, RGB
Viewing Angles (CR>=10)
170° x 170°
Backlight type
LED
Adjustable Backlight
No
Features
Frame Rates
1080p/1080i/720p/625i/525i
Loss of Input Curtain
Yes
Color Temperature
D65, D55 and D93
Image Flip
Yes
False Color
Yes
Peaking Filter
Yes
HDMI CSC Auto
Yes
HDMI Ratio Auto
Yes
Pixel to Pixel
No
Pre-set Gamma points
Yes
Self-Sensing
Yes
Modular Input Slot
No
Re-clocked/Re-Shaped
Yes
Environmental
Operating Temperature
-4° F to 122° F
Storage Temperature
-22° F to149° F
Unit dimensions
7.50" (W) x 5.57" (H) x 1.25" (D)
Weight (Main Body)
1 lbs
Mounting
¼”-20 Mounting Bracket
