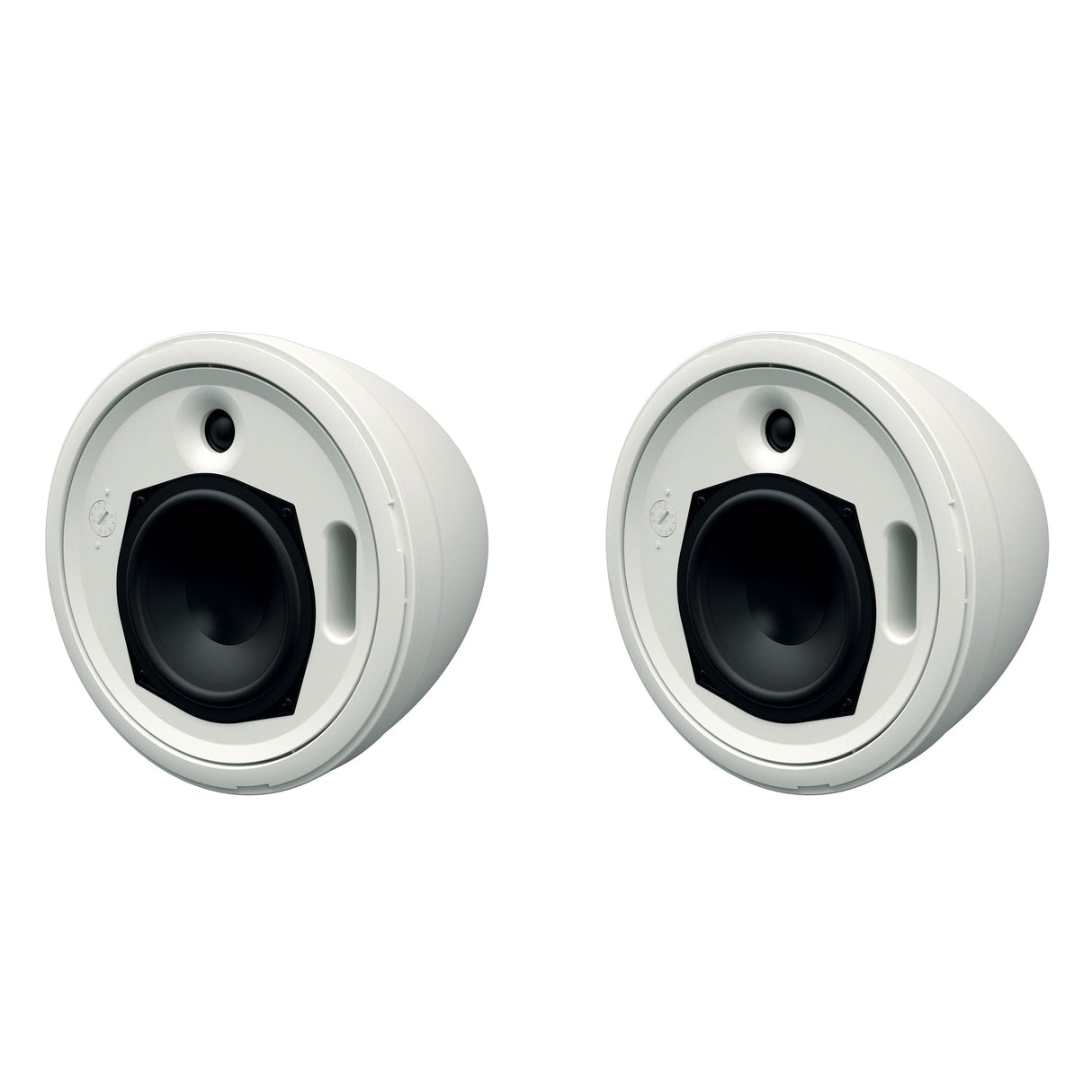

Martin Audio ACP-55T-W Compact Two-Way 5.25 Inch Pendant Loudspeaker, White, Pair

Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome tweeter, the ACP-55T produces 109dB peak output at 1 meter and delivers superb sound quality for both music and speech reproduction. Its stylish pendant enclosure is equipped with a single-point mounting system plus provision for attaching a safety cable. The consistent and wide 150° conical coverage of the ACP-55T reduces the number of speakers required for even coverage - leading to a reduction in installation cost.

Key Features

• High performance two-way pendant speaker
• 5.25” (135mm) LF driver and 0.75” (19mm) HF dome tweeter
• Wide 150° conical coverage pattern reduces speaker count required for even coverage
• 70V/100V multi-tap line transformer or 16-ohm low-impedance operation
• Low and high-frequency overload protection
• Quick release, bezel-less grille
• UL94V-0 rated baffle and enclosure

Technical Specifications

TYPE
Passive two-way pendant speaker, ported bass reflex
FREQUENCY RESPONSE (1)
98Hz-20kHz ± 3dB
-10dB @ 56Hz
DRIVERS
LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
HF: 0.75” silk dome, neodymium motor
RATED POWER (2)
50W AES, 200W peak
RECOMMENDED AMPLIFIER
VIA2004 (for low-impedance operation)
SENSITIVITY(4)
86dB / 1W(4V) / 1m (full space)
MAXIMUM SPL (9)
109dB peak
NOMINAL IMPEDANCE
16
DISPERSION (-6DB)
150° conical up to 7kHz
CROSSOVER
3kHz passive (LF and HF auto-resetting fuses
TRANSFORMER TAPS
70V: 30w / 15w / 7.5w / 3.75w
100V: 30w / 15w / 7.5w
RECOMMENDED HIGH-PASS FILTER
60Hz 24dB/oct
ENCLOSURE
UL 94V-0 rated ABS baffle and enclosure
FINISH
Black or white
GRILLE
Perforated steel, powder-coated, bayonet fitting
CONNECTORS
Ceramic connector (in and link)
DIMENSIONS
(OD) 246mm x (D) 238mm
(OD) 9.7in x (D) 9.35in
WEIGHT
3.46kg (7.62lbs)
