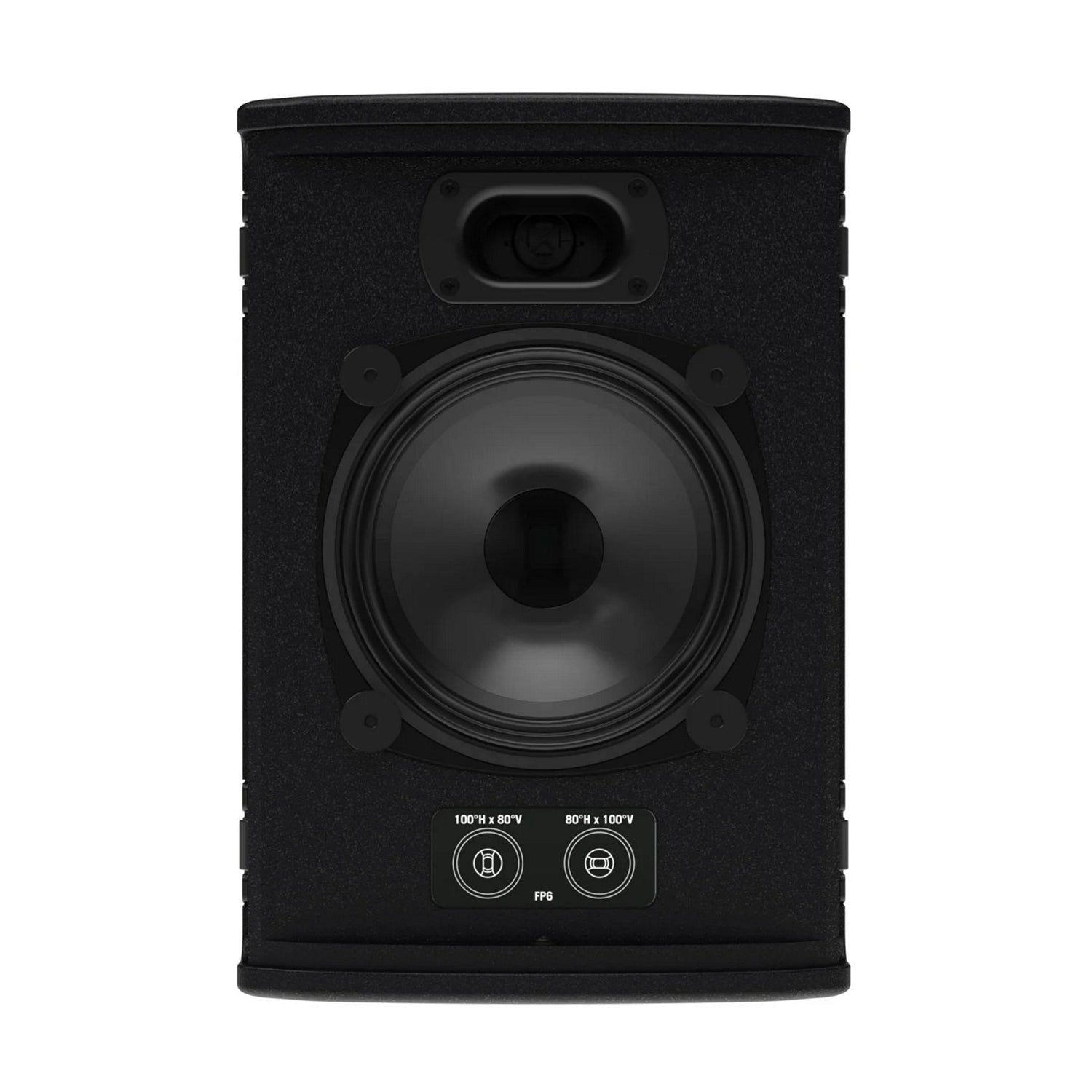

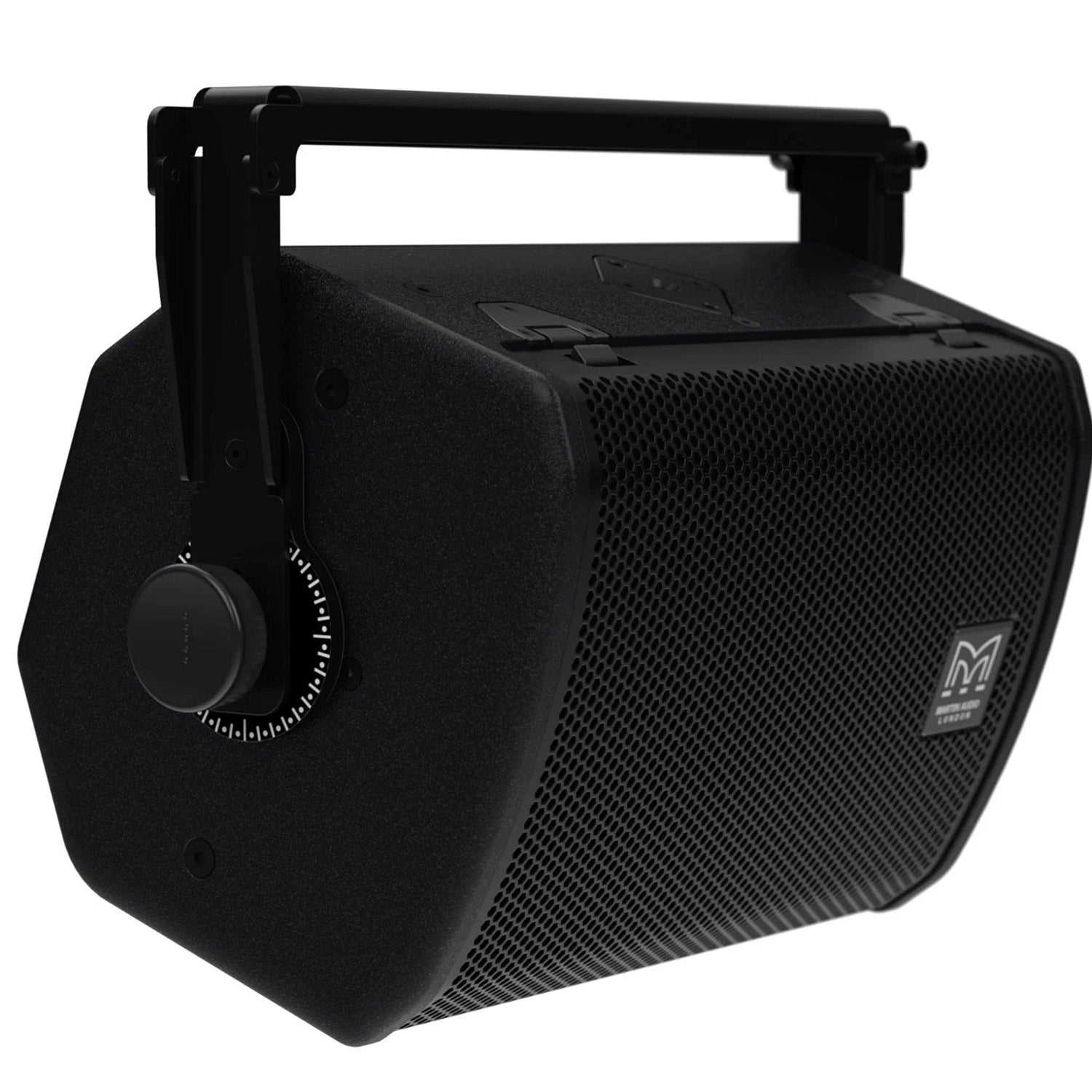

Martin Audio FP6 6-Inch Passive 2-Way FlexPoint Loudspeaker

Compact Coaxial Performance for Precision Coverage

The Martin Audio FP6 is an ultra-compact passive two-way loudspeaker designed for short-throw applications where high-quality sound and consistent coverage are essential. Despite its small enclosure, the FP6 delivers a full-frequency response and impressive output capabilities, making it ideal for installations in confined spaces and areas requiring spot and fill coverage. Its versatile, multi-angle enclosure allows for flexible mounting options, ensuring optimal placement in various environments.

Key Features

• Ultra-compact design: Ideal for installations with space constraints.
• Coaxial Point Source configuration: Ensures consistent coverage and minimal distortion.
• Rotatable driver: Allows for both portrait and landscape orientation without tools.
• Durable construction: Weather-resistant with an IP54 rating when fitted with two speakON NLT4FXX connectors.
• Flexible mounting options: Supports various mounting accessories for versatile deployment.

Technical Specifications

• Type: Coaxial passive 2-way
• Crossover Frequency: 2.3kHz
• Frequency Response: 73Hz – 20kHz ± 3dB, -10dB @57Hz with preset
• Drivers: LF: 6", 1.75" Voice coil, Neodymium Motor with flux stabilising rings; HF: 0.7" exit, 1.4" Voice coil, Coaxial HT polymer dome compression driver
• Sensitivity (4V 1m free-field): 91dB
• Nominal Impedance: 16 Ohms
• Rated Power: 150W AES, 600W peak
• Maximum SPL: 113dB Cont, 119dB Peak (6dB)
• Dispersion (-6dB): 100° H, 80° V
• Connectors: NLT4MPXX-BAG speakons (pair)
• Fittings: 4 x M10, 15 x M6 fixing points, 1 x 3/8” (mic stand) fixing point
• Dimensions: (W) 321mm, (H) 220mm, (D) 197mm (W) 12.6in, (H) 8.7in, (D) 7.8in
• Weight: 5.5kg (12.1lbs)
• Volume: 7L

Included in the Box

• 1 x FP6 loudspeaker
• Quick-release steel grille
• Captive thumbwheels for driver rotation
• Quick-release latches for grille removal
• Mounting hardware for various accessories
