Martin Audio iKON IK42 4-Channel 20000W Class D Power Amplifier

Martin Audio IK42 4-Channel 20000W Class D Power Amplifier

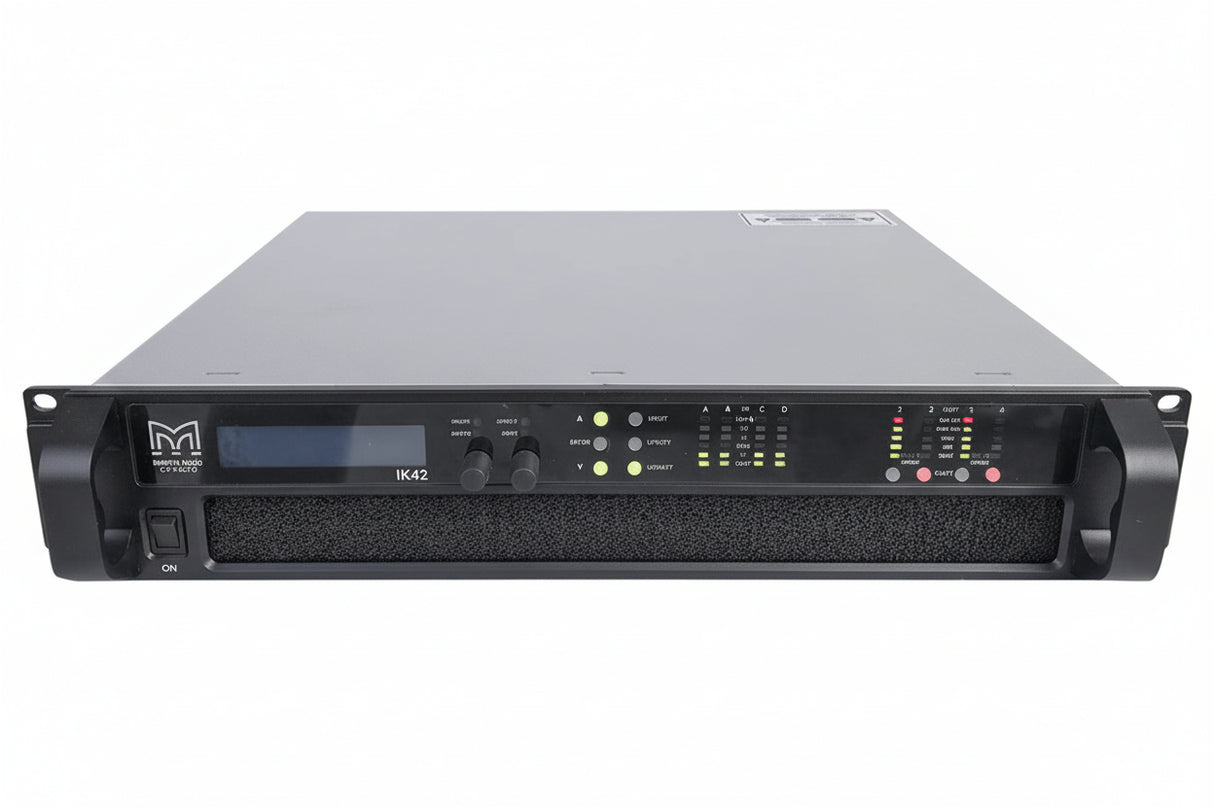

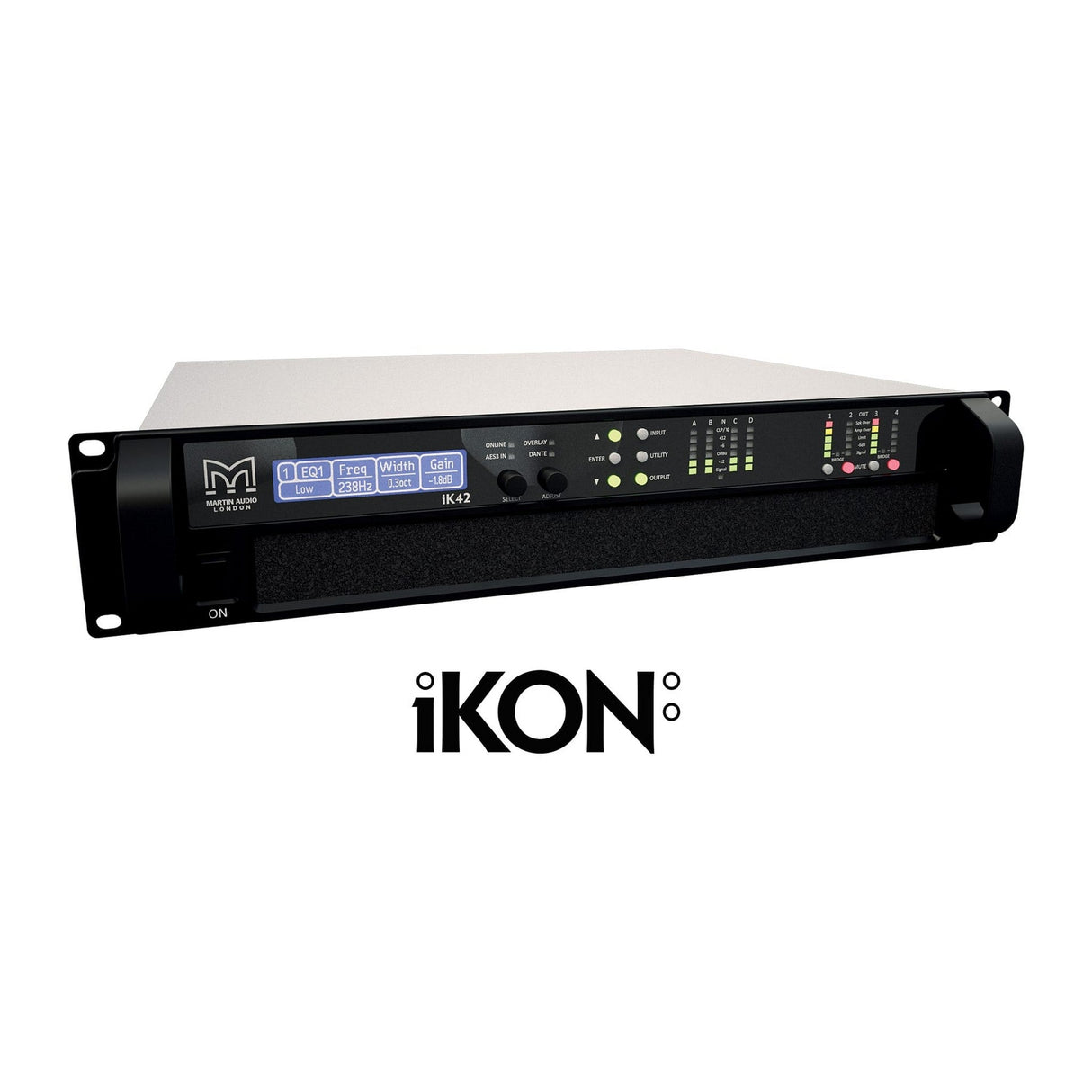

The iKON iK42 is an advanced 4-channel power amplifier which combines very high power density with superb audio performance, state-of-the-art DSP and network control. A dedicated controller amplifier for Martin Audio Wavefront Precision line arrays and XE Series stage monitors, the iK42 can also provide multi-channel amplification across the Martin Audio loudspeaker range.

The iK42 can deliver a full 5000 watts per channel into 2Ω with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.

Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.

Powerful DSP is fully integrated into the iK42 to provide a multitude of features that ensure maximum performance and worldwide compatibility of XE monitors. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in WP line array systems.

The iK42 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.

Applications

Dedicated system amplifier for Martin Audio Wavefront Precision Series and XE Monitor Series
Versatile multi-channel amplification for Martin Audio loudspeaker systems

Key Features

• Class D Amplification: Four channels of efficient Class D amplification
• High Power Density: Very high power density in compact 2U rack height
• Total Power Output: Up to 20,000 Watts total output, depending on load impedance
• 96kHz DSP Processing: High performance 96kHz DSP on inputs and outputs (48kHz outputs with FIR filters)
• Switch Mode Power Supply: Efficient and reliable switch mode power supply design
• Global Mains Operation: 85V to 240V auto-sensing for worldwide compatibility

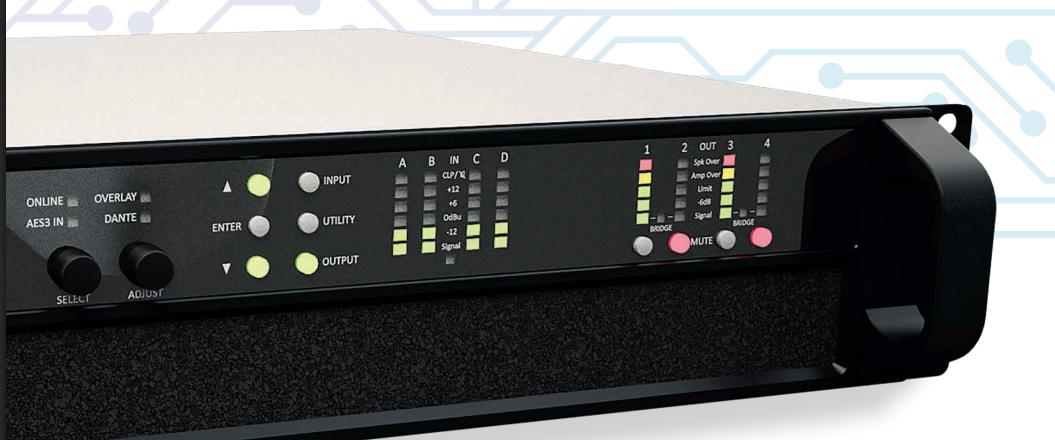

• Front Panel Interface: Intuitive and user-friendly front panel controls
• Audio Inputs: Supports analogue, AES3, and Dante™ digital audio network inputs
• Ethernet Control: Ethernet connectivity for control and monitoring via Martin Audio VU-NET™ software
• Protection and Monitoring: Comprehensive system protection and monitoring functions

Technical Specifications

• TYPE: Four-channel Class D amplifier
• POWER OUTPUT:
  • 5000W into 2Ω
  • 3000W into 4Ω
  • 1500W into 8Ω
  • 10000W bridged per channel pair, 4Ω
• CV LINE OUTPUT:
  • 1250W, 25V line
  • 3500W, 70V line
  • 5000W, 100V line
• DIGITAL SIGNAL PROCESSING: 96kHz/48kHz DSP on all inputs and outputs
• COOLING: Dual vari-speed fans, front-to-back airflow
• MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F)
• ANALOGUE IN/LINK (4 CHANNELS):
  • 4 x female
  • 4 x male Neutrik™ XLR
• ANALOGUE INPUT IMPEDANCE: 20kΩ balanced to ground
• MAXIMUM ANALOGUE INPUT LEVEL: +20dBu
• AES3 IN/LINK (2 CHANNELS): 1 x female, 1 x male Neutrik™ XLR, balanced
• DANTE™ (4 CHANNELS): 2 x shielded RJ45, primary and secondary
• AMPLIFIER OUTPUTS: 4 x Neutrik Speakon™ NL4
• DYNAMIC RANGE:
  • >113dBA, analogue input
  • >114dBA AES/Dante™ input
• FREQUENCY RESPONSE: 7Hz-30kHz (‐2.5dB points, 4Ω load)
• TOTAL HARMONIC DISTORTION: <0.05% typical @ 1kHz, 4Ω load
• SLEW RATE: >60V per microsecond
• DAMPING FACTOR: >800 at amplifier output, ref 8Ω
• PROTOCOL: Ethernet
• CONTROL APPLICATION: Martin Audio VU-NET™
• SAMPLE RATE: 96kHz (48kHz for FIR filter implementation)
• PHYSICAL INPUTS:
  • 4 x analogue
  • 2 x AES
  • 4 x Dante™ inputs routable to four DSP drive modules
• DRIVE MODULE INPUT DSP:
  • Input signal routing, delay, gain, HPF, Phase, Mute
  • EQ: 2 x low shelf, 6 x PEQ/bandpass and FIR shelving filters
• DRIVE MODULE OUTPUT DSP:
  • Source, delay, gain, Phase, Mute, crossover filters, limiters
  • EQ: low shelf, 8 x PEQ / band pass and shelving filters
• POWER SUPPLY: High performance Series Resonant
• AC INPUT OPERATING RANGE: 85 - 240V ~ AC, 47 - 63Hz
• MAINS INRUSH CURRENT: 6A at 115V, 12A at 230V (max for <10ms)
• MAINS CONNECTOR: Neutrik 32A Powercon™
• DIMENSIONS:
  • (W) 482 x (H) 2U/88mm x (D) 441mm
  • (W) 18.98in x (H) 2U/3.46in x (D) 17.35in
  • (incl handles and optional rear support)
• WEIGHT: 12.5kg (27.5lbs)

Package Contents

• Martin Audio iKON iK42 4-channel power amplifier
• User documentation and quick start guide
