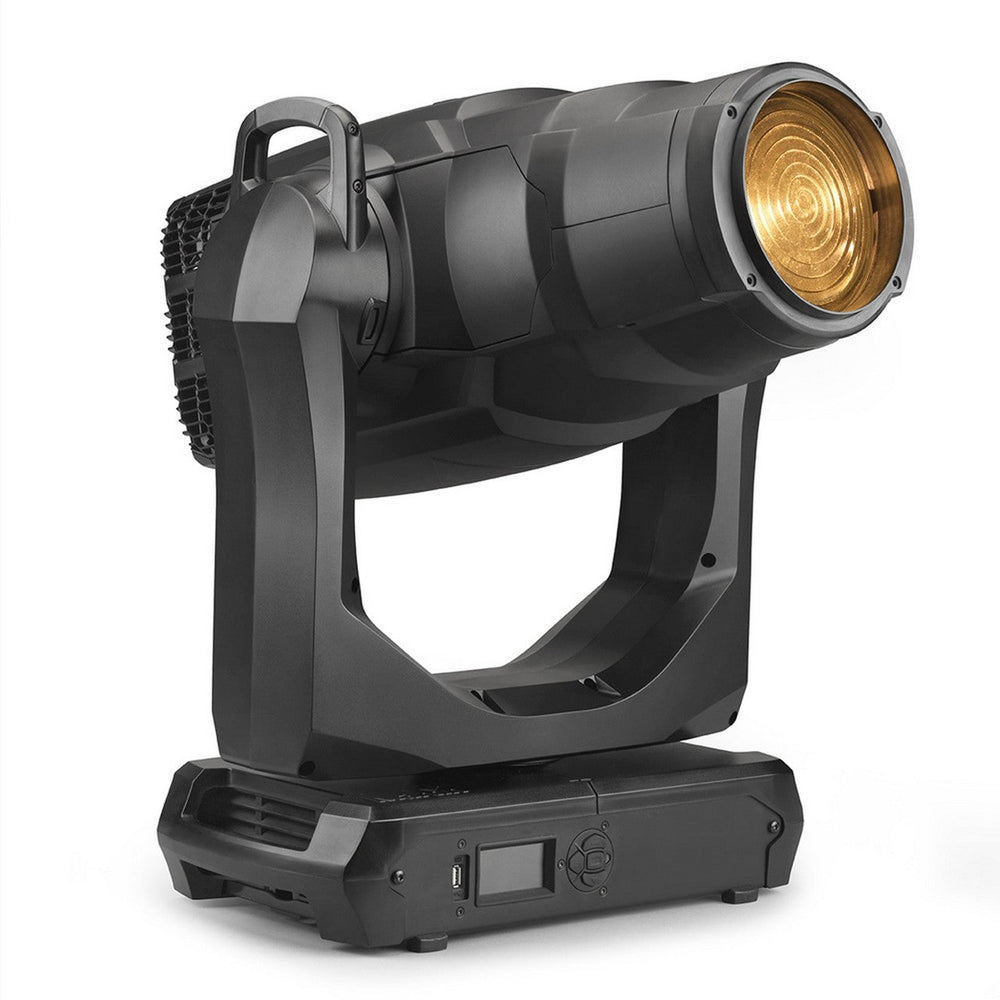

Martin MAC Encore Wash WRM | 3000K Warm Incandescent LED Light Polystyrene

Martin MAC Encore Wash WRM 3000K Warm Incandescent LED Light Polystyrene

Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore Wash is available in two dedicated color temperature variants: WRM for unparalleled, 3,000 K warm incandescent emulation and CLD for crisp, 6,000 K neutral daylight, all housed in a cleverly cooled and packed optical design. The WRM variant is a perfect replacement for the much-loved, discontinued MAC TW1, and the CLD variant is an LED-based alternative to the MAC Viper Wash DX. Both variants can also be used as modern replacements for generic fixtures like tungsten or HMI based Fresnel fixtures, with the additional benefit of color mixing and movement.

Key Features

• Pure white LED engine with 3000 K CCT
• No color temperature variation during zoom and dimming
• Flicker-free operationLED driver frequency suitable for all camera applications
• Whisper-silentCombines convection and forced air cooling with user-selectable output vs. sound level control
• Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation
• Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades
• Variable CTBtungsten to daylight CCT control and expansion of the CMY palette that stays true to the black body curve
• Color wheel-6 interchangeable dichroic filters + open
• Fresnel lens: 1:4 zoomprecise, silent and fast zoom
• PC lens (optional): 1:5 zoomprecise, silent and fast zoom
• Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision
• Precise and tight iris with adjustable dynamic effects
• Animotion FX SystemInternal dimming effect macros for stunning 3D mid-air and projection effects
• Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring

Technical Specifications

Electrical
AC power
120-240 V nominal, 50/60 Hz
Power supply unit
Auto-ranging electronic switch-mode
Power consumption, all effects static, zero light output
64 W
Half-cycle RMS inrush current at 230 V, 50 Hz
10.3 A
Dynamic Effects
Color mixing
CMY, independently variable 0 - 100%
Color temperature control
Variable 3000 - 7000 K
Color wheel
6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
Barn doors
Internal, two blades with individually controllable insertion, +/- 100° module rotation
Iris
Variable 0 - 100%
Dimmer/shutter
0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options
Choice of four dimming curves
Pre-programmed effects
Two ranges of FX, independent or synchronized/combined
Focus
Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Zoom
Motorized
Pan
540°
Tilt
268°
Position correction system
Absolute position monitoring
Typical Power and Current
120 V, 60 Hz
5.0 A, 596 W, PF 0.998
208 V, 60 Hz
2.9 A, 581 W, PF 0.988
230 V, 50 Hz
2.6 A, 580 W, PF 0.981
240 V, 50 Hz
2.2 A, 585 W, PF 0.979
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity.
Control and Programming
DMX channels
24
Setting and addressing
Control panel with backlit graphic display and jog wheel or via DMX
16-bit control
Dimming, pan and tilt
Movement control options
Tracking and vector
Fixture identification
User-settable ID number
DMX compliance
USITT DMX512-A
RDM compliance
ANSI/ESTA E1.20
Transceiver
Opto-isolated RS-485
Fixture software update
USB memory device or over DMX link
Thermal
Cooling
Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
Maximum surface temperature, steady state, Ta=40° C: 75° C (167° F)
Maximum ambient temperature (Ta max.)
40° C (104° F)
Minimum ambient temperature (Ta min.)
5° C (41° F)
Total heat dissipation (calculated, +/- 10%)
2000 BTU/hr.
Optics
Light source
3000 K white LEDs
Total LED engine power
468 W
Minimum LED lifetime
50 000 hours (to >80% luminous output)*
Zoom range with Fresnel lens (standard)
14° - 60° one-tenth peak (1:4)
Zoom range with PC lens (optional)
11° - 58° one-tenth peak (1:5)
Physical
Length
452 mm (17.8 in.)
Width (across yoke)
480 mm (18.9 in.)
Height (maximum)
755 mm (29.8 in.)
Height (head straight up)
745 mm (29.4 in.)
Weight
28.5 kg (62.9 lb.)
