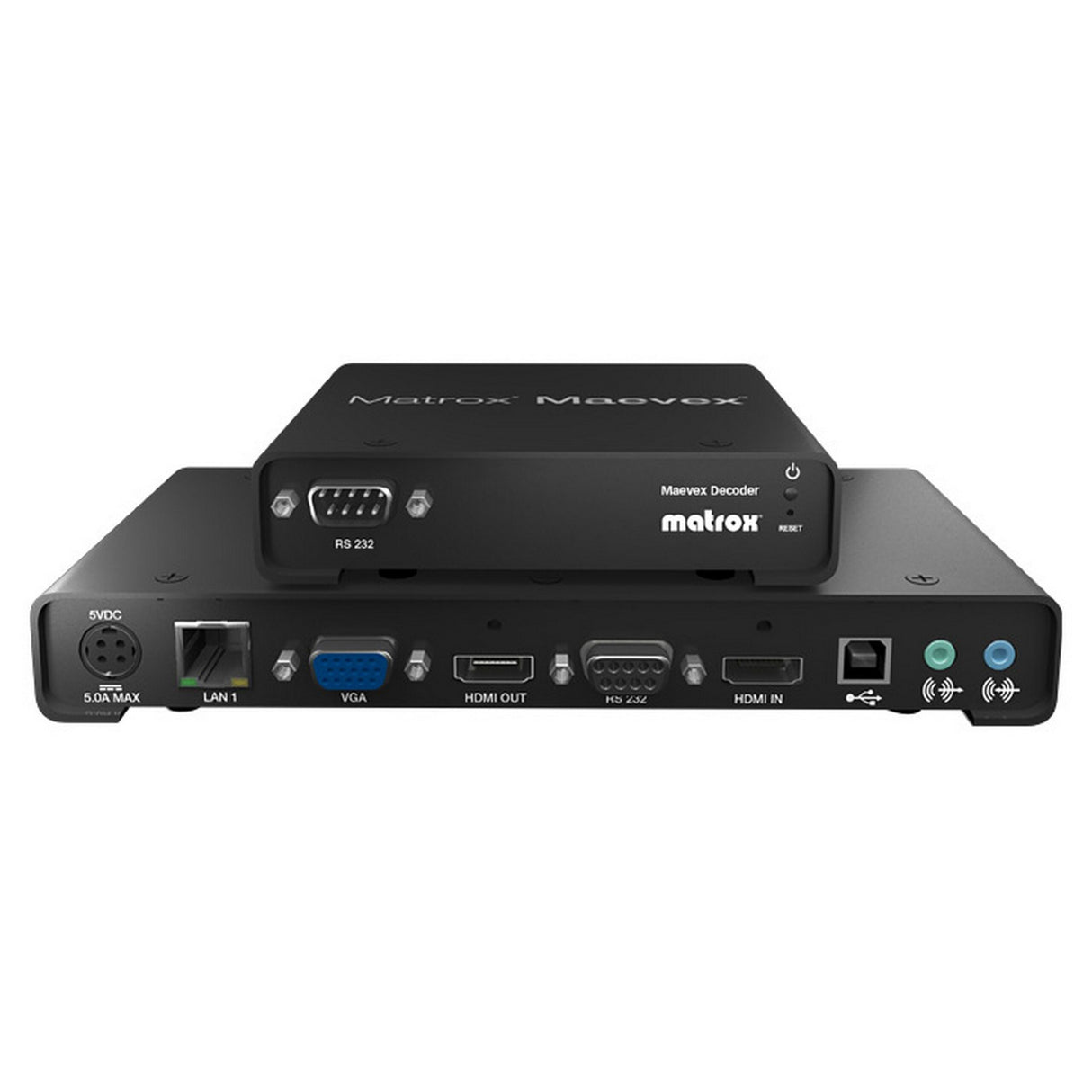

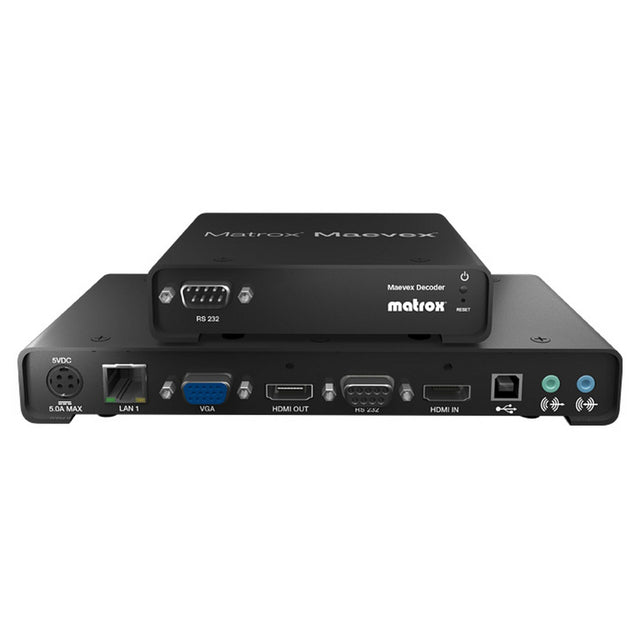

Matrox Maevex 5100 Full HD Encoder/Decoder Bundle

The Matrox Maevex video distribution over IP solution includes the Maevex 5100 Series encoders and decoders that can extend or record up to 1080p60 video and audio over a standard IP network at user-defined low bitrates for excellent quality and minimal network bandwidth consumption. The Maevex encoder streams or records high-quality video and audio and uses the H.264 video compression standard. It can stream to Maevex decoders or any device or PC that supports the required network protocols. It can also record to a shared network or NAS drive. The robust Maevex PowerStream Plus software application is included with the hardware and is used to remotely discover, manage, and adjust the Maevex network and lets administrators conveniently define multiple stream parameters and balance network bandwidth consumption and quality. The PowerStream Plus API and Maevex 5100 Series REST API are also available and grant integrators and developers the ability to build personalized Maevex control applications and/or to integrate Maevex functionality in existing or even third-party applications.

Key Features

• Encode/record up to 1080p60 and 1920x1200 video and audio
• H.264 compression for high-quality, low-bandwidth AV-over-IP
• Support for wide-screen and standard aspect ratios and many resolutions
• Scale streams before distribution for lower bandwidth consumption
• HDMI or analog audio support
• Open encoding allows for third-party software decode (e.g. VLC)
  Recording:
• Record up to 1080p60/1920x1200 to NAS or shared network drive
• Control frequency and duration of recording
• Schedule the start time and date of recording sessions
• Recorded user-defined file name includes timestamp for easy file management
  Network management:
• Operates on standard 100/1000Mb Ethernet networks
• Auto-detect and discover Maevex units on subnet (DHCP server required)
• Full/half-duplex mode and static IP address support
• CBR, VBR support
• Network bitrate control (100 Kbps - 25 Mbps)
  Failsafe:
• Play back pre-recorded content at the decoder in case of a network disruption or if encoder stops streaming (e.g. loss of power)
• Programmable time delay before failsafe activates
• Resumes last streaming activity upon power return
  PowerStream Plus control software
• Remotely manage the entire Maevex network from one application
• Compatible with Maevex 5100 and 6100 Series
• Fine-tune encode/decode parameters and adjust bitrates
• Conveniently access IP address, bitrate, and other vitals
• Scale and crop content to fit different outputs
• Included with Maevex 5100 (free download)
  PowerStream Plus API
• Based on easy-to-use .NET programming language for Windows and Mono for Linux
• Supports rapid customization and command-level access
  REST API
• Lower-level API for even greater flexibility and direct access to Maevex 5100 units
• Flexible and portable software development
  Other Benefits:
• Daisychain decoders and extend network via integrated network switch
• Failure resilience-power, network, and device auto-recovery features
• Reliable, solid-state, energy-efficient design
• Local real-time pass-through and confidence preview on encoder
• PowerStream-controlled user access from secured PC
• Detailed LED indicators for easy and effective troubleshooting
• Customizable bitmap for encoder/decoder splash screen
• Rackmountable with optional rackmount tray and accessories

Technical Specifications

Maevex 5150 Encoder
Video Input:
HDMI with digital L-PCM audio
DVI via DVI-to-HDMI adapter
Resolutions up to 1920x1080p60, 1920x1200(60Hz) and many more wide-screen and standard-definition resolutions
Video Output:
HDMI with digital L-PCM audio, local pass-through w/o scaling or confidence preview w/ optional scaling
DVI via HDMI to DVI-D adapter, local pass-through w/o scaling or confidence preview w/ optional scaling
HD15, Analog VGA - confidence preview w/ optional scaling
Resolutions up to 1920x1080p60, 1920x1200(60Hz), 1920x1080i50, 1920x1080i60
Procamp control: contrast, brightness, saturation, hue
Scaled output (i.e., 1080p60 input/720p60 scaled output)
Audio Line-In: 3.5mm analog stereo audio
Audio Line-Out (Local Pass-Through): 3.5mm analog stereo audio
Network Connector: RJ45

Maevex 5150 Decoder
Network Connectors: 2 x RJ45 (fully switched)
Video Output :
HDMI with digital L-PCM audio
Resolutions up to 1920x1080p60, 1920x1200(60Hz) and many more wide-screen and standard-definition resolutions
ProcAmp control: contrast, brightness, saturation, hue
Destination cropping support
Independent failsafe output
Audio Line-Out: 3.5mm analog stereo audio
Video Encoding / Decoding
Single-Channel HD: Up to 1920x1080p60 and 1920x1200(56Hz) and many more wide-screen and standard-definition resolutions
Compression Standard: H.264/MPEG-4 Part 10 (AVC)
Profiles: Main
Levels: Up to 4.2
Bitrates: 100 Kbps to 25 Mbps
Rate Control: CBR, VBR, Favor Speed, Favor Quality, Adjustable GOP (Group Of Pictures) Size

Encoder Recording Mode
Record any supported resolution to NAS or shared network drive
File format: .mp4
User definable filename prefix
Auto timestamp in filename
Programmable:
Recording start date / time and duration
Maximum file length
File frequency
Full frame rate or user selectable from list

Audio Encoding/Decoding
Compression Standard: MPEG-4 AAC-LC
Channels: 2 channel (stereo), HDMI with digital L-PCM audio
Analog Sample Frequency: 32, 44.1, and 48kHz
Bitrates: 96, 128, 192, and 256 Kbps

Networking Interface
100/1000base-T Ethernet: 1000 Mbps full duplex, 100 Mbps half/full duplex
Streaming Protocols: RTSP/RTP/RTCP (all required) over UDP
Command & Control Protocols: HTTPS
IPV4 Support
Unicast, Multicast and Multi Unicast
DHCP (Default) / Fixed IP Address Support
CAT5-or-Better Network Cables
PowerStream Plus (free download)
Compatible with Maevex 5100 Series and Maevex 6100 Series
Network discovery
Frame rate management
Resolution control
Scaling management
Maevex network configuration & control
Encoding and decoding control and manipulation
Password protection
Failsafe over network FW updates
Third-party RS-232 connectivity
Decoder Failsafe mode
PowerStream Plus API for Windows and Linux
Full-access to entire feature set via API
.NET 4.5.1 or higher, stand-alone library and Mono 5.2 or higher for Linux
REST API
Available for lower-level development
Supported Operating System:
Microsoft Windows 10 (64-bit)
Windows Server 2016
Windows 7 (32-bit, 64-bit)
Windows Server 2008 R2
Power Supply
100-240V AC In, 5VDC Out, 15W
DIN4 Locking Power Connector
Power Cords Included: US, EU, UK
Regulatory
CE/FCC/VCCI/ICES/C-Tick/KCC Class B, ROHS/WEEE
ROHS/WEEE
Environmental
Operating Temperature: 0 to 45 degrees Celsius
Non-Operating Temperature: -40 to 55 degrees Celsius
Operating Humidity: 20 to 80% (non-condensing)
Non-Operating Humidity: 5 to 95% (non-condensing)
MTBF
Encoder: 135.05 years @ 40 degrees Celsius (excl. power supply)
Decoder: 164.81 years @ 40 degrees Celsius (excl. power supply)
External Power Supply: 11.45 years @ 25 degrees Celsius, full load
Fanless (no moving parts)
Mechanical
Dimensions Encoder: 21.59cm x 2.59cm x 10.16cm (8.50" x 1.02" x 4.00")
Dimensions Decoder: 12.83cm x 2.59cm x 10.9cm (5.05" x 1.02" x 4.29")
Weight Encoder: 378g (excl. external power supply and power cords)
Weight Decoder: 286g (excl. external power supply and power cords)
Rackmountable with optional rackmount tray and accessories
Encoder: dual density - 1u
Decoder: triple density - 1u (horizontal mount); or 10-unit density in 3u (vertical mount)
Packaging Content
Maevex Encoder unit:
CAT5E Ethernet cable, RJ45 male to male, 6'/182.88cm
DVI adapter - DVI-D male to HDMI female
3.5mm analog stereo audio cable, male to male, 6'/182.88cm
Power supply and power cords (see "Power supply")
Quick setup guide and release notes (if applicable)
Maevex Decoder unit:
Power supply and power cords (see "Power supply")
Quick setup guide and release notes (if applicable)
