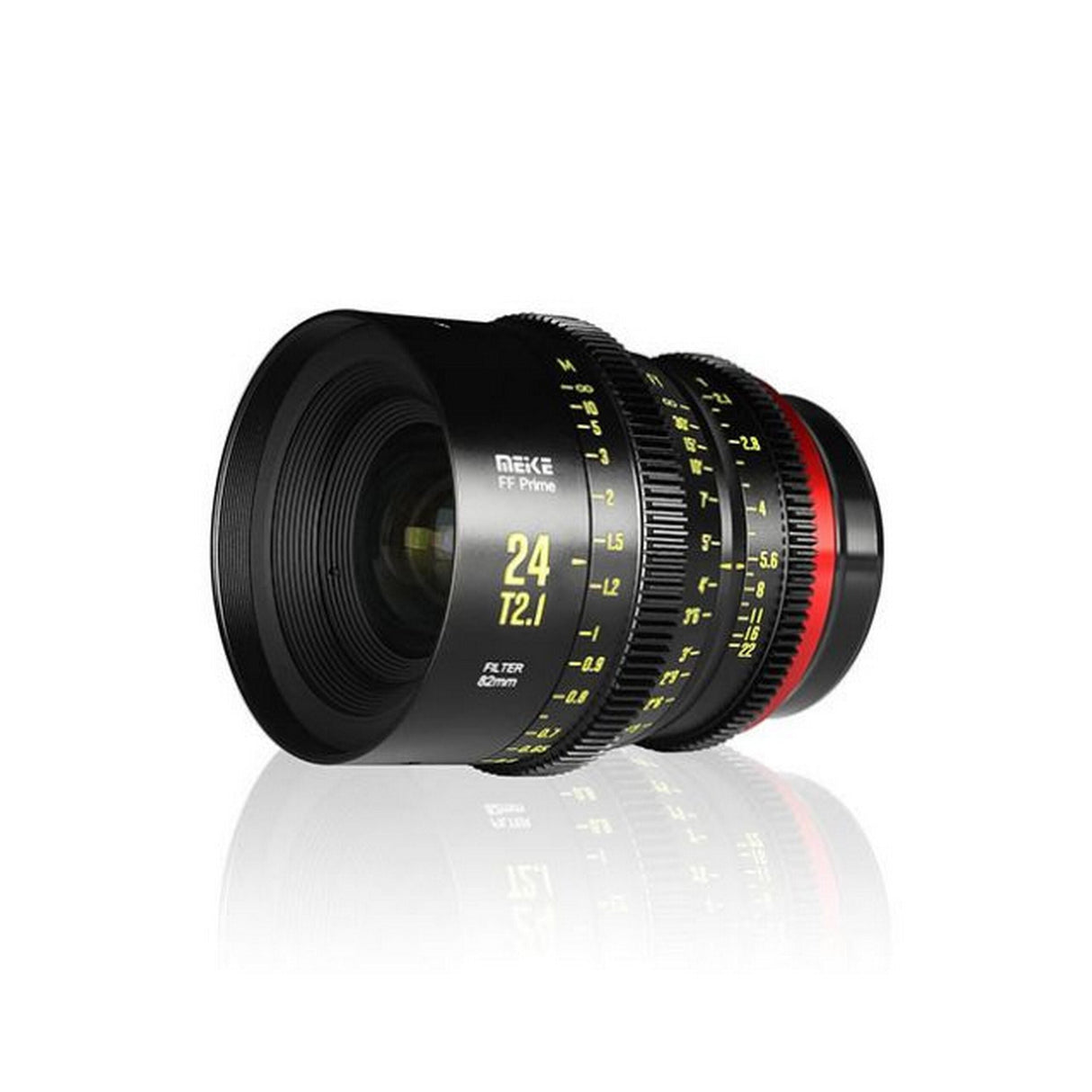

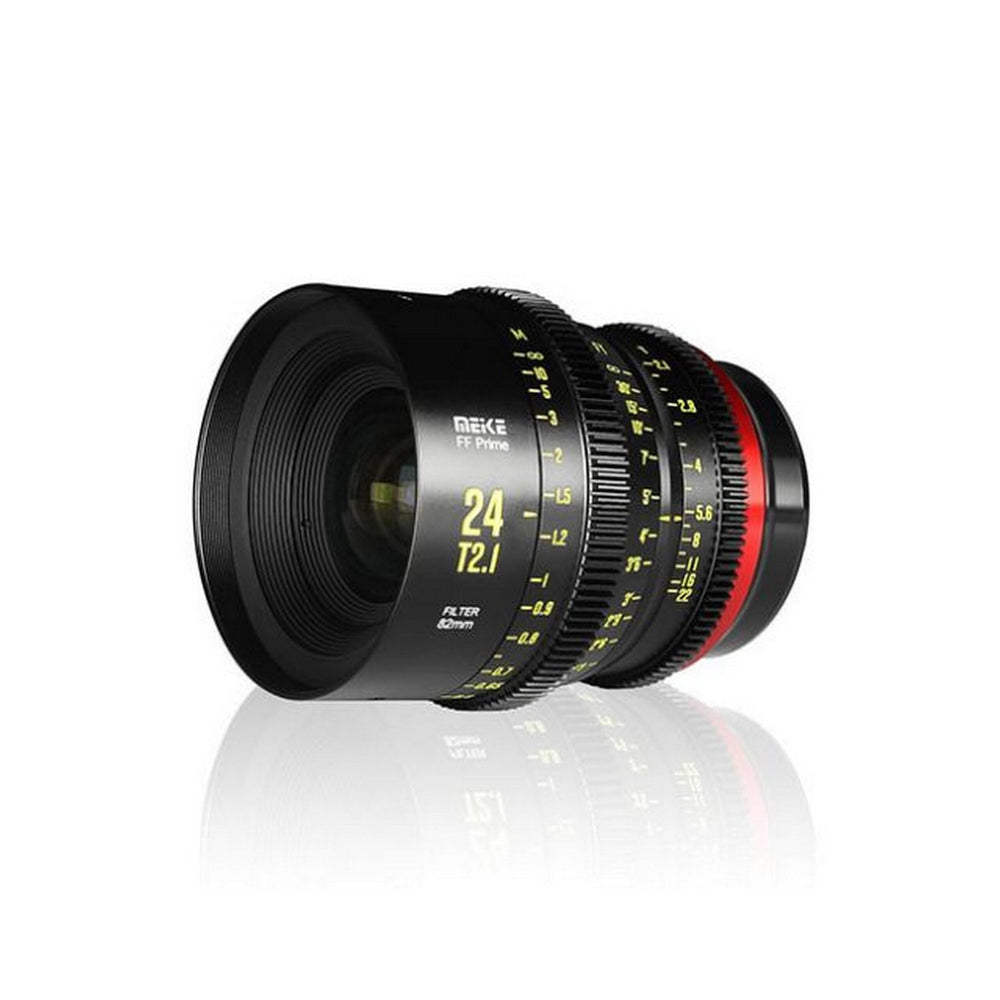

Meike Cinema Full Frame Cinema Prime 24mm T2.1 PL Lens
This is Meike’s fourth full-frame cine lens and it now joins the Full Frame cine lens family. It covers an image circle of 45mm. It is available in either PL, Canon EF, Canon RF, Sony E, and Panasonic L mounts. It has industry-standard 0.8mm pitch gears on the focus and aperture ring. The lens design of the Meike 24mm T2.1 FF-Prime consists of fourteen elements in nine groups. The aperture mechanism consists of 11 aperture blades. The minimum focus distance is 30mm.
Key Features
- 16mm T2.5, 24mm T2.1, 35mm T2.1, 50mm T2.1, 85mm T2.1, 105mm T2.1, 135mm T2.4
- Compatible: Canon C700 C500II, Sony VENICE, Alexa LF, Z Cam E2-F6, Mavo LF, Sony FX3 FX6,FX9, All full-frame Sony, Panasonic. Canon, Sigma, Leica mirrorless, All Super 35/ APS-C sensors
Technical Specifications
Lens Mount
PL/EF/RF/E/L
Min Focal Dist
30cm
Filter Thread
-82
Image Circle
45mm
Structure
14 Elements in 9 Groups
Focal Length
24mm
Aperture Range
T2.1-T22
Iris Blades
11
Gear Mod
M0.8
Focus Rotation
330 Degree
Dimensions ( x L): PL
-89.6 - 101.9
EF(Canon)
-89.6 - 110
RF(Canon)
-89.6 - 133.9
E(Sony)
-89.6 - 135.9
L(Panasonic)
-89.6 - 133.9
Z(Nikon)
-89.6 - 137.9
Weight
1111~1185g
