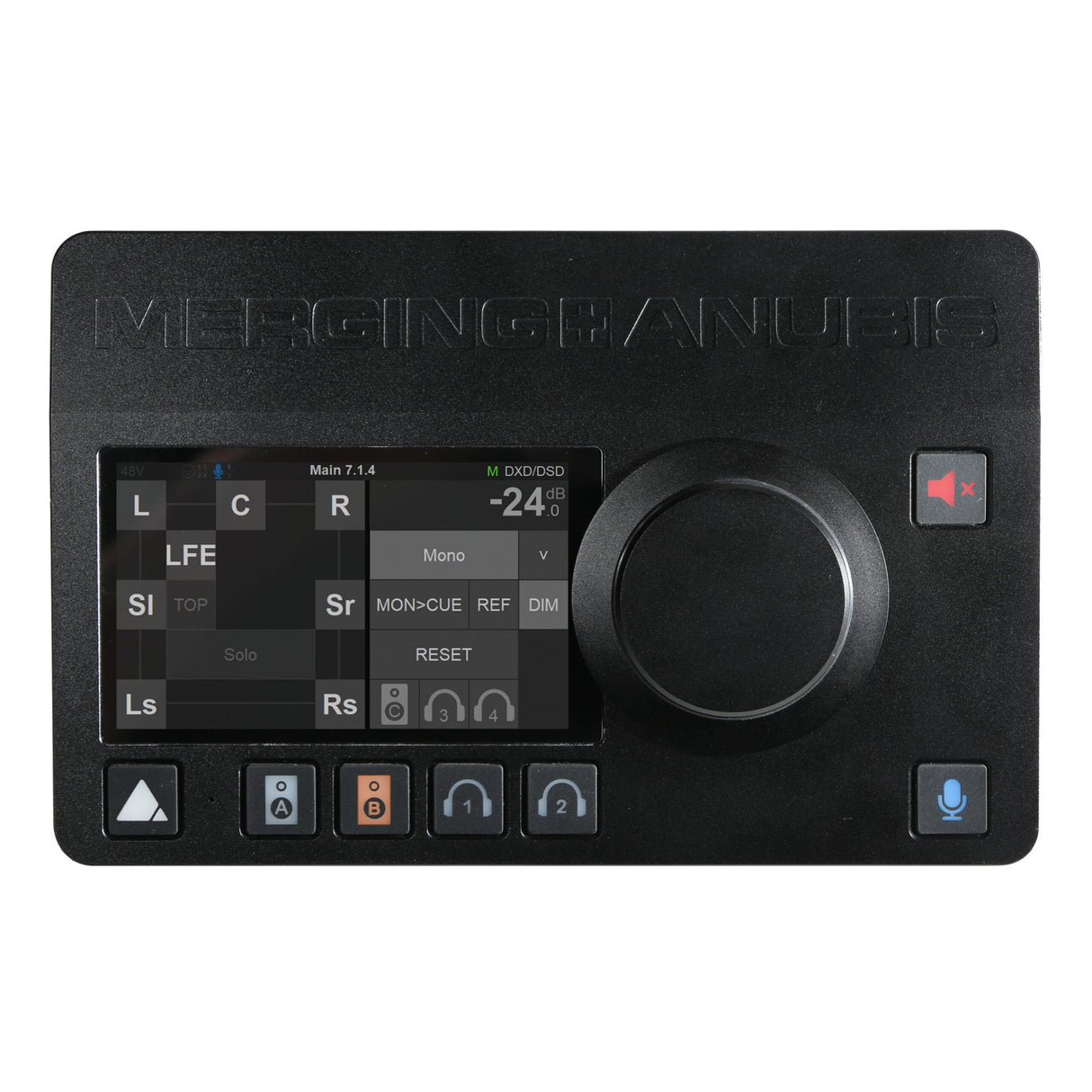

Merging Technologies Anubis Premium Audio Interface Network Converter

Anubis can be used standalone or simultaneously with a DAW for front-end signal processing combined with the Music Mission DSP engine for ultra-low latency monitoring and/or tracking. Big mixer with astonishing performance with all the sends, cues, snapshots and effects you need for single home recording or for multiple performers recording sessions. Connect your MIDI keyboard, record you instruments, balance your low latency mix, make your performers cues use your favorite effects chains and route them in the Anubis mixer. No color and fully transparent PreAmps with astonishing A/D performance and a dynamic range of 139dB with gain scale from 0 to 78dB (boost). Our pristine D/A technology ensures that you hear what your recording, mixes and mastering deserves.

Technical Specifications

Case Material
Premium machined and anodized aluminum
Dimensions
200 x 128 x 40mm
Weight
950 g
Top Panel Display
Capacitive Touch, TFT LCD 800 x 480 pixels resolution
16:9 Aspect ratio
Rotary Encoder
Anodized aluminum + Black rubber O-ring
7 x Hardware + Soft buttons
RGB LEDs
Bottom Panel Mic stand thread
3/8” 16BSW European thread incorporated
Note: Americas 5/8” 27UN adaptor not included
SOFTWARE
Windows Driver/OS
Windows 7 64bit / Windows 8.1 64bit: RAVENNA ASIO v12.0 (ASIO 2.2)
Windows 10 64bit: MAD v2.0 (Merging Audio Device)
Mac Driver/OS
VAD Core Audio for macOS 10.8.5 or higher (Intel & M1)
Linux Driver/OS
ALSA Linux driver for RAVENNA/AES67
ANEMAN
Version 1.1.7 and above
MICROPHONE INPUTS 1-2 (COMBO)
Connector Type
Combo Locking Neutrik XLR / TRS
Dynamic Range Mic / Mic Boost
137 dB / 128 dB (A-weighted, typ.)
Max Input level Mic Pad / Mic / Mic Boost
+24 dBu / +12 dBu / +0 dBu
Frequency response +0/-0.2dB @ fs = 48 kHz
9 Hz - 22 kHz
Frequency response +0/-3dB @ fs = 96 kHz
9 Hz - 46 kHz
Frequency response +0/-3dB @ fs = 192 kHz
11 Hz - 94 kHz
THD+N Preamp + A/D 1kHz @ 0 dBFS
< -110 dB (0.0003%)
Interchannel Crosstalk @ 1kHz
< -130 dB
Equivalent Input Noise Mic / Mic Boost (150 OHMS Source)
< -125 dBu / -128 dBu (A-weighted, typ.)
Common Mode Rejection Rate (20 Hz - 20 kHz)
> 80 dB
Input Impedance (Differential)
~ 10k OHMS
Gain Range (Software controlled)
0 dB to +66 dB
Gain Step Coarse / Fine
0.5 dB / 0.1 dB
Phantom Power (Software Switchable Per Channel)
+48V
Phase Reverse (Software Switchable Per Channel)
Yes
Low Cut filter (Software Switchable Per Channel)
-12 dB/octave, 80 Hz
5 low-end in-channel deviation pt: Mic
9 Hz
Interchannel phase 10 Hz - 100 kHz
< -2
LINE INPUTS 1-2 (COMBO)
Connector Type
Combo Locking Neutrik XLR / TRS
Dynamic Range, ref +24 dBu
139 dB (A-weighted, typ.)
Max Line Input Level
+24 dBu
Input Impedance (Differential)
~ 10k OHMS
THD+N Preamp + A/D 1kHz @ 0 dBFS
< - 104 dB (0.0006%)
Interchannel Crosstalk @ 1kHz
< -140 dB
Sensitivity Range for 0 dBFS (Software controlled)
+24 dBu to -42 dBu
Common Mode Rejection Rate (20 Hz - 20 kHz)
> 80 dB
5 low-end in-channel deviation pt: Line
9 Hz
Interchannel phase 10 Hz - 100 kHz
< -2
INSTRUMENTS / HI-Z & LINE INPUTS 3-4
Connector Type
1/4” TRS Female
Dynamic Range, ref +18 dBu
136 dB (A-weighted, typ.)
Max Input Level
+18 dBu
Input Impedance (Single ended / Differential)
~ 1M OHMS / ~ 2M OHMS
Gain Range (Software controlled)
0 dB to +66 dB
THD+N Preamp + A/D 1kHz @ 0 dBFS
< - 111 dB (0.0003%)
Interchannel Crosstalk @ 1kHz
< -150 dB
Sensitivity Range for 0 dBFS (software controlled)
+18 dBu to -48 dBu
Common Mode Rejection Rate (20 Hz - 20 kHz)
> 70 dB
5 low-end in-channel deviation pt: Inst/Line
2 Hz
Interchannel phase 10 Hz - 100 kHz
< -1
MAIN OUTPUTS 1-2
Connector Type
Neutrik XLR Male
Dynamic Range
123 dB (A-weighted, typ.)
Max output Level (Differential / Single ended)
+24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)
Frequency response +0/-0.2dB @ fs = 48 kHz
6 Hz - 22 kHz
Frequency response +0/-3dB @ fs = 96 kHz
2 Hz - 46 kHz
Frequency response +0/-3dB @ fs = 192 kHz
2 Hz - 92 kHz
Output Impedance
< 70 OHMS
THD+N 1 kHz @ 0 dBFS
< - 110 dB (0.0003%)
Output Level Matching
-0.01 dB
Attenuation Range (Software controlled)
- dB to 0 dB
Gain Step / Precision
0.5 dB / -0.05 dB
LINE OUTPUTS 3-4
Connector Type
1/4” TRS Female
Dynamic Range
123 dB (A-weighted, typ.)
Max output Level (Differential / Single ended)
+24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)
Output Impedance
< 70 OHMS
THD+N 1 kHz @ 0 dBFS
< - 110 dB (0.0003%)
Output Level Matching
-0.01 dB
Attenuation Range (Software controlled)
- dB to 0 dB
Gain Step / Precision
0.5 dB / -0.05 dB
HEADPHONES
Headphone Jacks
2 Independent ” TRS Female Stereo 6.3 mm
Dynamic Range (A-weighted, typ.) High / Low
< -122 dB / - 117 dB
Max output Level High / Low
17.1 dBu / 7.8 dBu
Frequency response +0/-0.2dB @ fs = 48 kHz
6 Hz - 22 kHz
Frequency response +0/-3dB @ fs = 96 kHz
2 Hz - 46 kHz
Frequency response +0/-3dB @ fs = 192 kHz
2 Hz - 92 kHz
Output Impedance
< 0.035 OHMS
THD+N 1 kHz @ 0 dBFS High / Low
< -108 dB (0.00039%) / -110 dB (0.0003%)
Attenuation Range (Software controlled)
- dB to 0 dB
Gain Step / Precision
0.5 dB / -0.05 dB
A/D - D/A CONVERSION
Supported Sample Rates PRO
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
Supported Sample Rates PREMIUM
44.1 kHz up to 352.8 kHz (DXD), 384 kHz, DSD64, DSD128 & DSD256
Bit Depth Per Sample
32
A/D Latency Sharp Short delay @ 44.1kHz to 96kHz
5 samples
A/D Latency Sharp Short delay @ 174.6kHz to 192kHz
6 samples
A/D Latency Sharp Short delay @ 352.8kHz to 384kHz
7 samples
D/A Latency Sharp @ 44.1kHz to 384kHz
35 samples
D/A Latency Slow @ 44.1kHz to 384kHz
9 samples
D/A Latency Apodizing @ 44.1kHz to 384kHz
35 samples
D/A Latency Brickwall @ 44.1kHz to 384kHz
35 samples
COMPLEMENTARY I/O
RAVENNA/AES67 (Gigabit Ethernet)
Locking EtherCON compatible with standard RJ45 connectors
Built-in Talkback microphone
Mono omnidirectional condenser capsule
GPI/MIDI Input
1/4” TRS Female
GPO/MIDI Output
1/4” TRS Female
