AtlasIED MWBPT Belt Pack Wireless Microphone Transmitter
AtlasIED | SKU: ATS-MWBPT
1
of
3
Loading...
$30399
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

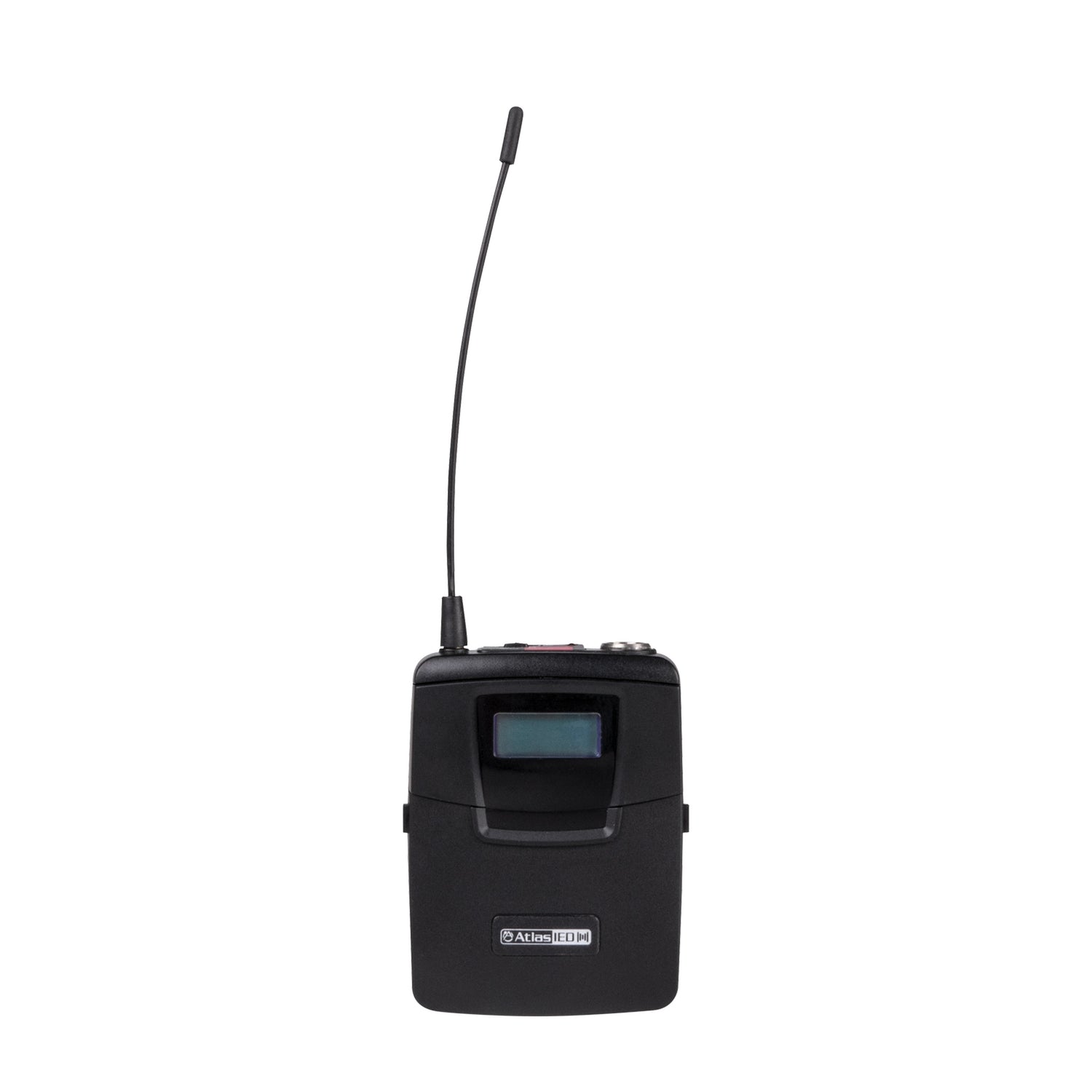

AtlasIED MWBPT Wireless Belt‑Pack Microphone Transmitter
The AtlasIED MWBPT is a UHF wireless belt-pack transmitter engineered for classrooms, conference rooms, lecture halls, and live presentations. It operates across 100 selectable UHF frequencies and supports both headset and lavalier microphones.
Its multi-function LCD displays channel, frequency, battery type, and power level. It runs on two AA batteries (alkaline or NiMH) for up to 16 hours and offers both high/low impedance gain controls to accommodate various mic types.
Key Features
- UHF Frequency Range: 566–585.8 MHz with 100 selectable channels
- Transmission Power: Up to 35 mW RF output

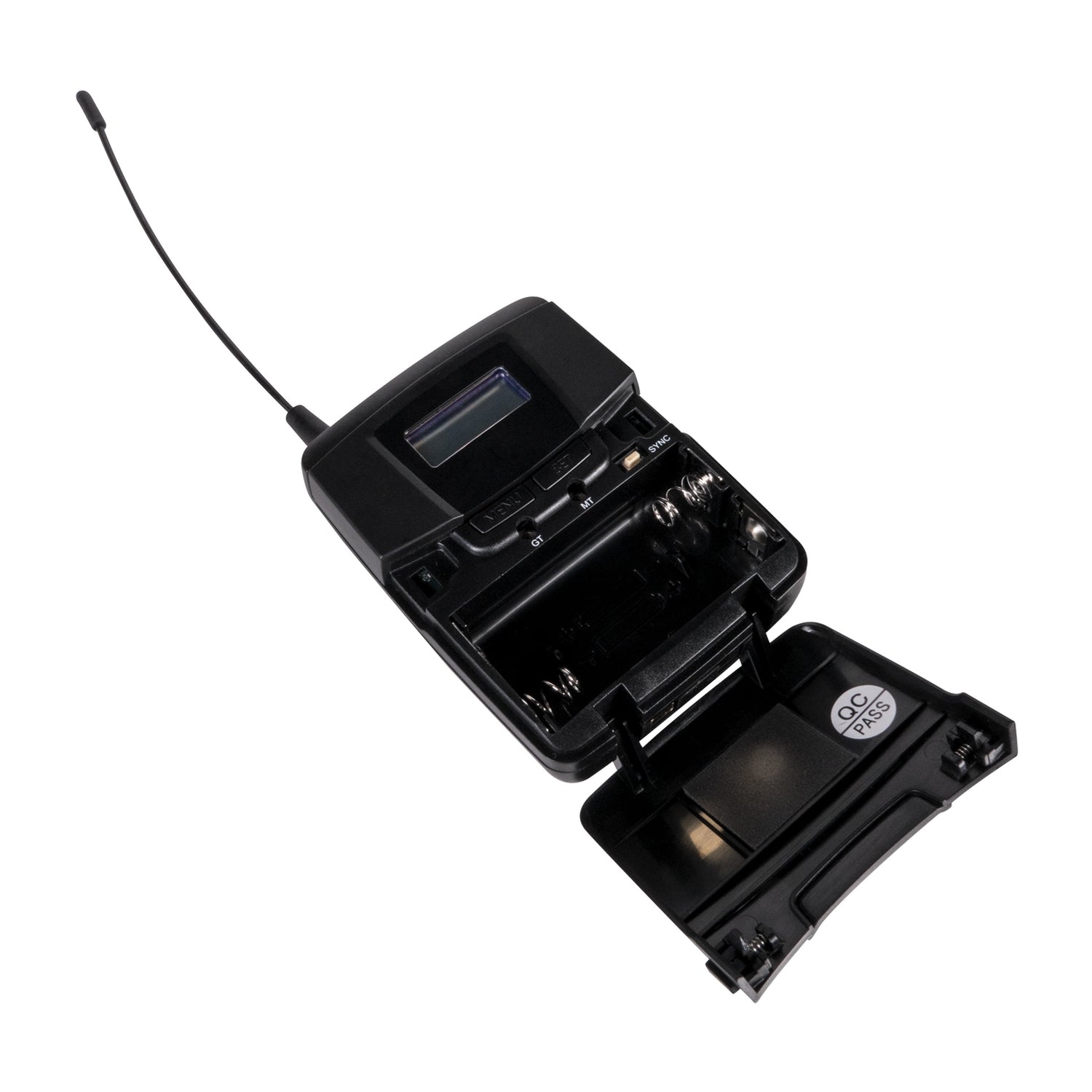

- Battery Operation: Two AA batteries (alkaline or NiMH) with 16 h runtime
- Gain Controls: High and low impedance selectable
- Connector: Standard 4‑pin mini‑XLR for headset/lavalier
- Display & Sync: LCD display and 2‑way IR synchronizing with receiver
- Antenna: ¼‑wave whip

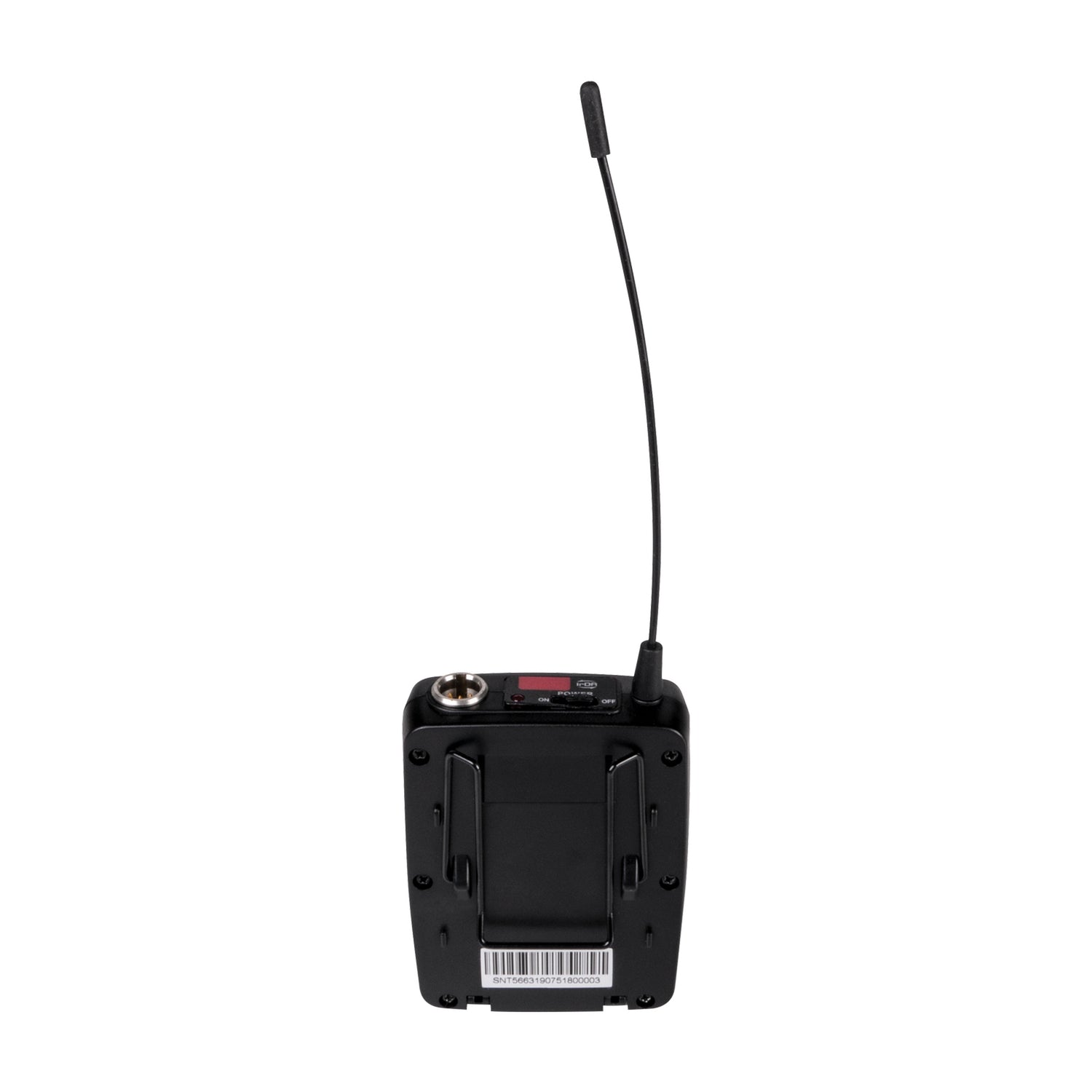

- Portable Design: Detachable belt clip with compact housing
Technical Specifications
- Frequency Range: UHF 566–585.8 MHz
- Switching Bandwidth: 20 MHz
- Selectable Frequencies: 100
- RF Power Output: < 35 mW
- Dynamic Range: > 110 dB
- THD: < 0.5 %
- Spurious Emission: > 60 dB below carrier
- Peak Deviation: ±40 kHz
- Display: LCD multi-function
- Power Source: 2 × AA batteries (alkaline or NiMH)
- Battery Life: 16 hours (alkaline)
- Connector: 4‑pin mini‑XLR
- Antenna: 1/4‑wave whip
- Dimensions: 3.31" × 2.52" × 0.91" (84 × 64 × 23 mm)
- Weight: 0.17 lbs (0.076 kg)
- Shipping Weight: 0.45 lbs (0.20 kg)
- Shipping Dimensions: 9.0" × 4.5" × 2.0" (229 × 114 × 51 mm)
- Warranty: 12 months from purchase
What's Included
- MWBPT transmitter unit
- Detachable belt clip
- Battery compartment cap
- User manual and datasheet (available online)
