Behringer B-5 Small-Diaphragm Condenser Microphone with Interchangeable Capsules

Behringer B-5 Small-Diaphragm Condenser Microphone with Interchangeable Capsules

The Behringer B-5 is a professional small-diaphragm condenser microphone designed for studio recording and live sound applications. Featuring a precision gold-sputtered diaphragm capsule, the microphone delivers clear, detailed audio reproduction ideal for acoustic instruments, percussion overheads, piano, strings, and room recordings.

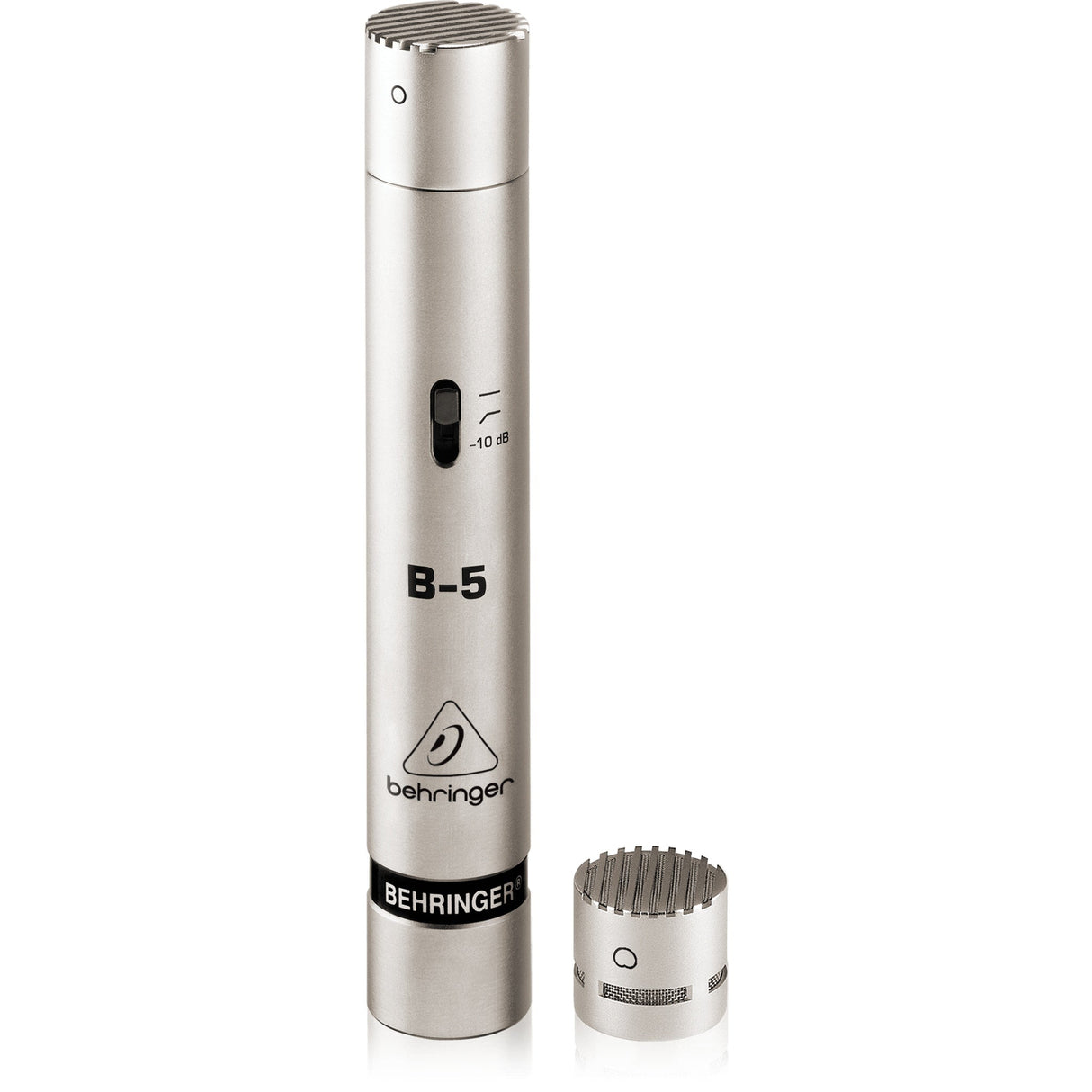

The B-5 includes two interchangeable capsules that allow users to switch between cardioid and omnidirectional pickup patterns. This flexibility makes the microphone suitable for a wide variety of recording techniques, from focused instrument capture to ambient room recording.

Its pressure-gradient condenser design uses a shock-mounted capsule to minimize handling noise and vibration. The transformerless FET input stage ensures extremely low noise performance and minimal distortion, preserving the full dynamics and natural character of the sound source.

For additional versatility, the B-5 includes a switchable input attenuation pad and low-frequency roll-off filter, allowing the microphone to handle louder sources and reduce unwanted low-end rumble. The durable satin nickel-plated brass body and gold-plated XLR connector ensure reliable signal transmission and long-term durability.

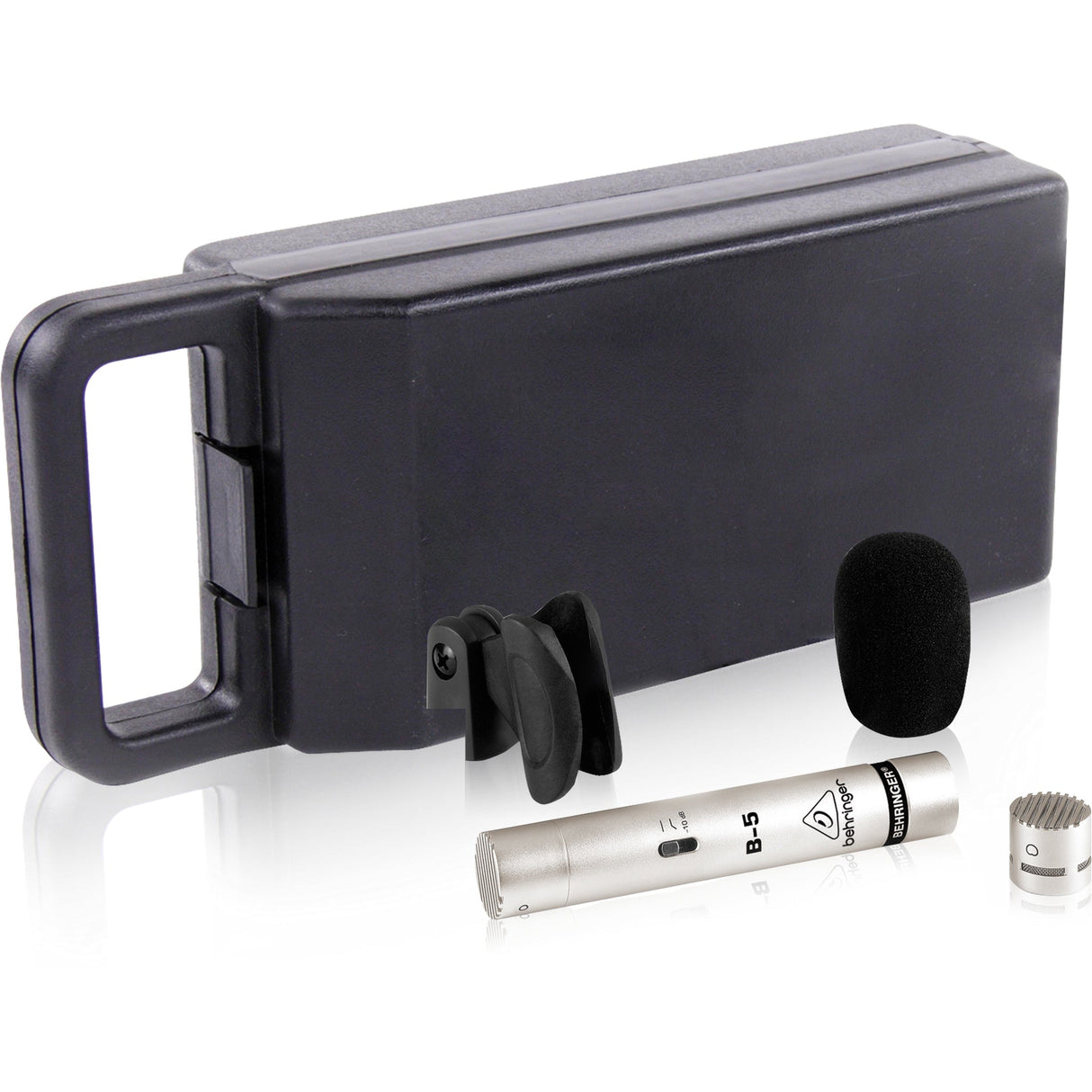

The microphone comes complete with a stand adapter, windscreen, interchangeable capsules, and a transport case, making it ready for professional recording or live performance setups.

Key Features

• Small-Diaphragm Condenser Design: Gold-sputtered diaphragm delivers precise and detailed sound capture
• Interchangeable Capsules: Includes cardioid and omnidirectional capsules for versatile recording options
• Low Noise Electronics: Transformerless FET input circuitry minimizes distortion and preserves dynamic detail
• Switchable Input Pad: Allows the microphone to handle louder sound sources
• Low-Cut Filter: Reduces low-frequency rumble and unwanted background noise
• Professional Connectivity: Gold-plated balanced 3-pin XLR output connector
• Durable Construction: Satin nickel-plated brass body designed for studio and stage use
• Complete Accessory Kit: Includes interchangeable capsules, stand adapter, windscreen, and transport case

Technical Specifications

Transducer Type
Condenser, gold-sputtered diaphragm

Operating Principle
Pressure gradient

Polar Patterns
Cardioid (capsule included)
Omnidirectional (capsule included)

Connector
Gold-plated balanced 3-pin XLR connector

Frequency Response
20 Hz to 20 kHz

Pad
Switchable attenuation pad

Low-Cut Filter
Switchable low-frequency roll-off

Circuit Design
Transformerless FET input stage

Power Requirement
48 V phantom power
