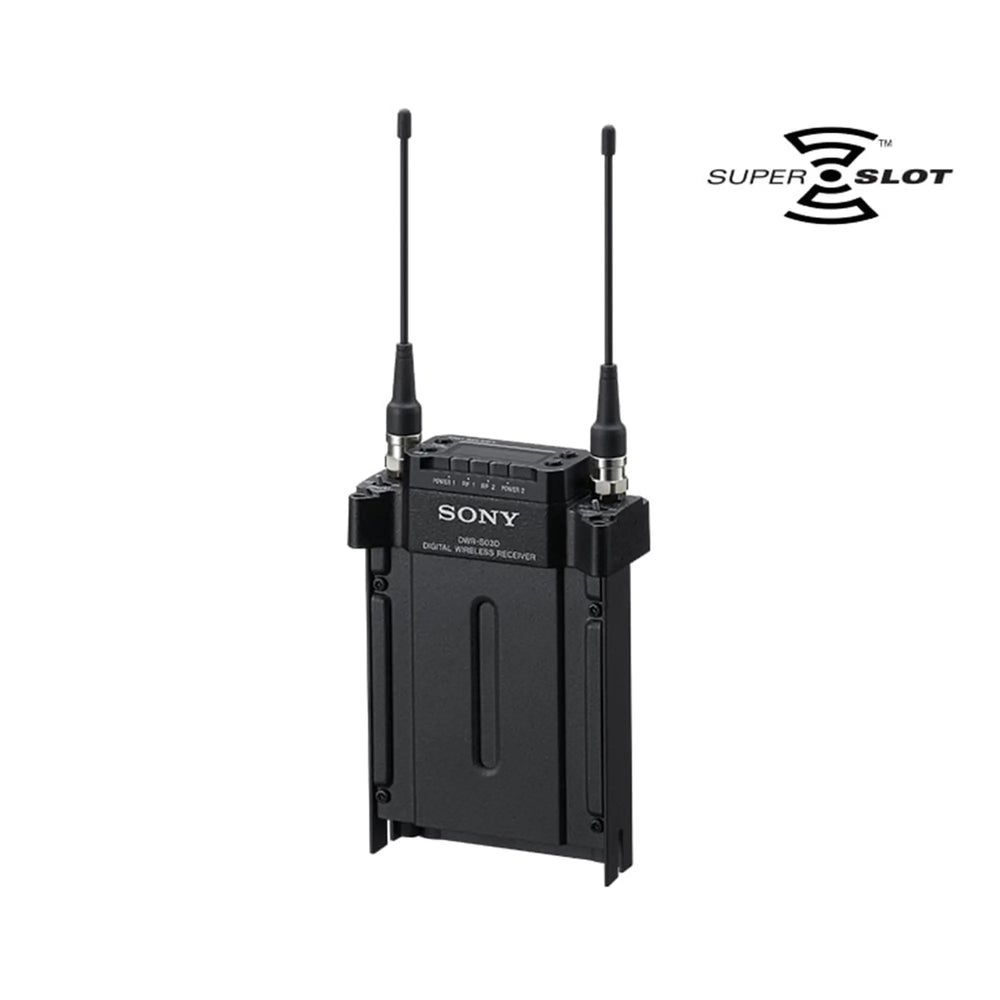

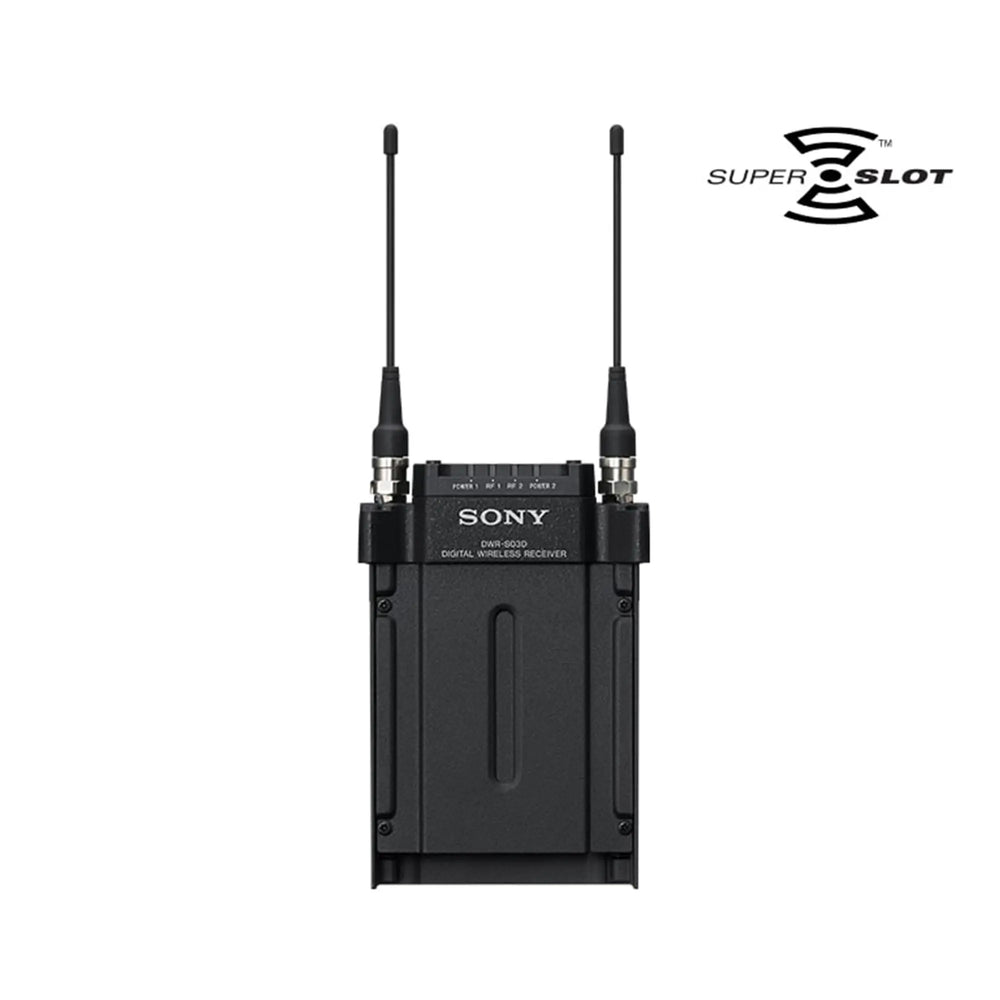

Sony DWR-S03D DWX Gen3 2-Channel Digital Wireless Slot-In Receiver with DWA-SLAS1 Slot Plate Adapter

The Sony DWR-S03D DWX Gen3 2-channel digital wireless slot-in receiver, paired with the DWA-SLAS1 slot plate adapter, offers exceptional performance and flexibility for professional audio applications. This advanced receiver integrates seamlessly into Sony’s DWX series, delivering clear and stable wireless audio transmission essential for live events, broadcasting, and film production.

The DWR-S03D receiver is designed to provide high-quality digital wireless audio with minimal interference. The included DWA-SLAS1 slot plate adapter enhances the receiver’s versatility, allowing it to be easily mounted and integrated into existing setups. This combination is ideal for professional environments requiring robust and adaptable wireless solutions.

With a focus on precision and durability, the DWR-S03D supports multiple frequency bands and offers reliable performance. Whether used for live sound reinforcement, studio broadcasts, or film production, this receiver system ensures top-notch wireless connectivity and meets the demands of high-stakes audio environments.

Key Features

• High-quality 2-channel digital wireless transmission for clear and reliable audio.
• Includes DWA-SLAS1 slot plate adapter for versatile mounting and seamless integration.
• Advanced frequency management to minimize interference and ensure stable performance.
• Compatible with Sony DWX series transmitters for easy system expansion.
• Designed for professional audio applications, including live performances, broadcasts, and film productions.

Technical Specifications

Type of Receiver
Slot-in (2 channels)
Transmission Method
WiDIF-HP (x2)
Circuit System
Double superheterodyne
Oscillator Type
Crystal-controlled PLL synthesizer
Reception Type
True diversity method
RF Input Terminal
SMA-R, 50 ohms
Antenna Type
Detachable
Sensitivity
20 dBμ or less (at ambient temperature 25 °C (77 °F), bit error rate = 1 x 10^-5, no decline in S/N ratio)
Carrier Frequencies
UC7: 470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz (UHF-TV channels 14 to 36, 38)
L/CE7: 470.025 MHz to 614.000 MHz (UHF-TV channels 21 to 38)
H/CE7: 566.025 MHz to 714.000 MHz (UHF-TV channels 33 to 51)
G/J: 1240.150 MHz to 1251.825 MHz, 1253.175 MHz to 1259.850 MHz, 25 kHz steps
Reference Output Level
Analog –40 dBu
Digital –36 dBFS/–20 dBFS (switchable)
Dynamic Range
106 dB or more (A-weighted)
Distortion (T.H.D)
MODE1, MODE2, MODE4: 0.03% or less
MODE3: 0.3% or less
Audio Delay
Analog output in combination with the DWA-01D/F01D; MODE1: 2.1 msec, MODE2: 1.7 msec, MODE3: 3.0 msec, MODE4: 1.7 msec
ABS/EBU output in combination with the DWA-01D/F01D; MODE1: 1.9 msec, MODE2: 1.5 msec, MODE3: 2.8 msec, MODE4: 1.5 msec
Through a digital connection with a camcorder; MODE1: 1.9 msec, MODE2: 1.3 msec, MODE3: 2.7 msec, MODE4: 1.4 msec
Audio Output Connector
D-sub 15 pin (male) (x1) with optional adaptor DWA-SLAS1
D-sub 25 pin (male) (x1) with optional adaptor DWA-SLAU1
Display
OLED
Operating Voltage
DC 6 V to 18 V
Consumption Current
3.5 W or less with optional adaptor DWA-SLAS1
4.0 W or less with optional adaptor DWA-SLAU1
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Wireless Remote Control
2.4 GHz IEEE802.15.4 compliant
Dimensions
Approx. 88 x 119 x 32 mm (3 1/2 x 4 3/4 x 1 5/16 in) (W / H / D) (excluding antennas) with optional adaptor DWA-SLAS1
Approx. 74 x 119 x 31 mm (3 x 4 3/4 x 1 1/4 in) (W / H / D) (excluding antennas) with optional adaptor DWA-SLAU1
Mass
Approx. 193 g with optional adaptor DWA-SLAS1 (including antennas)
Approx. 196 g with optional adaptor DWA-SLAU1 (including antennas)
Supplied Accessories
Antenna (2), CD-ROM (1), Frequency band label (1), Before Using this Unit (3)
Adaptor Information
The DWA-SLAS1 is an adapter designed for use with the Sony DWR-S03D receiver, providing compatibility with Sony shoulder camcorders. It features a collar and an interface connector with D-sub 15 pin.
