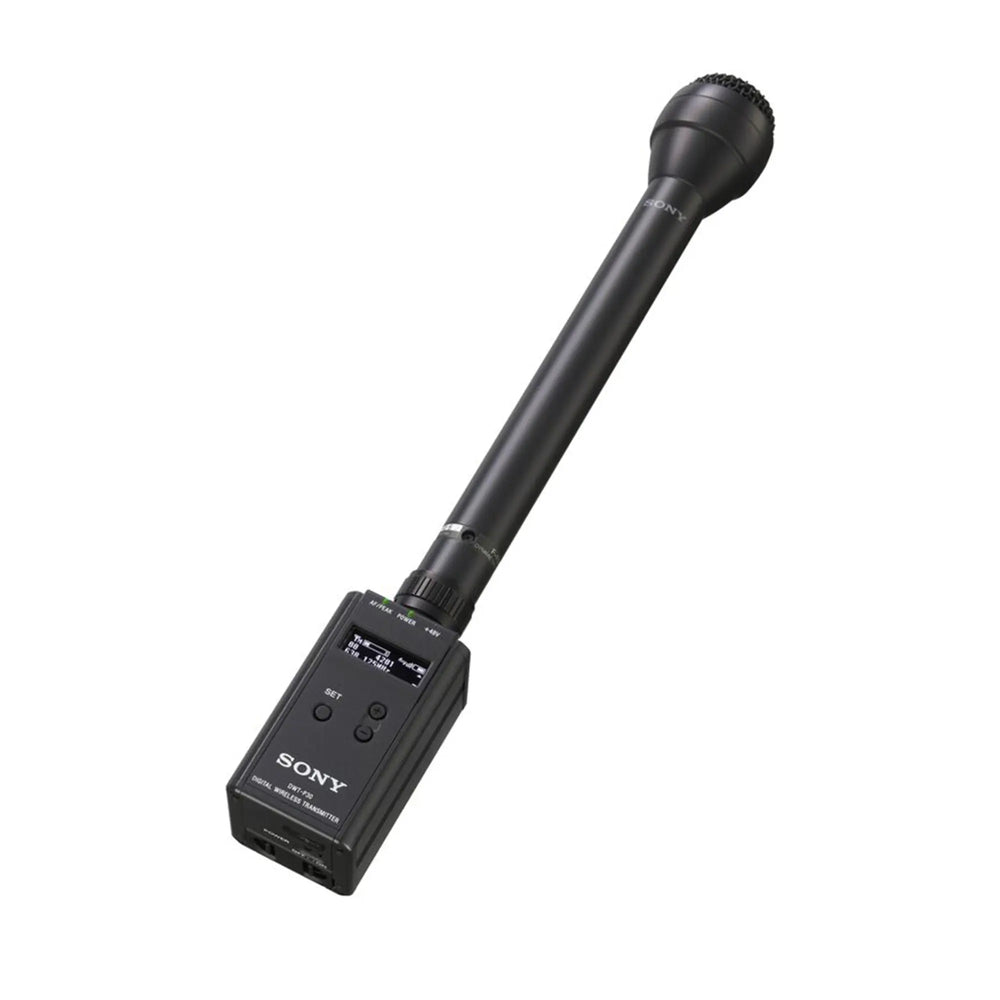

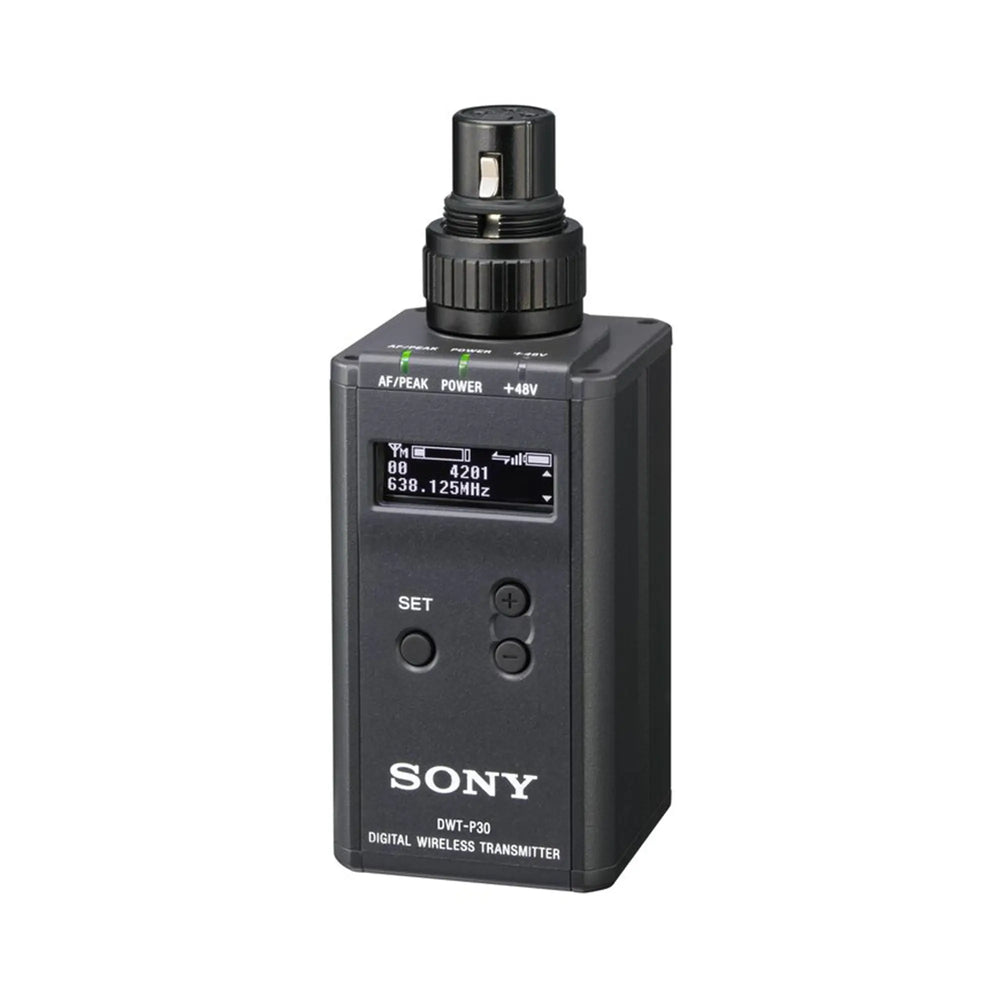

DWT-P30 Plug-On Transmitter
The Sony DWT-P30 Plug-On Transmitter is a cutting-edge device designed for superior audio performance in professional environments. This versatile transmitter seamlessly integrates with various microphones, delivering exceptional audio clarity and reliability. Perfect for applications such as news gathering, film production, and live events, the DWT-P30 ensures high-quality audio transmission with minimal interference.
Featuring a compact and robust design, the DWT-P30 is engineered for ease of use and durability. Its intuitive interface allows for quick configuration and operation, while its advanced digital encryption provides secure audio transmission. The transmitter's lightweight construction and rugged build make it suitable for both studio and field use, ensuring consistent performance in any setting.
With an array of features designed for audio professionals, the DWT-P30 Plug-On Transmitter stands out for its reliability and exceptional performance. Whether used in a high-stakes live event or a controlled studio environment, this transmitter delivers dependable results and superior sound quality.
Key Features
- Advanced digital encryption for secure audio transmission
- Compact and lightweight design for easy handling
- Exceptional audio quality for professional use
- User-friendly interface for quick setup
- Durable construction for reliable performance in various conditions
Technical Specifications
Dimensions
Approx. 1.73" x 4.47" x 1.73"
Weight
Approx. 0.54 lbs (including batteries)
Frequency Range
UC7: 470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz (UHF-TV channels 14 to 36, 38)
L/CE7: 470.025 MHz to 614.000 MHz (UHF-TV channels 21 to 38)
H/CE7: 566.025 MHz to 714.000 MHz (UHF-TV channels 33 to 51)
RF Output Power
UC7, CE7: 2 mW/10 mW/25 mW (e.r.p) selectable
Input Connector
XLR-3-11C (female)
Reference Audio Input Level
MIC: -60 dBV (-58 dBu), 1 kHz (at 0-dB attenuator level) / LINE: +4 dBu, 1 kHz
Maximum Audio Input Level
MIC: -22 dBu (with 0 dB attenuator), LINE: +24 dBu
Audio Attenuator Adjustment Range
0 to 48 dB (3 dB steps, MIC input mode only)
Frequency Response
20Hz to 22kHz (typical)
Dynamic Range
106 dB typical (A-weighted, T.H.D=1%)
Distortion (T.H.D)
MODE1, MODE2, MODE4: 0.03% or less
MODE3: 0.3% or less
Audio Delay
MODE1: 0.8 msec
MODE2: 0.7 msec
MODE3: 1.8 msec
MODE4: 0.7 msec
Wireless Remote Control
Cross Remote (2.4-GHz IEEE802.15.4 compliant)
Display
OLED
Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB connector)
Battery Life
Approx. 6 hours with AA-size alkaline (LR6) batteries at 25°C (77°F) at 10-mW output (with the wireless remote control function off and DIMMER MODE set to AUTO OFF)
Operating Temperature
32 °F to 122 °F
Storage Temperature
-4 °F to 140 °F
Important Note
This product is available in a variety of different frequency range models to suit the regulatory requirements of individual countries. Please contact your Sony reseller for more information on which product will best suit your specific needs.
