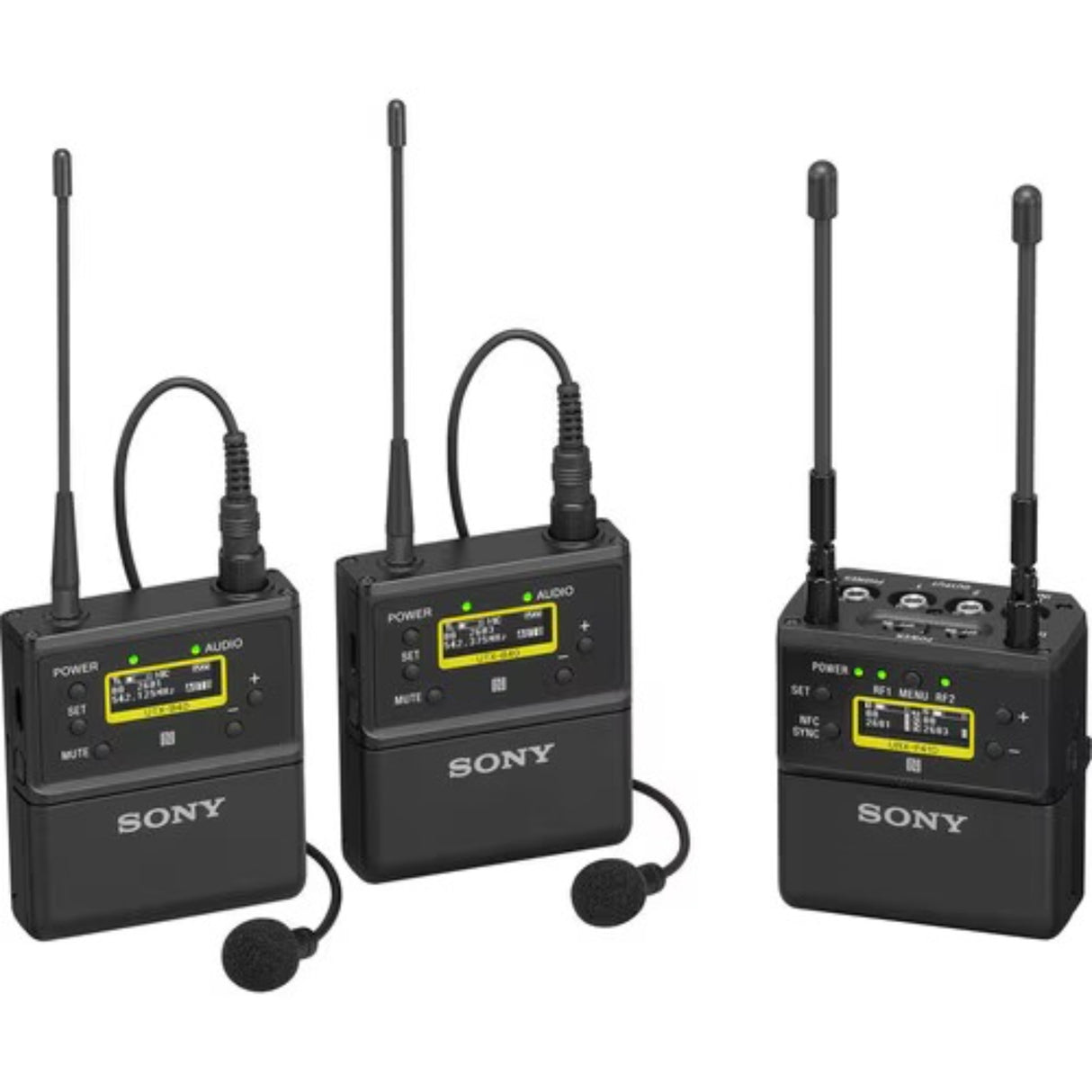

Sony UWPD27/25 Dual Wireless Bodypack Microphone System

Sony UWP-D27 Dual Wireless Bodypack Microphone System

The Sony UWP-D27 dual wireless bodypack microphone system is a complete camera-mount wireless audio solution designed for interviews, live presentations, field production, and video content capture. This package includes two bodypack transmitters, a dual-channel portable receiver, and two omnidirectional lavalier microphones, giving crews a practical way to record two speakers at once with clear, reliable sound.

Built for streamlined operation in fast-paced production environments, the UWP-D27 combines NFC sync for quick channel pairing, true diversity reception for stable signal performance, and flexible output control for compatibility with a wide range of cameras and recording devices. With seamless support for compatible Sony camera workflows and compact, lightweight components, this dual wireless lavalier system is well suited for videographers, broadcasters, and content creators who need dependable wireless audio on location.

Key Features

• Complete Dual Wireless Package: Includes a 2-channel camera-mount receiver, two bodypack transmitters, two omnidirectional lavalier microphones, and essential accessories for two-person wireless audio capture.
• Designed for Video Production: Ideal for on-camera interviews, live presentations, documentary work, and other professional audio-for-video applications.
• NFC Sync Pairing: Enables fast, secure channel matching between the transmitters and receiver for quicker setup in the field.
• True Diversity Reception: Uses two independent receiver sections for stable, dropout-resistant wireless performance in 1-channel use.
• Variable Output Level Control: Receiver output can be adjusted from -12 dB to +12 dB to better match different camera and recorder input levels.
• High-Quality Audio Processing: Advanced digital audio processing helps deliver clear, natural sound for speech-focused recording applications.
• Camera Integration Ready: Supports optional integration with compatible Sony cameras and camcorders when used with the optional SMAD-P5 Multi Interface Shoe Adaptor.
• Compact Portable Receiver: Lightweight camera-mount receiver design is well suited for handheld cameras, camcorders, and mobile production rigs.
• Backward Compatibility: Receiver supports IR sync mode for compatibility with select previous transmitter models.
• Flexible Power Options: Receiver supports battery power or USB-C bus power for added convenience on location.

Technical Specifications

• Wireless Technology: Analog UHF
• Diversity: Yes, True Diversity
• RF Frequency Band: 536.125 to 607.875 MHz
• Number of RF Channel Frequencies: 2772
• Maximum Operating Range: 330 ft / 100.6 m
• Maximum Transmitters per Band: 16
• Latency: 0.24 to 0.35 ms
• Encryption: No
• Built-In Recorder: No
• Timecode Support: No
• Receiver Type: 1x Camera-Mount
• Receiver Mounting Options: Shoe-Mount, Belt Clip
• Receiver Antenna: 2x Fixed 1/4 Wave External (Top-Mount)
• Number of Audio Channels: 2
• Receiver Audio Outputs: 2x 1/8-inch / 3.5 mm Locking TRS Balanced Output
• Receiver Mic Input: 1x 1/8-inch / 3.5 mm Locking TRS Unbalanced Mic Input
• Receiver Headphone Output: 1x 1/8-inch / 3.5 mm Locking TRS Headphone Output
• Receiver USB Connectivity: 1x USB-C Female (Bus Power)
• Receiver Gain Range: -12 to +12 dB (3 dB Steps)
• Receiver Frequency Response: 23 Hz to 18 kHz
• Receiver Display: OLED
• Receiver Power Requirements: Battery, Bus Power (USB)
• Included Transmitters: 2x Bodypack
• Transmitter RF Output Power: 5 / 30 mW
• Transmitter Antenna: Fixed 1/4 Wave External
• Transmitter Input Level: Microphone / Instrument / Line
• Transmitter Audio Input: 1x 1/8-inch / 3.5 mm Locking TRS Male Input
• Phantom Power: No Phantom Support
• Transmitter USB I/O: 1x USB-C (Bus Power)
• Transmitter Muting: Mute Switch
• Transmitter Gain Range: 0 to 21 dB (3 dB Steps)
• Auto-Level/Gain: Yes
• Transmitter Frequency Response: 23 Hz to 18 kHz
• Sync Method: NFC
• Transmitter Display: OLED
• Microphone Type: 2x Lavalier
• Polar Pattern: Omnidirectional
• Microphone Sensitivity: -43 dB (at 1 kHz)
• Microphone Output Connector: 1x 1/8-inch / 3.5 mm Locking TRS Male
• Microphone Cable Length: 3.9 ft / 1.2 m
• Color: Black
• Receiver Battery Type: 2x AA (Not Included)
• Receiver Battery Life: 4.5 Hours (Alkaline)
• Transmitter Battery Type: 2x AA (Not Included)
• Transmitter Battery Life: 8 Hours (Alkaline)
• Included Charging Case: No
• Input Power: 5 VDC
• Housing: Metal
• Receiver Dimensions: 2.5 x 2.8 x 1.4 inches / 63 x 70 x 35 mm (without antennas)
• Transmitter Dimensions: 2.5 x 3.2 x 0.8 inches / 63 x 82 x 20 mm (without antennas)
• Lavalier Dimensions: 0.8 x 0.3 inches / 19.5 x 6.8 mm
• Receiver Weight: 5.6 oz / 159 g (without batteries)
• Transmitter Weight: 5.3 oz / 149 g (without batteries)
• Microphone Weight: 0.6 oz / 16.2 g

What's Included

• Sony URX-P41D Dual-Channel Camera-Mount Wireless Receiver: UC25 frequency range, 536 to 608 MHz
• 2 x Sony UTX-B40 Wireless Bodypack Transmitters: Includes omni lavalier microphones, UC25 frequency range, 536 to 608 MHz
• 2 x Sony ECM-V1BMP Omnidirectional Lavalier Microphones: With locking Sony 3.5 mm connector, black
• 2 x Mic Clips: For lavalier microphone mounting
• 2 x Windscreens: For microphone wind protection
• 3 x Belt Clips: For receiver and transmitter attachment
• Shoemount Adapter for Receiver: For camera mounting
• 2 x XLR to Locking 3.5 mm Output Cables: For flexible connection options
• 3.5 mm to Locking 3.5 mm Cable: For direct device connection
