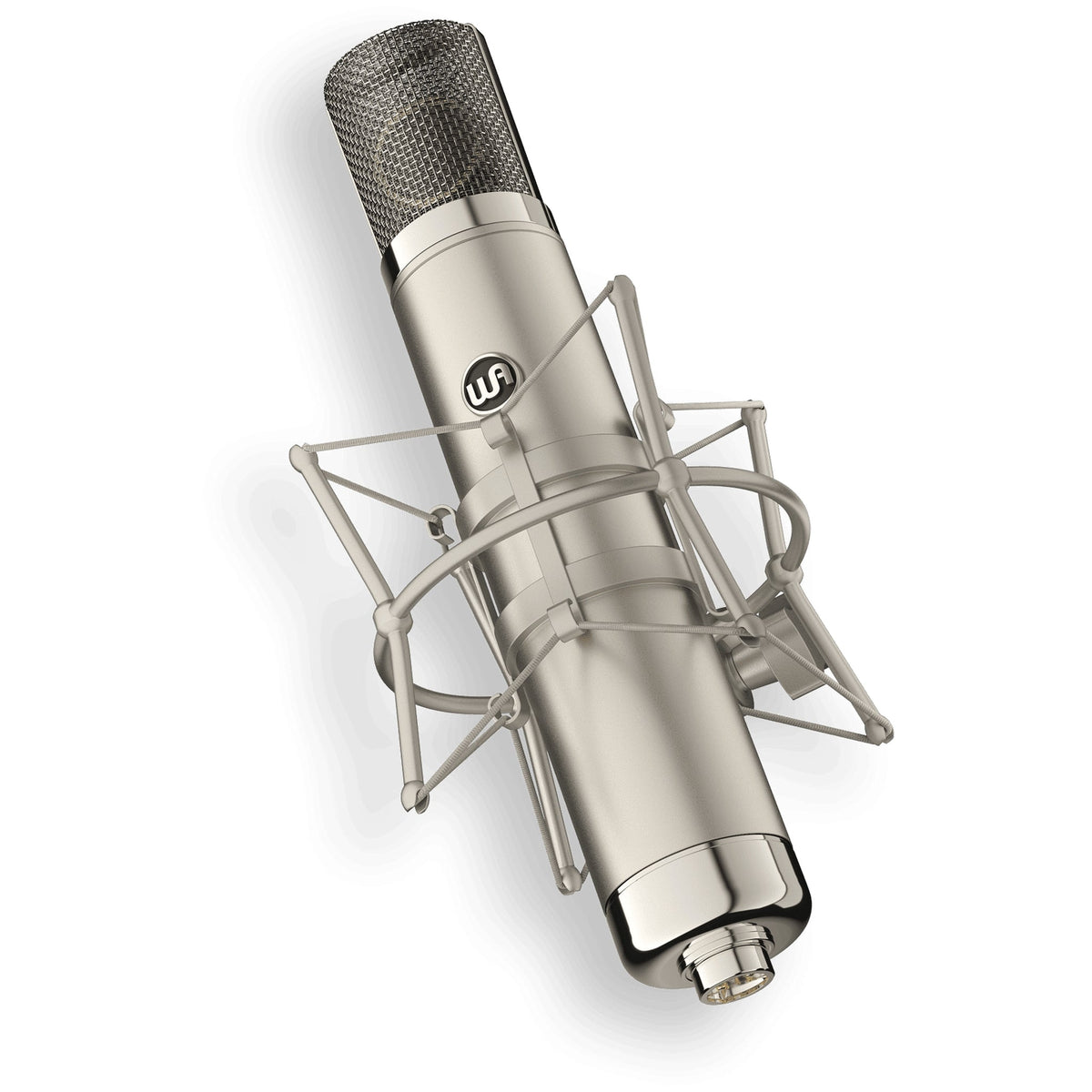

Warm Audio WA-CX12 Professional Large-Diaphragm Tube Microphone

Only about 2,500 of the original Austrian C12 tube microphones were built between 1953 and 1963, and their open, airy balance has been heard on records from The Beatles to Taylor Swift ever since. The Warm Audio WA-CX12 is an exacting recreation of that microphone, built around a custom edge-terminated, all-brass CK12-style capsule that reproduces the pleasing high-frequency lift and natural midrange of the original.

A premium 12AY7 vacuum tube and a custom TAB-Funkenwerk (AMI) USA output transformer complete the signal path, with premium capacitors throughout. Nine polar patterns selected from the external power supply, from cardioid through omnidirectional and figure-8 plus six intermediate patterns, make the WA-CX12 as useful on drum rooms, strings and ensembles as it is on lead vocals. Maximum SPL of 149 dB means it will not flinch at loud sources.

The microphone ships as a complete kit: a custom tweed carrying case, external grounded IEC power supply, a premium Gotham 5-meter 7-pin tube microphone cable, a wooden microphone box and a shockmount are all included, so the WA-CX12 is ready to record the day it arrives.

Features

• Exacting recreation of the classic 12-style Austrian tube condenser microphone
• Custom edge-terminated, all-brass vintage CK12-style capsule
• Custom TAB-Funkenwerk (AMI) USA output transformer
• Premium 12AY7 vacuum tube and premium capacitors
• 9 polar patterns: cardioid, omnidirectional, figure-8 plus 6 intermediate patterns
• Open, airy, natural sound for vocals, rooms and distant miking
• Complete accessory kit with tweed case, PSU, Gotham cable, wood box and shockmount

Technical Specifications

• Type: large-diaphragm tube condenser
• Capsule: edge-terminated all-brass CK12 style
• Tube: 12AY7
• Transformer: TAB-Funkenwerk (AMI) USA
• Polar patterns: 9
• Frequency response: 30 Hz - 20 kHz
• Max SPL: 149 dB
• Output impedance: 200 ohms
• Signal-to-noise ratio: 73 dB
• Self-noise: 22 dBA
• Microphone dimensions: 11 5/8" x 2" (29.5 x 5 cm)
• Microphone weight: 2 lb 7 oz; kit weight 17 lb

What's Included

• Warm Audio WA-CX12 tube microphone
• Custom tweed carrying case
• External grounded IEC power supply and IEC power cable
• Premium Gotham 5-meter 7-pin tube microphone cable
• Wooden microphone box
• Shockmount
