Milab DC-96C Large Diaphragm Condenser Microphone
Milab DC-96C Large Diaphragm Condenser Microphone
Free Shipping
Milab DC-96C Large Diaphragm Condenser Microphone

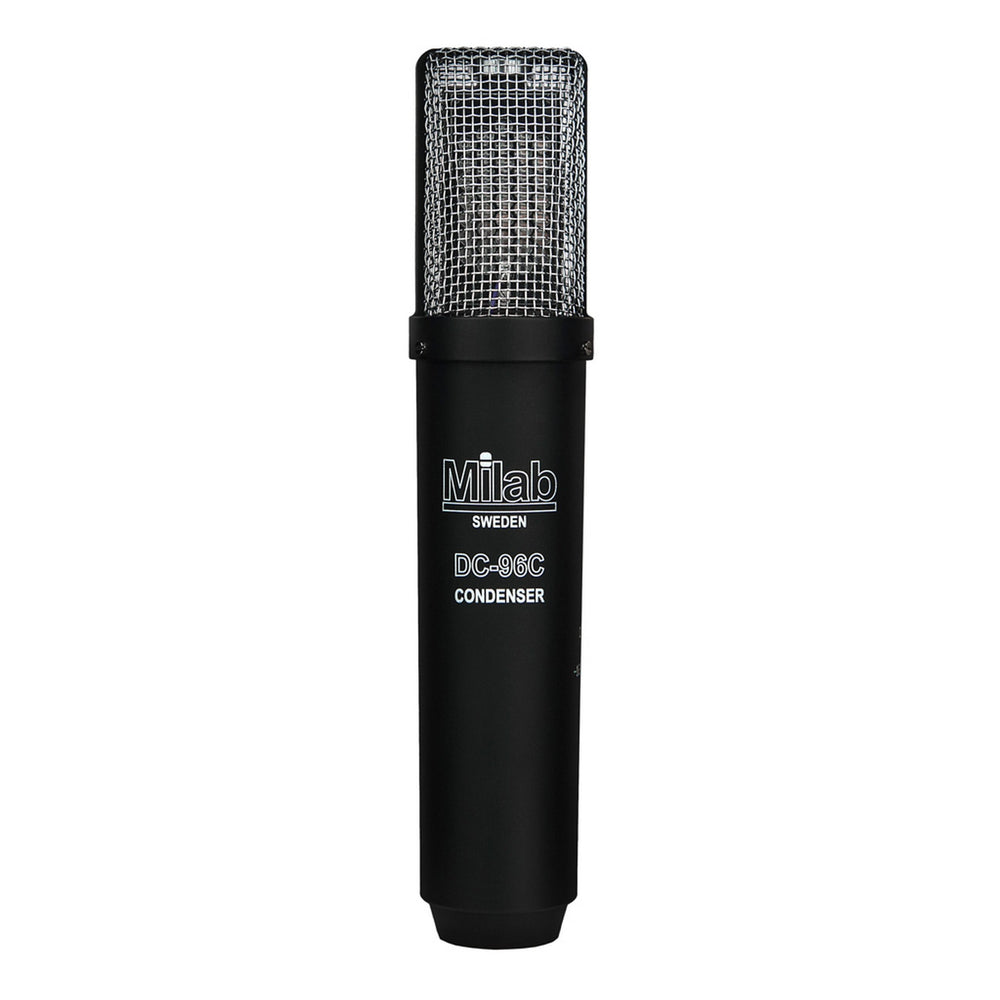

The latest addition to the classic Milab DC family is the DC-96C, a side-addressed large membrane microphone designed mainly for studio work, but also excellent for many live applications. The original DC-96 was released in the late 1960’s. After an update, it was replaced by the DC-96B which has become one of the most iconic Milab models. The “C”-version has been equipped with Milab’s latest capsule and amplifier technology to make sure that the DC-series remains at the top of the game
Key Features
- 2900 rectangular capsule
- Cardioid polar pattern
- Transformerless
- Rubber fitted capsule
- 12 dB attenuation pad
- Gold plated XLR connector
Technical Specifications
Product name
Milab DC-96C
Type
Condenser
Article number
1138
Frequency response
20 to 20,000 Hz
Polar pattern
Cardioid
Pre-attenuation pad
-12 dB
Max SPL (1 % THD at 1 kHz)
132 dB
Max SPL with 12 dB pad
144 dB
Sensitivity at 1 kHz
21,5 mV/Pa (- 1 dB)
A-weighted noise level (IEC 179-A)
12 dBA
Power supply
48 - 4 V Phantom (DIN/IEC)
Current consumption
4.2 mA
Output impedance
<200
Minimum load impedance
1 k
Connection
3-pin XLR
Length
145 mm
Diameter
27 mm
Net weight
220 g
