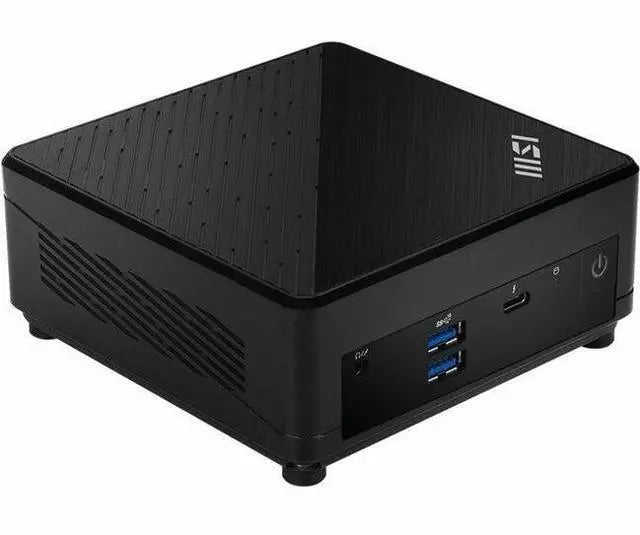

MSI Cubi 5 12M-086B Intel Core i3 Barebone Mini PC

MSI Cubi 5 12M Barebone Mini PC with Intel Core i3 and Thunderbolt 4

The MSI Cubi 5 12M-086B is a compact barebone mini PC powered by the Intel Core i3-1215U processor with 6 cores and 8 threads, delivering impressive performance in a palm-sized 0.66-liter chassis with Thunderbolt 4, WiFi 6E, and dual Ethernet connectivity.

Ideal for home office professionals, small business workstations, digital signage deployments, and education environments, this mini PC suits buyers seeking a space-saving yet powerful desktop solution with triple-display support and high-speed connectivity options.

Backed by MSI's 3-year warranty, the Cubi 5 12M is built on a proprietary MSI motherboard with Intel SoC chipset and supports up to 64GB of DDR4 RAM, making it a flexible platform for demanding productivity tasks and media applications.

Key Features of the MSI Cubi 5 12M-086B

• Intel Core i3-1215U Processor: 6-core, 8-thread 12th Gen Intel CPU with 10MB cache for responsive multitasking and energy-efficient performance
• Thunderbolt 4 Connectivity: Two Thunderbolt 4 Type-C ports (front) delivering up to 40 Gbps for docks, displays, NAS devices, and external storage
• Triple Monitor Support: Drive up to three simultaneous displays via HDMI 2.0b, DisplayPort 1.4, and Thunderbolt 4 for maximum productivity
• WiFi 6E and Dual LAN: Intel AX211 WiFi 6E for wireless speeds up to 2.4 Gbps, plus dual wired Ethernet (2.5G + 1G) for flexible network setups
• Expandable Memory and Storage: Supports two DDR4 2666MHz SO-DIMM slots up to 64GB, plus a 2.5-inch SSD/HDD bay for storage upgrades
• Compact 0.66L Form Factor: Measuring just 124 x 124 x 53.7mm and weighing under 1kg, with optional VESA mount compatibility for monitor attachment
• High-Speed USB Ports: Six USB 3.2 Gen2 Type-A ports total (front and rear) plus two Thunderbolt 4 Type-C ports for extensive peripheral connectivity
• MSI Cloud Center: Built-in software for fast, secure wireless backup and file sharing between PC and mobile devices (Android and iOS)

Technical Specifications

• CPU: Intel Core i3-1215U, 6 Cores / 8 Threads, 10MB Cache
• Chipset: Intel SoC
• Graphics: Intel UHD (Iris Xe)
• Memory: Not Included - 2x DDR4 2666MHz SO-DIMM slots, up to 64GB
• Storage: Not Included - 1x 2.5-inch SSD/HDD bay
• Operating System: Not Included
• Wireless: WiFi 6E - Intel AX211
• Ethernet: 1x Realtek RTL8111H (1G) + 1x Realtek RTL8125BG-CG (2.5G)
• Thunderbolt 4: 2x Type-C (Front) + 2x Type-C total

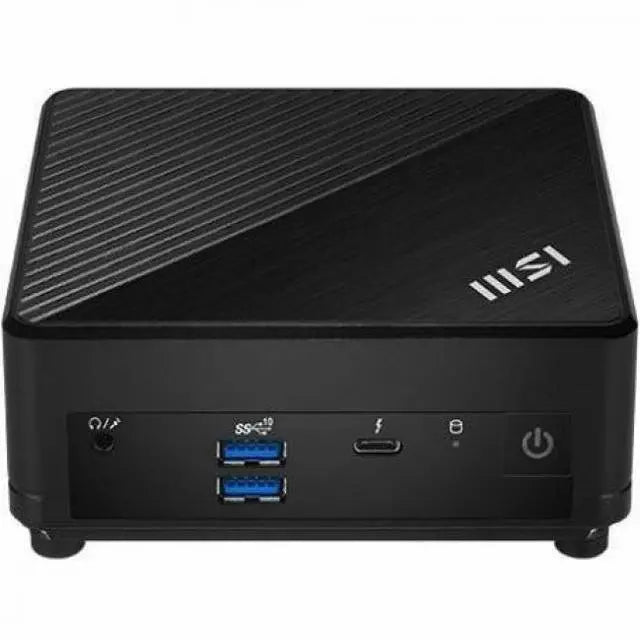

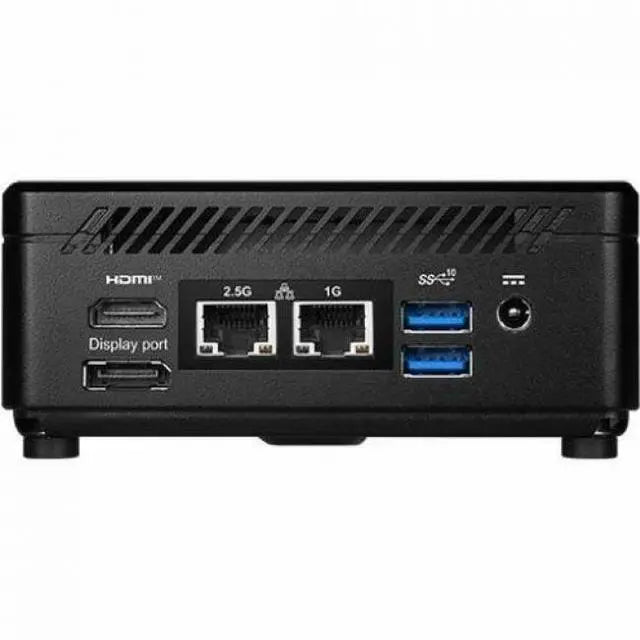

• USB Ports: Front: 2x USB 3.2 Gen2 Type-A, 1x Thunderbolt 4 Type-C; Rear: 2x USB 3.2 Gen2 Type-A
• Video Output: 1x HDMI 2.0b, 1x DisplayPort 1.4, Thunderbolt 4
• Audio: 1x Headphone/Mic combo jack
• Cooling: Air Cooling
• Power Supply: 65W AC Adapter
• Dimensions: 9 x 9 x 4 inches
• Weight: 3 lbs
• Warranty: 3 Year
