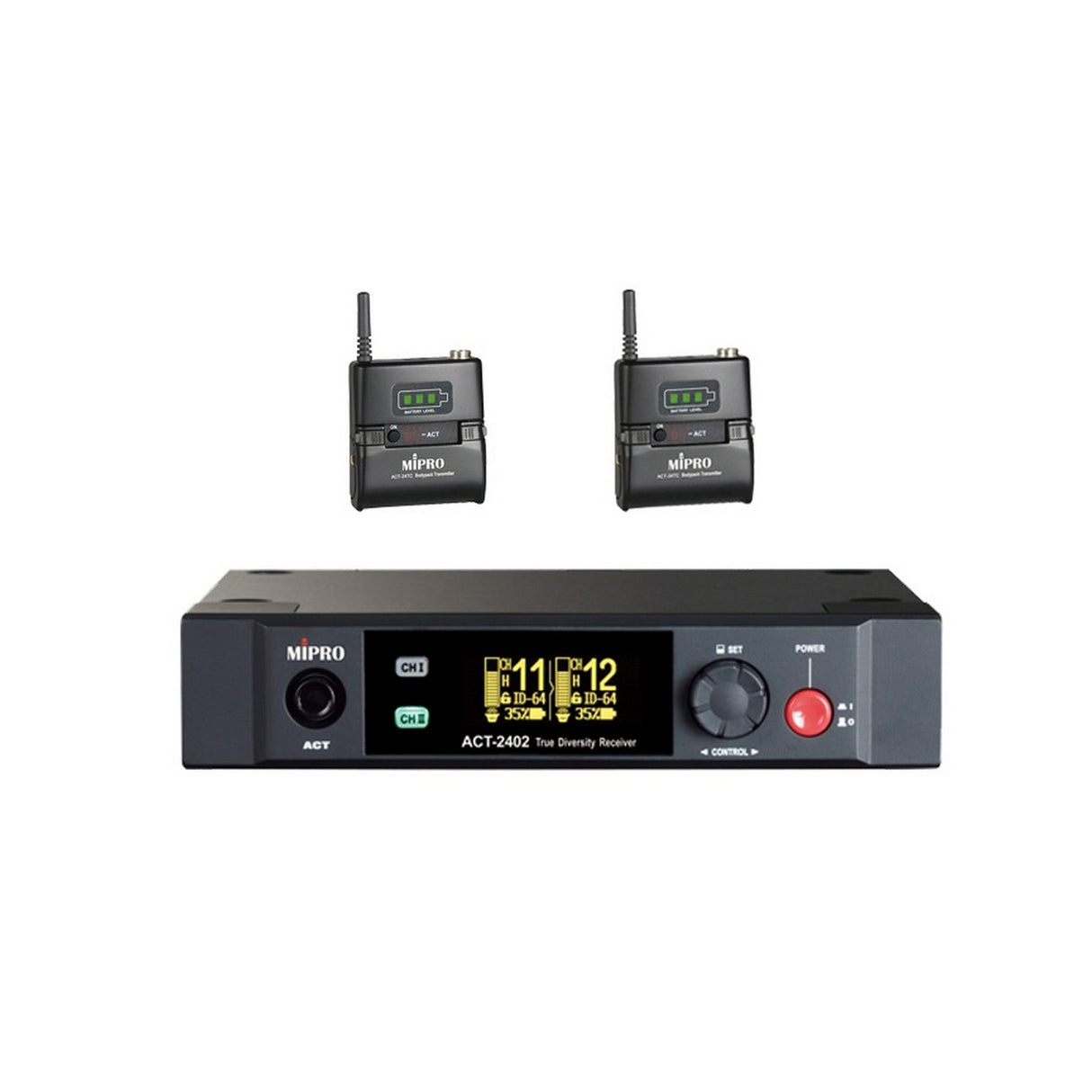

MIPRO ACT-2402/ACT-24TC2 Dual-Channel 2.4GHz Wireless Bodypack System

MIPRO ACT-2402/ACT-24TC2 Dual-Channel 2.4GHz Wireless Bodypack System: Unleash Reliable Wireless Lavalier Performance
Say goodbye to the frustrations of unreliable wireless sound. The MIPRO ACT-2402/ACT-24TC2 Dual-Channel 2.4GHz Wireless Bodypack System tackles common challenges of 2.4GHz systems, ensuring exceptional range, crystal-clear signal stability, and ample channel options for seamless operation in any environment.

At the heart of the system lies the dual-channel receiver, operating in the 2.4GHz ISM band for reliable performance. MIPRO's Digital Diversity technology combats interference, maintaining a clear signal even in congested environments. With 12 compatible channels, multiple ACT-2402/ACT-24TC2 systems can operate simultaneously without signal dropout, perfect for large conferences or multi-microphone setups.

The compact and lightweight ACT-24TC bodypack transmitters offer presenters and performers unmatched freedom of movement. Each transmitter boasts a remarkable 10-hour battery life on a single charge, keeping you focused on your delivery. The transmitters feature selectable impedance, allowing them to work flawlessly with lavalier microphones, headset mics, or even guitars and line inputs for added versatility. Need a quick power boost? The system's fast charging functionality provides up to 1 hour of operation with just a 25-minute charge, minimizing downtime.

Setting up the ACT-2402/ACT-24TC2 system is a breeze. The one-touch sync function eliminates complicated configuration steps, allowing you to focus on what matters most delivering your message.

Whether you're a live performer, conference presenter, fitness instructor, or videographer, the MIPRO ACT-2402/ACT-24TC2 Dual-Channel 2.4GHz Wireless Bodypack System empowers you to deliver clear and reliable audio for any application. The system includes a dual-channel receiver, two bodypack transmitters, and the option to add two MU-54 lavalier microphones and an MP-80 charging station for a complete wireless lavalier microphone solution. Experience the difference of exceptional wireless audio with the MIPRO ACT-2402/ACT-24TC2 Dual-Channel 2.4GHz Wireless Bodypack System.

Key Features

• Simultaneous operation of 12 channels that are compatible with each other

• Digital audio sampling at a resolution of 24 bits and a frequency of 44.1 kHz

• EQ settings available for Lo-Cut and Flat modes

• Adjustable AF gain and RF power output for customization

• Single and dual channel systems available in a compact half rack size

• Receiver is securely enclosed in a durable metal case

• Antennas are conveniently located on the front of the unit

• Optional rack mount hardware can be added for additional convenience

Technical Specifications

Receiver
Chassis
EIA Standard 19″ 1/2U
Display Graphic
OLED
Frequency Range
2.4GHz ISM band (2.4 – 2.4835GHz)
Preset Frequency
12
Frequency-hopping
Each channel has 4 preset hopping frequencies
Receiving Mode
Dual-tuner Digital Diversity
Audio Sampling
24-bit / 44.1 kHz
Sensitivity
-95 dBm
S/N Ratio
> 115 dB(A)
T.H.D.
0.1 % @ 1 kHz
Audio Frequency Response
20 Hz – 20 kHz (-2 dB)
Output Connectors
Balanced XLR & Unbalanced 6.3 mm (1/4 “)
Audio Output Adjustment
0 dB (standard), -10 – +20 dB adjustable range
Latency
< 4.0 ms
Antenna
2 × 50 Ω fixed antenna
Power Supply
External AC Power Supply
Power Consumption
2.4 W
Dimensions
210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 “
Weight
Approx. 0.8 kg / 1.8 lbs
Operating Temperature
-10 – +60℃

Transmitter
Frequency Range
2.4GHz ISM band (2.4 – 2.4835GHz)
Channel Set-Up
ACT Sync
RF Output Power
2 mW / 10 mW switchable (country dependent)
Transmitting Mode
Frequency hopping
Max. Audio Input
6.5 dBV
Impedance
1.0M Ω
Mute Connector
Optional MJ-70 remote mute switch
Battery Meter
4-level green / red LED display
Battery Type
1 ICR-18500 rechargeable lithium battery
Current Consumption
Approx. 138 mA
Operating Time
A 25-minute fast charge provides up to 1 hour operation. Minimum 10 hours of operation per 4-hour full charge (depending on the battery quality)
Dimensions (W × H × D)
63 × 70 × 25 mm / 2.5 × 2.8 × 1 “
Net Weight
Approx. 66 g / 2.3 oz
