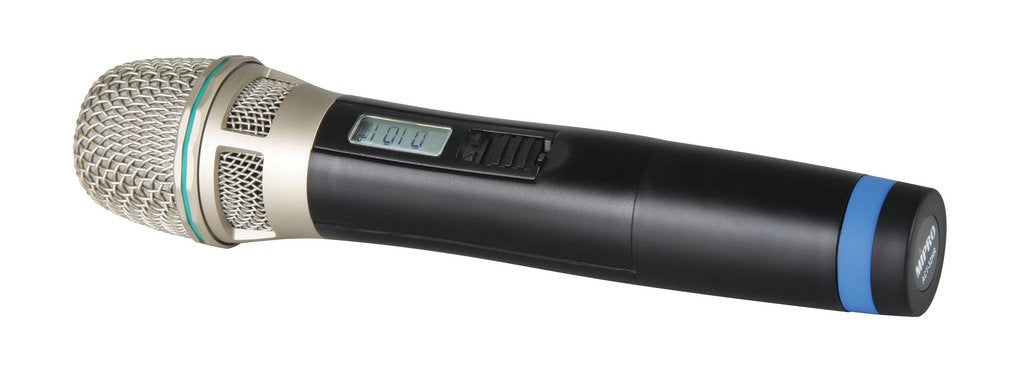

MIPRO ACT-32H UHF Handheld Transmitter - 5A: 506-530 MHz

The MIPRO ACT-32H UHF Handheld Transmitter empowers singers, presenters, and audio/video professionals to deliver exceptional audio quality with dependable performance. This professional-grade wireless microphone transmitter combines rugged construction with pristine sound and user-friendly features.

Engineered for superior sound, the ACT-32H boasts improved RF circuitry, premium condenser capsules, and advanced engineering to ensure crisp audio fidelity, wide dynamic range, and accurate sound reproduction. The lightweight yet robust plastic housing and a unique metal grille protect the microphone capsule from impact, drops, and everyday wear-and-tear, ensuring reliable operation even in demanding environments.

The ACT-32H is designed to keep you focused on your performance. The silent, lockable on/off switch prevents accidental shutoff, and the extended battery life (over 16 hours on 2 AA batteries) means you can concentrate on delivering your message without worrying about running out of power. A backlit LCD displays vital settings and battery status, and the interchangeable colored rings make identification on stage a breeze.

Mipro's patented ACT technology streamlines setup, ensuring quick and effortless frequency synchronization with the receiver for seamless operation. Whether you're a vocalist, public speaker, A/V professional, or require a reliable solution for live sound reinforcement, conference centers, houses of worship, or any other application, the Mipro ACT-32H UHF Handheld Transmitter is the ideal choice. Upgrade your sound and experience the confidence of pristine wireless audio with the MIPRO ACT-32H UHF Handheld Transmitter. Contact us today to acquire your very own MIPRO ACT-32H UHF Handheld Transmitter!

Key Features

• Durable and lightweight plastic casing

• The capsule is safeguarded by a special metal grille, preventing damage from impact, rolling, and unwanted noise, resulting in clear sound quality

• The battery compartment is designed to withstand impacts and can hold 2 AA batteries

• The LCD screen is backlit and displays different parameters and status information

• Colored rings can be easily swapped to identify different microphone channels on stage

• The circuitry design is highly efficient, allowing for over 16 hours of operation with 2 AA batteries (duration may vary depending on battery quality)

Technical Specification

Frequency Range
UHF 480 – 934 MHz
Bandwidth
24 MHz
Oscillation Mode
PLL Synthesized
Channel Set-Up
ACT Sync
RF Output Power
30mW
Spurious Emissions
< -55 dBc
LCD Display
Group, Channel, Battery status & error codes
Max. SPL
140 dB SPL
Battery Type
2 AA alkaline
Operating Time
Min. 12 hours (Low Power)
Current Consumption
Approx. 92 mA

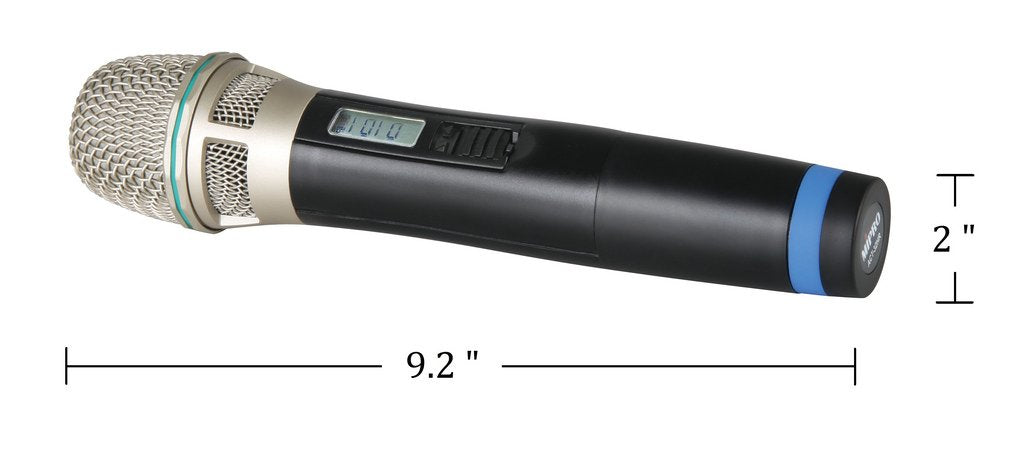

Dimensions
(Ø × L) 51 × 234 mm / 2 × 9.2 “
Net Weight
Approx. 251 g / 8.9 oz
