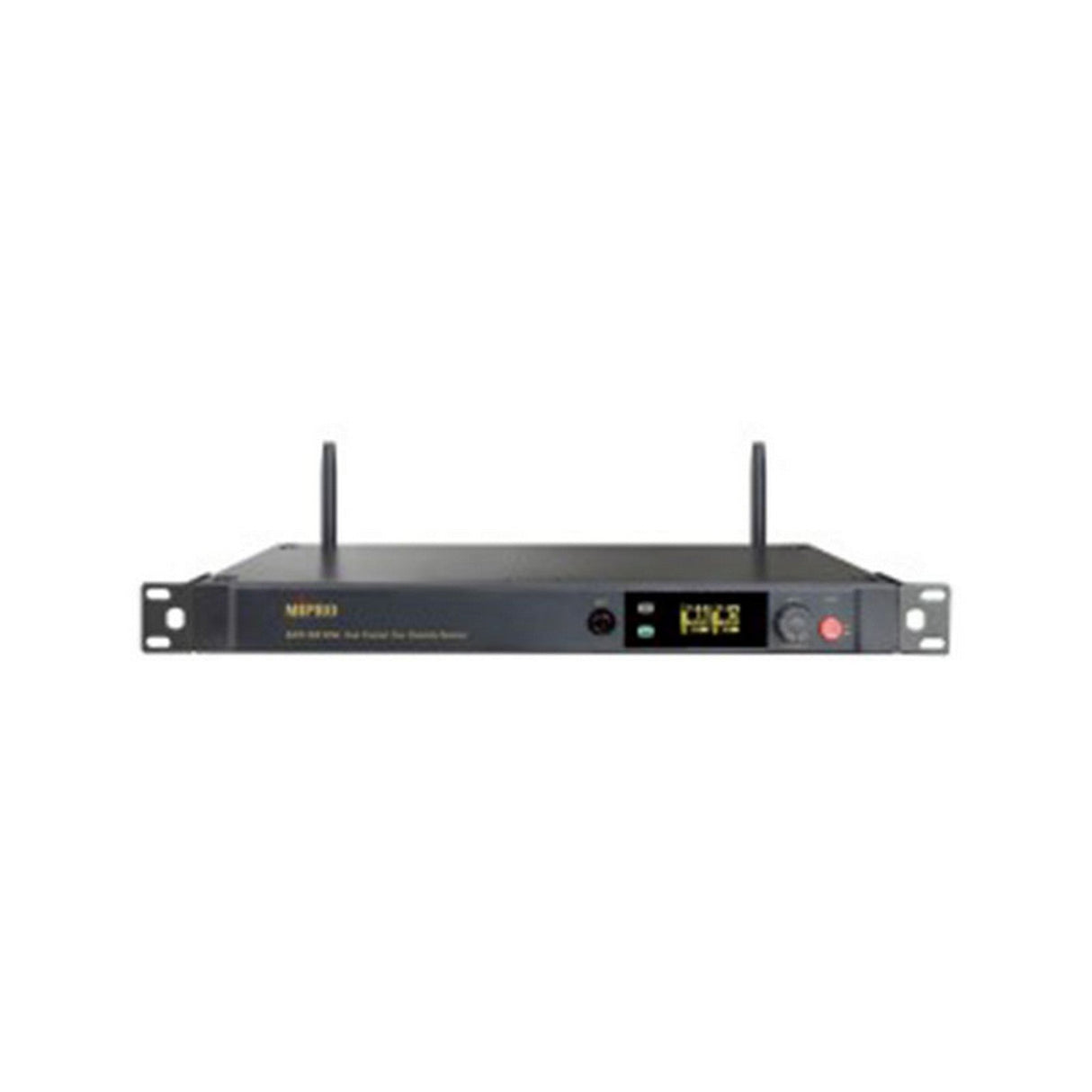

MIPRO ACT-5812 Multi-Channel 5.8GHz Digital Wireless Receiver - Dual
MIPRO ACT-5812 Multi-Channel 5.8GHz Digital Wireless Receiver
Free Shipping
Elevate your sound with the MIPRO ACT-5812 Multi-Channel 5.8GHz Digital Wireless Receiver, a multi-channel digital wireless receiver designed to deliver professional audio quality and unwavering performance. Experience pristine 24-bit/48kHz digital audio, exceptional dynamic range, and a wide frequency response (18Hz to 23kHz) for unmatched sound reproduction.
The ACT-5812 cuts through interference by operating in the ISM 5.8GHz band, effectively avoiding common congestion experienced in UHF and 2.4GHz frequencies. This ensures reliable, interference-free operation, even in challenging environments. With up to 24 channels available, the ACT-5812 offers superior flexibility, ideal for complex productions or multiple microphone setups.
True diversity reception guarantees a stable signal, eliminating dropouts and ensuring flawless audio transmission. MIPRO's ACT™ sync technology facilitates effortless pairing, while the user-friendly graphic OLED screen and convenient rear-panel detachable antennas streamline setup and control. Housed in a rugged metal chassis, the ACT-5812 is built to withstand the rigors of professional use.
The MIPRO ACT-5812 Multi-Channel 5.8GHz Digital Wireless Receiver is the perfect solution for a wide range of applications, including live sound reinforcement, presentations and conferences, theater and stage productions, broadcast and recording applications, and any situation demanding exceptional audio quality and reliable performance.
Key Features
- High-quality audio with a resolution of 24-bit and a sampling rate of 48 kHz
- Utilizes the ISM 5 GHz Band to prevent any wireless interference
- Designed according to the EIA standard with a compact 1/2-rack unit design
- Durable metal receiver housing for added protection and longevity
- Offers a wide frequency response range from 18 Hz to 23 kHz
- Features MIPRO's ACT Scan & Sync technology for seamless setup and synchronization
- Allows for easy antenna removal with rear panel removable antennas
- Equipped with a graphic OLED screen for clear and intuitive display of information
Technical Specifications
ACT5812A Receiver
Channel
Multi
Chassis
EIA Standard 1U metal black case
Antennas
Rear panel, removable
Display
Graphic OLED
Frequency Range
ISM 5.8 GHz 5,725~5,850 MHz
Preset Channels
12 interference-free preset channels in Group A, 24 interference-free preset channels in Group B1 & B2, 64 Channel ID’s for increased channel density; groups should not be combined in the same venue
Receiving Mode
Dual-tuner true diversity digital wireless
Channel Set-up
MIPRO ACT Scan & Sync
Sample Rate
24-bit/48 kHz
Frequency Response
18 Hz ~ 23 kHz (Group B)
Latency
< 1.7 ms (Group B)
Dynamic Range
120 dBA
Output Connectors
Balanced XLR & Unbalanced Ø 6.3 mm, 0 dB (standard), -10 ~ +20 dB adjustable range.
Power Supply
External 100~240V AC switching power supply
Dimensions
420 × 44 × 180 mm (W × H × D)
Weight
Approx. 1.3 kg
