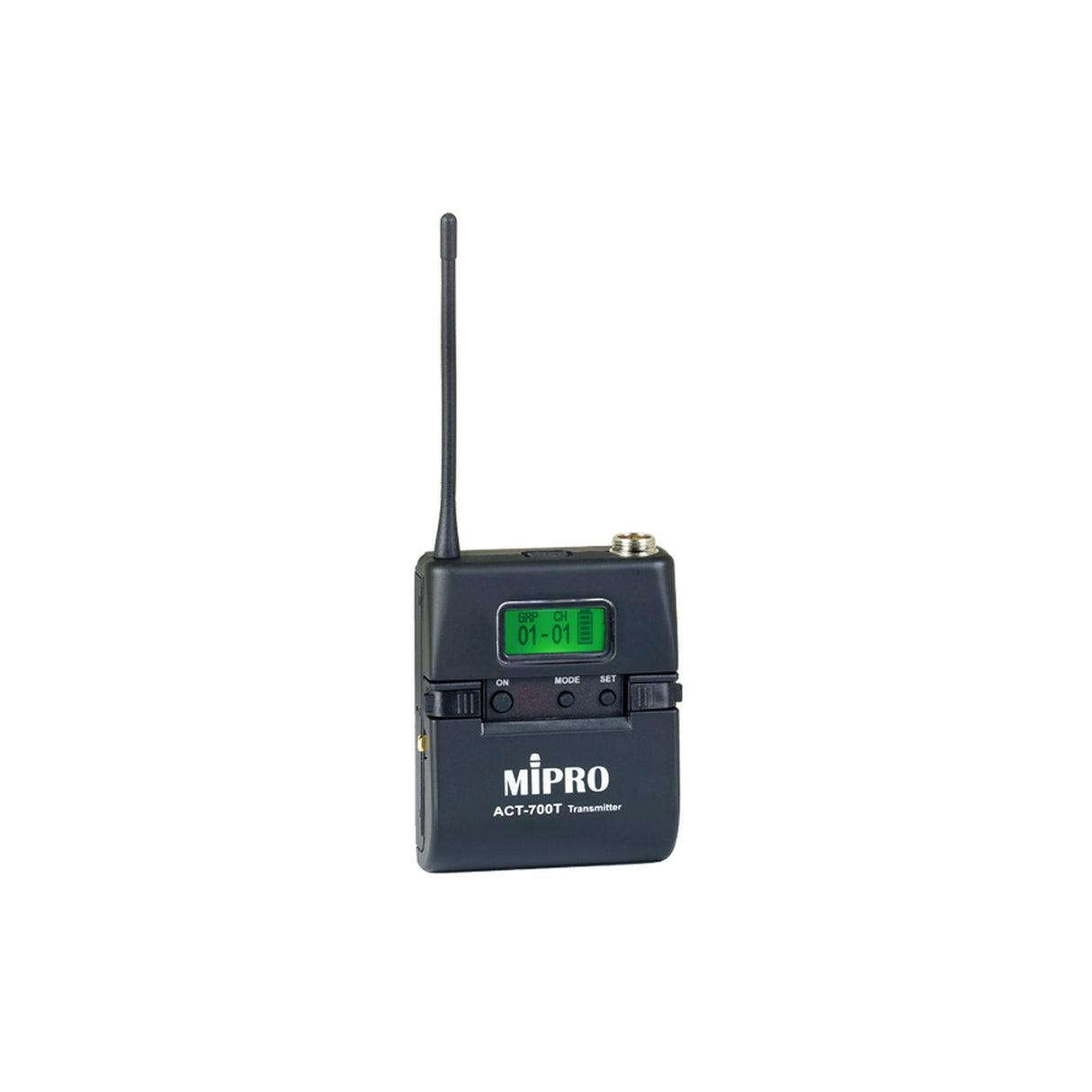

MIPRO ACT-700T-5UA UHF Analog Wideband Bodypack Transmitter
The MIPRO ACT-700T-5UA is a compact, lightweight UHF analog bodypack transmitter covering the 482–554 MHz band. Built for assistive listening systems, it features a durable magnesium-alloy housing, a multifunction backlit LCD, and ACT™ infrared synchronization for quick frequency matching.
It offers switchable RF power (10 mW/50 mW), five gain levels, direct and remote mute control, and menu lockout for reliability in educational, corporate, and tour-guide settings. Power is supplied by one ICR 18500 rechargeable Li-ion battery (13-hour life) or two AA alkalines, with USB-C charging or via MIPRO charging stations.
Key Features
- Frequency Range: 482–554 MHz (Band 5UA)
- Bandwidth: 72 MHz wideband
- RF Power Output: 10 mW / 50 mW switchable
- Oscillation Mode: PLL synthesized
- Frequency Stability: ≤ ±0.005% (–10 °C to +60 °C)
- Modulation Type: Analog
- Max Audio Input: 0 dBV
- Gain Control: 5 switchable levels (–12 dB to +12 dB)
- Display: Multifunction backlit LCD with lockout
- Housing: Magnesium alloy
- Synchronization: ACT™ IR-based sync
- Mute Control: Direct and remote via jack
- Battery: One 18500 Li-ion or two AA alkaline (13 h life)
- Charging: USB Type-C or MP-800/MP-820 station
- Accessory Compatibility: Works with MU55LX lavalier and other MIPRO microphone modules
Technical Specifications
- Frequency Bands: 5UA: 482–554 MHz
- RF Power Output: 10 mW / 50 mW switchable
- Deviation Range: Not available
- Spurious Emission: < 4 nW
- Oscillation Mode: PLL synthesized
- Frequency Stability: ≤ ±0.005% (–10 °C to +60 °C)
- Modulation Type: Analog
- Max Audio Input: 0 dBV
- Input Connector: MIPRO 4-pin mini XLR
- Battery Life: 13 hours
- Dimensions: 2.48" × 3.15" × 0.98" (6.3 × 8.0 × 2.5 cm)
- Weight: 0.21 lbs (0.10 kg) without batteries
What's Included
- MU55LX omnidirectional condenser lavalier microphone
- USB Type-C charging cable
