MIPRO ACT-727 Dual-Channel UHF Wideband Receiver - 5NU: 554-608 MHz / Analog

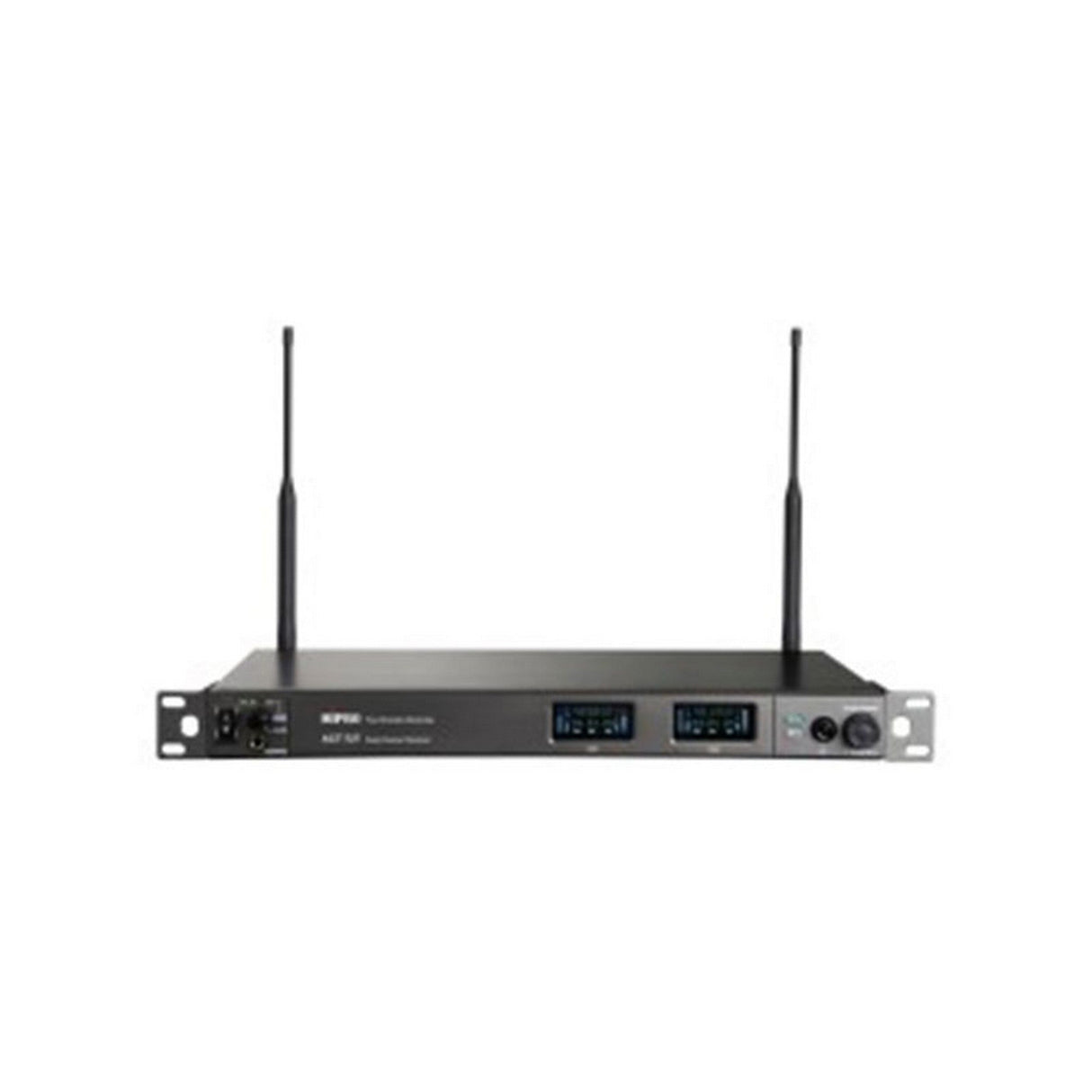

MIPRO ACT-727 Dual-Channel UHF Wideband Receiver
Free Shipping
The MIPRO ACT-727 Dual-Channel UHF Wideband Receiver elevates your wireless audio experience. This professional-grade receiver boasts exceptional audio quality and dependable performance, making it ideal for various applications such as live sound reinforcement, theaters, conferences, and broadcast integration.
The ACT-727 offers wideband operation with your choice of 56 MHz or 72 MHz bandwidth, providing up to 48 interference-free channels per band. For flexible frequency selection, it features 192 selectable frequencies across 6 preset groups, with an additional 16 user-defined presets, totaling a massive 2,881 frequencies. True diversity reception ensures seamless audio transmission and minimizes signal dropouts, even in challenging environments.
Advanced anti-interference technology is incorporated into the ACT-727. Fourth-generation RF circuitry and MIPRO's "AutoScan" and "ACT" (Automatic Channel Targeting) features work together for effortless setup. Pristine audio quality is achieved through an enhanced RF saturated dynamic range that reduces interference and distortion. User-friendly controls with intuitive and easy access allow for quick and easy system configuration.
An optional Dante version of the ACT-727 is available for seamless integration with digital audio networks. This professional-grade receiver is housed in a rugged metal housing for superior durability and features a bright VFD display for clear visibility of all parameters. Switchable output levels ensure optimal signal strength, and MIPRO RCS27 software compatibility allows for real-time computer control, making the MIPRO ACT-727 Dual-Channel UHF Wideband Receiver a versatile and reliable solution for all your wireless audio needs.
Key Features
- 56 & 72 MHz bandwidth offering wide coverage
- 48 interference-free channels per band for seamless operation
- 192 selectable frequencies in 6 preset groups per band
- Ability to save 16 user-defined presets from 2,881 frequencies in User Definable Group 7
- Features a dual channel receiver with switchable output levels and optional Dante version available
Technical Specifications
System
Frequency Range
UHF 482 – 608 MHz
Preset Frequencies
192 in Band 5UA & 5NU Plus 16 user definable
Compatible Channels
Up to 48 Presets
Receiving Mode
True Diversity
Oscillation Mode
PLL Synthesized
RF Stability
±0.005% (14 to 122°F)
Max Deviation Range
±68KHz, with Level Limiting
S/N Ratio
>105dB (A)
T.H.D.
<0.5% at 1KHz
Frequency Response
50Hz~18KHz
Receiver
System Dual Channel
True Diversity
Sensitivity
6dBμV @ S/N <80dB, 40KHz Dev
Bandwidth
72MHz 5UA – 54MHz 5NU
Frequency Range
482 – 608MHz, TV 16 – 36
Display
Vacuum Florescent Dual Squelch Control “NoiseLock & PiloTone” Circuit
Peak Deviation
±68KHz
Max Output Level
Unbalanced +10, 0 or -6 dBV
Balanced +16, 0 or -6 dBV
Output Connectors
XLR -Discreet
XLR & 1/4” Mixed
PC Interface
USB or RS-232 interface, Proprietary MIPRO ACT-BUS
Antenna Input
50Ω Dual TNC Female Connector
Power Supply
100 – 240VAC Switching
Ground Lift
Switchable
Dimensions (W × H × D)
420 × 44 × 230 mm
Weight
2.5 kg
Housing Metal
1 RU
