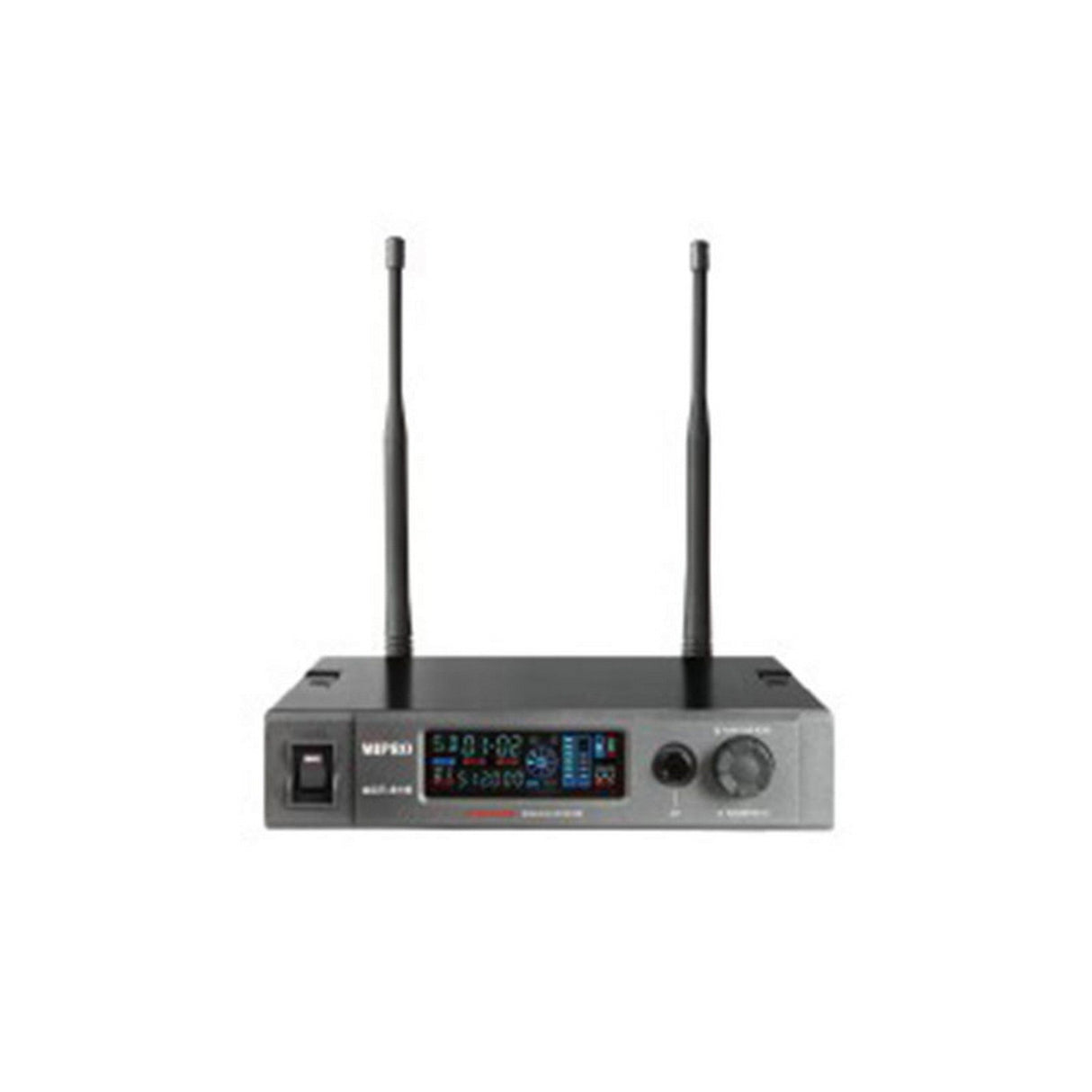

MIPRO ACT-818 Digital Wideband Encryption-Capable Single Channel Receiver - 5UA: 482-554 MHz

The MIPRO ACT-818 Digital Wideband Encryption-Capable Single Channel Receiver delivers professional-grade wireless audio with exceptional clarity and security features, making it ideal for various applications. Its wideband 64MHz bandwidth offers a vast selection of interference-free channels, while 256-bit encryption safeguards your audio transmission.

The MIPRO ACT-818 Digital Wideband Encryption-Capable Single Channel Receiver boasts a user-friendly interface with a full-color VFD display and a single rotary control for effortless system setup and operation. The one-touch AutoScan and ACT™ channel setup ensures quick and reliable configuration.

Experience pristine audio with the ACT-818's digitally-processed RF circuitry that eliminates noise and ensures transparent audio performance. The second-generation DSP technology further enhances signal stability, while the proprietary A/D converter offers a wider dynamic range with minimal distortion and latency.

The MIPRO ACT-818 Digital Wideband Encryption-Capable Single Channel Receiver is built to fit a standard 19-inch rack and occupies only half a rack unit, saving valuable space. An AES/EBU interface maintains a high signal-to-noise ratio over long distances. Ten built-in SmartEQ presets provide versatile sound shaping options. Optional MIPRO RCS2.NET PC software allows for advanced control and monitoring of the system. With a line-of-sight operating range of 100 meters (300 feet), the ACT-818 offers extended coverage for a variety of applications.

Manufactured entirely in Taiwan, the MIPRO ACT-818 Digital Wideband Encryption-Capable Single Channel Receiver guarantees quality and reliability. Whether you need it for live sound reinforcement, public speaking events, conferences, theaters, houses of worship or more, the MIPRO ACT-818 Digital Wideband Encryption-Capable Single Channel Receiver is a secure and reliable digital receiver that will upgrade your wireless audio experience.

Key Features

• EIA standard 19", 1/2 RU size for easy integration into existing setups

• High-quality full-color VFD display for optimal visibility of all parameters

• Simple and efficient system setup using a single rotary control

• Convenient one-touch AutoScan feature and ACT™ channel setup for quick configuration

• Reliable RF circuitry with enhanced performance for seamless audio transmission

• Wide 64MHz bandwidth allows for the selection of more interference-free channels

• Advanced digital RF circuitry eliminates compander noise for clear audio output

• Second generation DSP technology improves signal stability and quality

• Proprietary A/D Converter ensures increased dynamic range with low T.H.D and latency

• AES/EBU interface guarantees a stable S/N ratio even over long distances

• Secure proprietary 256-bit encryption with easily changeable encryption keys for data protection.

Technical Specifications

Frequency Range
Bands 5UA & 5NU, UHF 480–590MHz
Bandwidth
Bands 5UA and 5NU
2,161 selectable frequencies / 192 preset channels with 16 user identifable preset
16+ simultaneous channel operation
Receiver Mode
Digital diversity
Audio Sampling
24-bit / 44.1 kHz rate
Audio Compression
2nd generation DSP inertial coding
Latency
<2.7ms
Frequency Response
20Hz~20kHz (-2dB)
Audio Dynamic Range
>115dB(a)
T.H.D.
>0.03% @ 1kHz
Encryption
256-bit
Housing
Metal
Sensitivity
15dBμV at S/N=118dBA
Digital Equalizer
10 preset microphone capsule modeling
Digital Audio Interface
AES/EBU output
PC Interface
USB or RS-232. Proprietary MIPRO ACT-BUS
Power Supply
Built-in 100~240V AC switching power supply
Dimensions (W x H x D)
210 × 44 × 230mm / 8.3 × 1.7 × 9″
Weight
Approx. 1.1 kg / 2.4 lbs
