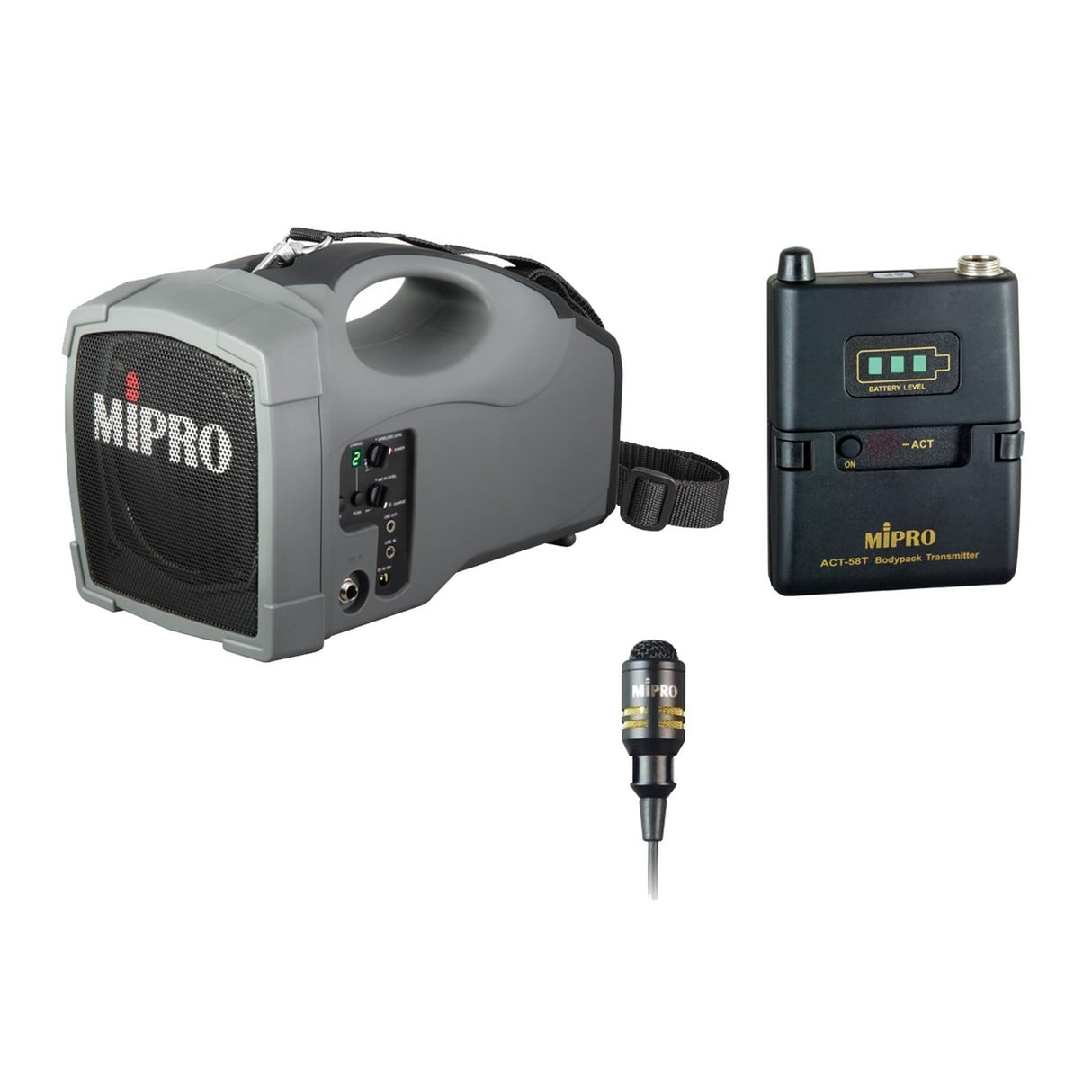

MiPro MA-101G/ACT-58T 50-Watt Personal Wireless PA System

MiPro MA-101G/ACT-58T 50-Watt Personal Wireless PA System

MA-101G is an all new, ultra compact and ultra light wireless PA system. The MIPRO MA-101G is powerful and offers a vast array of features in an easy-to-use package. It can be easily carried via the padded shoulder strap, built-in handle, or mounted on a microphone stand. It is an excellent public address solution for small crowds. MA-101G is a single channel system.

Key Features

• Powerful sound in a rugged yet lightweight one-piece molded cabinet.
• AC and built-in lithium rechargeable battery and rechargeable transmitter operation.
• Up to 10 hours of stand-by time per 4-hour charge.
• License-free 5.8 GHz wireless diversity receiver for reliable transmission performance.
• Four Frequency Hopping Spread Spectrum technology skips common Wi-Fi used frequencies to avoid interference.
• Adaptive tracking algorithm helps in avoiding interference from 5.8 GHz communication products.
• One-touch Scan & Sync (ACT) button for fast and easy channel set-up.
• User-friendly control panel provides intuitive easy operation.
• Specific outline and color with an ergonomic design in MIPRO’s distinctive aesthetic style.
• Specific outline and color with an ergonomic design in MIPRO’s distinctive aesthetic style.
• Interchangeable capsule module with MIPRO produced premium condenser or dynamic options for easy and fast changeovers.
• The unique multi-layered metal grille instead of sponge foam protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille can be detached easily for cleaning and hygiene practices.
• World’s first ACT function provides precise and rapid frequency sync to the receiver.
• The default gain setting is 0 dB = microphone capsule input sensitivity. High dynamic range for singing aloud without distortion.

Technical Specifications

Portable PA
Max. Power Output
50 Watts
Amplifier
Class D
Sensitivity
Typical: 90 dB Ι Maximum: 102 dB
T.H.D.
< 1%
Frequency Response
20 Hz ~ 20 kHz
Speaker
5 " full-range, high efficiency
Audio Inputs
Wired: 6.3 mm (1/4 ")
Line-In: 3.5 mm (1/8 ")
Audio Output
3.5 mm (1/8 ")
Alarm Siren
Siren sound with fade-in mode
Installation
Microphone stand, table mounted, shoulder belt
Power Supply
AC: External 100 ~ 240 V AC switching power supply (Max, Power Consumption: 60 W)
DC & Battery
Built-in 14.8 V / 2.6 AH rechargeable lithium battery (MB-10 x 1)
Charge Time
4 hours (automatic charging management)
Standby Time
> 12 hours
Battery Indicator
4 level indicator (25/50/75/100%)
Color
Black or white option
Dimensions (W x H x D)
160 x 178 x 285 mm / 56.3 x 7 x 11.2 "
Weight
Approx. 2.2 kg / 4.8 lbs (MB-10 battery included)
Wireless System
Receiver Channel
Single
Power Output
Class AB, 45 Watts (max.)
Loudspeaker
5 " Full-Range
Receiver 1
Audio Inputs
Mic In Ø 6.3 mm × 1, Line In Ø 6.3 mm × 1, separate volume control
Audio Output
Line Out Ø 3.5 mm × 1
Bluetooth Connectivity
Yes
Installation
Shoulder Strap, Hand Carry, Flat Surface or Microphone Stand
Power Supply
AC | 14.8V/ 2.6A Rechargeable Battery (MB-25)
Dimensions
160 × 178 × 285 mm (W×H×D)
Weight
Approx. 2.2 k (battery included)
ACT-24TC
Frequency Range
ISM 5.8 GHz
Modulation Type
Digital
RF Output
Power 20 mW (country dependent)
Mic
Capsule Modules Lavalier: MU-53L / MU-55L; Headworn: MU-13 / MU-23 / MU-210 / MU-53HN / MU-55HN; Instrument: VM-10L / VM-10C / VM-10D / CM-10E
Max. Audio Input
6.5 dBV
Battery Meter
3 LEDs light in green to indicate battery status and turn to red to indicate low battery; after 2 hours power will automatically be shut down.
Dimensions
63 × 82 × 22 mm (W × H × D)
Net Weight
Approx. 73 g
Battery
2 × AA alkaline
