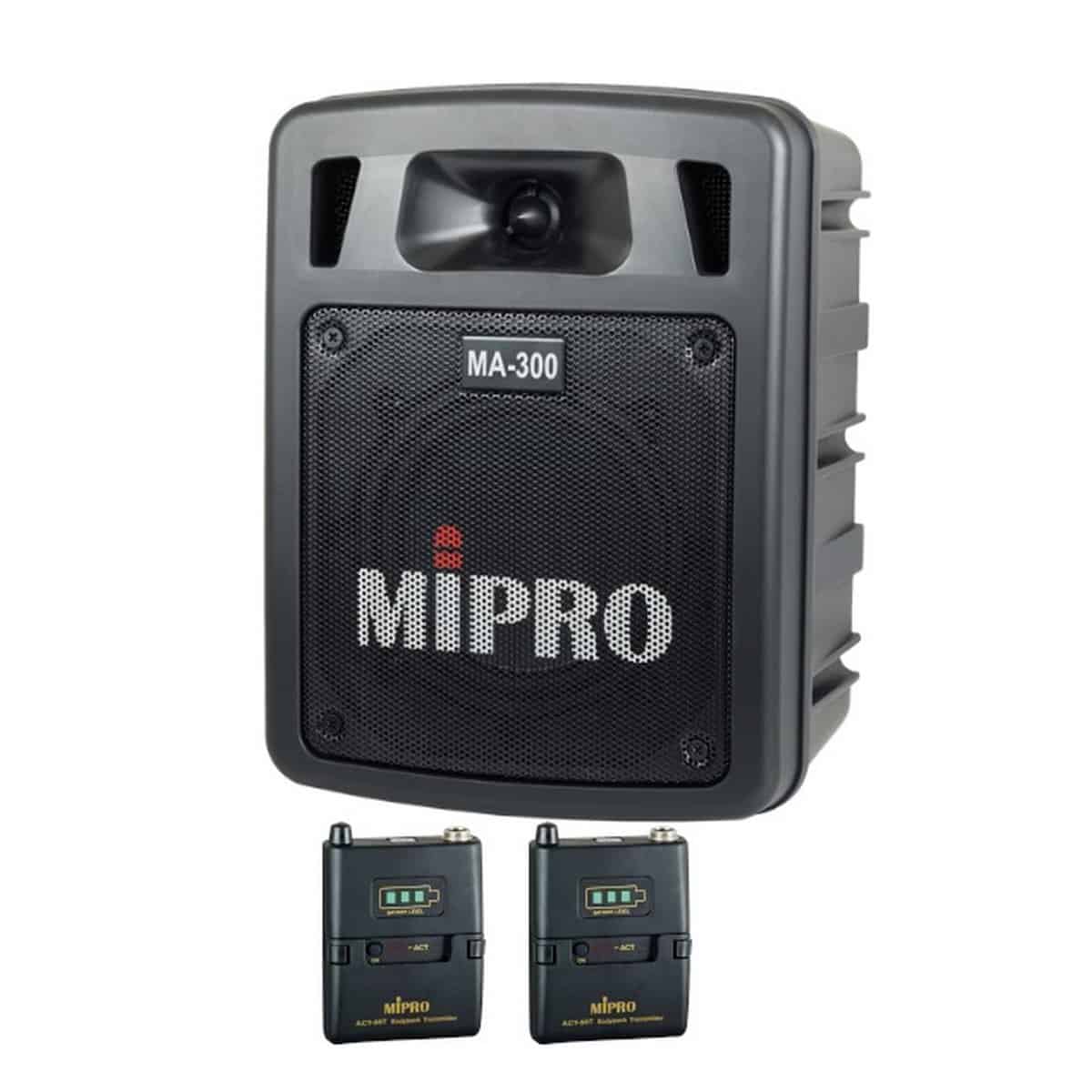

MiPro MA-300/ACT-58T2 60-Watt Portable PA System with Dual Bodypack Transmitters

MiPro MA-300/ACT-58T2 60-Watt Portable PA System with Dual Bodypack Transmitters

60-Watt Portable PA System with Single Wireless Receiver

Key Features

• The two-way speaker cabinet is redesigned to improve the efficiency in treble frequency and delivers a clear and powerful sound effect for both speech and music.
• Easy hand-carrying or stand-mounting makes MA-300 the most ideal megaphone for various applications.
• UHF or ISM 5.8 GHz band receiver module for long-distance and reliable reception performance.
• Plug-in Bluetooth module, USB player/recorder, built-in echo function, and alarm siren which has a fade-in effect.
• Equipped with audio input mixer. Each audio source has individual volume control.
• Removable Li-ion battery holder for fast insertion and replacement.
• Bluetooth with TWS technology can combine two megaphones for stereo sound.
• Dual 5 GHz Digital Bodypack Transmitter

Technical Specifications

MA-300
Max. SPL
105 dB
Drivers
1” Treble & 5” Woofer
Frequency Range
80 Hz - 18 kHz
Audio Inputs
MIC IN: 1 x 1/4” (6.3 mm)
LINE IN: 1 x 1/8” (3.5 mm)
Audio Output
LINE OUT: 1 x 1/8” (3.5 mm)
Amplifier
Class D
Output Power
60 W RMS, 102 W peak
Receiver Module
1 x UHF or ISM 5.8 GHz module
Audio Players
Plug-in Bluetooth module & USB recorder / player
Other Functions
Echo on mics & siren sound effect
Power Supply
DC (19 - 24 V) socket for external AC (100 - 240 V) power supply
Battery
4 x 18650 Li-ion batteries (MB-14)
Battery Indicator
4-segment indicator (25/50/75/100%)
Standby Time
Up to 10 hours
Dimensions
209 x 278 x 165 mm (W x H x D)
Weight
Approx. 2.7 kg (batteries included)
Optional Accessories
SC-300 carry bag, MS-30 tripod stand, MM Series microphones
Patents and Approvals
Patented. Telecom and safety regulations approved
Note
Refer to the actual product in the event of product description discrepancy
ACT-58T
Name
5 GHz Digital Bodypack Transmitter
Frequency Range
ISM 5.8 GHz
Modulation Type
Digital
RF Output Power
20 mW (country dependent)
Mic Capsule Modules
Lavalier: MU-53L / MU-55L; Headworn: MU-13 / MU-23 / MU-210 / MU-53HN / MU-55HN; Instrument: VM-10L / VM-10C / VM-10D / CM-10E
Max. Audio Input
6.5 dBV
Battery Meter
3 LEDs light in green to indicate battery status and turn to red to indicate low battery; after 2 hours power will automatically be shut down.
Dimensions
63 x 82 x 22 mm (WxHxD)
Net Weight
Approx. 72 g
Battery
2 x AA alkaline
Note
Refer to the actual product in the event of product discrepancy.
