Description

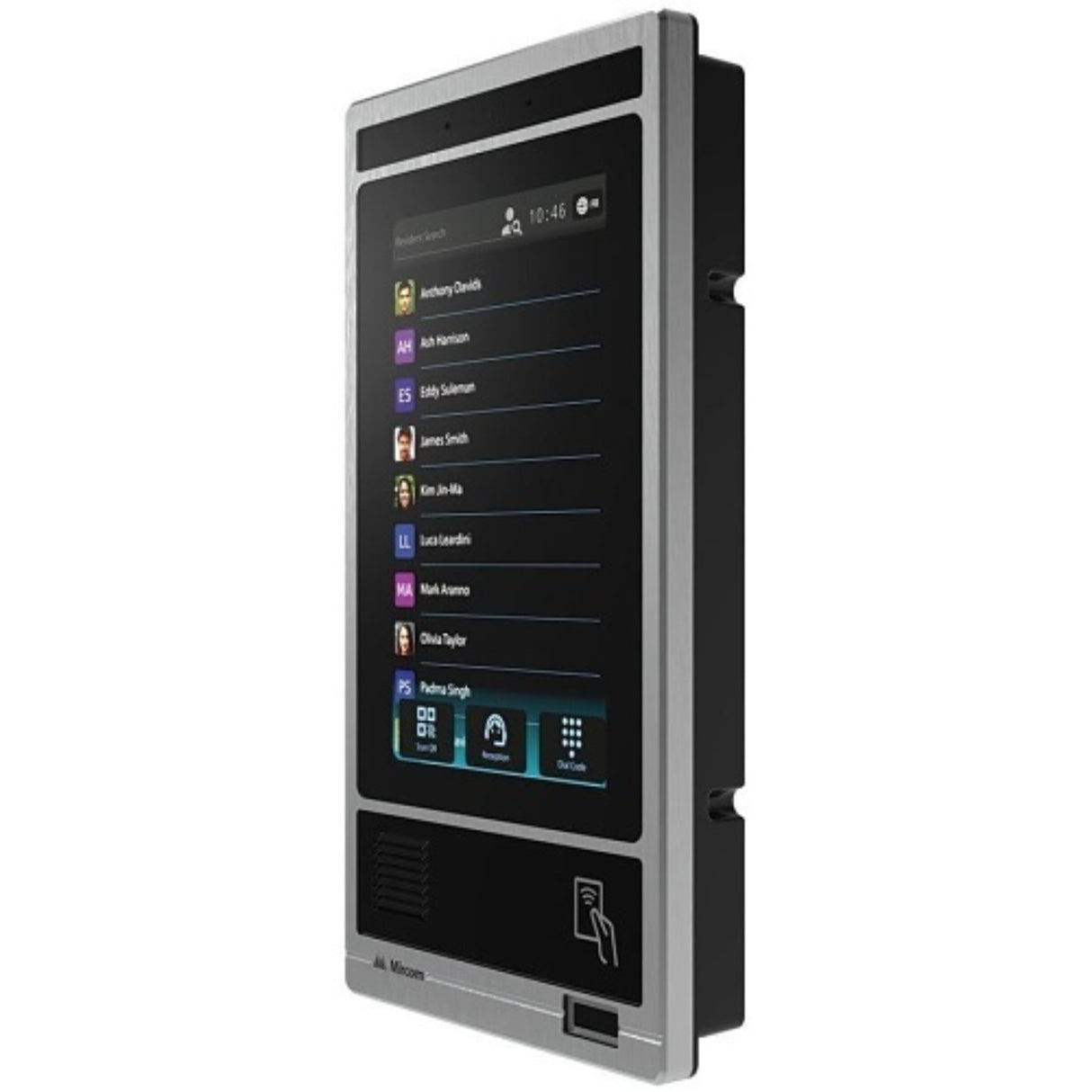

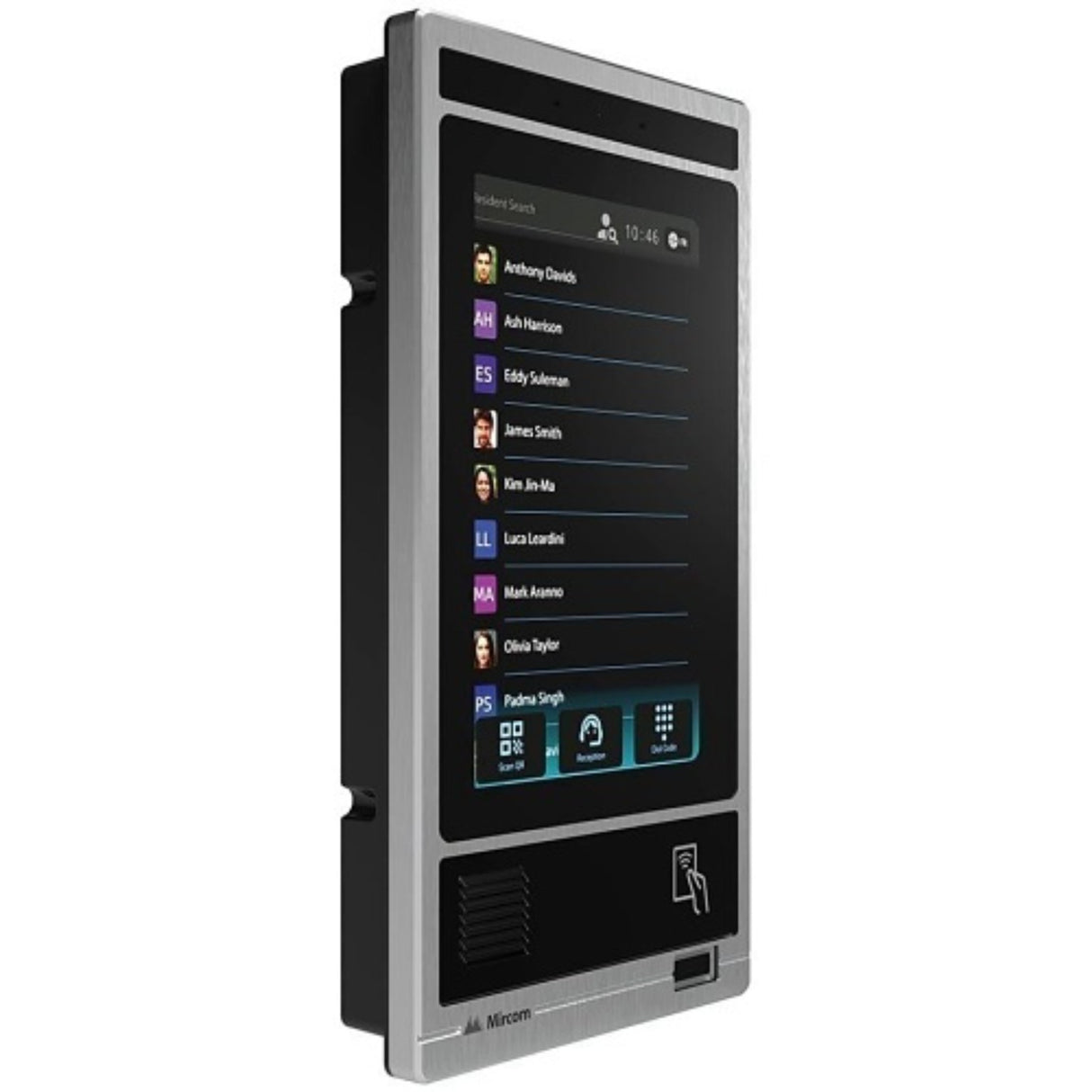

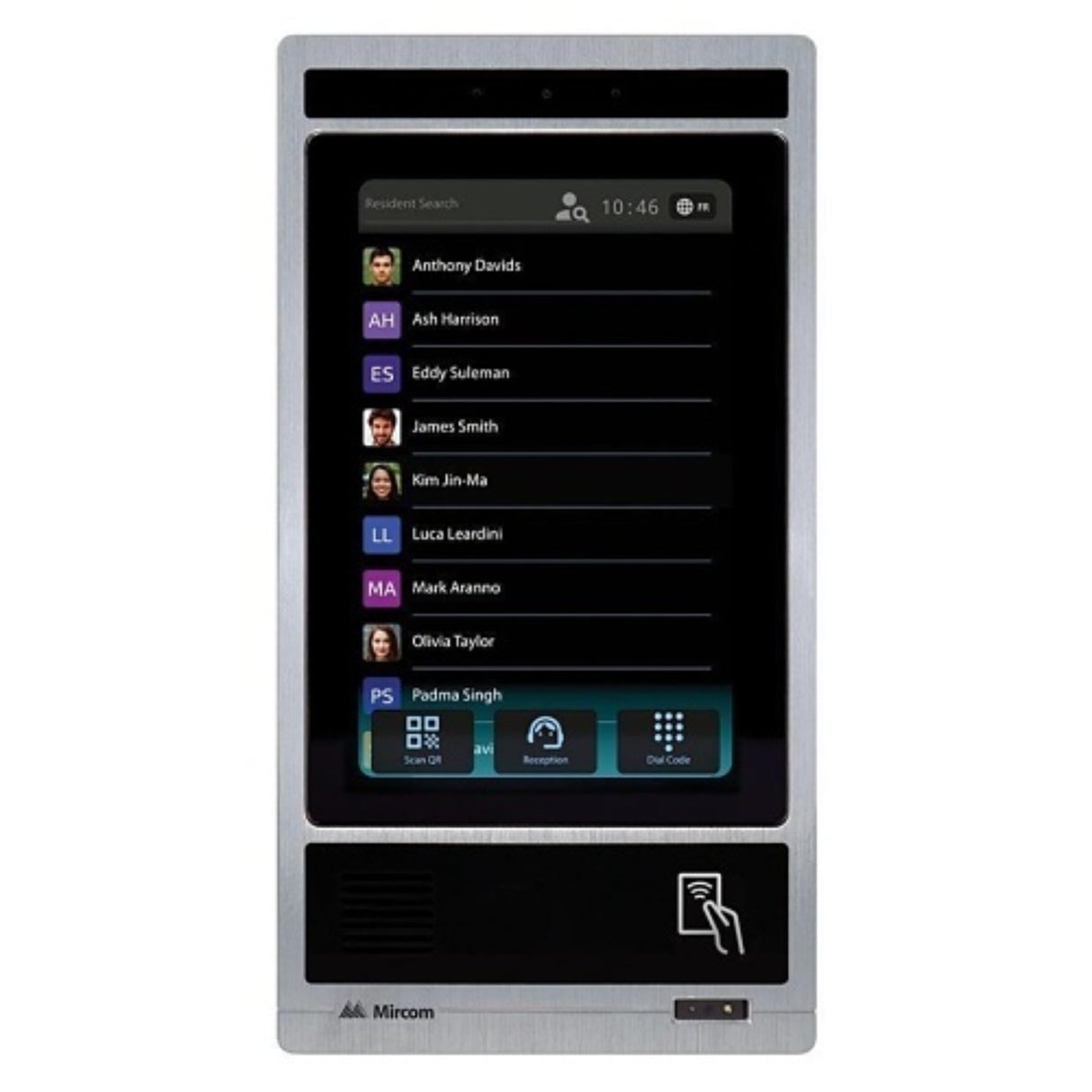

Mircom TX3-T10-G 10" Touch Video Intercom Access System
The Mircom TX3-T10-G Touch Access System is a modern 10" touch video intercom built to deliver a visually impressive and highly intuitive entry experience for occupants and visitors. Designed with a vandal-resistant, weather-resistant enclosure, it supports professional access control in a wide range of multi-tenant and commercial environments.
Ideal for condominiums, apartment buildings, office buildings, gated communities, and industrial buildings, the TX3-T10-G combines a full-color touchscreen directory with flexible calling options over traditional phone lines (PSTN) or VoIP through the Mircom MiVoIP cloud service. A built-in controller manages access for two doors, while integrated audio technologies help deliver clear two-way communication at the point of entry.
Key Features of the TX3-T10-G Touch Access System
- 10" Full-Color Touch Display: Wide viewing angles and a modern interface designed to be easy to use and visually impressive.
- Automatic Light/Dark Themes: Display themes adjust to ambient light levels for improved day and night readability.
- Intuitive Visitor Calling Interface: Call button, scrolling name directory, and name grouping to help visitors quickly find and contact occupants.
- Dual Keyboard Layouts: Includes Full QWERTY or QWERTY (English and French) with numpad for flexible directory navigation and PIN entry.
- PSTN or VoIP Calling Options: Supports communication through traditional phone lines (PSTN) or the Mircom MiVoIP cloud service for VoIP connectivity.
- Clear Two-Way Audio: Speaker and dual microphones with noise reduction and beam-forming technology for improved speech clarity.
- QR Code Visitor Access: QR code scanner enables temporary visitor access by scanning codes generated through the MiEntry app.
- Ethernet Programming: Programmable via the TX3 local configurator through an Ethernet connection.
- Supervised Inputs and Outputs: Programmable 4 supervised inputs and 2 outputs for access and system integration.
- PoE+ or DC Power: Powered by PoE (IEEE 802.3at/Type 2) or an external 24–48VDC / 30W power supply.
Technical Specifications
- Brand: Mircom
- Manufacturer Part Number: TX3-T10-G
- ADI Part Number: MI-TX3T10G
- Screen Size: 10"
- Touchscreen: Yes
- Effective Camera Resolution: 5MP
- Identification Method: Access Card, PIN
- Operating Frequency: 125kHz
- IP Phone Technology: VoIP
- Audio Encoding: G.711
- Ingress Protection Rating: IP65
- Operating Temperature: -22°F to 122°F
- Memory Size: 2GB
- Ethernet Technology: Ethernet, Fast Ethernet, Gigabit Ethernet
- Mount Type: Flush Mount, Surface Mount
- Color: Gray
- Depth: 2.2"
- Dimensions (H x W x D): 14.5" x 7.7" x 2.2"
- Input Voltage: 24–48V DC
- Power Source: PoE+
- Power Consumption: 30W
- Durability: Vandal Resistant, Weather Resistant
