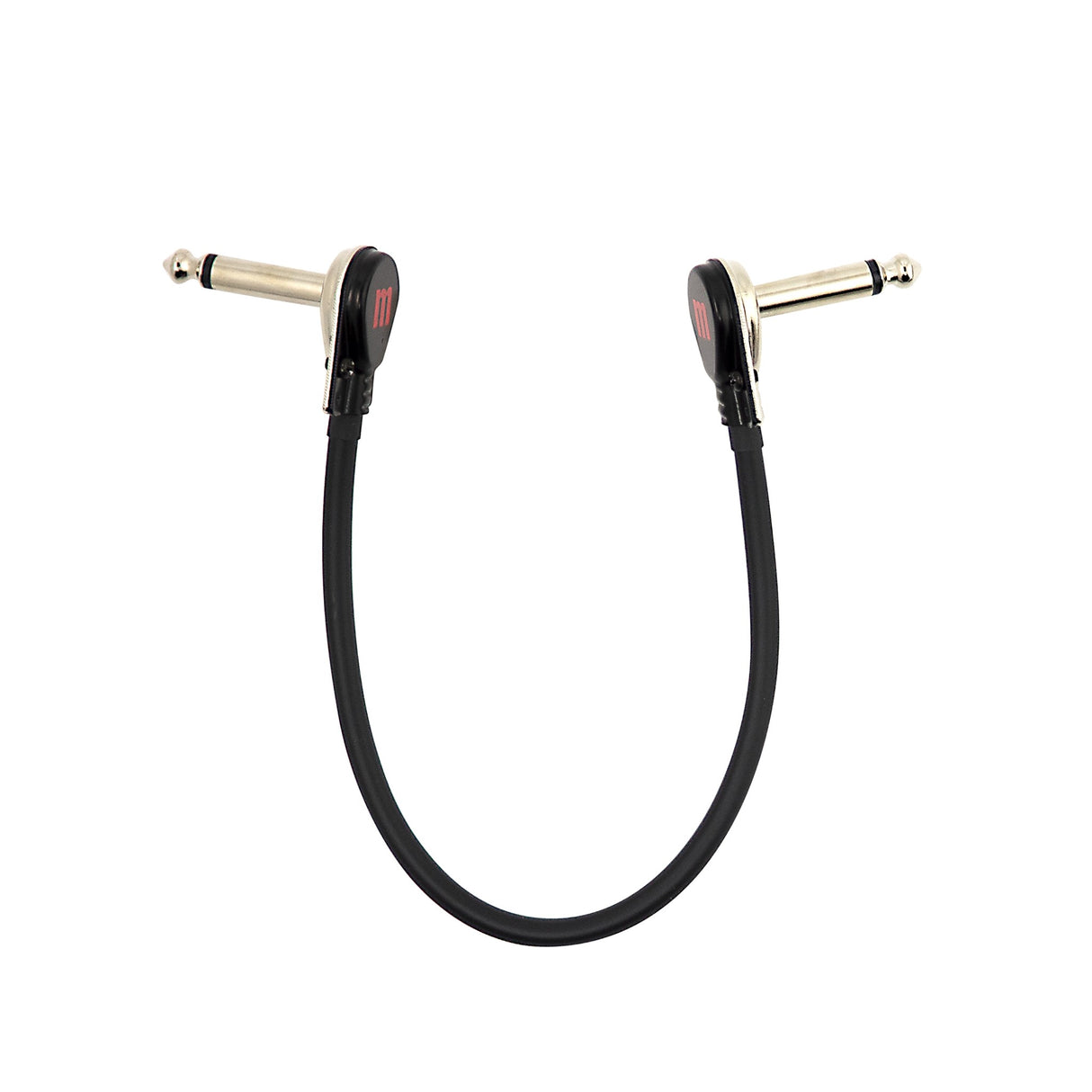

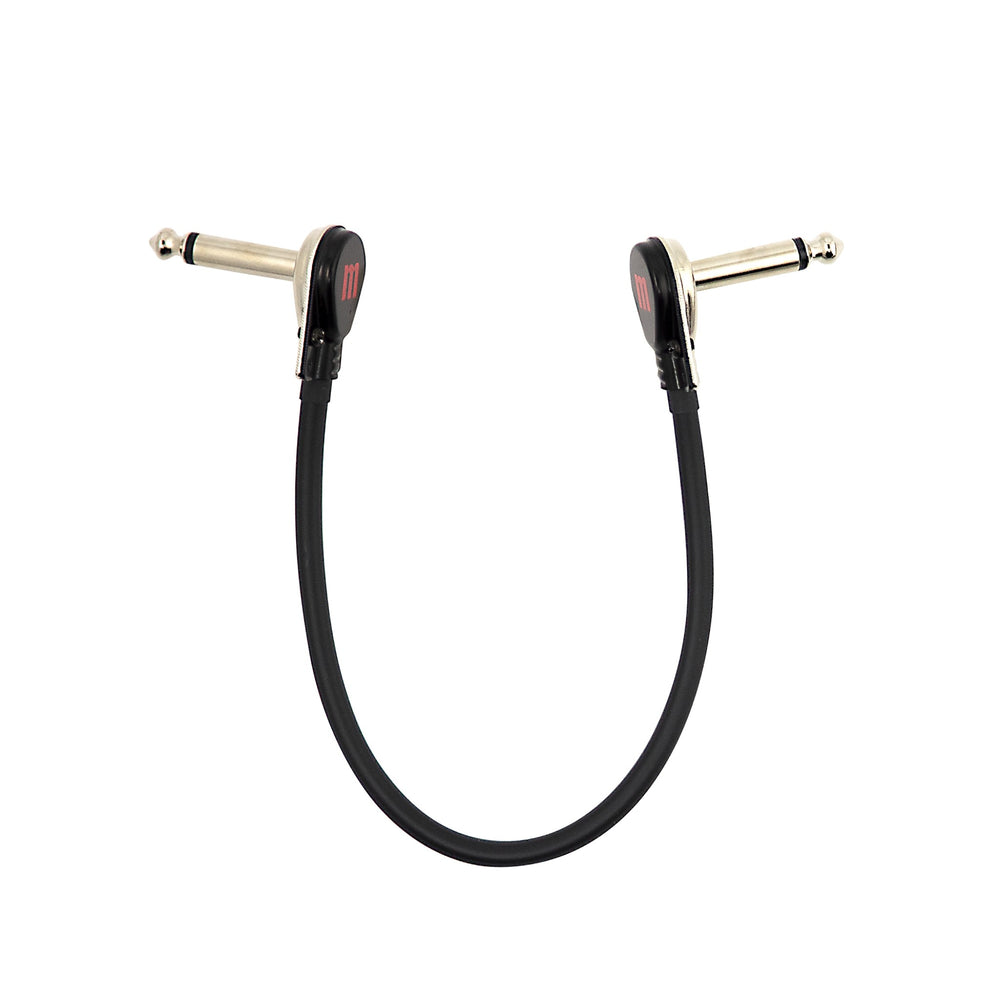

Mogami Gold Pedal SLP 10" Super Low Profile Patch Cable

Mogami Gold Pedal SLP 10-Inch Super Low Profile Pedalboard Patch Cable

The Mogami Gold Pedal SLP 10-inch patch cable is designed for guitarists and bassists who need a professional-grade, low-profile signal connection between effects pedals spaced slightly further apart on a standard pedalboard. Built on the W2319 instrument cable with an oxygen-free copper core and terminated in Minicake 90-degree low-silhouette plugs, it handles moderate inter-pedal distances without adding bulk or signal degradation.

For players comparing the best 10-inch patch cable for pedalboard signal chain builds, the SLP design solves the most common frustration with standard right-angle cables: plug height that lifts the cable off the board and creates tension on adjacent jacks. The Minicake connector's reduced vertical profile sits flush against the pedal chassis, keeping cables organized and reducing mechanical stress on jack sockets during transport and performance.

The W2319's carbon-impregnated PVC sub-shield actively drains vibration-induced microphonic noise - the voltage generated when a cable is bent, stepped on, or handled - before it enters the signal path. This construction is particularly valuable in live performance environments where pedalboard cables routinely experience foot traffic and physical contact. Combined with Mogami's ultra high-density spiral shield, the 10-inch SLP delivers the silent, transparent background that professional touring rigs demand.

Key Features - Mogami Gold Pedal SLP 10-Inch Low Profile Instrument Cable

• 10-Inch Length for Moderate Pedal Spacing: Covers standard inter-pedal distances on full-size pedalboards without excess cable that bunches or interferes with neighboring connections.
• Mogami W2319 OFC Conductor: Oxygen-free copper at 0.305mm² (#23 AWG) delivers the low-resistance, high-transparency signal transfer that defines Mogami's Gold series reputation.
• Minicake 90-Degree Plugs: Ultra-compact right-angle connectors reduce connector profile height, keeping the pedalboard surface clean and organized with cables lying flat.
• Carbon PVC Microphonic Noise Drain: The conductive sub-shield layer captures and dissipates vibration-induced noise before it reaches the inner conductor, keeping the signal path silent under live performance conditions.
• Lifetime Warranty: Mogami's lifetime warranty covers the cable against manufacturing defects, reflecting the durability expected by professional touring and session musicians.

Technical Specifications - W2319 Cable

• Cable Series: Mogami Gold Pedal SLP
• Base Cable: Mogami W2319
• Length: 10 inches
• Connector Type: Minicake 90-Degree (Right Angle to Right Angle)
• Conductor: 12/0.18TA, 0.305mm² (#23 AWG), Oxygen-Free Copper
• Insulation Material: PE (Polyethylene), Clear
• Sub-Shield: Conductive PVC (Carbon PVC), 1.8mm O.D.
• Main Shield: Served Shield, Approx. 38/0.16TA
• Jacket: PVC, Black, 5.0mm O.D. (0.197")
• Capacitance: 155 pF/m (47.3 pF/ft) at 1kHz
• DC Resistance (Inner Conductor): 0.064 ohm/m (0.020 ohm/ft)
• DC Resistance (Shield): 0.026 ohm/m (0.0079 ohm/ft)
• Inductance: 0.3 uH/m (0.092 uH/ft)
• Electrostatic Noise: 0.13 mV Max.
• Electromagnetic Noise at 10kHz: 0.07 mV Max.
• Microphonics: 0.3 mV Max.
• Voltage Breakdown: DC 500V / 15 sec.
• Insulation Resistance: 100,000 MOhm x m Min. at DC 500V
• Flex Life: 11,000 cycles
• Operating Temperature: -4 degrees F to +140 degrees F (-20 degrees C to +60 degrees C)
• Warranty: Lifetime
