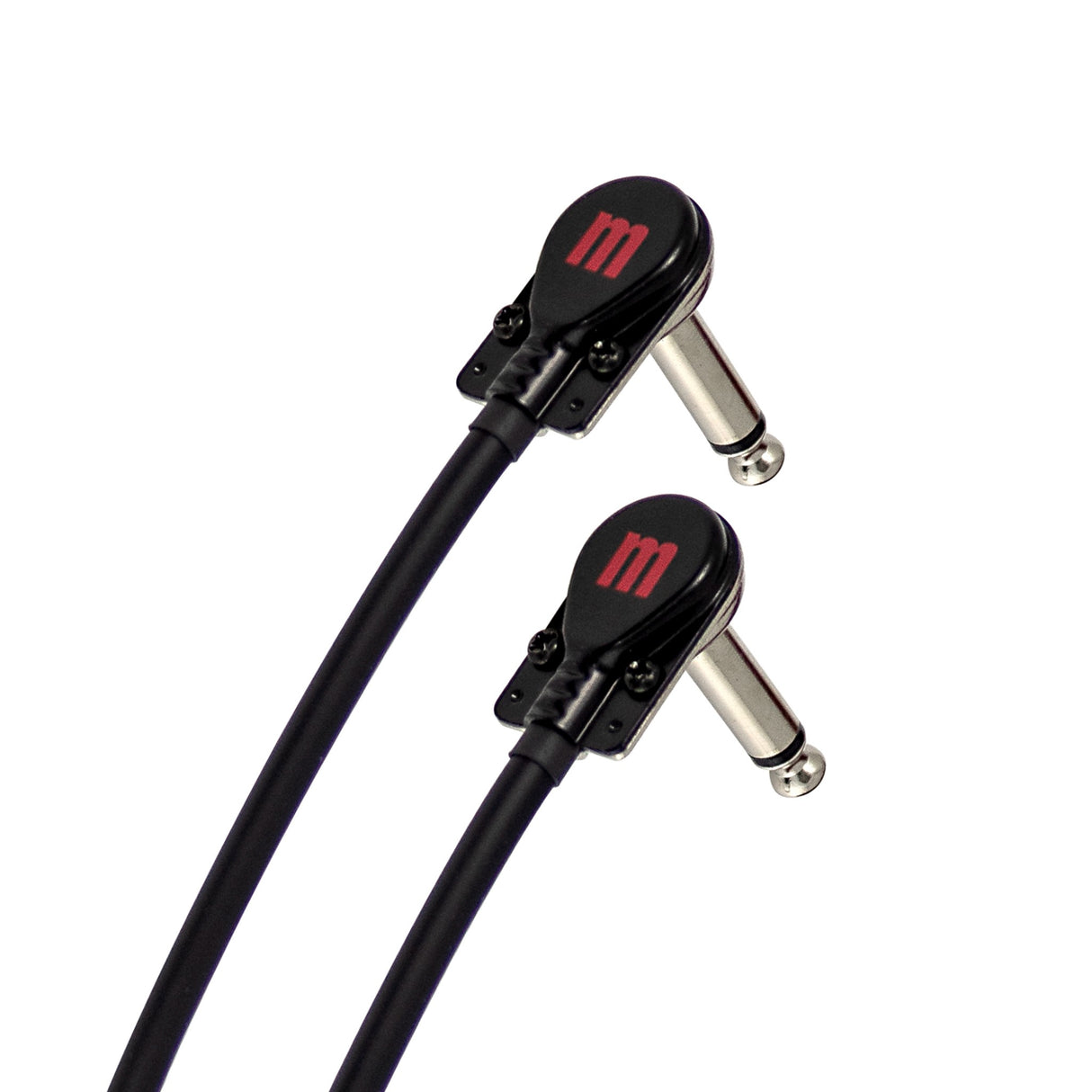

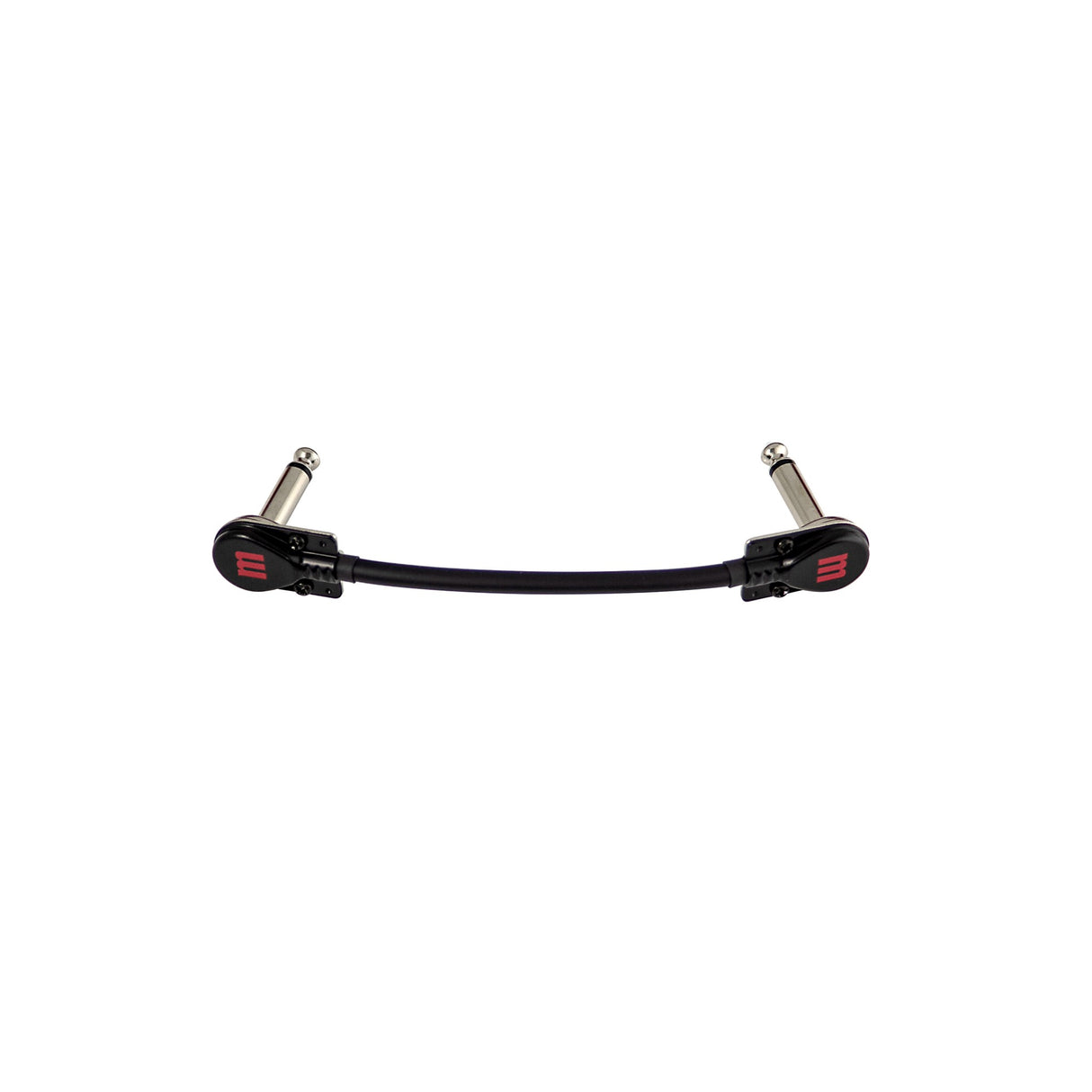

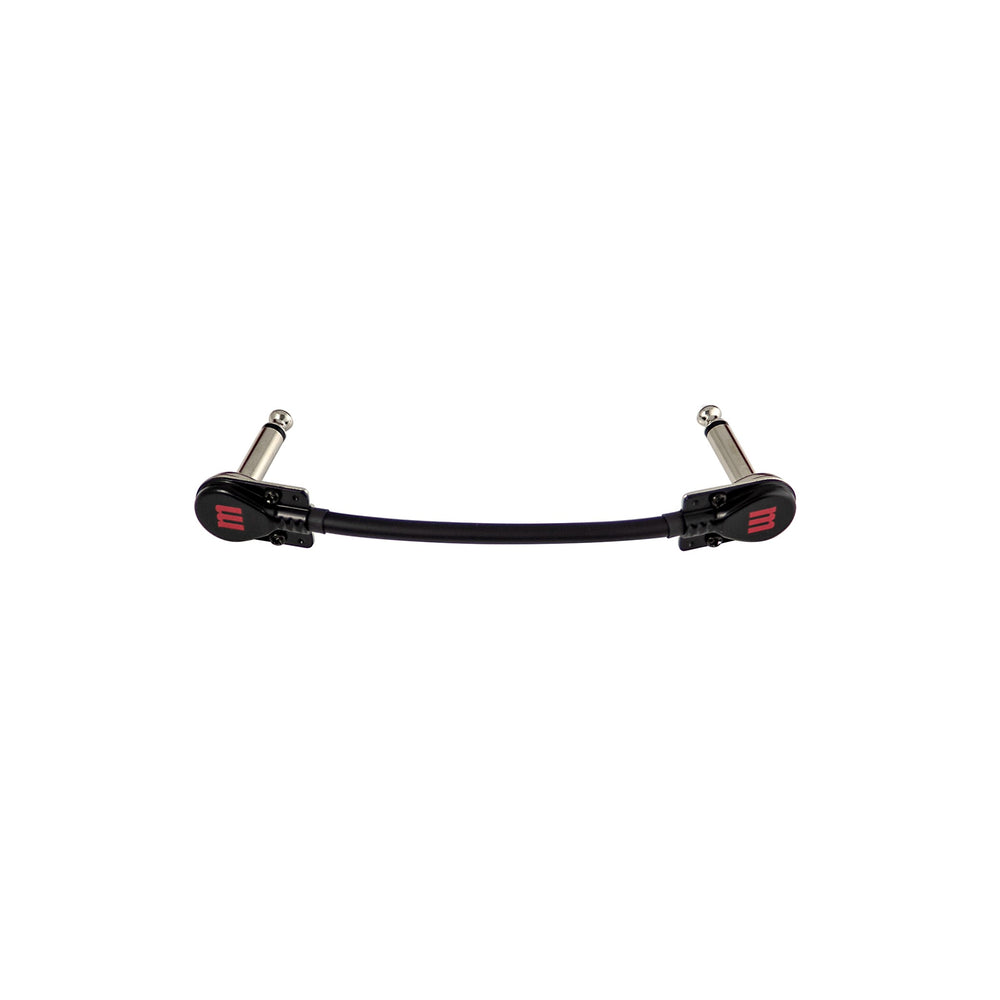

Mogami Gold Pedal SLP 5-Inch Super Low Profile Pedalboard Patch Cable
The Mogami Gold Pedal SLP 5-inch patch cable is the ideal choice for ultra-compact pedalboards where pedals sit side by side with virtually no gap between jacks. Built on Mogami's legendary W2319 instrument cable with oxygen-free copper conductors and terminated in Minicake 90-degree low-silhouette plugs, it delivers transparent, noise-free signal transfer in the shortest profile possible.
For guitarists and bassists hunting the best ultra-low-profile patch cable for compact pedalboard builds, the SLP 5-inch eliminates the cable bulk that causes sag, tangling, and signal interference on crowded boards. The Minicake plug's reduced footprint lets adjacent pedals sit flush without the connector stress that standard right-angle plugs impose - a critical advantage when using nano or mini-format effects in a high-density arrangement.
At the core, the W2319 cable uses a carbon-impregnated PVC sub-shield layer that drains vibration-induced (microphonic) noise before it reaches the signal conductor - a construction technique that distinguishes Mogami from conventional patch cables. An ultra high-density spiral shield further rejects electromagnetic interference across the entire signal chain, and the OFC core ensures maximum transparency without coloration or high-frequency rolloff.
Key Features - Mogami Gold Pedal SLP Low Profile Patch Cable
- Mogami W2319 OFC Core: Oxygen-free copper conductors deliver maximum signal transparency with no coloration, preserving the full frequency response of your instrument and effects chain.
- Minicake 90-Degree Low-Silhouette Plugs: Extra-compact right-angle connectors keep the cable completely flush to the pedal jack, enabling tighter spacing than standard RA plugs allow.
- Carbon-Impregnated PVC Sub-Shield: Drains vibration-induced microphonic noise before it reaches the signal conductor, eliminating handling noise that plagues lesser instrument cables.
- Ultra High-Density Spiral Shield: Provides comprehensive rejection of electromagnetic and electrostatic interference across the full audio bandwidth.
- Lifetime Warranty: Backed by Mogami's industry-leading lifetime warranty, confirming build quality trusted by professional touring and studio musicians worldwide.
Technical Specifications - W2319 Cable
- Cable Series: Mogami Gold Pedal SLP
- Base Cable: Mogami W2319
- Length: 5 inches
- Connector Type: Minicake 90-Degree (Right Angle to Right Angle)
- Conductor: 12/0.18TA, 0.305mm² (#23 AWG), Oxygen-Free Copper
- Insulation Material: PE (Polyethylene), Clear
- Sub-Shield: Conductive PVC (Carbon PVC), 1.8mm O.D.
- Main Shield: Served Shield, Approx. 38/0.16TA
- Jacket: PVC, Black, 5.0mm O.D. (0.197")
- Capacitance: 155 pF/m (47.3 pF/ft) at 1kHz
- DC Resistance (Inner Conductor): 0.064 ohm/m (0.020 ohm/ft)
- DC Resistance (Shield): 0.026 ohm/m (0.0079 ohm/ft)
- Inductance: 0.3 uH/m (0.092 uH/ft)
- Electrostatic Noise: 0.13 mV Max.
- Electromagnetic Noise at 10kHz: 0.07 mV Max.
- Microphonics: 0.3 mV Max.
- Voltage Breakdown: DC 500V / 15 sec.
- Insulation Resistance: 100,000 MOhm x m Min. at DC 500V
- Flex Life: 11,000 cycles
- Operating Temperature: -4 degrees F to +140 degrees F (-20 degrees C to +60 degrees C)
- Warranty: Lifetime
