Mogan Omnidirectional Shure Earset Microphone Beige
Authorized Dealer
Free Shipping
In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description

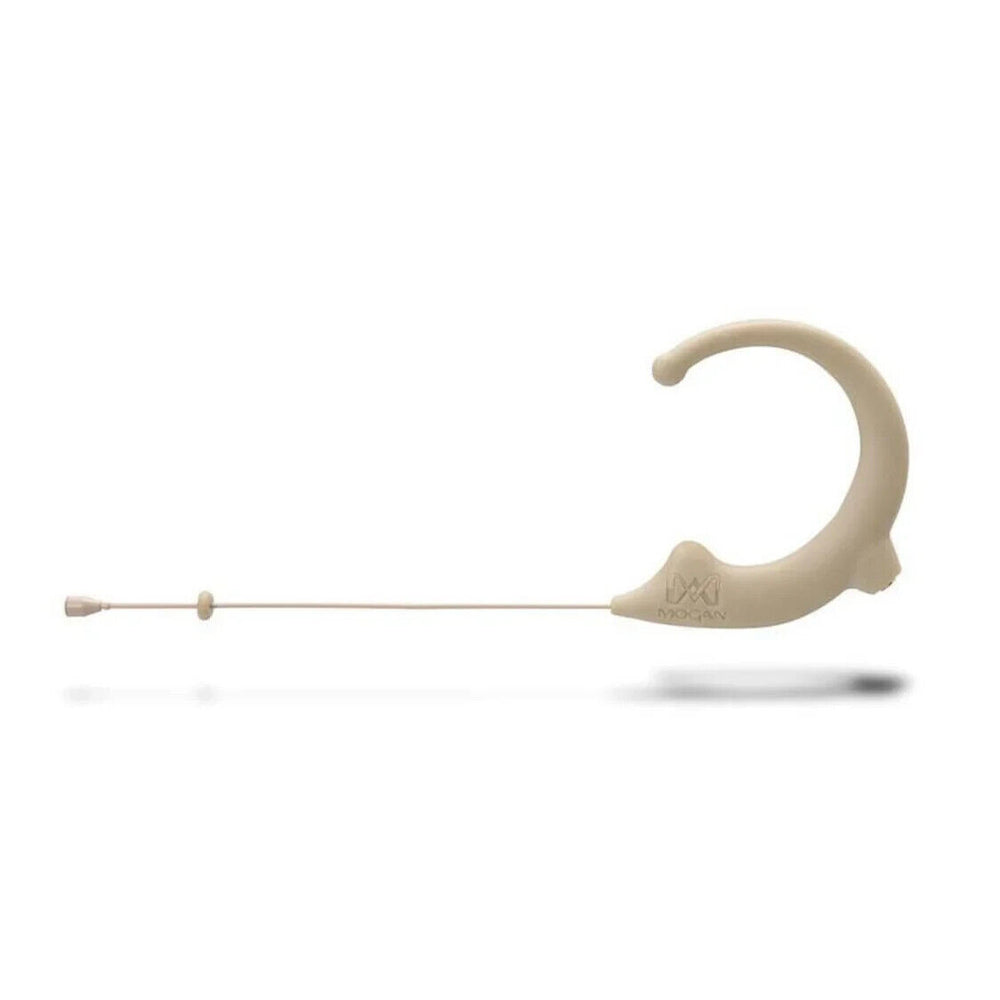

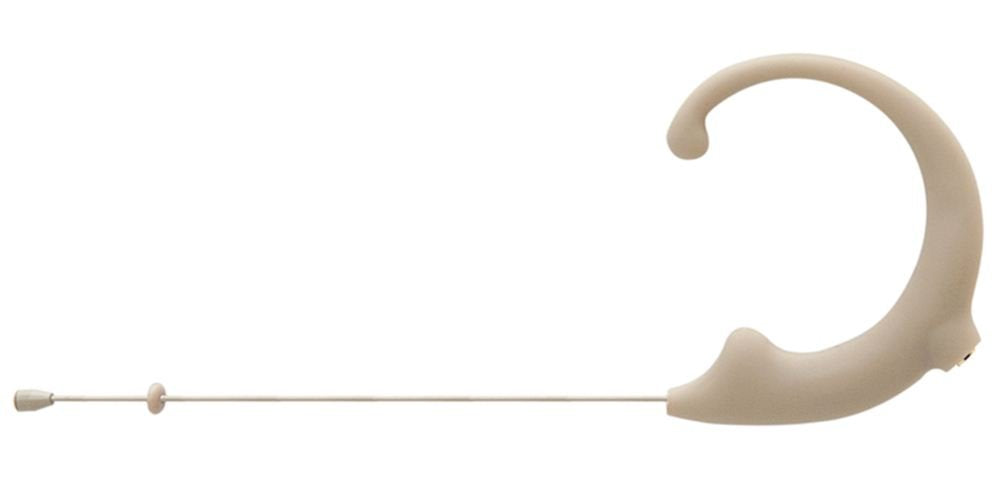

Mogan EAO-BG-SH Omnidirectional Shure Earset Microphone Beige
The Mogan Standard Omni Earset Microphone offers exceptional performance and unbeatable value. Featuring a 3.0 mm Omni condenser capsule, it delivers exceptional audio quality to budget-conscious presenters. A flexible boom and earpiece enables positioning on one’s left or right ear for best-in-class stability and comfort. Mogan’s interchangeable cable system enables one to connect a single microphone to most popular wireless transmitters. It is ideal for the stage, pulpit, classroom, or podcast studio.
Key Features
- Beige, TA4F Shure Connector
- High-quality capsule
- Flexible boom and earpiece
- Interchangeable cable with connector
- Polar Pattern: Omni-directional
Technical Specifications
Capsule
Back-electret condenser
Polar Pattern
Omni-directional
Frequency Response
50 Hz to 16 kHz
Sensitivity
-44 - 3 dB re 1 V/Pa
Equivalent Noise Level
39 dB (A-weighted)
Signal-to-Noise Ratio
60 dB
Output Impedance
2.2 K 30%
Maximum SPL
96 dB
Operating Current
<100 mA
Power Requirement
1.5 VDC (opt), 5 VDC (max)
Color
Beige
Overall Length
155 mm
Boom Length
110 mm
Capsule Diameter
3.0 mm
Connector Type
Compact-screw
Cable Length
1.8 m (6 ft)
Cable Diameter
1.2 mm
Weight
15 g
Installation / Use Cases
- Use the omnidirectional earset microphone for presentations, houses of worship, classrooms, stage performance, and podcast or speaking applications.
- Connect the TA4F-equipped cable to a compatible Shure wireless bodypack transmitter for hands-free voice capture.
- Adjust the flexible boom and earpiece for comfortable positioning on either the left or right ear.
- Use the lightweight earset when a discreet beige microphone is preferred for presentations, theater, or other visible performance environments.
Package Contents
- Mogan EAO-BG-SH Omnidirectional Shure Earset Microphone Beige
Frequently Asked Questions
What type of microphone is the Mogan EAO-BG-SH?
It is a back-electret condenser earset microphone with an omnidirectional pickup pattern.
What connector does the EAO-BG-SH use?
This Shure version uses a TA4F connector for compatible Shure wireless bodypack transmitters.
What size microphone capsule does it use?
The earset uses a compact 3.0 mm condenser capsule.
What is the frequency response of the Mogan earset?
The specified frequency response is 50 Hz to 16 kHz.
Can the earset be worn on either ear?
Yes. The flexible boom and earpiece can be positioned for use on the left or right ear.
How long is the microphone cable?
The specified cable length is 1.8 meters, or approximately 6 feet.
