MOTU M4 4‑Channel USB Audio Interface - High-Performance USB-C 4-In/4-Out Audio Interface

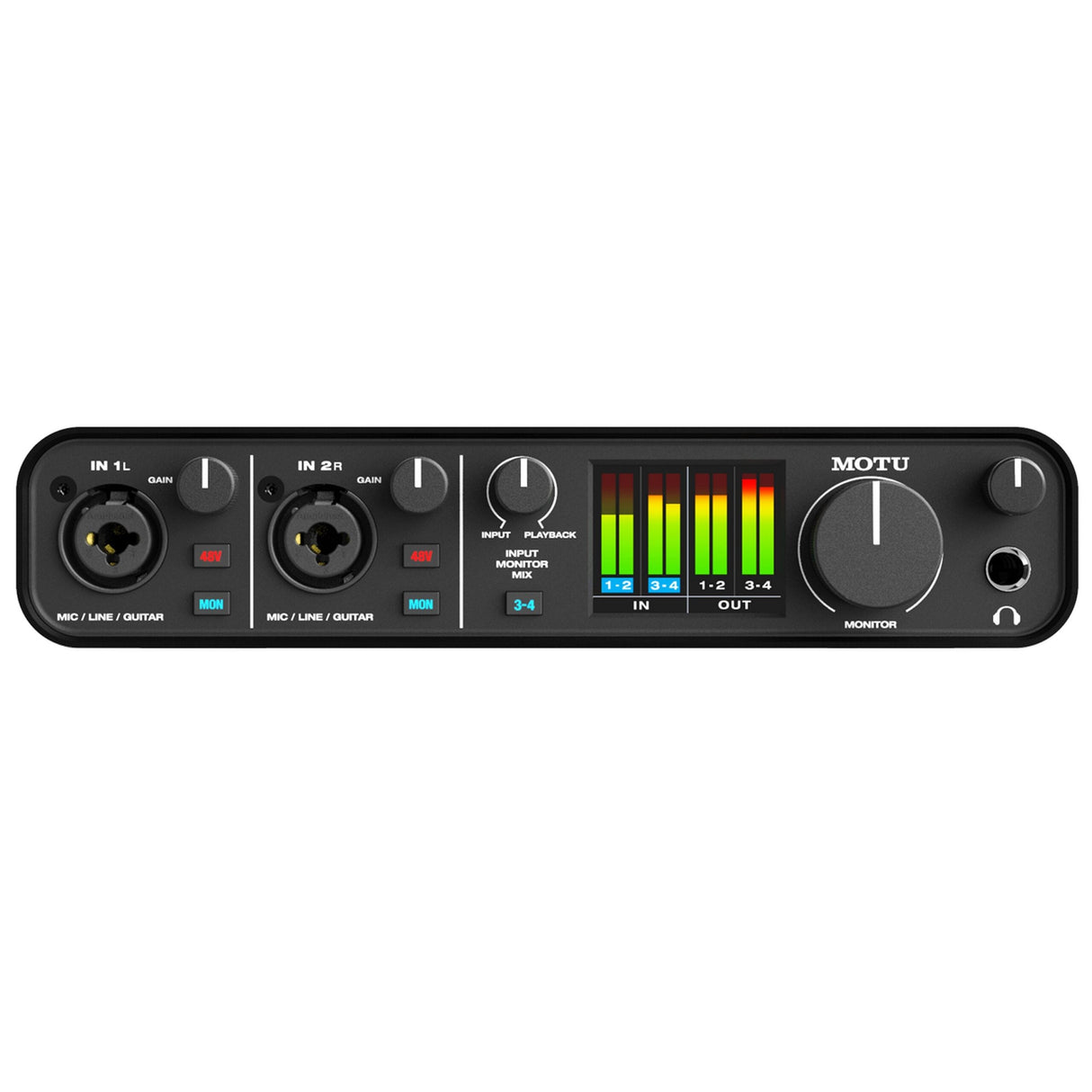

MOTU M4 4-Channel USB Audio Interface

The MOTU M4 4-Channel USB Audio Interface is designed to deliver top-notch audio quality and performance for musicians, producers, and podcasters alike. Equipped with the cutting-edge ESS Sabre32 Ultra DAC Technology, it provides an impressive 120 dB dynamic range on its main outputs. This technology also powers the headphone output, ensuring that you get the highest quality sound, comparable to dedicated headphone amplifiers that come with a hefty price tag. Whether you're capturing audio or monitoring your projects, the M4 ensures pristine clarity with its ultra-clean preamp circuits, producing a measured -129 dBu EIN on the mic inputs.

With the MOTU M4, you can enjoy the benefits of class-leading speed, significantly reducing latency and providing real-time monitoring of live inputs. This means you'll only experience an ultra-low 2.5 ms Round Trip Latency when processing through your host software at 96 kHz with a 32 sample buffer. This audio interface stands out with its full-color LCD screen that gives detailed level meters for all inputs and outputs, making it easier to manage your levels accurately. Professional volume control and immediate feedback ensure your mixes are always spot on.

The M4 is also a content creator’s best friend. Its driver comes with loopback channels enabling you to route computer output back into your host software, facilitating seamless live streaming and podcasting. These features, combined with its rugged metal construction and portability, make the MOTU M4 a versatile tool for any audio professional looking for superior performance and reliable results.

Key Features

• 4-In / 4-Out USB Audio Interface: Studio-quality USB audio interface with four inputs and four outputs
• ESS Sabre32 Ultra DAC: High-performance digital-to-analog conversion for best-in-class audio quality
• Ultra-Low Latency Recording: 2.5 ms round-trip latency at 96 kHz with a 32-sample buffer
• Full-Color LCD Metering: High-resolution display for precise input and output level monitoring
• Combo Mic / Line / Hi-Z Inputs: Two XLR/TRS combo inputs for microphones, line-level sources, or guitars
• Individual Preamp Gain & Phantom Power: Independent gain controls and +48V phantom power per input
• Balanced Line Inputs: Two balanced 1/4-inch line-level inputs
• Hardware Input Monitoring: Direct hardware monitoring for each input channel
• Monitor Mix Control: Dedicated knob for blending live inputs with computer playback
• Low-Noise Microphone Preamps: Measured -129 dB equivalent input noise on mic inputs
• Balanced DC-Coupled Outputs: Four balanced 1/4-inch TRS outputs suitable for control voltage applications
• High Dynamic Range Outputs: Measured 120 dB dynamic range on TRS outputs
• Mirrored RCA Outputs: Four RCA analog outputs mirrored from the main outputs
• Dedicated Headphone Output: Front-panel headphone jack with independent volume control
• MIDI Interface Built In: Standard MIDI input and output for controllers and external gear
• High-Resolution Sample Rates: Supports sample rates from 44.1 kHz up to 192 kHz
• Mac & iOS Compatibility: USB audio class-compliant operation with macOS and iOS devices
• Windows Low-Latency Driver: Dedicated Windows driver optimized for ultra-low latency performance
• Mac Loopback Support: Optional macOS driver enables loopback and 2.5 ms RTL operation
• USB-C Bus Power: Powered directly via USB-C with an integrated power switch
• Metal Chassis Construction: Durable metal enclosure for studio and mobile use
• Included Recording Software: Bundled MOTU Performer Lite 10 and Ableton Live Lite 10
• Sound Library Included: Over 100 instruments and 6GB of loops, samples, and one-shots
• Kensington Security Slot: Built-in security slot for physical theft protection
• Made in the USA: Designed and built in the USA with a two-year warranty

Technical Specifications

• Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• Mic / Line / Guitar Inputs: 2 x XLR/TRS combo jacks
• Analog Line Inputs: 2 x 1/4-inch line inputs
• Analog Outputs: 4 x balanced 1/4-inch TRS (DC-coupled), 4 x RCA (mirrored)
• Computer Connection: USB-C (USB Type-A compatible), USB audio class compliant
• MIDI Connectivity: 1 x MIDI In, 1 x MIDI Out (16 channels)
• Headphone Output: 1 x 1/4-inch TRS stereo jack
• Phantom Power: Two individually switchable +48V channels
• Dimensions & Weight: 8.25 x 4.25 x 1.75 inches; 1.55 lbs (0.7 kg)
• Mac System Requirements: 1 GHz Intel-based Mac, 2 GB RAM (4 GB or more recommended), macOS 10.11 or later, available USB port, large hard drive (at least 500 GB for recording)
• Windows System Requirements: 1 GHz Pentium-based PC, 2 GB RAM (4 GB or more recommended), Windows 7, 8, or 10, available USB port, large hard drive (at least 500 GB for recording)
• Included Software: MOTU Performer Lite, Ableton Live 10 Lite, 6GB of loops and sounds

Package Contents

• MOTU M4 4-Channel USB Audio Interface
• USB cable
• MOTU Performer Lite software
• Ableton Live Lite 10 software
• Instruction manual
