MOTU M64 MADI / USB / AVB-TSN Ethernet Audio Interface with DSP and Mixing

The M64 is a flexible MADI interface, router, repeater, splitter, converter and mixer with AVB/TSN networking. It is ideal for routing MADI digital audio streams in live performance systems, network installations or recording studios of any size.

The M64 delivers optical MADI (64 channels in and out), plus independent coaxial MADI (64 channels in and out) with an extra duplicate BNC output, in all standard formats and sample rates.

high-performance computer connectivity
New, optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the M64 delivers an astonishing round trip latency (RTL) of 1.70 ms (milliseconds) on OS X and 1.71 ms on Windows over USB (at 96 kHz with a 32-sample host buffer).

Technical Specifications

Sample rates
44.1, 48, 88.2, 96, 176.4, 192 kHz

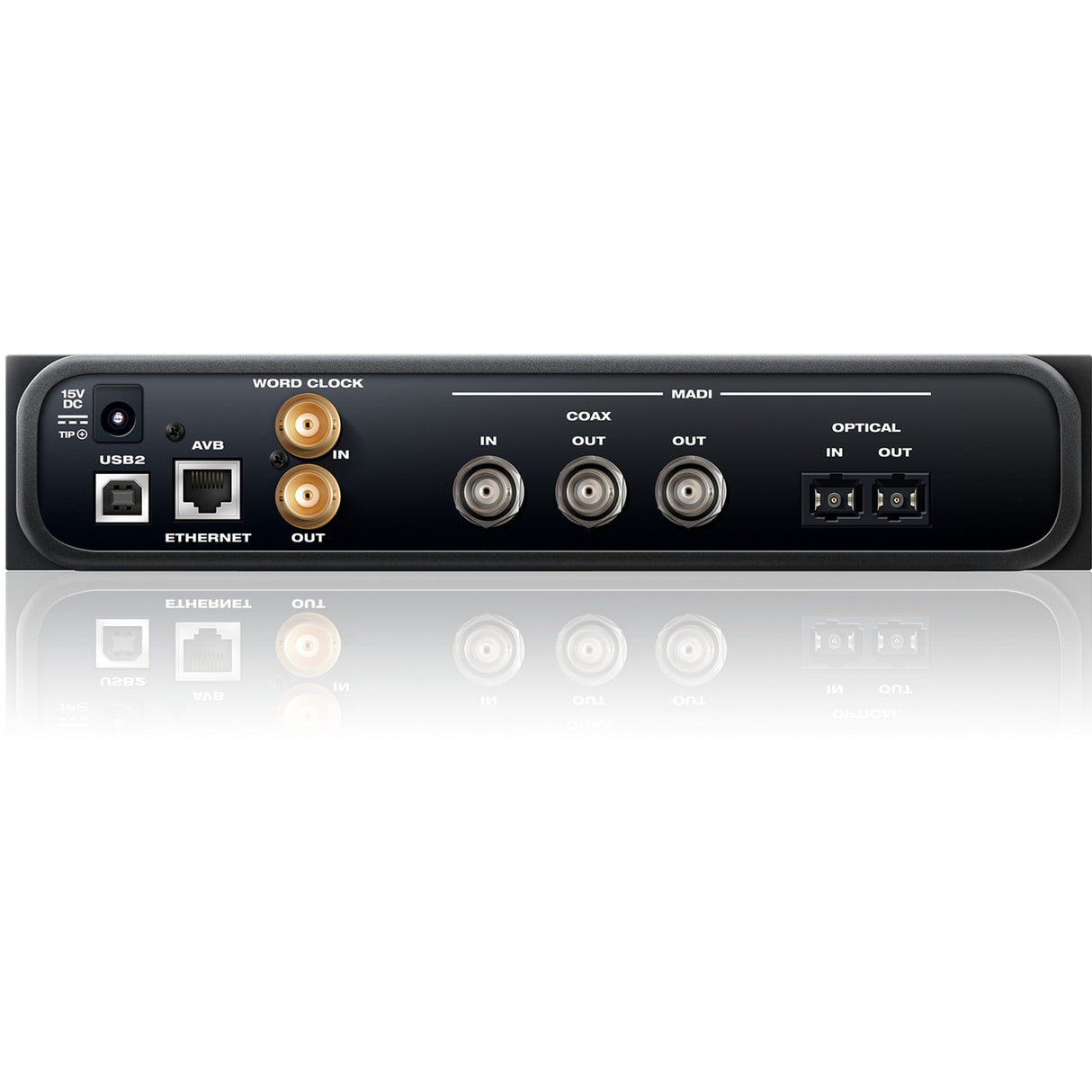

Digital I/O
1x BNC MADI in
2x BNC MADI out (mirrored)
1x optical MADI in/out
64/56 ch @ 1x, 32/28 @ 2x, 16/14 @ 4x
Total I/O
128 in / 128 out (256 total) at 1x sample rates
64 in / 64 out (128 total) at 2x sample rates
32 in / 32 out (64 total) at 4x sample rates
Computer I/O
1 x USB 2.0 audio class compliant
USB 3.0 and iOS compatible
Computer I/O channels
64 in/out at 1x (44.1 to 48 kHz)
32 in/out at 2x (88.2 to 96 kHz)
24 in/out at 4x (176.4 to 192 kHz)
Headphone
1 x 1/4" TRS stereo phone (assignable)
Network I/O
1 x RJ45 AVB/TSN Ethernet (1 Gbps)
AVB streams (8 channels per stream)
8 in / 8 out @ 44.1 or 48 kHz
8 in / 8 out @ 88.2 or 96 kHz
4 in / 4 out @ 176.4 or 192 kHz

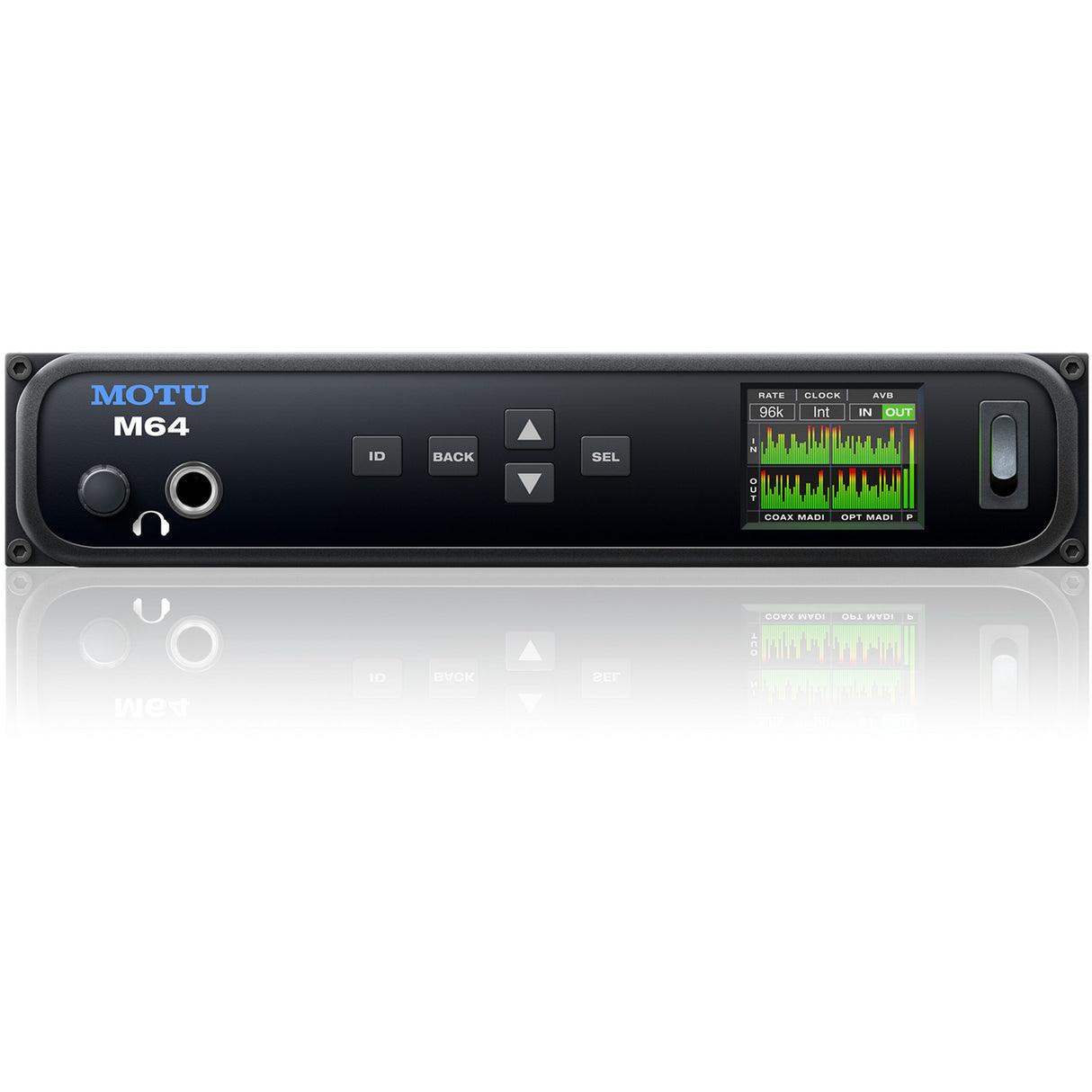

Front panel
1 x 1/4" TRS headphone output
4x switches for menu navigation
160 x 128 RGB LCD for level meters / menu
Power
External 12-18V DC power supply
1.0A max tip pos or neg
Dimensions and weight
(width x depth x height, enclosure only)
8.6 x 7 x 1.75 inches
22 x 17.75 x 4.5 cm
2.0 lbs / 0.9 kg
Mac System Requirements
1 GHz Intel-based Mac or faster
2 GB RAM; 4 GB or more recommended
Mac OS X version 10.8 or later
Available USB 2.0 or 3.0 port
A large hard drive (at least 500 GB for recording)
Windows System Requirements
1 GHz Pentium-based PC compatible or faster
2 GB RAM; 4 GB or more recommended
Windows 7, 8 or 10
Available USB 2.0 or 3.0 port
A large hard drive (at least 500 GB for recording)
Web App Support
Any web client platform: Mac, Windows, Linux, iOS, Android
Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
Included Software
MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
MOTU Discovery App for iOS (available from Apple App Store)
MOTU Pro Audio Control web app (served from the hardware itself)
MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)
AudioDesk 4.0 for Mac & PC (separate download)
Operating Systems
For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
For web app control: Mac, Windows, Linux, iOS, Android
