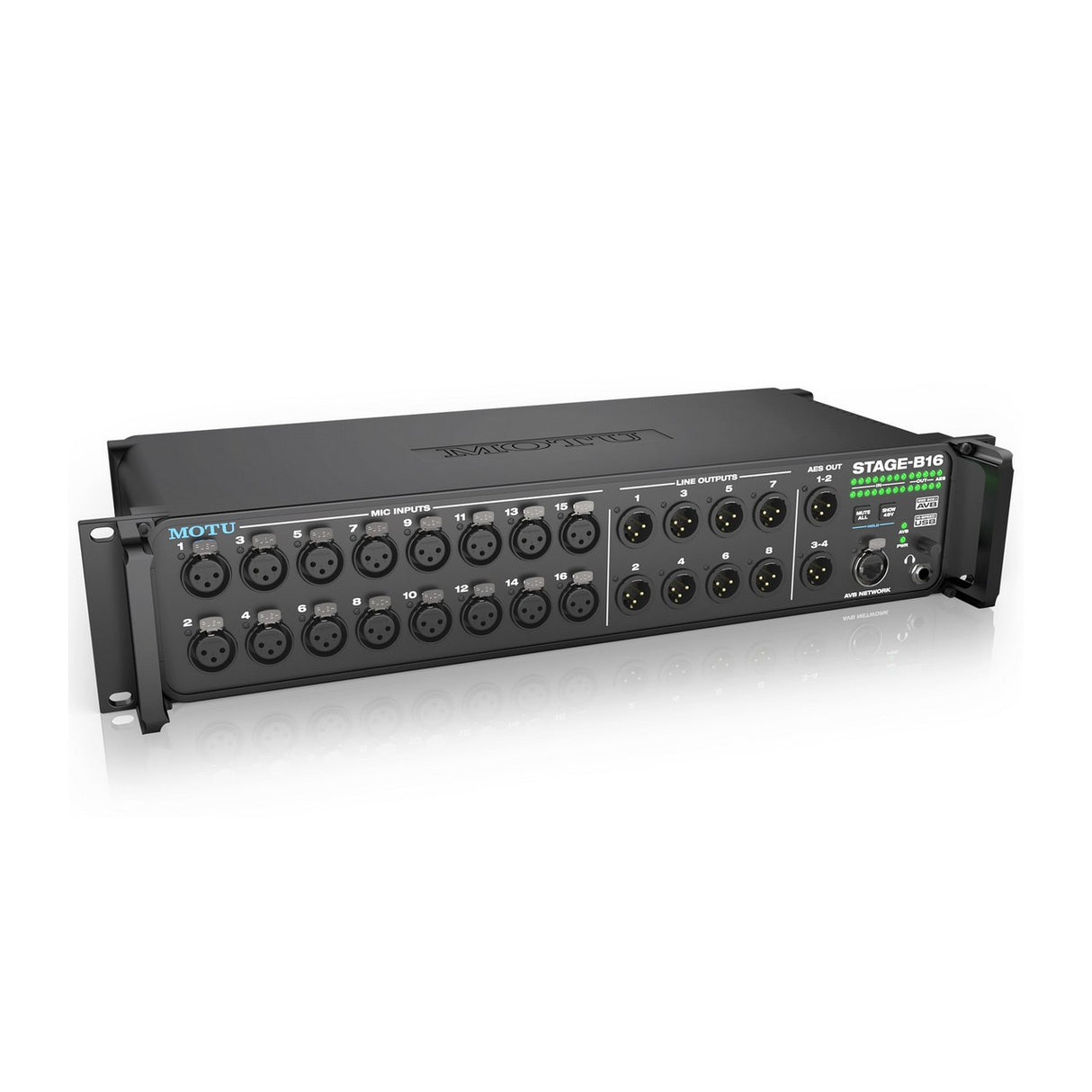

MOTU Stage-B16 16 Channel Stage Box Mixer Audio Interface

MOTU Stage-B16 | 16 Channel Stage Box Mixer Audio Interface

The MOTU Stage-B16 is an advanced multi-functional stage box mixer audio interface designed to deliver unparalleled audio performance. Engineered with precision, this powerhouse device combines the functionalities of a 16-input stage box, a 12-bus digital mixer, and a universally compatible USB audio interface for both Mac and Windows. Whether you're in a high-end studio or performing live on the world's biggest stages, the Stage-B16 sets a new benchmark in analog audio quality.

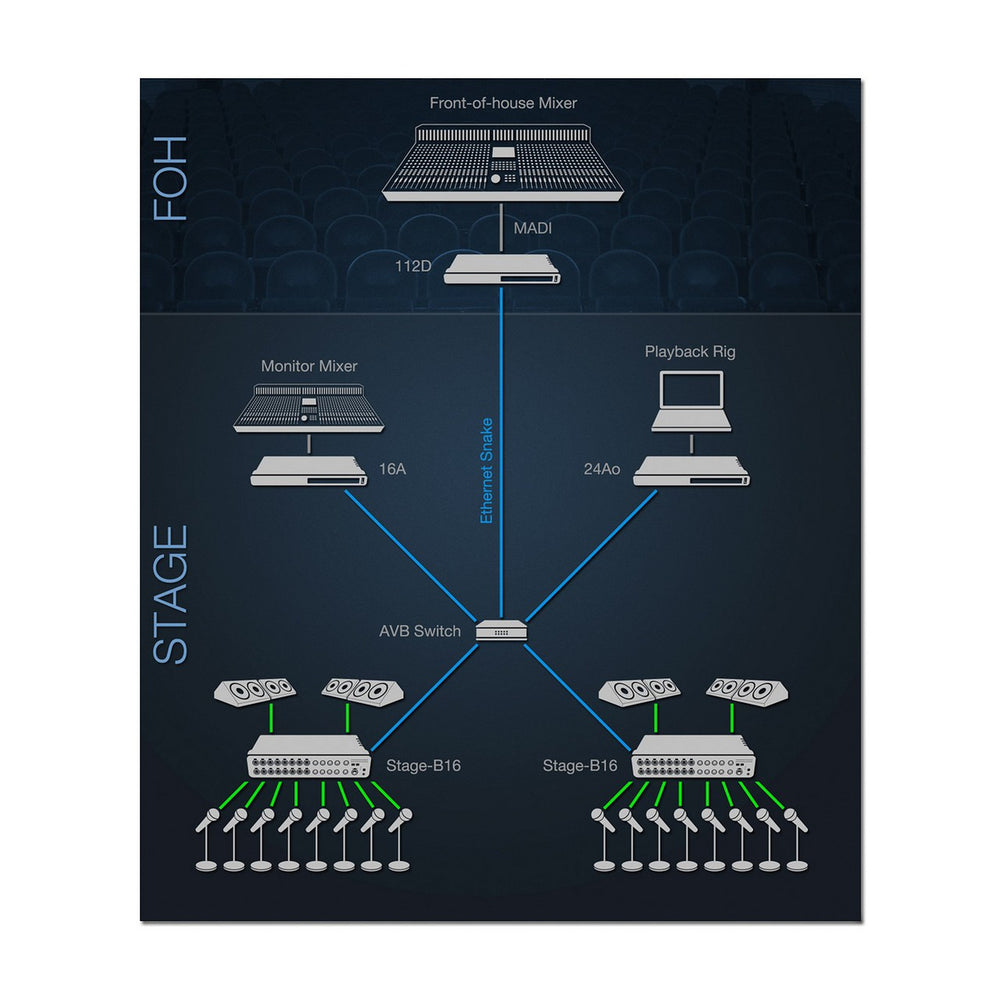

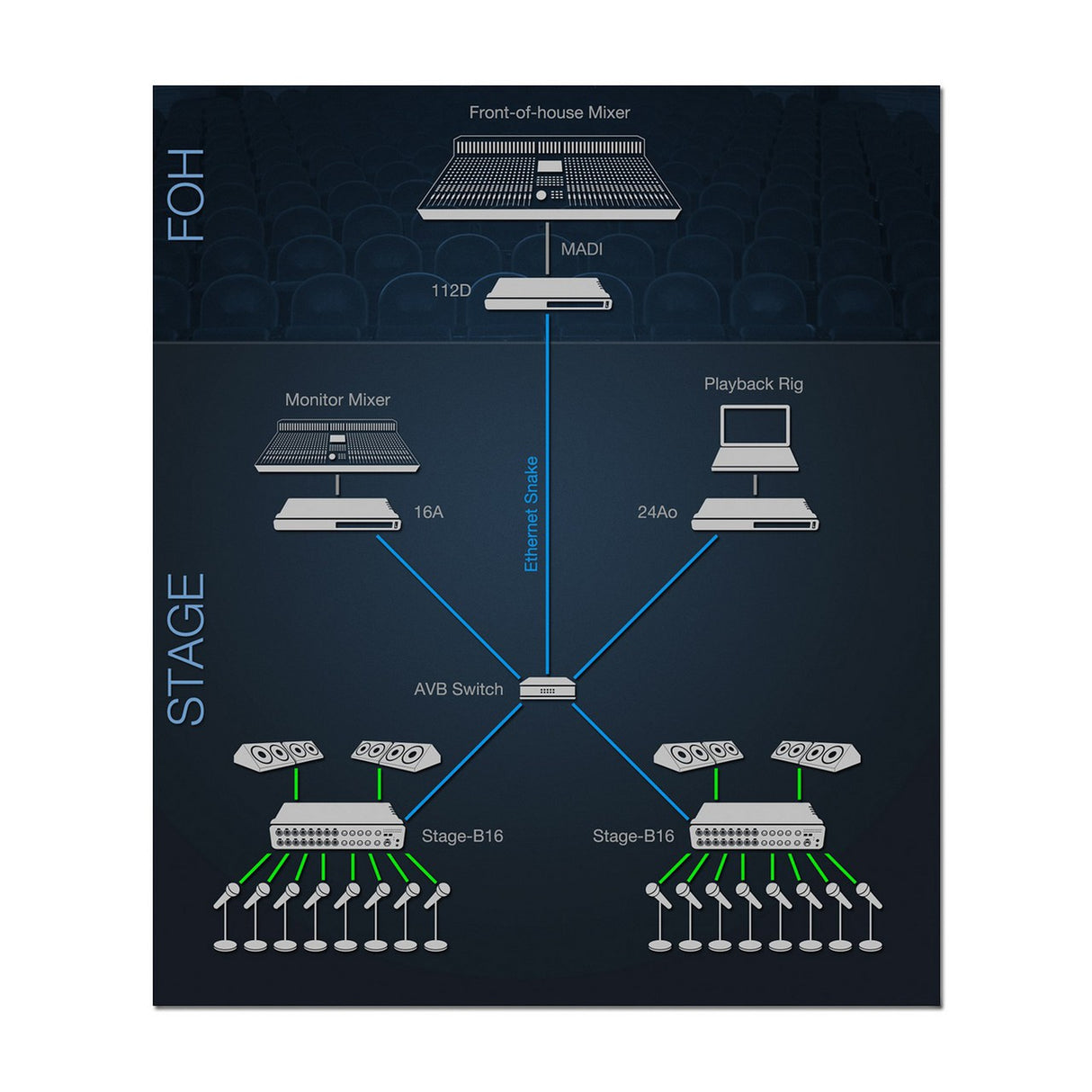

Featuring a robust and rugged design, the Stage-B16 incorporates state-of-the-art AVB networking technology, allowing mic signals to be transmitted over standard Ethernet cabling up to 100 meters. This enables connectivity with front-of-house mixing consoles, monitor mix consoles, and computer-based recording rigs. The on-board DSP offers a 48-input digital mixer modeled after large-format consoles, complete with 12 stereo buses and DSP effects such as reverb, EQ, gate, and compression. Moreover, the Stage-B16 can be wirelessly controlled via a web app on laptops, tablets, or smartphones, bringing unmatched convenience and flexibility to your audio setup.

Key Features

• Three products in one: DSP-equipped stage box with AVB Ethernet connectivity, 12-bus digital mixer with wireless control, and universally compatible audio interface for Mac and Windows.
• Studio-quality analog performance up to 192 kHz, with XLR analog outputs delivering 123 dB dynamic range.
• 16 studio-grade mic inputs, each with individual preamps, 48V phantom power, and -20dB pad.
• Precision Digital Trim for accurate preamp gain adjustments in 1 dB increments via a web app.
• On-board DSP with mixing and effects, including reverb, 4-band EQ, gate, and compression.
• Web app control from any device connected by wire or Wi-Fi to your local area network.
• Stand-alone operation with wireless control, using an Apple Airport or other Wi-Fi router.

Specifications

• Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• Mic Inputs: 16 x XLR mic inputs with 0 to +63 dB digitally controlled preamp gain
• Analog Outputs: 8 x XLR line out, 1 x 1/4" TRS stereo headphone
• Digital Output: 2 x XLR female AES/EBU out (4 ch) up to 96 kHz
• Total I/O: Up to 28 total channels at 1x sample rates

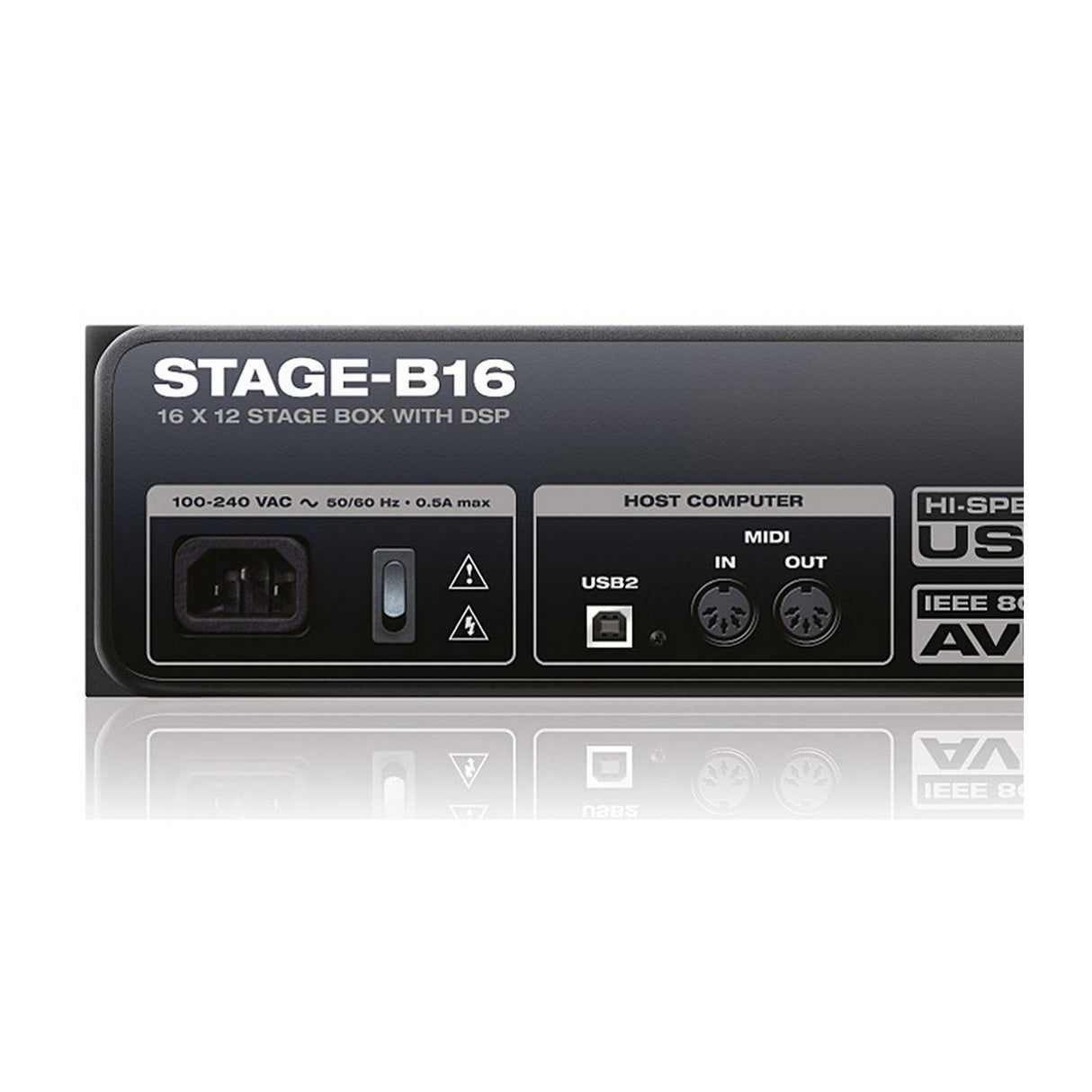

• Computer I/O: 1 x USB 2.0, 1 x AVB Ethernet
• MIDI I/O: 1 x MIDI IN, 1 x MIDI OUT
• Phantom Power: 16 x individual +48V
• Power: International 100-240V autoswitching supply
• Mac System Requirements: Mac OS X 10.8 or later, 1 GHz Intel-based Mac or faster
• Windows System Requirements: Windows 10, 8 or 7, 1 GHz Pentium-based PC or faster
• Included Software: MOTU AVB Discovery App, AudioDesk 4.0

Package Contents

• MOTU Stage-B16 unit
• Power supply with international adapters
• USB cable
• User manual
